1.How to choose a good relay

its quality mainly depends on the material and technology, choose a silver contact point makes the working life much longer, and machine core use pure copper wire, 30 and 87 pins use copper material too, then the relay can be used for 5-8 years. If add one more braided wire ,the power will be larger, so as the working life . If need matching with the OEMs , you can choose a larger particles of silver contact , using longer, but the price will be higher too .

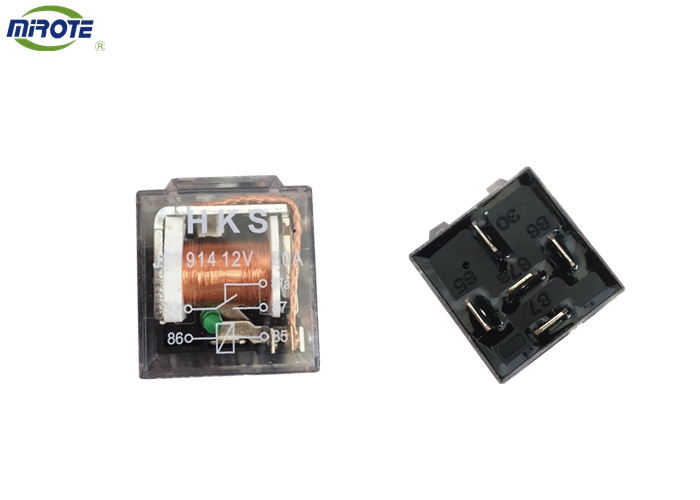

2. Relay circult

3. Parameter

Feature

high-capacity, 40A switching capability.

1 form A, 1 form B, 1 form C, 2 form A contact arrangement

Application Auto control device Size 28.0*28.0*25.0mm Ambient temperature -40°C~+125°C Contact Form 1a,1b,1c Contact Capacity

1a:40A 14VDC

1b:40A 14VDC

1c:30A/40A 14VDC

Coil Voltage 12VDC,24VDC,48VDC Coil Power 1.8W Contact Resistance ≤50mΩ Initial insulation resistance ≥1,00MΩ Life

Electrical Life 100,000ops

Mechanical Life 1,000,000ops

Dielectric strength

Between off-contact 500VAC

Between Coil contact 500VAC

Installing form

Tri-clamp connection, socket mount Environment Temperature -40°C~+125°C Weight 30g

4. Product packaging

Nowadays, package is important, and we can do customized packing for customer.
