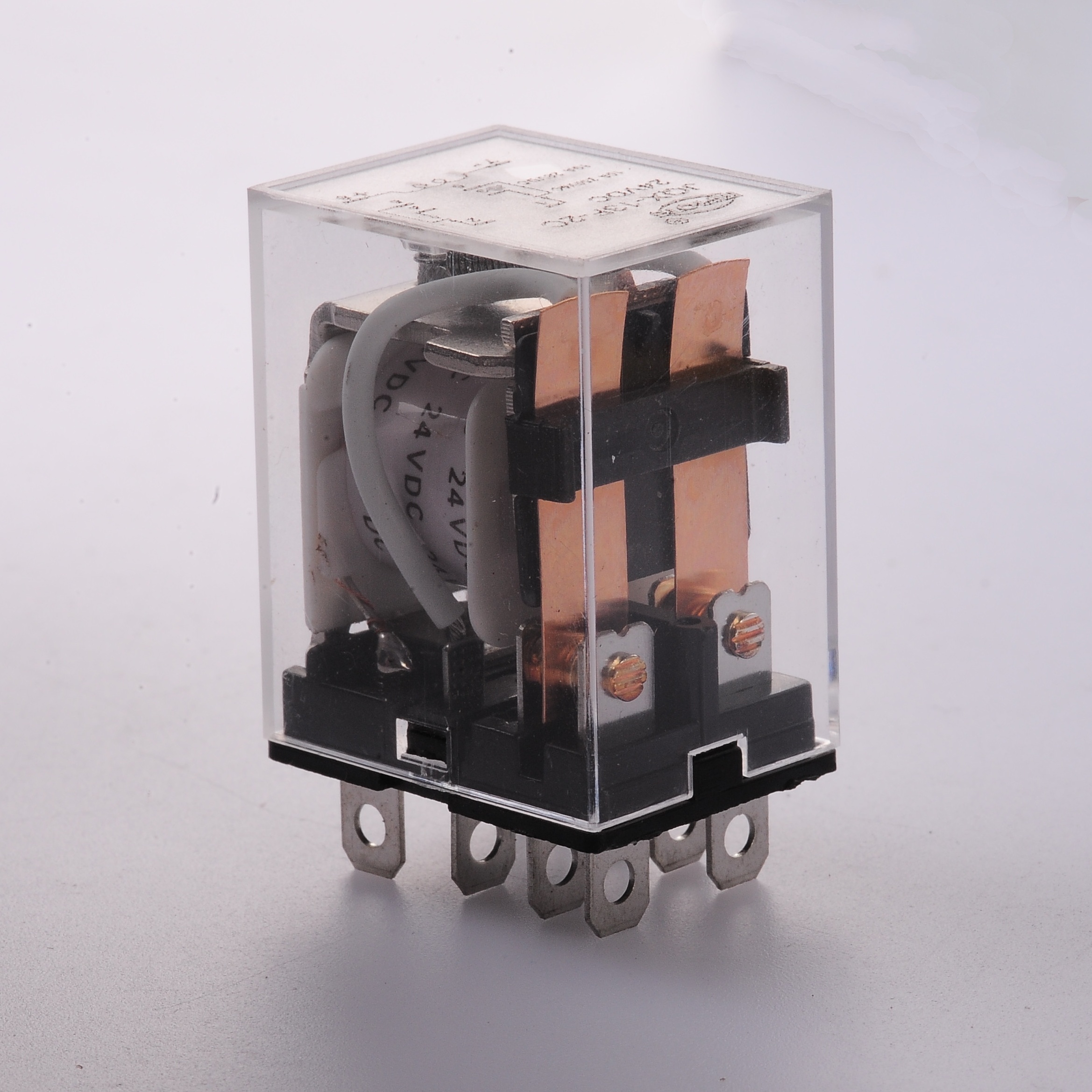

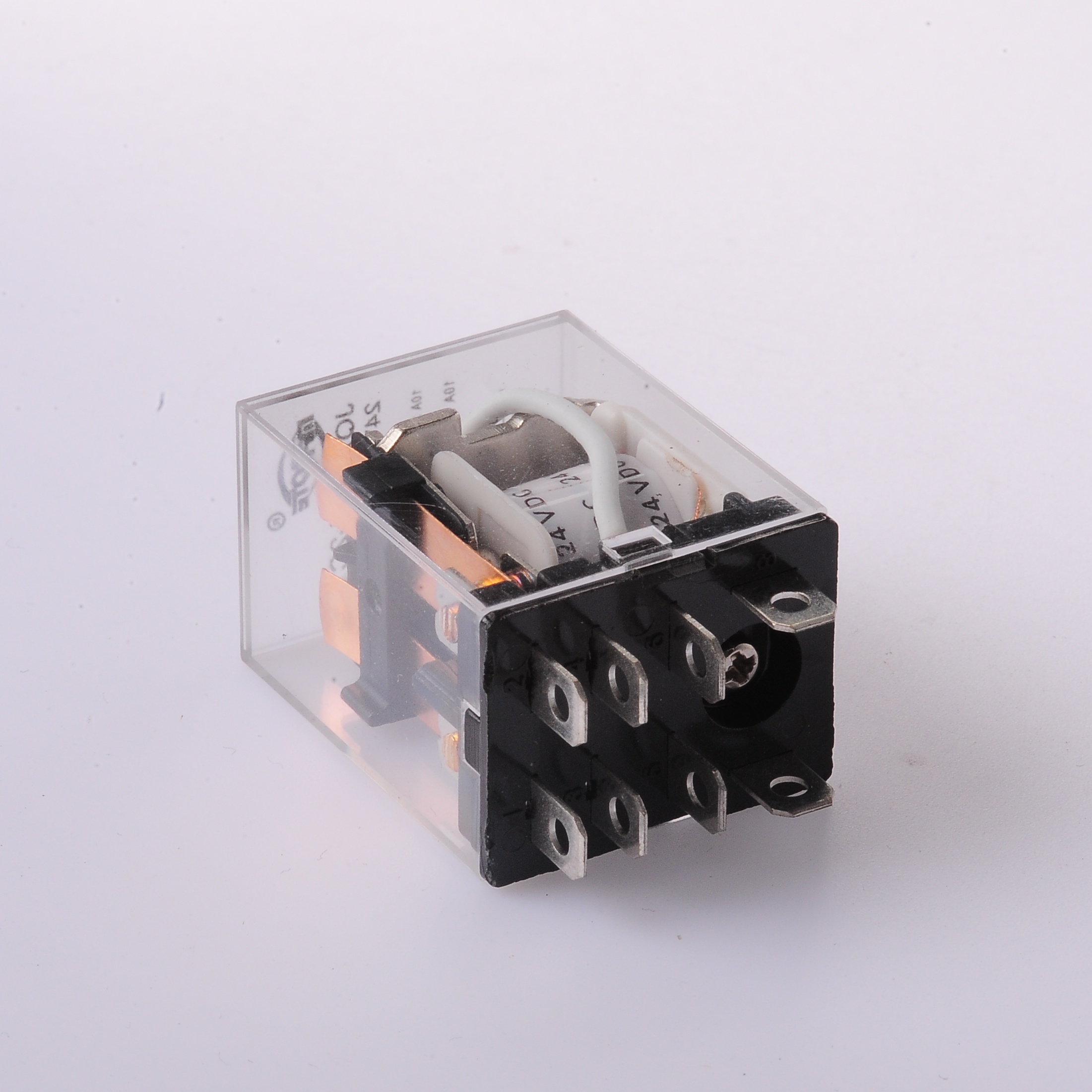

JQX-13F 250V intermediate relay
Shenzhen Owire Co..Ltd
See what’s includedHide breakdown
- FOB goods (100)
- $55
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $1.49
- Section 301 tariff (25.0%)
- $14
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $55
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $1.49
- Section 301 tariff (25.0%)
- $14
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
JQX-13F 250V intermediate relay
Shenzhen Owire Co..LtdSee what’s includedHide breakdown
- FOB goods (100)
- $55
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $1.49
- Section 301 tariff (25.0%)
- $14
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $55
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $1.49
- Section 301 tariff (25.0%)
- $14
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 27.3X21X35mm
- Color: Transparent
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Zhejiang, China
About this product
- Size: 27.3X21X35mm
- Color: Transparent
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Zhejiang, China
Product details
| Size | 27.3X21X35mm |
|---|---|
| Color | Transparent |
Product details
| Size | 27.3X21X35mm |
|---|---|
| Color | Transparent |
From the supplier
Specification
15A switching capabilities
1&2 pole configurations
1.5KV dielectric between coil to contacts
Various terminals available
Various sockets available
Conform to the CE low voltage directive
Contact Data
Contact Arrangement 1C 2C Initial Contact Resistance Max 500mΩ(at 1A 24VDC) Contact Material Silver Alloy Contact Rating (Res. Load)1C: 15A 220VAC/28VDC
2C: 10A 220VAC/28VDC
Max Switching Voltage 250VAC/28VDC Max Switching Current 15A 10A Max Switching Power 3750VAC/450W 2200VAC/280W Mechanical Life 2x 107 OPS Electrical Life 2x 105 OPSCoil Data
Nominal Voltage(VDC) Pick up Voltage VDC Drop-out Voltage VDC Coil Resistance Ω 5 4.0 0.5 27.5 ± 10% 6 4.8 0.6 40 ± 10% 12 9.6 1.2 160 ± 10% 24 19.2 2.4 650 ± 10% 48 38.4 4.8 260 ± 10% 110 88.0 11.0 11000 ± 10%Nominal Voltage(VAC) Pick up Voltage VAC Drop-out Voltage VAC Coil Resistance Ω 6 4.8 1.8 11.5 ± 10% 12 9.6 3.6 46 ± 10% 24 19.2 7.2 184 ± 10% 48 38.4 14.4 735 ± 10% 120 96.0 36 4550 ± 10% 220/240 176.0 66.0 14400 ± 10%
Charateristics
Initial Isulation Resistance 500MΩ Dielectric Strength Between Coil and Contacts 1500VAC 1min Between Open Contacts 1000VAC 1min Between Contact Sets 1500VAC 1min Operate Time(at nomi. Volt) 25ms Release Time(at nomi. Volt) 25ms Shock Resistance Functional 100m/s2 Destructive 1000m/s2 Vibration Resistance 1 mm, 10 to 55HZ Humidity 98% RH, + 40℃ Ambient Temperature -40 ℃ to + 70 ℃ Termination PCB & Plug-in Unit Weight37g
Construction Dust Cover
Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.
From the supplier
Specification
15A switching capabilities
1&2 pole configurations
1.5KV dielectric between coil to contacts
Various terminals available
Various sockets available
Conform to the CE low voltage directive
Contact Data
Contact Arrangement 1C 2C Initial Contact Resistance Max 500mΩ(at 1A 24VDC) Contact Material Silver Alloy Contact Rating (Res. Load)1C: 15A 220VAC/28VDC
2C: 10A 220VAC/28VDC
Max Switching Voltage 250VAC/28VDC Max Switching Current 15A 10A Max Switching Power 3750VAC/450W 2200VAC/280W Mechanical Life 2x 107 OPS Electrical Life 2x 105 OPSCoil Data
Nominal Voltage(VDC) Pick up Voltage VDC Drop-out Voltage VDC Coil Resistance Ω 5 4.0 0.5 27.5 ± 10% 6 4.8 0.6 40 ± 10% 12 9.6 1.2 160 ± 10% 24 19.2 2.4 650 ± 10% 48 38.4 4.8 260 ± 10% 110 88.0 11.0 11000 ± 10%Nominal Voltage(VAC) Pick up Voltage VAC Drop-out Voltage VAC Coil Resistance Ω 6 4.8 1.8 11.5 ± 10% 12 9.6 3.6 46 ± 10% 24 19.2 7.2 184 ± 10% 48 38.4 14.4 735 ± 10% 120 96.0 36 4550 ± 10% 220/240 176.0 66.0 14400 ± 10%
Charateristics
Initial Isulation Resistance 500MΩ Dielectric Strength Between Coil and Contacts 1500VAC 1min Between Open Contacts 1000VAC 1min Between Contact Sets 1500VAC 1min Operate Time(at nomi. Volt) 25ms Release Time(at nomi. Volt) 25ms Shock Resistance Functional 100m/s2 Destructive 1000m/s2 Vibration Resistance 1 mm, 10 to 55HZ Humidity 98% RH, + 40℃ Ambient Temperature -40 ℃ to + 70 ℃ Termination PCB & Plug-in Unit Weight37g
Construction Dust Cover
Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.
