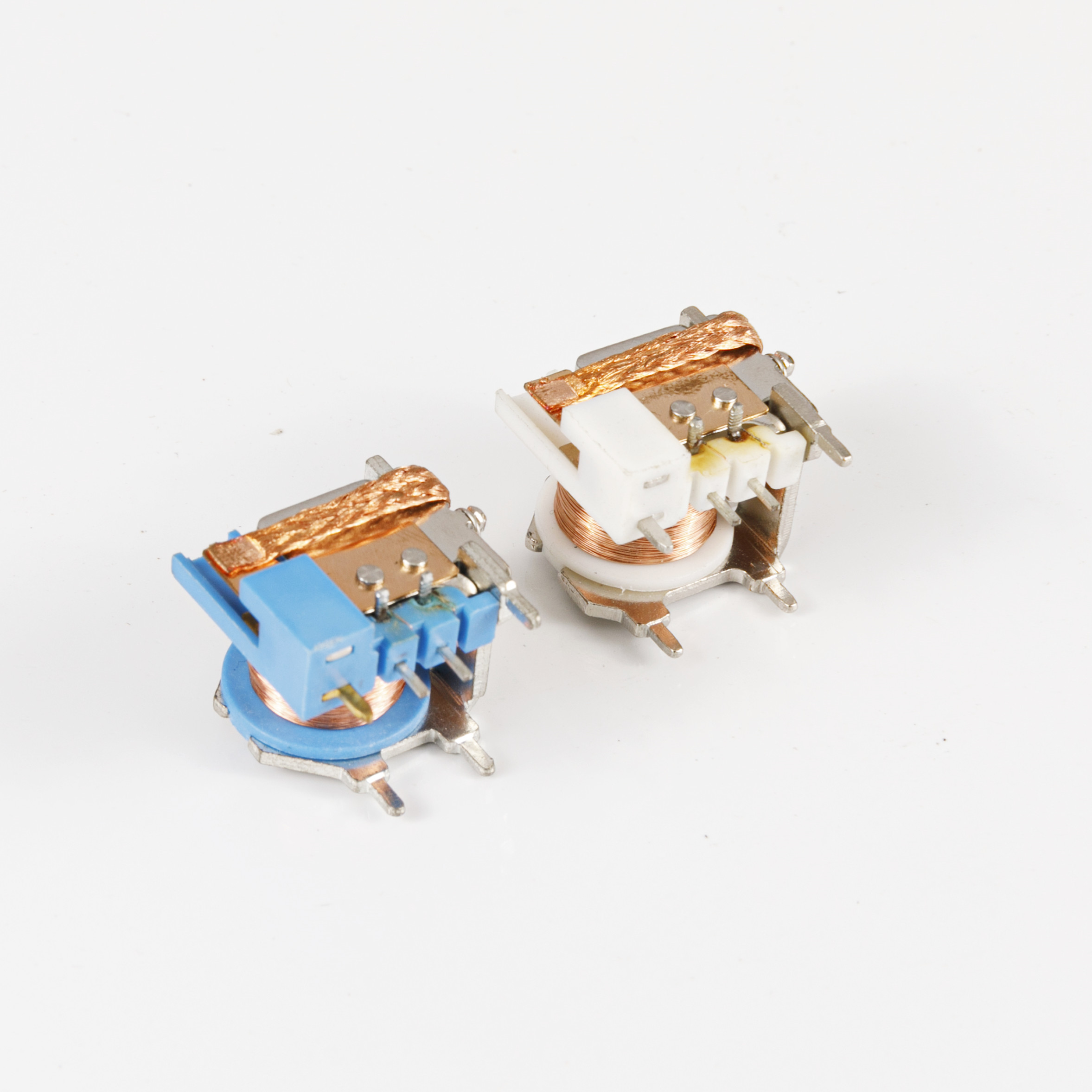

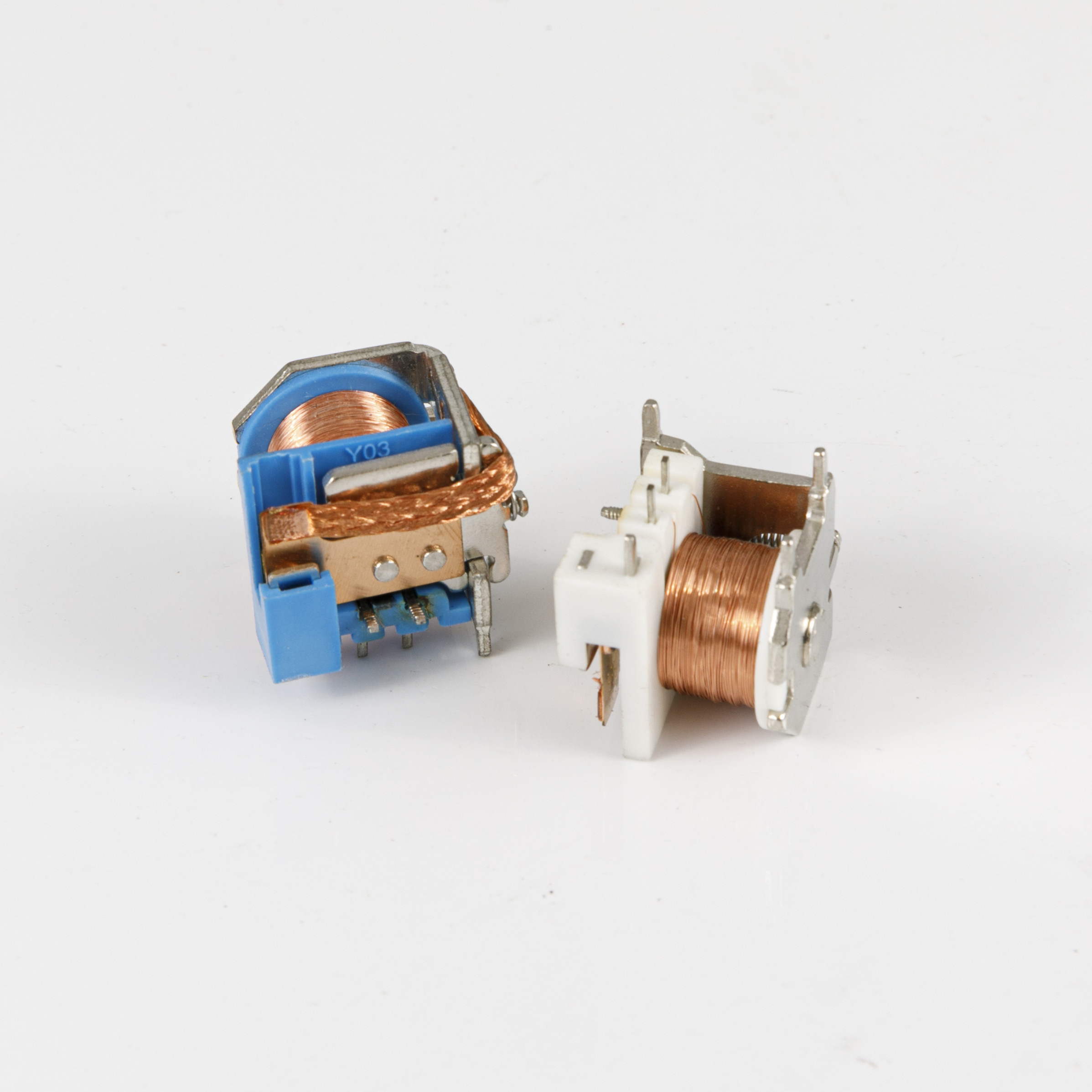

4119 Small Size Open Type Electric Automobile Relay
- FOB goods (100)
- $28
- Ocean freight + handling (0.3 CBM)
- $820
- US duty (2.7%)
- $0.74
- Section 301 tariff (25.0%)
- $6.88
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
4119 Small Size Open Type Electric Automobile Relay
- FOB goods (100)
- $28
- Ocean freight + handling (0.3 CBM)
- $820
- US duty (2.7%)
- $0.74
- Section 301 tariff (25.0%)
- $6.88
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: metal
- Size: 23x18x22
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Zhejiang, China
About this product
- Materials: metal
- Size: 23x18x22
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Zhejiang, China
Product details
| Materials | metal |
|---|---|
| Size | 23x18x22 |
From the supplier
Quick Details
Voltage: 12V
Rated Current: 45A
Contact Material: Silver Alloy
Shunt Wire: Red Copper
Reed: SnO
Coil Former: PBT
Specifications
4119 car flasher relay
Small size heavy contact load
European 11mm footprint and American 8mm footprint available
Small size, heavy contact load, standing strong current of 45A at 14VDC.
Suitable for automatic control facilities and automobile application etc.
Excellent shake resistance performance
PC board connection type
Sealed, dust cover and open type available
Both European 11mm footprint and American 8mm footprint available
Outline size (mm): 23 X 18 X 22
Contact Data
Contact Form
1A SPST(NO); 1B SPST(NC); 1C SPDT(B-M)
Contact Material
Silver Alloy
Contact Resistance
100mΩ (1A 6VDC)
Contact Rating
NO:45A/14VDC; NC:30A/14VDC
Max. Operating Voltage
30VDC
Max. Operating Power
560W
Electrical Endurance
10^5 times
Mechanical Endurance
10^7 times
Coil Rating
Nominal Coil Power
1.6W, 1.8W
Coil Versions
Nominal Voltage (VDC)
Pull-in Voltage
(VDC)
Release Voltage (VDC)
Max. Applicable Voltage (VDC)
Coil Resistance (Ω)
1.6W
1.8W
5
3.25
0.5
6.5
15.7
13.8
6
3.90
0.6
7.8
22.5
20
9
5.85
0.9
11.7
50.7
45
12
7.80
1.2
15.6
90
80
24
15.60
2.4
31.2
360
320
Operation Specification
Insulation Resistance
100mΩ 500VDC
Dielectric Strength
BCC 50Hz 750V; BOC 50Hz 750V
Operate/Release Time
10ms/10ms
Ambient temperature
-40~85°C
Weight
18g(open type)
Model Reference
TYCO, V23072, HANKGFA, HFKP, P&B VKM
