About this product
- Materials: copper aluminium CU AL XLPE PVC Galvanized steel wire, steel strip, copper pipe, copper strip and copper wire
- Size: 10mm2-500mm2
- Color: black grey red orange
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: copper aluminium CU AL XLPE PVC Galvanized steel wire, steel strip, copper pipe, copper strip and copper wire
- Size: 10mm2-500mm2
- Color: black grey red orange
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | copper aluminium CU AL XLPE PVC Galvanized steel wire, steel strip, copper pipe, copper strip and copper wire |
|---|---|
| Size | 10mm2-500mm2 |
| Color | black grey red orange |
Product details
| Materials | copper aluminium CU AL XLPE PVC Galvanized steel wire, steel strip, copper pipe, copper strip and copper wire |
|---|---|
| Size | 10mm2-500mm2 |
| Color | black grey red orange |
From the supplier

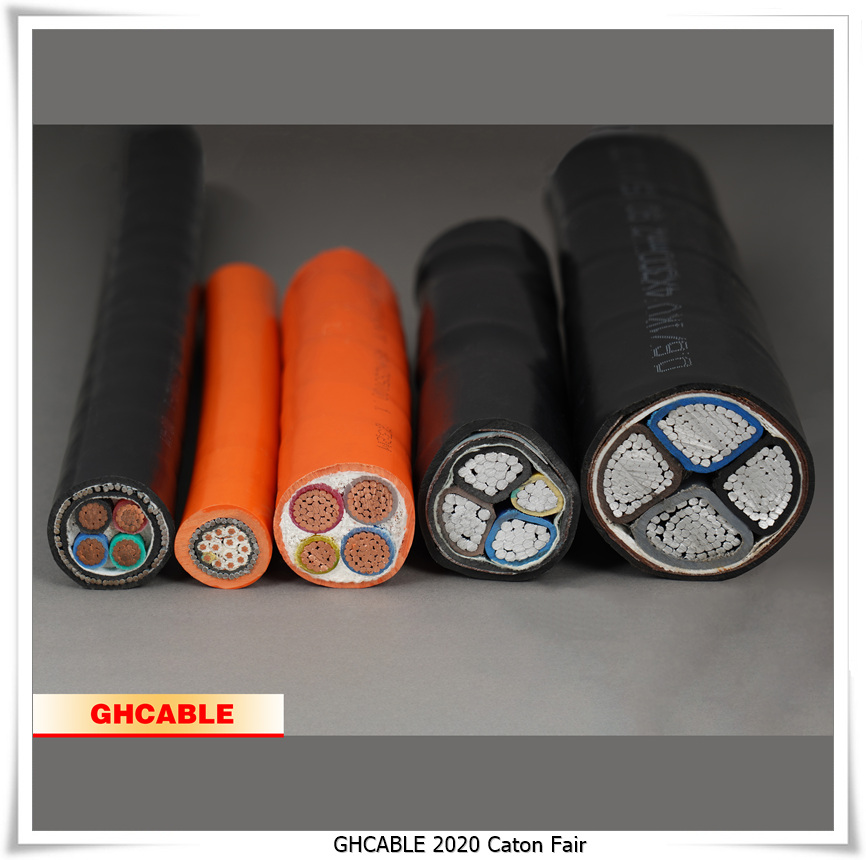

Main Types: PVC Insulated & Sheathed Unarmoured, XLPE Insulated PVC/LSOH Sheathed Unarmoured, PVC Insulated & Sheathed Armoured, XLPE Insulated PVC/LSOH Sheathed Armoured
Construction: CU/PVC/PVC or AL/PVC/PVC (Type VV or VLV), CU/XLPE/PVC or AL/XLPE/PVC (Type YJV or YJLV), CU/PVC/SWA/PVC or AL/PVC/SWA/PVC (Type VV32 or VLV32), CU/XLPE/SWA/PVC or AL/XLPE/SWA/PVC (Type YJV32 or YJLV32)
Standard: IEC 60502-1:2004/AMD1:2009
Amendment 1 - Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV) - Part 1: Cables for rated voltages of 1 kV (Um = 1,2 kV) and 3 kV (Um = 3,6 kV)
BS 5467:2016 Thermosetting insulated, armoured cables of rated voltages of 600/1000V
Application: These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.
Features: Rated Voltage: 0.6/1kV
Max. permission continuous operating temperature of conductors:
- 70℃ for PVC insulation
- 90℃ for XLPE insulation
cables which exhibit properties of reduced flame spread, low levels of smoke emission and halogen-free gas emission when exposed to fire are available upon request
From the supplier
Main Types: PVC Insulated & Sheathed Unarmoured, XLPE Insulated PVC/LSOH Sheathed Unarmoured, PVC Insulated & Sheathed Armoured, XLPE Insulated PVC/LSOH Sheathed Armoured
Construction: CU/PVC/PVC or AL/PVC/PVC (Type VV or VLV), CU/XLPE/PVC or AL/XLPE/PVC (Type YJV or YJLV), CU/PVC/SWA/PVC or AL/PVC/SWA/PVC (Type VV32 or VLV32), CU/XLPE/SWA/PVC or AL/XLPE/SWA/PVC (Type YJV32 or YJLV32)
Standard: IEC 60502-1:2004/AMD1:2009
Amendment 1 - Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1,2 kV) up to 30 kV (Um = 36 kV) - Part 1: Cables for rated voltages of 1 kV (Um = 1,2 kV) and 3 kV (Um = 3,6 kV)
BS 5467:2016 Thermosetting insulated, armoured cables of rated voltages of 600/1000V
Application: These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.
Features: Rated Voltage: 0.6/1kV
Max. permission continuous operating temperature of conductors:
- 70℃ for PVC insulation
- 90℃ for XLPE insulation
cables which exhibit properties of reduced flame spread, low levels of smoke emission and halogen-free gas emission when exposed to fire are available upon request
