Rubber cable, H05RN-F, H07RN-F,H05RR-F
Jiangsu Ganghong Electric Wire and Power Cable Co., Ltd
See what’s includedHide breakdown
- FOB goods (1,000)
- $550
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $15
- Section 301 tariff (25.0%)
- $138
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (1,000)
- $550
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $15
- Section 301 tariff (25.0%)
- $138
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Rubber cable, H05RN-F, H07RN-F,H05RR-F
Jiangsu Ganghong Electric Wire and Power Cable Co., LtdSee what’s includedHide breakdown
- FOB goods (1,000)
- $550
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $15
- Section 301 tariff (25.0%)
- $138
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (1,000)
- $550
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $15
- Section 301 tariff (25.0%)
- $138
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: tinned copper or copper conductor, rubber insulation, rubber jacket
- Size: 3x2AWG
- Color: black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: tinned copper or copper conductor, rubber insulation, rubber jacket
- Size: 3x2AWG
- Color: black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | tinned copper or copper conductor, rubber insulation, rubber jacket |
|---|---|
| Size | 3x2AWG |
| Color | black |
Product details
| Materials | tinned copper or copper conductor, rubber insulation, rubber jacket |
|---|---|
| Size | 3x2AWG |
| Color | black |
From the supplier

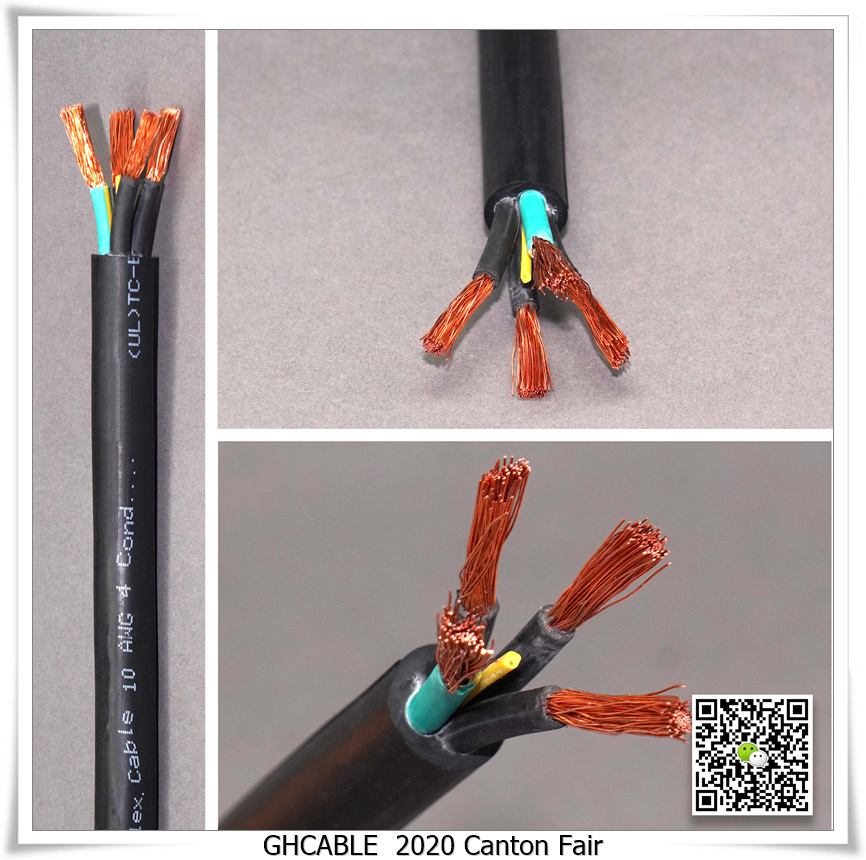

H07RN-F Harmonized Approved Heavy Duty Trailing Flexible Single Core and Multicore Ethylene Propylene Rubber (EPR) Sheathed 450/750V 85 Deg
CONSTRUCTION
Conductor: flexible Class5 Tinned class5 Copper to be BS6360
Insulation: Ethylene Propylene Rubber (E.P.R). , Type EI 4 to BS 7655
Sheath: PCP Neoprene Rubber Type EM2 to BS 7655
H - Harmonized Approval
7 - 450/750 rated
R - Natural or Synthetic Rubber
N - Polychloroprene (PCP Neoprene)
F - Flexible Stranded Conductor
APPLICATION
Designed primarily as a trailing cable for use in the supply of energy for portable or mobile equipment. Heavy Duty Harmonized Cables are not only robust but also extremely flexible. PCP neoprene is also oil and flame retardant in accordance with BS6007 Table 4 Cenelec code HO 7RN-F.
TECHNICAL DATA:
Voltage: 450/750V
Test Voltage: 2500V
Operating Temperature Range: -20oC to +85oC
RELEVANT STANDARDS
DIN 57282, VDE 0282, VDE 0165, VDE 0472 and BS6500 (up to 5 cores)
CORE IDENTIFICATION
1 Core: Black
2 Cores: Brown, Blue
3 Cores: Green/yellow, Brown, Blue
4 Cores: Green/Yellow, Black, Blue, Brown
5 Cores: Green/Yellow, Black, Blue, Brown, Black
From the supplier
H07RN-F Harmonized Approved Heavy Duty Trailing Flexible Single Core and Multicore Ethylene Propylene Rubber (EPR) Sheathed 450/750V 85 Deg
CONSTRUCTION
Conductor: flexible Class5 Tinned class5 Copper to be BS6360
Insulation: Ethylene Propylene Rubber (E.P.R). , Type EI 4 to BS 7655
Sheath: PCP Neoprene Rubber Type EM2 to BS 7655
H - Harmonized Approval
7 - 450/750 rated
R - Natural or Synthetic Rubber
N - Polychloroprene (PCP Neoprene)
F - Flexible Stranded Conductor
APPLICATION
Designed primarily as a trailing cable for use in the supply of energy for portable or mobile equipment. Heavy Duty Harmonized Cables are not only robust but also extremely flexible. PCP neoprene is also oil and flame retardant in accordance with BS6007 Table 4 Cenelec code HO 7RN-F.
TECHNICAL DATA:
Voltage: 450/750V
Test Voltage: 2500V
Operating Temperature Range: -20oC to +85oC
RELEVANT STANDARDS
DIN 57282, VDE 0282, VDE 0165, VDE 0472 and BS6500 (up to 5 cores)
CORE IDENTIFICATION
1 Core: Black
2 Cores: Brown, Blue
3 Cores: Green/yellow, Brown, Blue
4 Cores: Green/Yellow, Black, Blue, Brown
5 Cores: Green/Yellow, Black, Blue, Brown, Black
