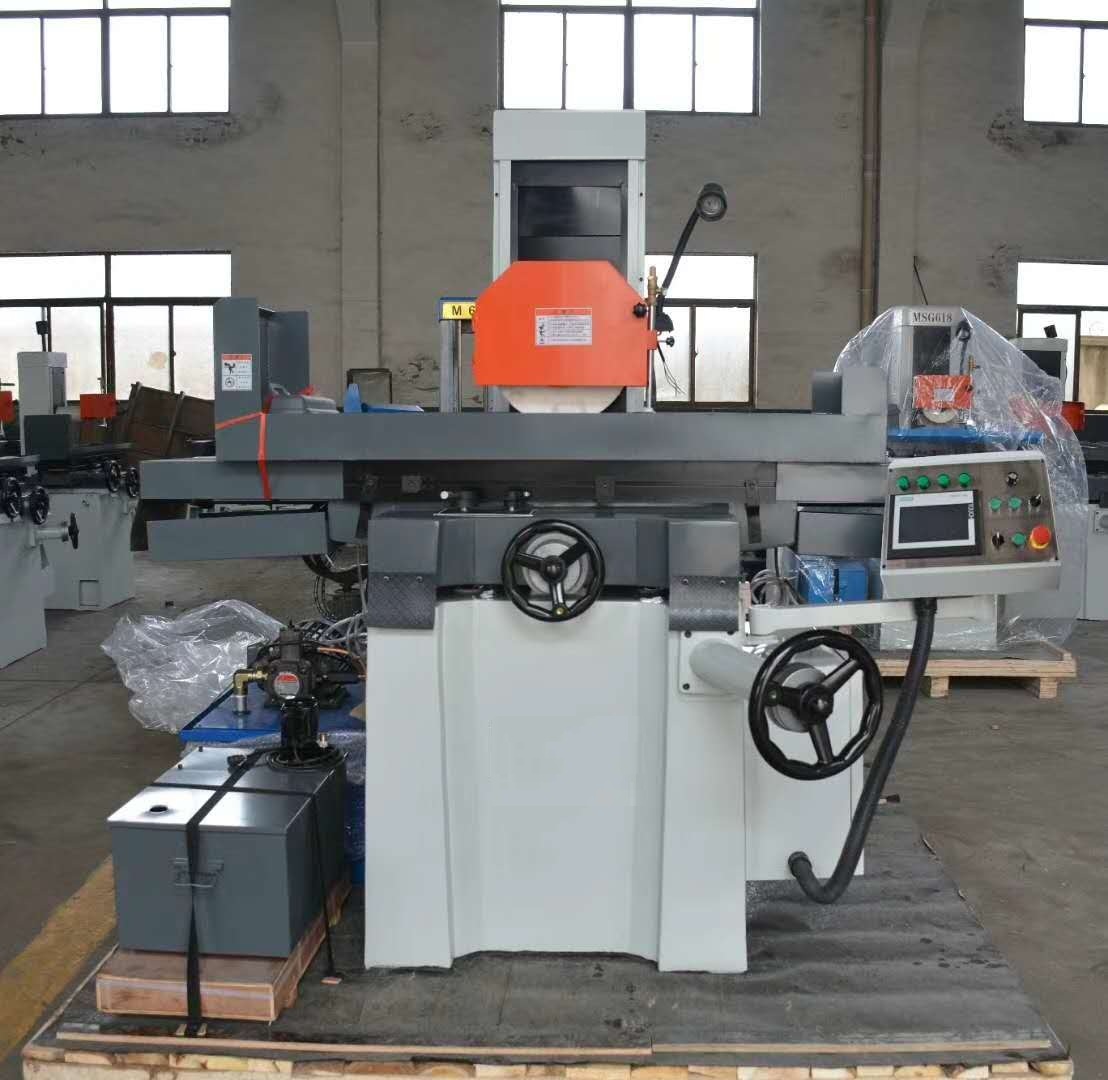

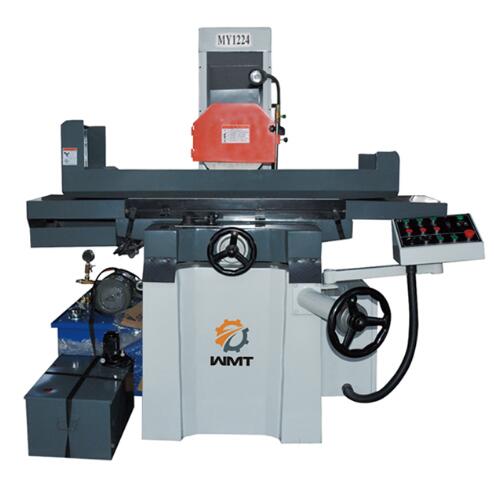

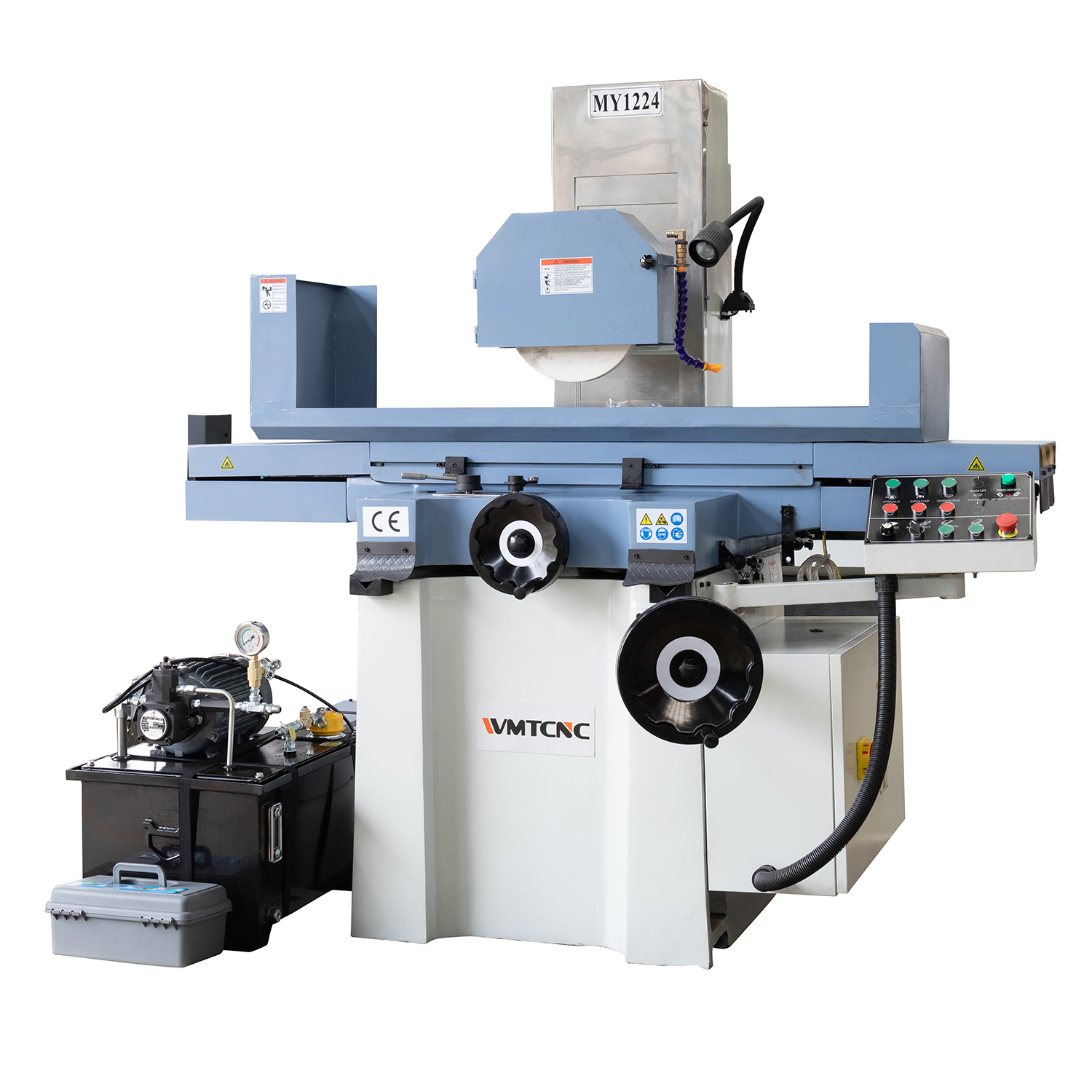

Surface Grinding Machine MY1224
WMT CNC INDUSTRIAL CO.,LTD10/10 fairsForeign Trade CompanyModel Surface Grinding Machine MY1224
$5,30000–$8,99000/ set FOB
MOQ 1 set
Estimated landed cost
$9,210 / set
range $6,836–$11,583 · total ≈ $920,960
See what’s includedHide breakdown
- FOB goods (100)
- $714,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $25,008
- Section 301 tariff (25.0%)
- $178,625
- Customs fees (MPF/HMF)
- $1,528
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $714,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $25,008
- Section 301 tariff (25.0%)
- $178,625
- Customs fees (MPF/HMF)
- $1,528
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Surface Grinding Machine MY1224
WMT CNC INDUSTRIAL CO.,LTD10/10 fairsForeign Trade CompanyModel Surface Grinding Machine MY1224
$5,30000–$8,99000/ set FOB
MOQ 1 set
Estimated landed cost
$9,210 / set
range $6,836–$11,583 · total ≈ $920,960
See what’s includedHide breakdown
- FOB goods (100)
- $714,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $25,008
- Section 301 tariff (25.0%)
- $178,625
- Customs fees (MPF/HMF)
- $1,528
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $714,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $25,008
- Section 301 tariff (25.0%)
- $178,625
- Customs fees (MPF/HMF)
- $1,528
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Metal
- Size: 1960x1630x1870mm
- Color: Grey$Red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Metal
- Size: 1960x1630x1870mm
- Color: Grey$Red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Metal |
|---|---|
| Size | 1960x1630x1870mm |
| Color | Grey$Red |
Product details
| Materials | Metal |
|---|---|
| Size | 1960x1630x1870mm |
| Color | Grey$Red |
From the supplier

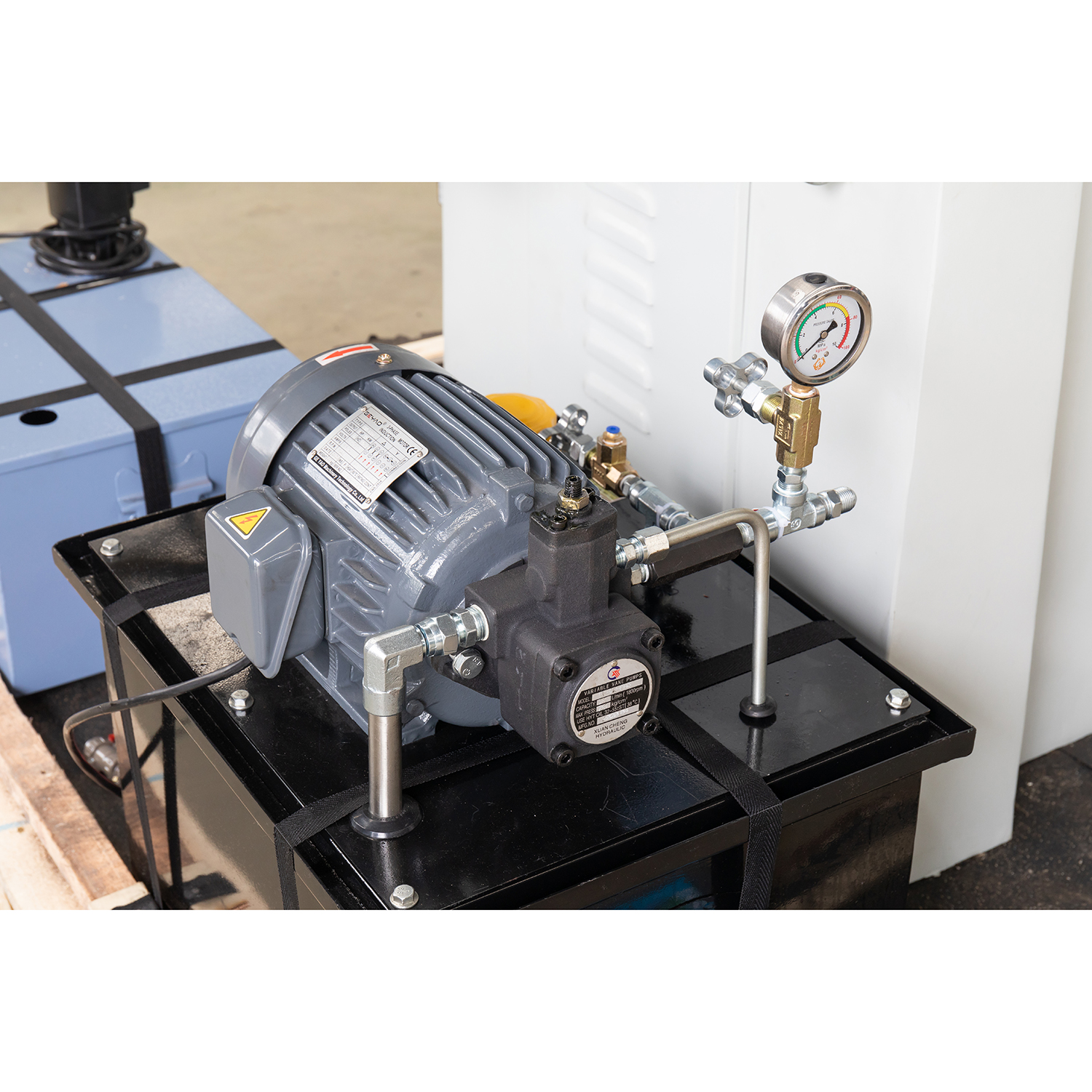

1. External hydraulic unit ensures low temperature rising and supply stable power. 2. Auto center lubrication unit. 3. Very easy to set auto ground program include rough, finish, and spark-out stroke. 4. Precision grinding spindle runs in maintance-free, support by preload high precision angular ball bearing. 5. Machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.SpecificationMY1022MY1224Max workpiece to be ground540x250mm600x300mmMax travel of table560x260mm640x320mmTable max cutting area540x250mm640x320mmT-slot (number width)1x141x14mmDistance from table to spindle center450mm490mmWheel size (dia width bore)200x20x31.75250x25.4x76.2mmSpindle speed2850r/m1440r/mTable longitudinal (left and right) speed3-20m/min3-20/minWorktable cross continuous speed 150mm/min150mm/minWorktable cross intermittent speed 0-5mm/min0-5mm/minWorktable cross handwheel-stroke per revolution4mm4mmWorktable cross handwheel-stroke per grid0.02mm0.02mmWorktable vertical handwheel-stroke per revolution2mm2mmWorktable vertical handwheel-stroke per grid0.01mm0.01mmSpindle motor1.5KW2.2kwCooling motor0.4kw0.4kwHydraulic motor1.5KW1.5kwWorking pressure3Mpa3mpaOil tank capacity80L80LMax flow capacity18L/min18L/minThe mechanical surface of the base of parallelism300/0.004mm300/0.004mmSurface roughnessRa0.32umRa0.32umN.W1250kgs1500kgsG.W1350kgs1650kgsMachine size1680x1220x1720mm1960x1630x1870mm
Balancing stand-balancing bar
Flange wrench
Screw driver
Balancing screw
Open-end wrench
Inner hexagon spanner
Wheel dresser holder
Machine stand pad
Wheel flange
Wheel dresser
Chuck
Standard accessories:
Tool boxBalancing stand-balancing bar
Flange wrench
Screw driver
Balancing screw
Open-end wrench
Inner hexagon spanner
Wheel dresser holder
Machine stand pad
Wheel flange
Wheel dresser
Chuck
Optioanl accessories
2 axis DRO
CE protection
Machine vice
Vacumn pump
From the supplier
1. External hydraulic unit ensures low temperature rising and supply stable power. 2. Auto center lubrication unit. 3. Very easy to set auto ground program include rough, finish, and spark-out stroke. 4. Precision grinding spindle runs in maintance-free, support by preload high precision angular ball bearing. 5. Machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.SpecificationMY1022MY1224Max workpiece to be ground540x250mm600x300mmMax travel of table560x260mm640x320mmTable max cutting area540x250mm640x320mmT-slot (number width)1x141x14mmDistance from table to spindle center450mm490mmWheel size (dia width bore)200x20x31.75250x25.4x76.2mmSpindle speed2850r/m1440r/mTable longitudinal (left and right) speed3-20m/min3-20/minWorktable cross continuous speed 150mm/min150mm/minWorktable cross intermittent speed 0-5mm/min0-5mm/minWorktable cross handwheel-stroke per revolution4mm4mmWorktable cross handwheel-stroke per grid0.02mm0.02mmWorktable vertical handwheel-stroke per revolution2mm2mmWorktable vertical handwheel-stroke per grid0.01mm0.01mmSpindle motor1.5KW2.2kwCooling motor0.4kw0.4kwHydraulic motor1.5KW1.5kwWorking pressure3Mpa3mpaOil tank capacity80L80LMax flow capacity18L/min18L/minThe mechanical surface of the base of parallelism300/0.004mm300/0.004mmSurface roughnessRa0.32umRa0.32umN.W1250kgs1500kgsG.W1350kgs1650kgsMachine size1680x1220x1720mm1960x1630x1870mm
Balancing stand-balancing bar
Flange wrench
Screw driver
Balancing screw
Open-end wrench
Inner hexagon spanner
Wheel dresser holder
Machine stand pad
Wheel flange
Wheel dresser
Chuck
Standard accessories:
Tool boxBalancing stand-balancing bar
Flange wrench
Screw driver
Balancing screw
Open-end wrench
Inner hexagon spanner
Wheel dresser holder
Machine stand pad
Wheel flange
Wheel dresser
Chuck
Optioanl accessories
2 axis DRO
CE protection
Machine vice
Vacumn pump
