J422

GB：E4303
 AWS：
 Application：Applicable for welding the structures with high appearance requirements, or low-alloy steel/low mechanical property requirement steel as 09Mn2etc.


J422

According with GB E4303

Introduction: J422  is a kind of carbon steel electrode with lime-titania type coating specially used for facial welding or low-alloy steel/low mechanical property requirement steel as 09Mn2. AC/DC. All-position welding. It has glossy and beautiful appearance of weld, excellent mechanical properties, stable arc, easy re-ignition, good fluidity and detachability of slag.

Applications: Applicable for welding the structures with high appearance requirements, such as ocean platforms, ships, vehicles, construction machinery, etc.

Chemical Composition of Deposited Metal (%)

Chemical Composition

C

Mn

Si

S

P

Guarantee Value

≤0.12

0.3~0.55

≤0.25

≤0.030

≤0.035

Mechanical Properties of Deposited Metal

Test Item

Rm(MPa)

ReL(Mpa)

A(%)

KV2(J)

KV2(J)

Guarantee Value

≥420

≥330

≥22

≥27(0℃)

——(-20℃)

General Result

440~500

≥340

22~32

70~115(0℃)

60~90(-20℃)

X-ray Radiographic Inspection: ⅡDegree

Reference Current (AC, DC)

Electrode Diameter(mm)

φ3.2

φ4.0

φ5.0

Welding Current (A)

80~140

140~220

180~240

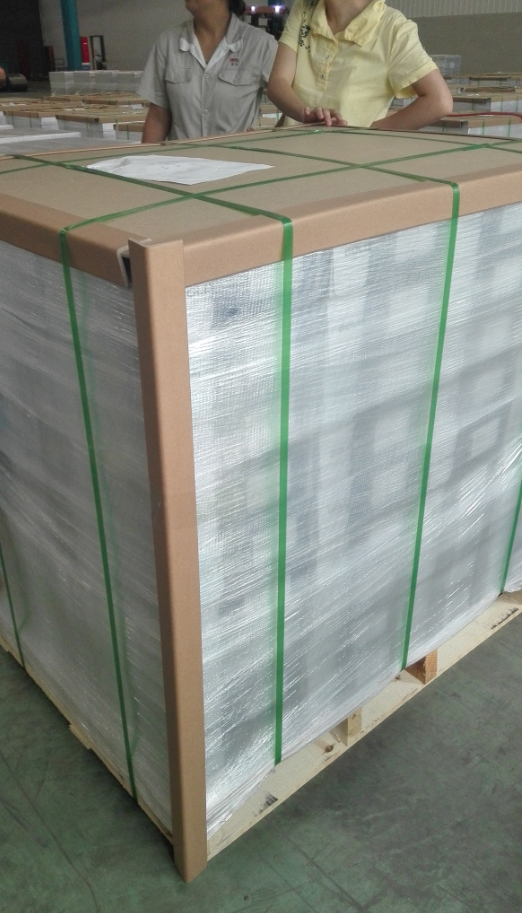

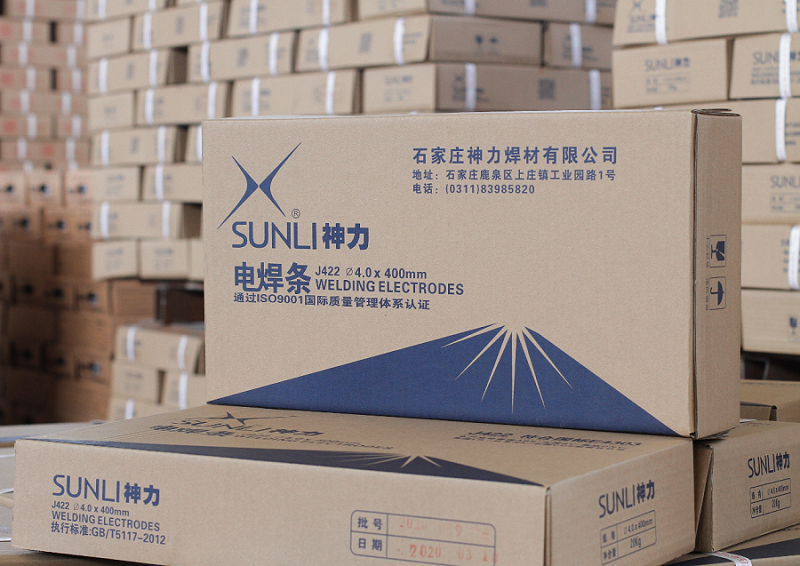

Packing details: In carton of 20kgs/net, consisting of 8 boxes x 2.5kgs for 2.5mm, & 4 boxes x 5kgs for other sizes.

              With/ without pallets (Fumigation-free pallets) upon customer’s request.









"}
