About this product
- Materials: Metal
- Size: 可根据要求设定(Can be set as required)
- Color: Gray white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Metal
- Size: 可根据要求设定(Can be set as required)
- Color: Gray white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Metal |
|---|---|
| Size | 可根据要求设定(Can be set as required) |
| Color | Gray white |
From the supplier
Brief Introduction:

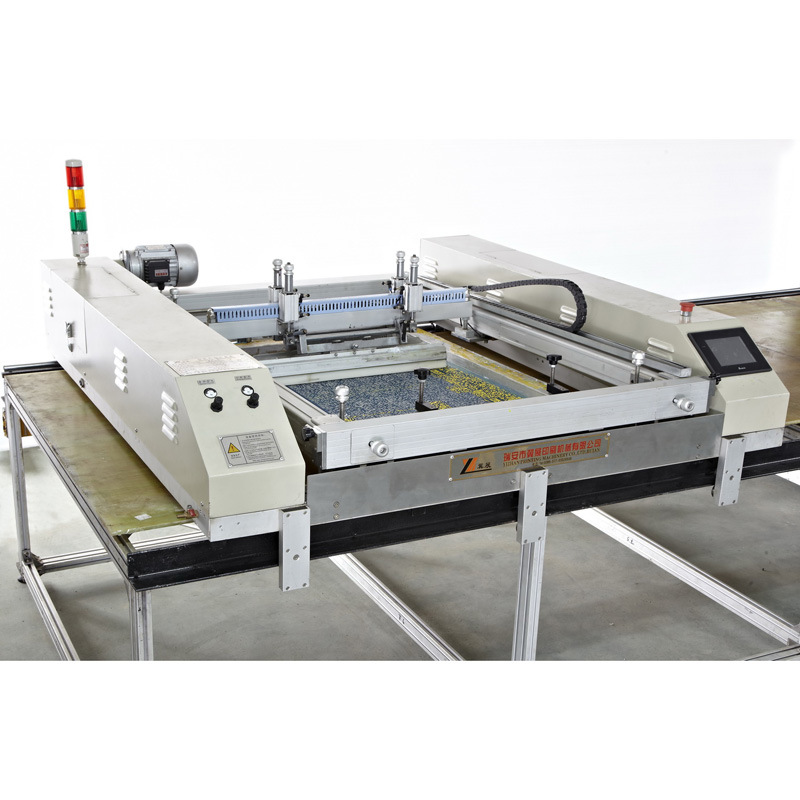

SPT series automatic flatbed screen printer is the innovative high-tech automatic flatbed printing equipments. The machine upgrades the traditional manual flatbed printer, lowering the labor costs but increasing the print production. With intelligent micro-processor and vivid touch screen display equipped, it provides high colors registration, printing stability and good print result. The light-weight body eliminates the labor’s fatigue to the bottom.
The machine adaptes to small, medium and large corporations for material printing. The printer not only applies to do high color-to-color registration printing on garments and leathers such as nylon, tetoron, microfiber twill, satin, PVC and PU, but also fitting on printing stationery, handbags, gift boxes, such as cigarette boxes, decoration boxes, metal sheets, hard & soft plastic boards—PVC, PP, PC, PET, EVA, APET, PETG—fabric boards, glass plates, and ceramics etc in multi colors. The printer works both on sheets and rolls feeding.
Features:

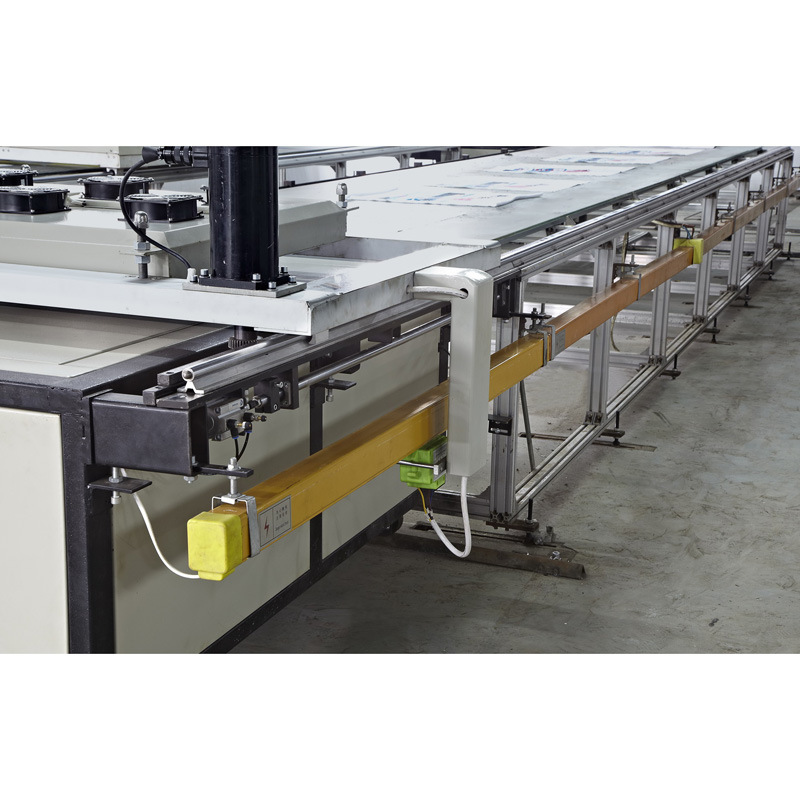

1,Dual-track frame system, stable movement, onboard self-diagnostic system and servo motor equipped to guarantee the high-precision positioning action.
2, Excellent print/flood body design, easy changeover for screen frames, fastness of ink load and visional guidance on colors registration.
3,Fast printing speed and screen frames changover, fitting on low production but multiple arts printing and high registration works.
4, Vivid touch screen display and intelligent micro-processor give the machine more easy operation. Mechanical squeegee/floodbar changover and pressure adjustment provides the high print result.
5, adjustability on print/flood stroke length, speed and capacity, real-time production data display, lower power consumption, less maintenance and user friendly working way.

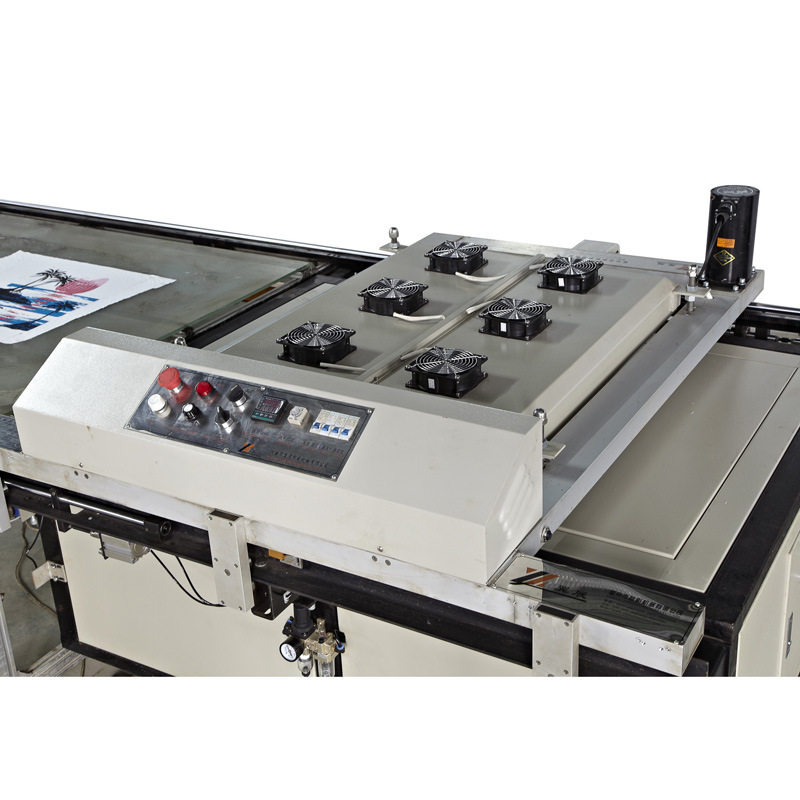

6, Available to install IR flash cure units and match them to the printer.
Main Technical Parameters:
Model
SPT
Print Size
400*600/500*700/600*800mm（Option）
Pallet Size
Depend on the print size（Option）
Output
1200pcs/h
Registration
±0.05mm
Total
2.0kw
Electric spare part list：
No.
Name
Standard machine
1
Touch screen
Delta
2
Servo Motor
Delta
3
Servo Motor Drive
Delta
4
Drive
Delta
5
PLC
Taiwan yonghong
6
Breaker
CHNT
7
1 in 4 relay
Omron/Japan
8
proximity switch
Omron/Japan
9
proximity switch（Yellow）
Omron/Japan
10
proximity switch
Omron/Japan
11
proximity switch（25）
12
photoelectric switch
Omron/Japan
13
Electric bell
People electric/Yueqing
14
Power switch（350-24）
MEAN WELL
15
one-way valve（CV-08）
STNC/NINGBO
16
FR&L（GFC 2008F）
AirTAC
17
Small air pressure valve
SMC/Japan
18
air pressure valve
XMC
19
frame-lock valve（4V110-06）
AirTAC
20
frame up and down valve（4V110-06）
AirTAC
21
squeguee cylinder
AirTAC
22
SDAJ32*50-30B
23
Warming light
220V/Yueqing
24
emergency stop switch
SCHNEIDER
