Introduce：

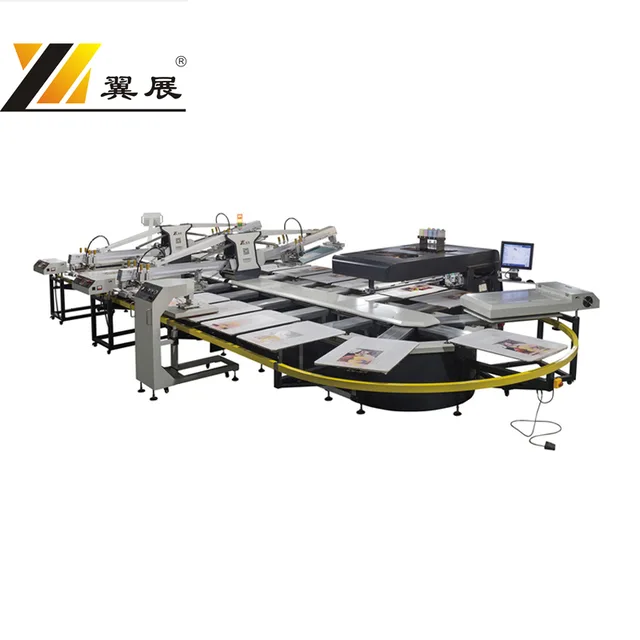

our oval printing machine combine its advantage of multi-color and multi -plate with digital printer ,by this way,our print can reach too soft to notouching,Washable,and it is easy to oprate ,eay to learn.i believe it can help your printing bueiness to a high level.

Features:

1.oval structure, modular combination,convenient space layout, can expand the print head and station at any time.

2.A printing head corresponds to a plurality of platens, which can meet the requirements of different printing materials,such as ink, glue, printing, water slurry, hot stamping, flocking and so o.

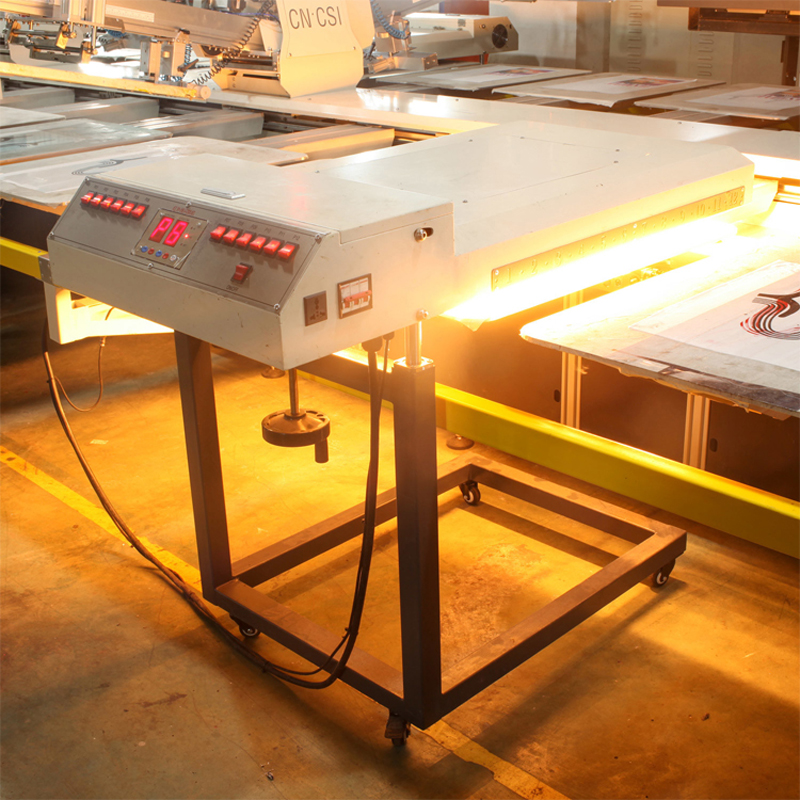

3.The advanced "flash drying" dryer is combined with the high-efficiency energy-saving carbon fiber U-shaped heating tube. The heating tube can be individually controlled to be turned off.The number of lamps can be adjusted according to the printing area, and the temperature can be adjusted to minimize the energy consumption.

4.With the ultrasonic humidification device,it can effectively avoid blocking the mesh.

5.The size of the  frame can be interchanged, and the original frame of the customer can also be used.

6.When the frame is wiped, the frame is lifted with the print head, and one button is controlled, which is practical and convenient.

7.The advanced hollow honey comb structure aluminum alloy platen has high surface flatness, is not easy to be deformed, and has good heat dissipation, and the glue is not easy to block the frame.

8.Quickly change the platen function, it takes only a few seconds to replace a platen, and there is no need to re-adjust the platen level. One machine meets the requirements for fabric sheet and garment printing.

9.The machine can be equipped with flocking,pressing, digital printer and other functions, and a variety of printing processes can be realized on the same machine.

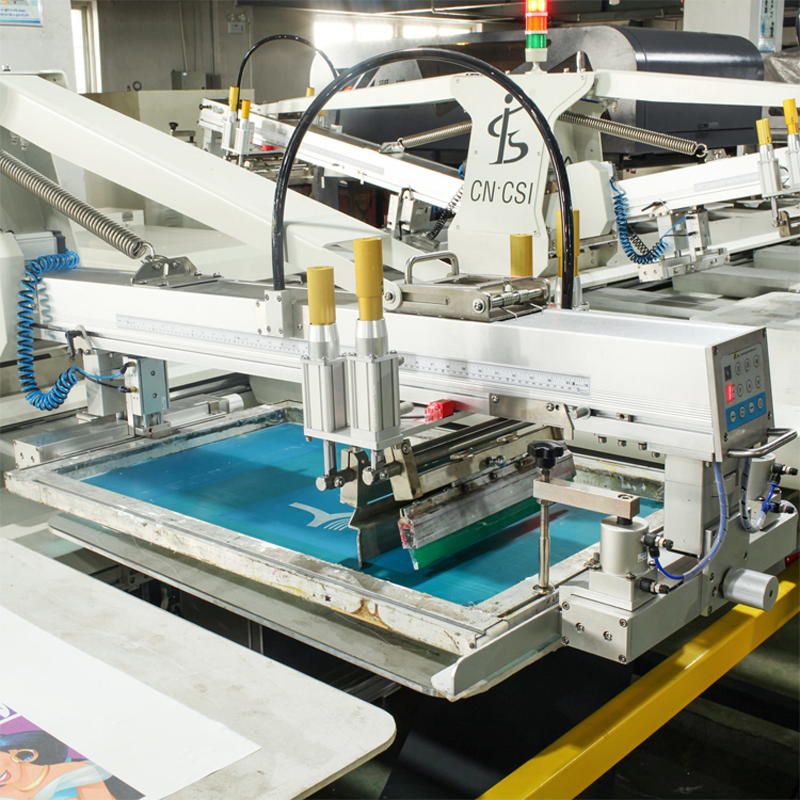

10. flexible and convenient frame clamping and positioning device, which is conducive to the fastest speed and accurate version.

11. Precise and reliable host servo drive, plus precise independent positioning system to ensure long-term stable and high-precision operation of the whole machine.

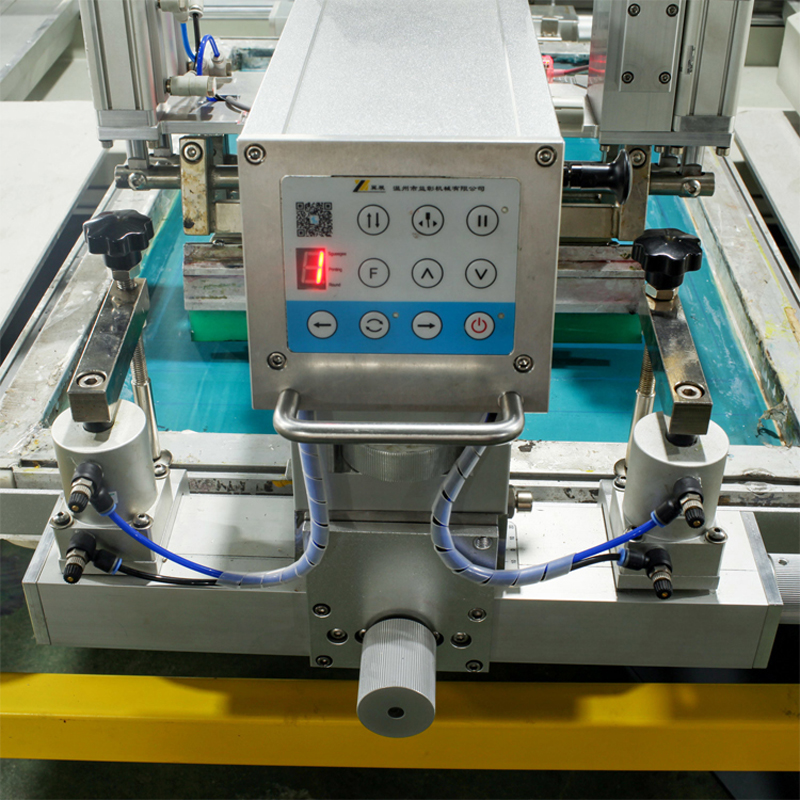

12, color touch screen man-machine interface, providing intuitive and convenient operation experience, and support fault self-diagnosis and troubleshooting tips.

Technical parameter：

Model

SPO-6/24

SPO-8/30

SPO-10/36

SPO-12/42

SPO-14/48

SPO-16/54

SPO-18/60

SPO-20/66

Print color

6

8

10

12

14

16

18

20

Stations

24

30

36

42

48

54

60

66

Max print area

500*700mm（table size 600*800mm）

Max frame size

700*900mm（Size frame available）

Main motor Power

4.2Kw

5.0Kw

5.8Kw

6.6Kw

7.4Kw

8.2Kw

9.0Kw

9.8Kw

Printing motor power

0.4Kw

Each dryer power

12.4Kw

Voltage

AC380V/3PH/50HZ

Air pressure

0.6/0.8Mpa(Must be dried by a dryer and treated with a three-stage precision filter）

Max air consumption

0.20m³/m

0.25m³/m

0.30m³/m

0.35m³/m

0.40m³/m

0.45m³/m

0.50m³/m

0.55m³/m

Dimension

11200*3560*1680

13250*3560*1680

15300*3560*1680

17350*3560*1680

19400*3560*1680

21450*3560*1680

23500*3560*1680

25550*3560*1680

Weight

3300kg

3800kg

4300kg

4800kg

5300kg

5800kg

6300kg

6800kg

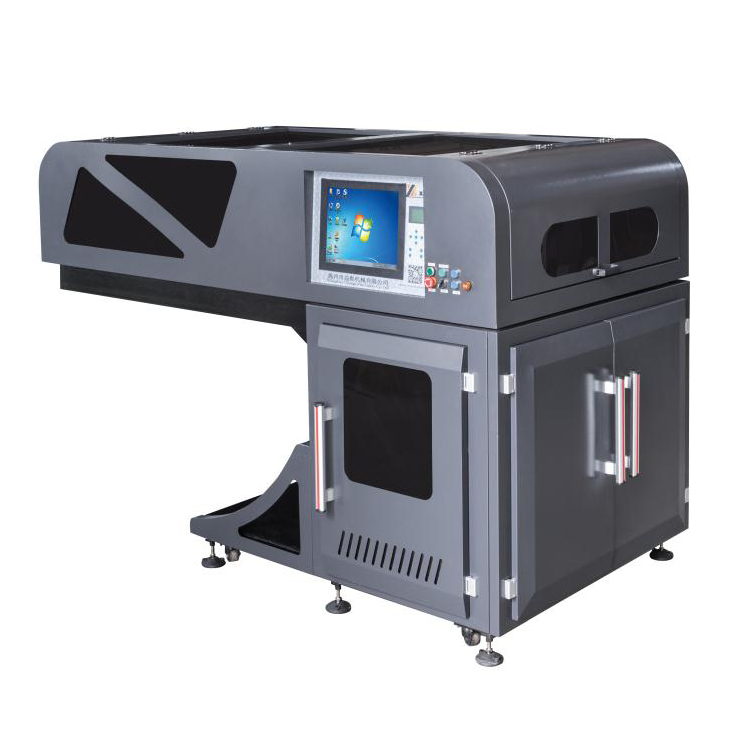

Model

YZ-4720-2

YZ-4720-4

Nozzle model

Epson-4720

Number of nozzle

2Pcs

4Pcs

Nozzle maintenance

Automatic moisturizing/Automatic cleaning/Automatic scraping system

Print resolution

720*1200dpi，720*1800dpi，720*2400dpi

Ink droplet size

Intelligent controllable ink droplets

Ink type

Water-based paint ink

Print color

KCMY

Ink supply mode

Siphon

Operating language

Chinese/English

Printing speed

120-400pcs/h

Print size

500*700/600*800/700*900mm

Print direction

Horizontal+Vertical

Print height

1-10mm Adjustable

Drive mode

High precision timing belt slide table

USB interface

USB 3.0 high-speed transmission interface

Rip software

Wasatch

Control software

Yili

Temperature/Humidity

20-30℃/40%-70%

Voltage

AC220V，50/60HZ

Power

1Kw

Dimension

1700*1100*1560mm

Weight

800kg
