YH Series Automatic Textile Screen Printing Machine
WENZHOU CHANGS INTERNATIONALThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Metal
- Size: φ4800*1650~φ7000*2500
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Metal
- Size: φ4800*1650~φ7000*2500
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Metal |
|---|---|
| Size | φ4800*1650~φ7000*2500 |
| Color | blue |
Product details
| Materials | Metal |
|---|---|
| Size | φ4800*1650~φ7000*2500 |
| Color | blue |
From the supplier
Introduce：

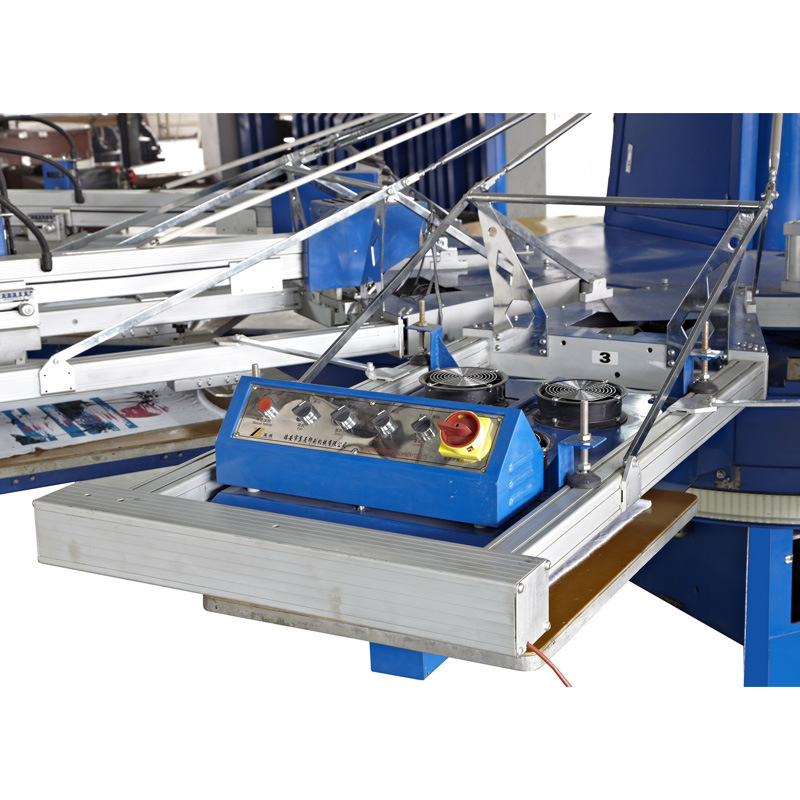

YH series printing machine is the newest and most advanced new generation automatic printing equipment in China, which will bring you high output and fast investment return. Its main features include:computer micro-processing system,accurate printing color setting accuracy,electric printing head and pneumatic turntable lifting system, simple and fast net frame loading and unloading, independent scraping and printing ink recovery speed can be adjusted freely, the machine frame can install flocking printing head and vivid touch screen operation interface.The YH series is available in 4,6,8,10,12 and 14 colors,with a maximum printing area of 500 x 700 mm. All models can be printed on t-shirts, sleeves, sheets and textile bags.
Features:
1.Color touch screen operation interface
2.The servo drive system can provide high speed running speed while ensuring stable, durable and long service life of printing
3.Quick pneumatic plat form replacement function
4.The turntable can rotate clockwise or counterclockwise
5.The net distance of all stations(the distance between the screen plate and the substrate surface) can be accurately adjusted at the same time
6.The frame should be able to assemble oven, printing head and flocking printing head as required
7.Manual tap jumping switch can avoid empty platform printing
8.Double shift function improves printing quality
9.The function of thick plate printing and automatic plate-changing is optional
- 10. One-year warranty, life time maintenance
Technical parameter：
Model
SPO-6/24
SPO-8/30
SPO-10/36
SPO-12/42
SPO-14/48
SPO-16/54
SPO-18/60
SPO-20/66
Color/Station
6
8
10
12
14
16
18
20
Max print area
24
30
36
42
48
54
60
66
Pallet Size
500*700mm (worktable) 600*800mm）
Max frame size
700*900mm (Large and Small Mesh Frames Available)
Max air consumption
4.2Kw
5.0Kw
5.8Kw
6.6Kw
7.4Kw
8.2Kw
9.0Kw
9.8Kw
Printing motor power
0.4Kw
Max output
12.4Kw
Main motor power
AC380V/3PH/50HZ
Each motor power
0.6/0.8Mpa
Dimension
0.20m³/m
0.25m³/m
0.30m³/m
0.35m³/m
0.40m³/m
0.45m³/m
0.50m³/m
0.55m³/m
Weight
11200*3560*1680
13250*3560*1680
15300*3560*1680
17350*3560*1680
19400*3560*1680
21450*3560*1680
23500*3560*1680
25550*3560*1680
Model
3300kg
3800kg
4300kg
4800kg
5300kg
5800kg
6300kg
6800kg
