Introduce：

Automatic oval screen printing machine adopts modularization design with high-strength aluminum alloy structure, servo motor running system ensures the machine runs fast and smooth under high-precision, so that the machine keeps reliable performance, accurate overprint,  and easy operation. Suitable for pieces or ready made clothing printing. flocking machine, pressing machine, digital printing machine etc can be set up and working together.

Control system

1. Computer interaction interface and programmable controller can make system self-diagnosis its fault;

2. Chinese and English language operation can  be selected  on the monitor;

3. the production speed and output are displayed in real time ;

Running system

1. Servo motor drive the machine running, and got high accuracy, high-speed and smooth run;

2. Multi-section speeds can be customized by users according to operating conditions;

3. Forward rotation and reverse.

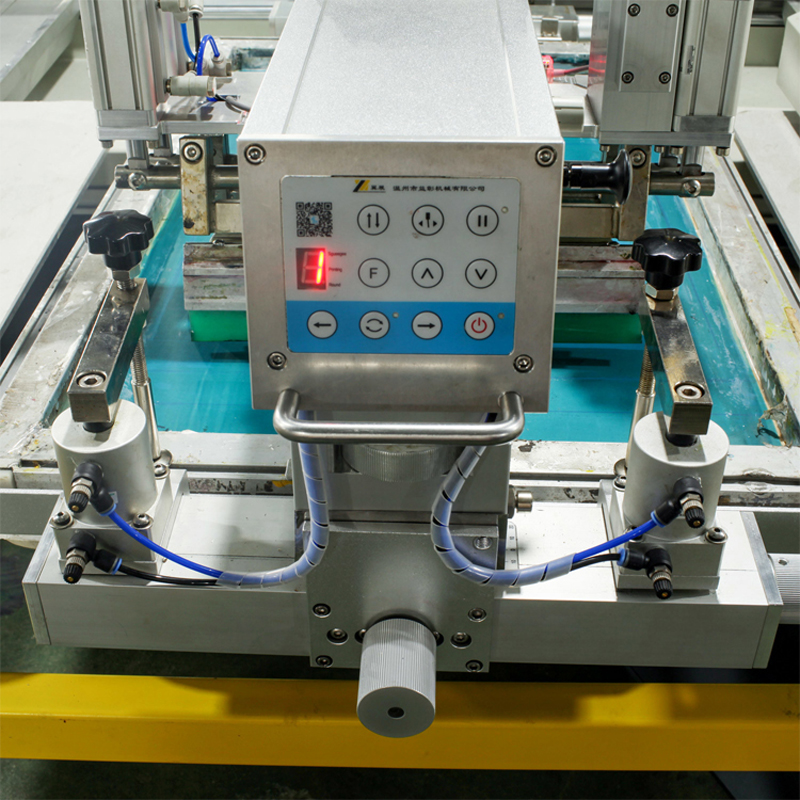

Printing stations

1. Each station can be operated independently, which is convenient for cutting off and starting or stopping the whole equipment;

2. The speed and pressure of the squeegee can be adjusted independently. The number of printing, length of printing and the squeegee stops position( inside or outside ) etc can be set freely.

3. Convenient and free tool handling for squeegee setting up and dis-assambling;

4. Alignment accuracy±0.05mm.

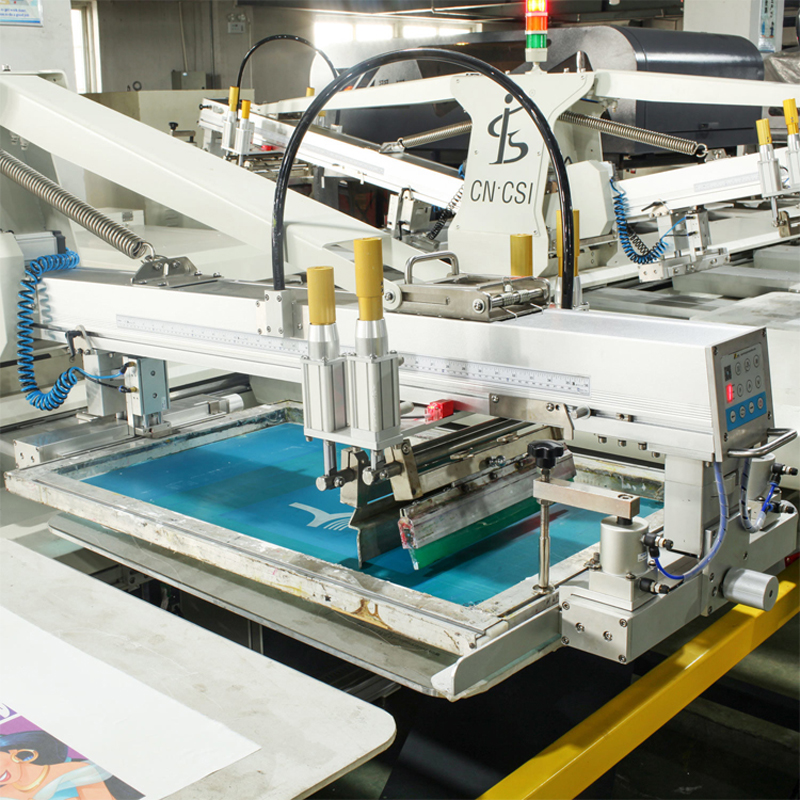

Body structure

1. Adopt high-strength, high-precision aluminum alloy body structure, simple, light, stable and firm;

2. Enclosed table top makes operation safe and convenient for equipment cleaning;

3. Modular design, quick and convenient for its installation.

Technical parameter：

SPO screen printing machine technical parameters

Model

unit

2s

4s

6s

8s

10s

12s

14s

16s

18s

20s

plate Quantities

piece

10

16

22

28

34

40

46

52

58

64

Printing Number

color

2

4

6

8

10

12

14

16

18

20

Printing Size

cm

50*70

Pallet Size

cm

62*81

Machine length

cm

540

780

1020

1260

1500

1740

1980

2220

2460

2700

Machine width

cm

356

Machine height

cm

168

Machine weight

KG

1700

2300

2800

3300

3800

4300

4800

5300

5800

6300

Air consumption

m3/minute

0.05

0.1

0.15

0.2

0.25

0.3

0.35

0.4

0.45

0.5

Air pressure specification

mpa

0.6/0.8

（Must be dried by a dryer and treated with a three-stage precision filter）

Print Head driver

w

Single print head Panasonic servo motor 400w

Tatal Power Consumption

kw

1.8

2.6

3.4

4.2

5

5.8

6.6

7.4

8.2

9

Power supply parameters

三相380V/50hz(three phase 380V/50hz）

Max capacity

pcs/hour

1000

Optional squeegee size

cm

60.50.40（50 is standard）

Optional flood-bar size

cm

64.54.44（54 is standard）

Supporting air compressor power（User-prepare）

kw

1.5

1.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

15

Supporting gas storage tank（User-equipped）

m3

0.6

0.6

0.6

0.6

0.6

1

1

1

1

1

Dryer installed power（total）

kw

24

48

72

96

120

144

168

192

216

240

SPO screen printing machine configuration table (iron frame)

Order number

Name

Brand

Remarks

1

PLC controller

Taiwan Yonghong FATEK

Host FBS-24MAT2-AC, slave B1-40MT25-D24

2

Main drive reducer

Taiwan LM servo reducer

3

Main drive and motor

Panasonic

1.5KW or 2KW, 16-station or more dual motor drive

4

Print head drive and motor

Panasonic

400W

5

Main drive chain

Japan/CHOHO

12B double row to ensure transmission accuracy and service life

6

Pallet

Ultra flat precision aluminum plate

7

Print head pressure regulating valve

Japanese SMC

Precision voltage regulation

8

touch screen

Taiwan

10 inch true color

9

Main power AC contactor

Schneider

international well-known brand

10

Emergency button

Schneider

11

Cylinder

Taiwan AirTAC

12

Pneumatic main control valve

Taiwan AirTAC

Two pieces

13

Slider and slide

Frame size frame is available

14

Switching power supply

Taiwan Ming Wei

15

Dryer

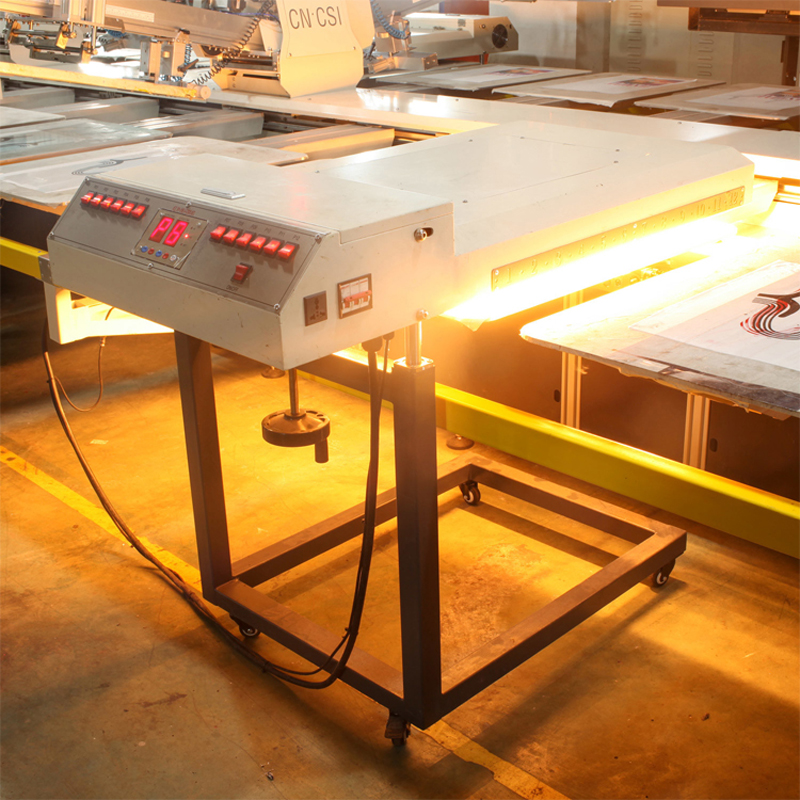

12 tubes, maximum power 12KW. The power is adjustable, and the lamp can be controlled by a single switch.

16

Position machine

1 set

17

Frame pim fixing tooling

1 set

18

Sprayer

18KG

19

Squeegee

50Oneset

20

Flood bar

52Oneset

21

frame nylon pim

100
