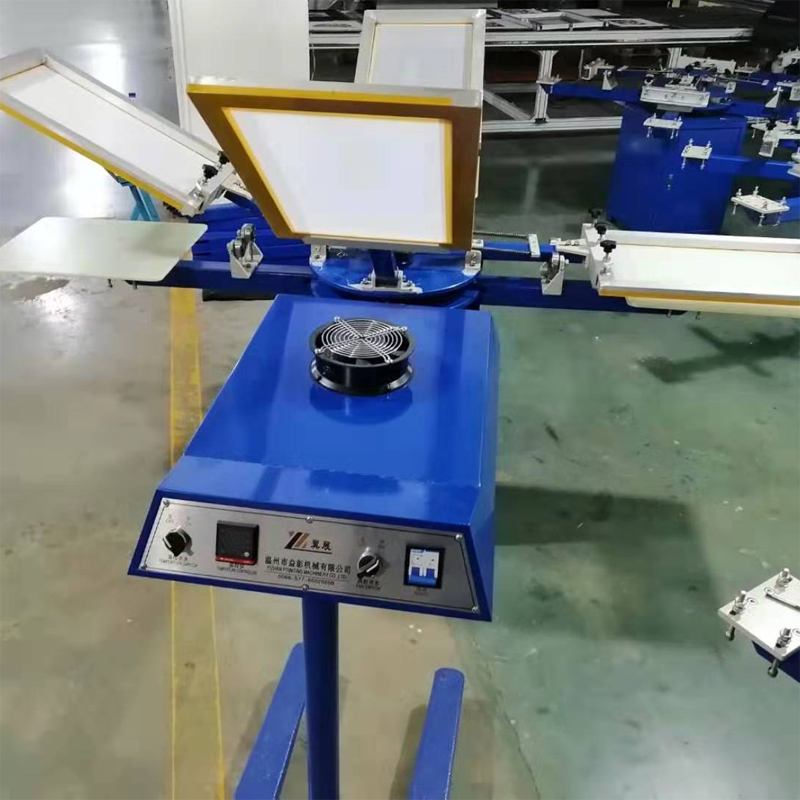

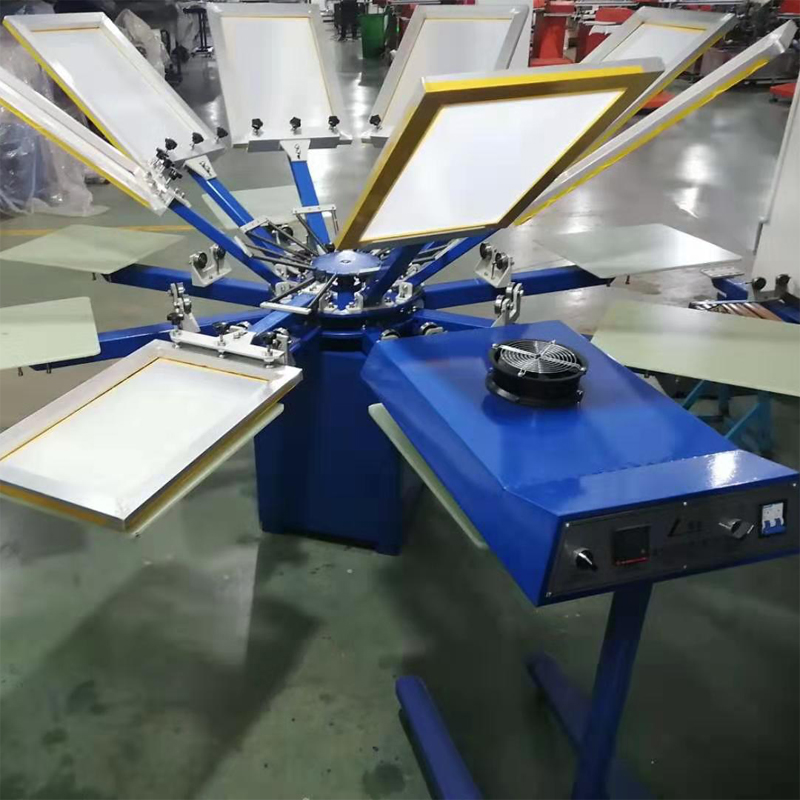

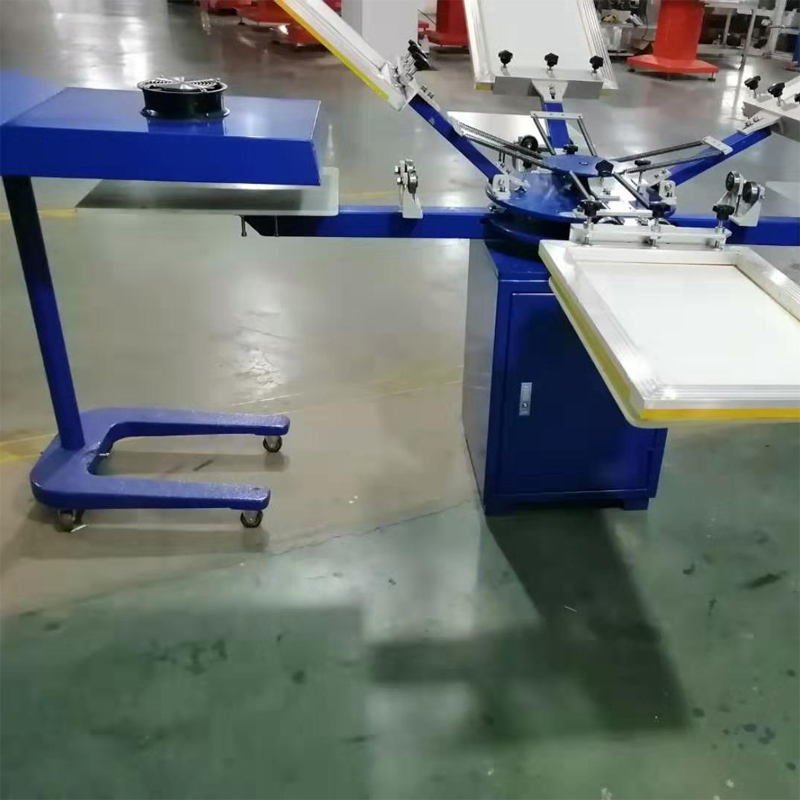

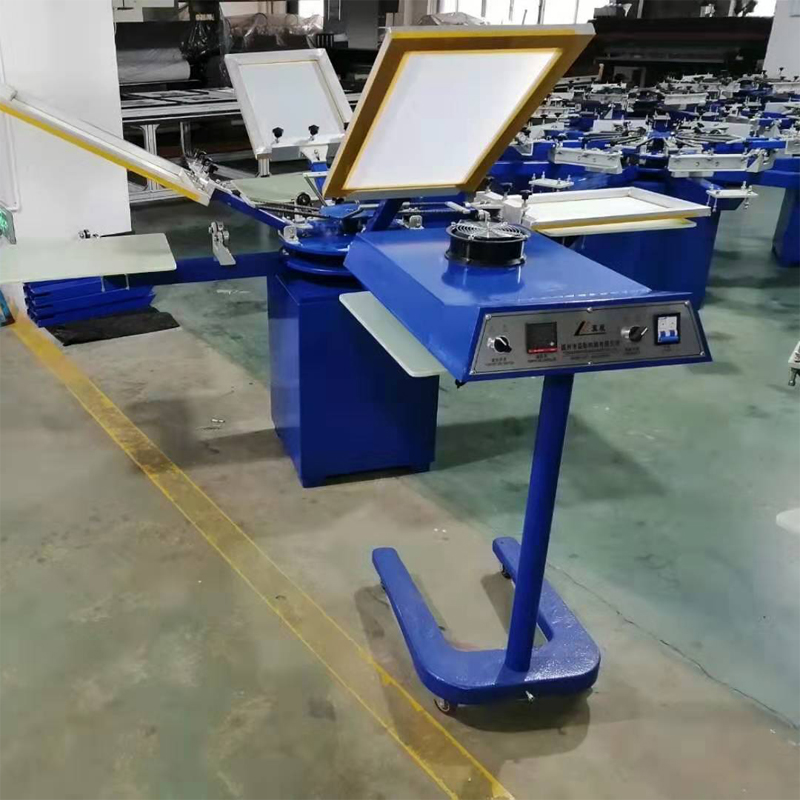

SPM Series Manual Textile Screen Printing Machine
WENZHOU CHANGS INTERNATIONAL
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
SPM Series Manual Textile Screen Printing Machine
WENZHOU CHANGS INTERNATIONALThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: Metal
- Size: 5560*1120*1300~5560*1520*1300
- Color: blue
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Metal
- Size: 5560*1120*1300~5560*1520*1300
- Color: blue
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Metal |
|---|---|
| Size | 5560*1120*1300~5560*1520*1300 |
| Color | blue |
Product details
| Materials | Metal |
|---|---|
| Size | 5560*1120*1300~5560*1520*1300 |
| Color | blue |
From the supplier
Introduce：
SPM series manual printing machine suitable for small-scale printing production, simple operation.The printing suit is accurate and fast, the platen is smooth and durable, it is suitable for printing of various textile fabrics. This economical manual printing machine will bring you unlimited investment returns.
Features:
1. Simple and convenient installation
2. Accurate color printing
3. The platform is smooth and durable
Technical parameter：
Model and specification
SPM450
SPM650
SPM850
Print color/station
4
6
8
Max print area
350*450mm
350*450mm
350*450mm
Pallet size
400*500mm
400*500mm
400*500mm
Weight
130kg
160kg
200kg
Dimension
φ2500*1300mm
φ2500*1300mm
φ3000*1350mm
Moveable dryer power
6Kw
6Kw
6Kw
STANDARD FEATURES
1, U-slot guide locator system
2, Precise four-point pallet height adjustable system, offering wide range of off-contact adjustment
3, Print head lock-in design maintains exact color-to-color repeatability but ensuring +/-0.10mm registration and Three large-size knobs secure screen frame tightly.
4, Built with a low profile and release height adjustable arms, reducing operators fatigue and downtime
5, Two-spring hinge system increases the print speed
6, Special resin made pallets provide a durable, effective print surface,accommodate all types of pallets adhesives,Easy-to-install feature combined with left-and-right adjustment
From the supplier
Introduce：
SPM series manual printing machine suitable for small-scale printing production, simple operation.The printing suit is accurate and fast, the platen is smooth and durable, it is suitable for printing of various textile fabrics. This economical manual printing machine will bring you unlimited investment returns.
Features:
1. Simple and convenient installation
2. Accurate color printing
3. The platform is smooth and durable
Technical parameter：
Model and specification
SPM450
SPM650
SPM850
Print color/station
4
6
8
Max print area
350*450mm
350*450mm
350*450mm
Pallet size
400*500mm
400*500mm
400*500mm
Weight
130kg
160kg
200kg
Dimension
φ2500*1300mm
φ2500*1300mm
φ3000*1350mm
Moveable dryer power
6Kw
6Kw
6Kw
STANDARD FEATURES
1, U-slot guide locator system
2, Precise four-point pallet height adjustable system, offering wide range of off-contact adjustment
3, Print head lock-in design maintains exact color-to-color repeatability but ensuring +/-0.10mm registration and Three large-size knobs secure screen frame tightly.
4, Built with a low profile and release height adjustable arms, reducing operators fatigue and downtime
5, Two-spring hinge system increases the print speed
6, Special resin made pallets provide a durable, effective print surface,accommodate all types of pallets adhesives,Easy-to-install feature combined with left-and-right adjustment
