From the supplier

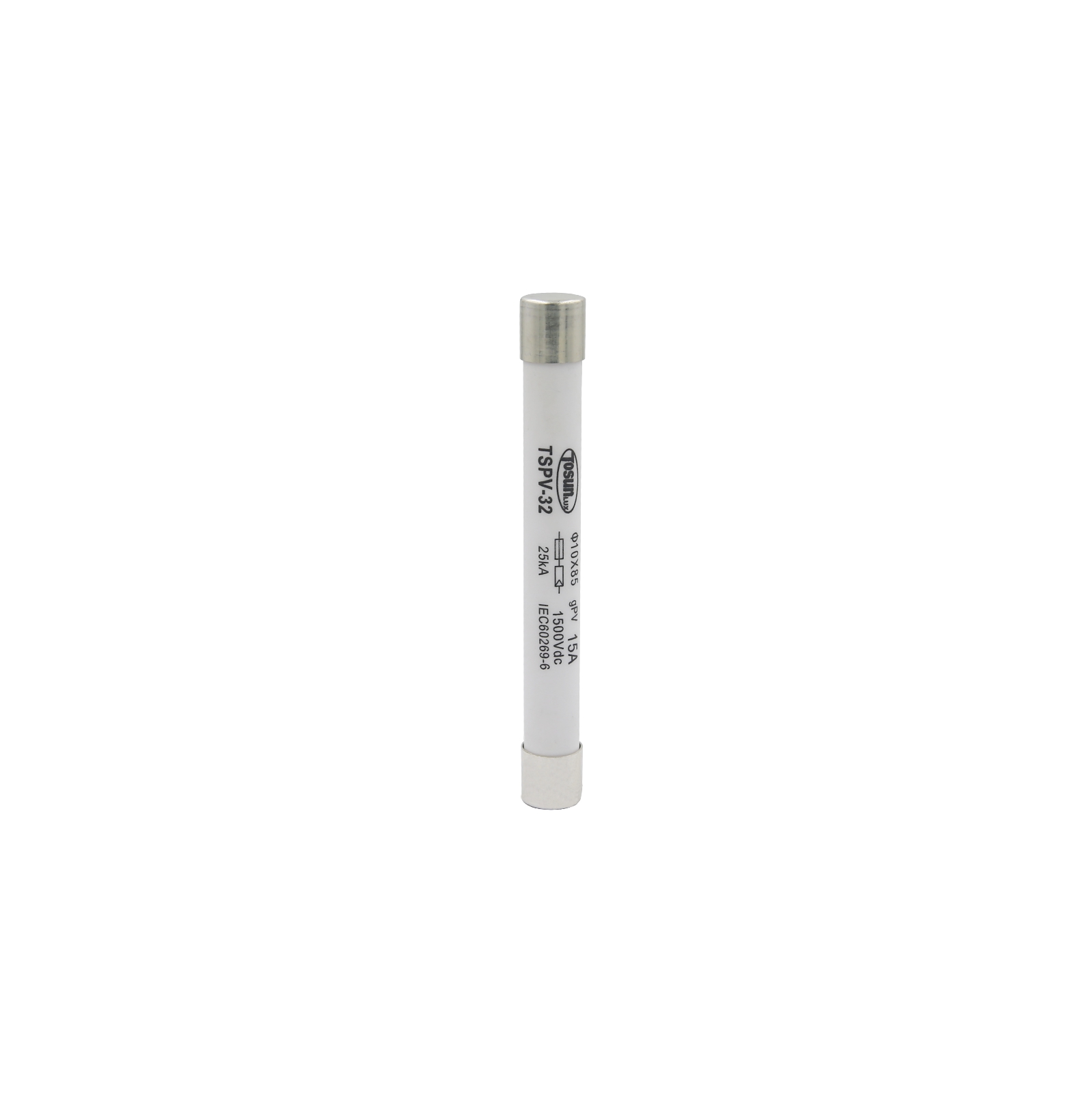

Parameters and features
Standard: IEC60269-1 & IEC60269-6
Rated voltage: DC1500V
Rated current: 3
Breaking capacity: 25 KA
Operating class: gPV
Protection objects: It is used in the photovoltaic combiner box to provide safe and reliable protection for overload and short-circuit current faults of PV modules and PV arrays.
Applicable environment: Temperature,﹣5°C～+40°C;
Specification
Fuse link Fuse base Model Rated current (A) I²t(A²s) Power loss (W) 1.0 In Model Rated current (A) Melting Clearing TSPV-32 2 3.5 12 2.2 TSPV-32B TSPV-32BX 32A 3 8 18 2.5 4 16 35 2.8 5 30 66 3.0 6 46 130 3.3 8 55 200 3.8 10 70 270 4.5 12 95 360 5.0 15 130 400 5.7 20 220 750 6.8 25 350 1000 7.2 32 480 1600 8.2
Average Characteristics Curve
Dimensions
Recommend
From the supplier
Parameters and features
Standard: IEC60269-1 & IEC60269-6
Rated voltage: DC1500V
Rated current: 3
Breaking capacity: 25 KA
Operating class: gPV
Protection objects: It is used in the photovoltaic combiner box to provide safe and reliable protection for overload and short-circuit current faults of PV modules and PV arrays.
Applicable environment: Temperature,﹣5°C～+40°C;
Specification
Fuse link Fuse base Model Rated current (A) I²t(A²s) Power loss (W) 1.0 In Model Rated current (A) Melting Clearing TSPV-32 2 3.5 12 2.2 TSPV-32B TSPV-32BX 32A 3 8 18 2.5 4 16 35 2.8 5 30 66 3.0 6 46 130 3.3 8 55 200 3.8 10 70 270 4.5 12 95 360 5.0 15 130 400 5.7 20 220 750 6.8 25 350 1000 7.2 32 480 1600 8.2
Average Characteristics Curve
Dimensions
Recommend
