DC Residual Current Circuit Breaker
Wenzhou Tosun Import & Export Co., Ltd.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
DC Residual Current Circuit Breaker
Wenzhou Tosun Import & Export Co., Ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier
Function

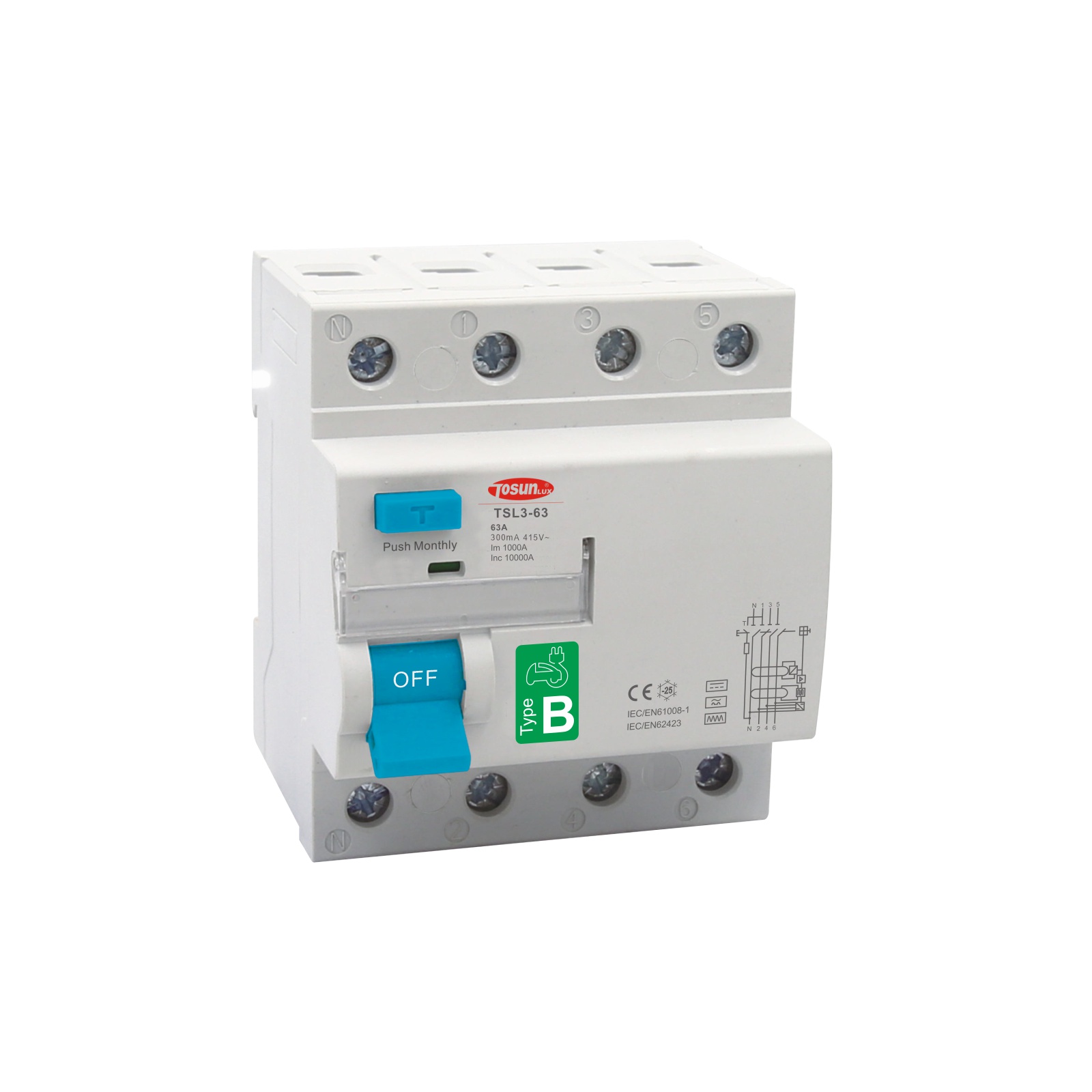

TSL3-63B is a kind of circuit breaker with complete update of residual currentdetection, based on current type A RCCB. It can not only effectively protect AC and pulsing DC (A type), the possible compound residual current(F type ) , but also smoothing DC and high frequency residual current(1KHz) .In a circuit consisting of rectifier, inverter, frequency inverter, etc, the leakage current caused in DC loop circuit can be effectively detected and protected.
Application
Industry, medical, EV charger, elevator, etc
Conforms to standard
IEC/EN61008-1, IEC/EN62423
Detection residual current type
AC+A+ smoothing DC +F+ high frequency signal (1K Hz)
Specification
Types Values Rated voltage un 240v ~1P+N, 415V ~3P+N Rated current in 16A,25A,32A,40A,63A Rated residual operated current Ian 0.03A, 0.1A, 0.3A Poles 1P+N, 3P+N Type of residual current Type B (AC+A+ smoothing DC+F+ high frequency signal 1K Hz) Rated limited short circuit current Inc 10000A Rated making and breaking capacity lm 1000A Rated residual making and breaking capacitylam 1000A Rated insulation voltage ui 1P+N:250V 3P+N:500V Rated impulse withstand voltage uimp 4000v Electrical life 2000 Times Mechanical life 10000 Times Operated ambient temperature ℃ -25~+40 Stored ambient temperature℃ -25~+70 Tightening torque 3N.m Connection capacity 16mm² Pollution level 2 Protection level IP20 Mounting type
II
Dimensions
From the supplier
Function
TSL3-63B is a kind of circuit breaker with complete update of residual currentdetection, based on current type A RCCB. It can not only effectively protect AC and pulsing DC (A type), the possible compound residual current(F type ) , but also smoothing DC and high frequency residual current(1KHz) .In a circuit consisting of rectifier, inverter, frequency inverter, etc, the leakage current caused in DC loop circuit can be effectively detected and protected.
Application
Industry, medical, EV charger, elevator, etc
Conforms to standard
IEC/EN61008-1, IEC/EN62423
Detection residual current type
AC+A+ smoothing DC +F+ high frequency signal (1K Hz)
Specification
Types Values Rated voltage un 240v ~1P+N, 415V ~3P+N Rated current in 16A,25A,32A,40A,63A Rated residual operated current Ian 0.03A, 0.1A, 0.3A Poles 1P+N, 3P+N Type of residual current Type B (AC+A+ smoothing DC+F+ high frequency signal 1K Hz) Rated limited short circuit current Inc 10000A Rated making and breaking capacity lm 1000A Rated residual making and breaking capacitylam 1000A Rated insulation voltage ui 1P+N:250V 3P+N:500V Rated impulse withstand voltage uimp 4000v Electrical life 2000 Times Mechanical life 10000 Times Operated ambient temperature ℃ -25~+40 Stored ambient temperature℃ -25~+70 Tightening torque 3N.m Connection capacity 16mm² Pollution level 2 Protection level IP20 Mounting type
II
Dimensions
