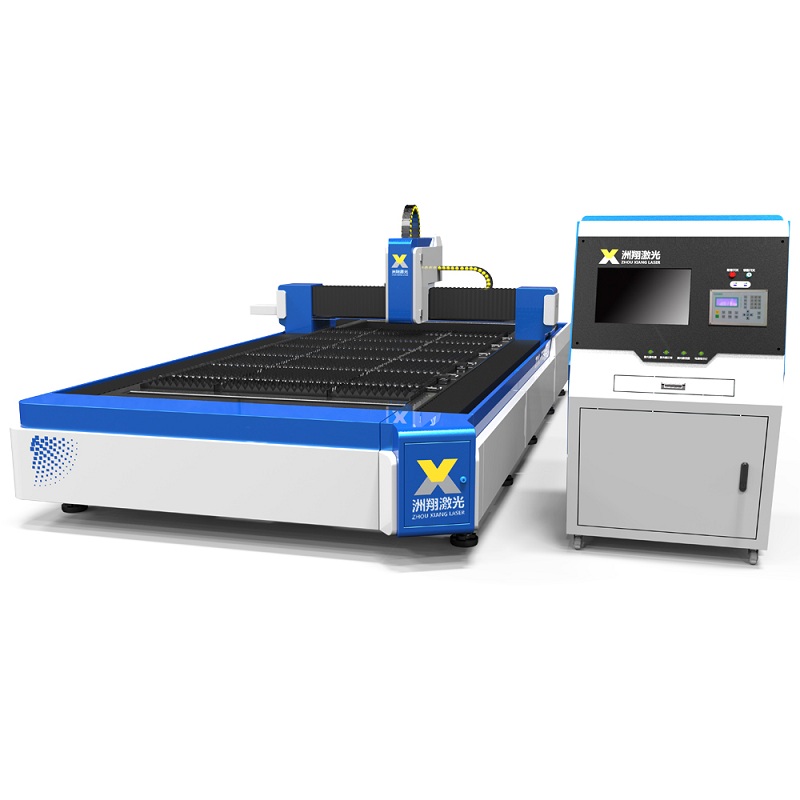

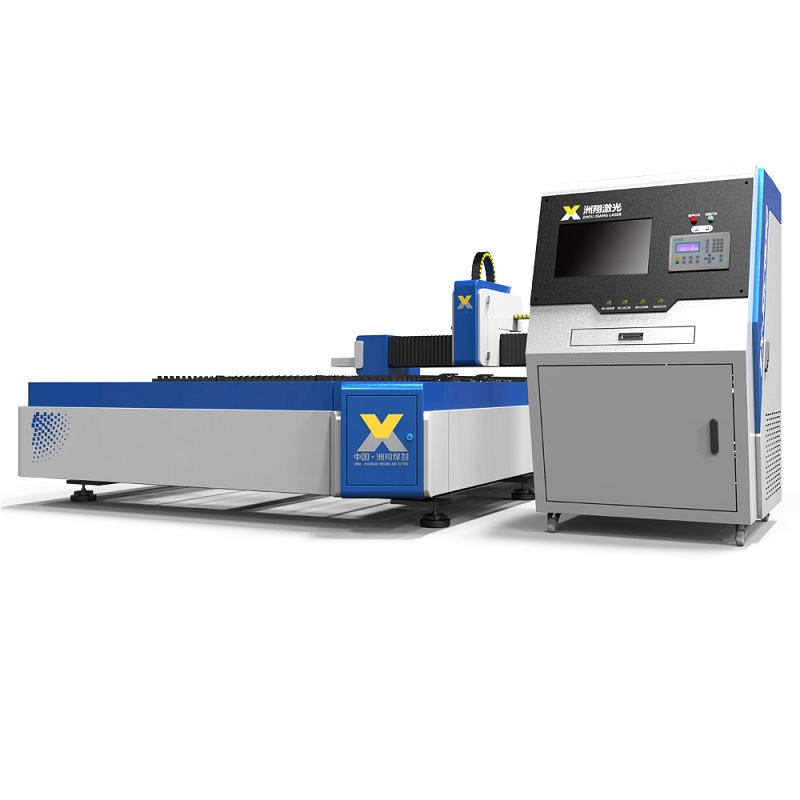

Small gantry type fiber laser cutting machine
WUXI ZHOUXIANG COMPLETE SET OF WELDING EQUIPMENT CO., LTD
See what’s includedHide breakdown
- FOB goods (100)
- $5,000,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $175,002
- Section 301 tariff (25.0%)
- $1,250,013
- Customs fees (MPF/HMF)
- $6,885
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $5,000,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $175,002
- Section 301 tariff (25.0%)
- $1,250,013
- Customs fees (MPF/HMF)
- $6,885
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Small gantry type fiber laser cutting machine
WUXI ZHOUXIANG COMPLETE SET OF WELDING EQUIPMENT CO., LTDSee what’s includedHide breakdown
- FOB goods (100)
- $5,000,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $175,002
- Section 301 tariff (25.0%)
- $1,250,013
- Customs fees (MPF/HMF)
- $6,885
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $5,000,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $175,002
- Section 301 tariff (25.0%)
- $1,250,013
- Customs fees (MPF/HMF)
- $6,885
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: steel, aluminium, and iron
- Size: 5150×2650×1850mm
- Color: Zhouxiang standard color
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: steel, aluminium, and iron
- Size: 5150×2650×1850mm
- Color: Zhouxiang standard color
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | steel, aluminium, and iron |
|---|---|
| Size | 5150×2650×1850mm |
| Color | Zhouxiang standard color |
Product details
| Materials | steel, aluminium, and iron |
|---|---|
| Size | 5150×2650×1850mm |
| Color | Zhouxiang standard color |
From the supplier
Laser cutting concentrate the light beam on the material surface by optical focusing mirror, melt the material, blow off the cutting slag by high-speed air flow and form a smooth cutting seam.
Fiber laser cutting machine can be used for plane cutting and also can be used for beveling cutting. The cutting edge is smooth and tidy which is especially for metal plate high accurate cutting, meanwhile the mechanical beam can make three dimensions cutting. Compare with the normal CO2 laser cutting, fiber laser cutting is more costly by saving space and gas consumption, it has high photoelectric converting efficiency as a new product of energy conservation and environment protection, and also one of the world technology leading products. It is widely used in panel beating, aviation, aerospace, electrical equipment, metro parts, automobile, grain machinery, textile machinery, engineering machinery, precise parts, ship, metallurgy machinery, elevator，household appliances, craft gift, tooling processing, decoration, advertisement, metal processing etc. Varies manufacturing and processing industries.
Single working table, easy operation, and can save space. This series is suitable for thin plate processing.
Technical Parameters
Machine model
FC1530
Laser power
1000W 1500W 2000W 3000W 4000W 6000W (Optional)
Cutting thickness
0.5-20mm
Working area
3000mm * 1500mm
Repeat positioning accuracy
±0.02mm
Maximum speed
100m/min
Max.acceleration
1.2G
Voltage and frequency
380V 50Hz/60Hz
From the supplier
Laser cutting concentrate the light beam on the material surface by optical focusing mirror, melt the material, blow off the cutting slag by high-speed air flow and form a smooth cutting seam.
Fiber laser cutting machine can be used for plane cutting and also can be used for beveling cutting. The cutting edge is smooth and tidy which is especially for metal plate high accurate cutting, meanwhile the mechanical beam can make three dimensions cutting. Compare with the normal CO2 laser cutting, fiber laser cutting is more costly by saving space and gas consumption, it has high photoelectric converting efficiency as a new product of energy conservation and environment protection, and also one of the world technology leading products. It is widely used in panel beating, aviation, aerospace, electrical equipment, metro parts, automobile, grain machinery, textile machinery, engineering machinery, precise parts, ship, metallurgy machinery, elevator，household appliances, craft gift, tooling processing, decoration, advertisement, metal processing etc. Varies manufacturing and processing industries.
Single working table, easy operation, and can save space. This series is suitable for thin plate processing.
Technical Parameters
Machine model
FC1530
Laser power
1000W 1500W 2000W 3000W 4000W 6000W (Optional)
Cutting thickness
0.5-20mm
Working area
3000mm * 1500mm
Repeat positioning accuracy
±0.02mm
Maximum speed
100m/min
Max.acceleration
1.2G
Voltage and frequency
380V 50Hz/60Hz
