Conventional welding rotator
WUXI ZHOUXIANG COMPLETE SET OF WELDING EQUIPMENT CO., LTD
See what’s includedHide breakdown
- FOB goods (100)
- $1,100,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $38,502
- Section 301 tariff (25.0%)
- $275,013
- Customs fees (MPF/HMF)
- $2,010
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,100,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $38,502
- Section 301 tariff (25.0%)
- $275,013
- Customs fees (MPF/HMF)
- $2,010
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Conventional welding rotator
WUXI ZHOUXIANG COMPLETE SET OF WELDING EQUIPMENT CO., LTDSee what’s includedHide breakdown
- FOB goods (100)
- $1,100,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $38,502
- Section 301 tariff (25.0%)
- $275,013
- Customs fees (MPF/HMF)
- $2,010
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,100,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $38,502
- Section 301 tariff (25.0%)
- $275,013
- Customs fees (MPF/HMF)
- $2,010
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: steel, aluminum and iron
- Size: 2500*530*1020mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: steel, aluminum and iron
- Size: 2500*530*1020mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | steel, aluminum and iron |
|---|---|
| Size | 2500*530*1020mm |
| Color | Zhouxiang standard blue |
Product details
| Materials | steel, aluminum and iron |
|---|---|
| Size | 2500*530*1020mm |
| Color | Zhouxiang standard blue |
From the supplier

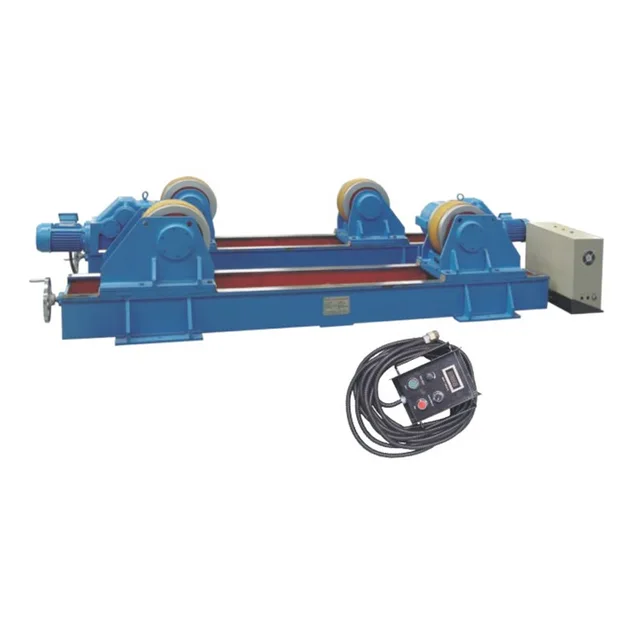

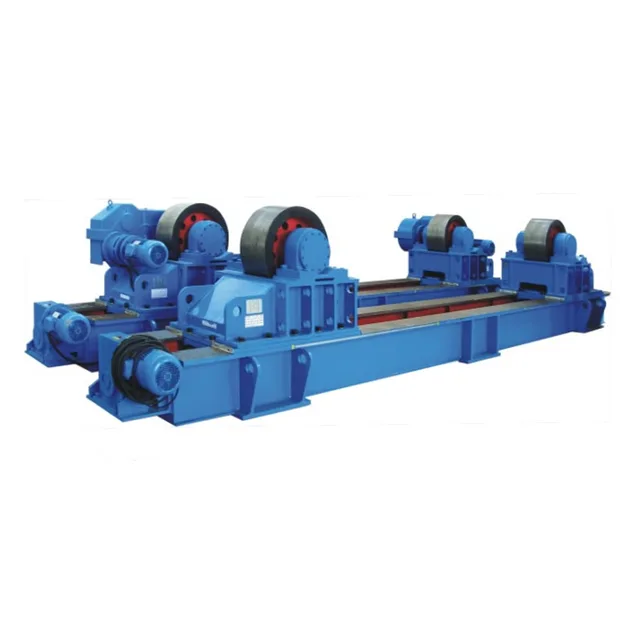

Conventional welding rotator is mainly composed of driving roller frame, idler roller frame, driving reducer system, control system, etc .
According to the different diameters of the workpieces, the center distance of the rollers can be adjusted to adapt to the diameter change of the workpieces by moving the roller group; the rollers use steel wheels, which have large bearing capacity and strong driving capacity to ensure normal use.
The structural parts of the roller frame are annealed after welding and reprocessed to ensure long-term performance and service life;
The transmission components of the roller frame have sufficient strength and machining precision. When the roller frame rotates within the rated working speed range, it rotates smoothly, uniformly, without slipping, without jitter or mechanical shock.
The maximum driving capacity of the welding rotator must meet the requirements of use. Within the range of the maximum driving capacity, its driving system and transmission system are stable and no abnormal conditions occur.
Technical parameter
Max load capacity: 40T (optional)
Suitable workpiece range: ф600-ф4200mm (optional)
Rubber roller dia.：ф400×120 (optional)
Metal roller dia.：2×ф390×40 (optional)
Roll linear speed: 6-60 m/h
Speed adjust mode: frequency stepless speed adjust
Motor power: 2*1.5KW (optional)
"}From the supplier
Conventional welding rotator is mainly composed of driving roller frame, idler roller frame, driving reducer system, control system, etc .
According to the different diameters of the workpieces, the center distance of the rollers can be adjusted to adapt to the diameter change of the workpieces by moving the roller group; the rollers use steel wheels, which have large bearing capacity and strong driving capacity to ensure normal use.
The structural parts of the roller frame are annealed after welding and reprocessed to ensure long-term performance and service life;
The transmission components of the roller frame have sufficient strength and machining precision. When the roller frame rotates within the rated working speed range, it rotates smoothly, uniformly, without slipping, without jitter or mechanical shock.
The maximum driving capacity of the welding rotator must meet the requirements of use. Within the range of the maximum driving capacity, its driving system and transmission system are stable and no abnormal conditions occur.
Technical parameter
Max load capacity: 40T (optional)
Suitable workpiece range: ф600-ф4200mm (optional)
Rubber roller dia.：ф400×120 (optional)
Metal roller dia.：2×ф390×40 (optional)
Roll linear speed: 6-60 m/h
Speed adjust mode: frequency stepless speed adjust
Motor power: 2*1.5KW (optional)
"}About the supplier
Main products: Other Welding Equipment,Rolling machine,Turning rolls,Edge milling machine,Other Metal Cutting Machinery,Other Large Machinery u0026 Equipment,H Beam production line,Pipe Cutting Tool,CNC Plasma Cutting Machines
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2001
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
Manufacturing exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2001
- Canton Fair Premium Supplier
