Small Double Drum Vibratory Roller
Xuzhou Silkway Machinery&Equipment Co., Ltd.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Small Double Drum Vibratory Roller
Xuzhou Silkway Machinery&Equipment Co., Ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Metal
- Size: 2990x1280x2360mm
- Color: Yellow
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Other European Countries, Others
- Made in: Jiangsu, China
About this product
- Materials: Metal
- Size: 2990x1280x2360mm
- Color: Yellow
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Other European Countries, Others
- Made in: Jiangsu, China
Product details
| Materials | Metal |
|---|---|
| Size | 2990x1280x2360mm |
| Color | Yellow |
Product details
| Materials | Metal |
|---|---|
| Size | 2990x1280x2360mm |
| Color | Yellow |
From the supplier

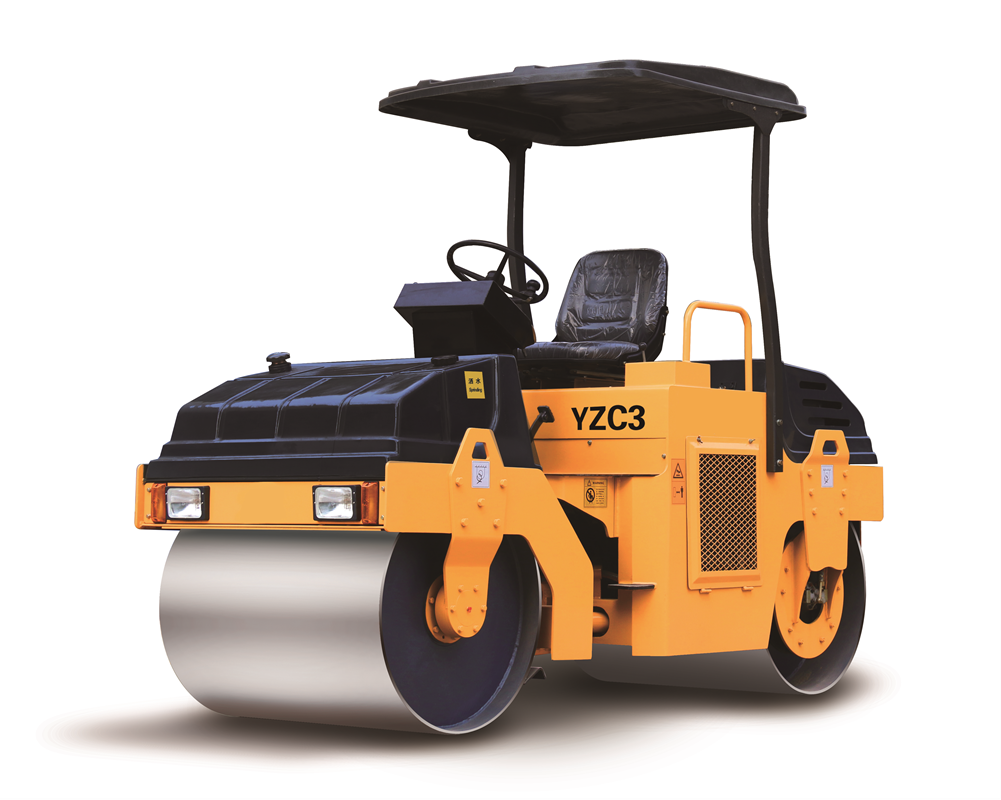

Small Double Drum Vibratory Roller YZC3
Application：
City road, Inter-city and township road, Stadium and other projects etc.. This roller is suitable for compacting and repairing the asphalt pavement and general road base.
Main Features
- 1) Mechanical drive, two-speed gear shift. Hydraulic vibration, Hydraulic steering and easy to operate.
- 2) Articulated frame with flexible steering. Compact design and nice appearance.
- 3) Equipped with gravity nature sprinkler system, or the electric control pressurized sprinkling system is optional.
- 4) A trailer is provided for transportation
- 5) Compacting force up to 6t
- 6) Scraper and sprinkling devices on all drums
Technical Data
Operating weight
3000
kg
Theoretical amplitude of vibration
0.58
mm
Diameter of vibrating drum
φ800
mm
Moving speed gear Ⅰ
2
km/h
Rolling width
1000
mm
Moving speed gear Ⅱ
5.6
Static Linear Pressure
162
N/cm
Grade ability
20%
Activating force
35
KN
Diesel engine model
Rated rotation speed
Rated power
ZN390Q
2400
25
r/min
kw
Vibration frequency
50
Hz
overall dimensions L*W*H
2990×1280×2360
mm
From the supplier
Small Double Drum Vibratory Roller YZC3
Application：
City road, Inter-city and township road, Stadium and other projects etc.. This roller is suitable for compacting and repairing the asphalt pavement and general road base.
Main Features
- 1) Mechanical drive, two-speed gear shift. Hydraulic vibration, Hydraulic steering and easy to operate.
- 2) Articulated frame with flexible steering. Compact design and nice appearance.
- 3) Equipped with gravity nature sprinkler system, or the electric control pressurized sprinkling system is optional.
- 4) A trailer is provided for transportation
- 5) Compacting force up to 6t
- 6) Scraper and sprinkling devices on all drums
Technical Data
Operating weight
3000
kg
Theoretical amplitude of vibration
0.58
mm
Diameter of vibrating drum
φ800
mm
Moving speed gear Ⅰ
2
km/h
Rolling width
1000
mm
Moving speed gear Ⅱ
5.6
Static Linear Pressure
162
N/cm
Grade ability
20%
Activating force
35
KN
Diesel engine model
Rated rotation speed
Rated power
ZN390Q
2400
25
r/min
kw
Vibration frequency
50
Hz
overall dimensions L*W*H
2990×1280×2360
mm
