About this product
- Size: 9070 x 3550 x 3960
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Latin America, Russia, Other European Countries, Others
About this product
- Size: 9070 x 3550 x 3960
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Latin America, Russia, Other European Countries, Others
Product details
| Size | 9070 x 3550 x 3960 |
|---|
Product details
| Size | 9070 x 3550 x 3960 |
|---|
From the supplier

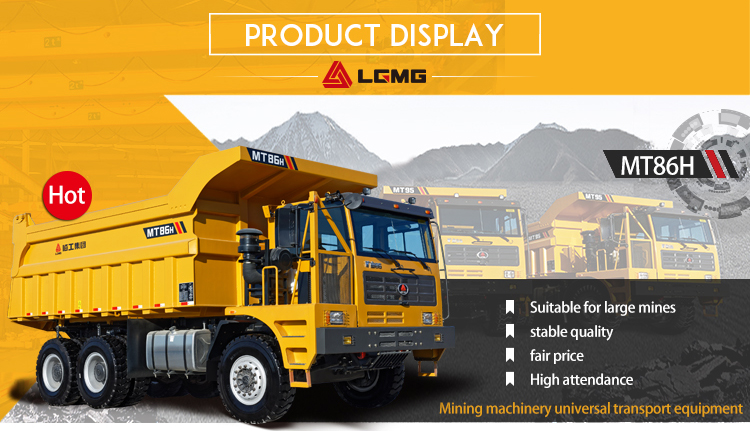

Parameters of MT86H (M086HWE00)
- 1. Specifications
Item
Data
Item
Data
Max.Design Weight（kg）
86000
Overall Dimension（LxWxH）（mm）
9070 x 3550 x 3960
Unladen/Laden Max.Speed（km/h)
42/38
Unladen/Laden Max.Gradeability（°）
29
Struck Capacity（m³）
30
Min.Turning Diameter(m)
≤22
Curb Weight（kg）
31000
- 2. Main Data
Item
Data
Item
Data
Wheel Tread（mm）
Front Axle：2792；Middle-Rear Axle：2526
Wheelbase（mm）
3800（Front-Middle）1500（Middle-Rear）
Approaching Angle(°）
30
Departure Angle（°）
40
Ground Clearance（mm）
≥315
No.of Axles
3

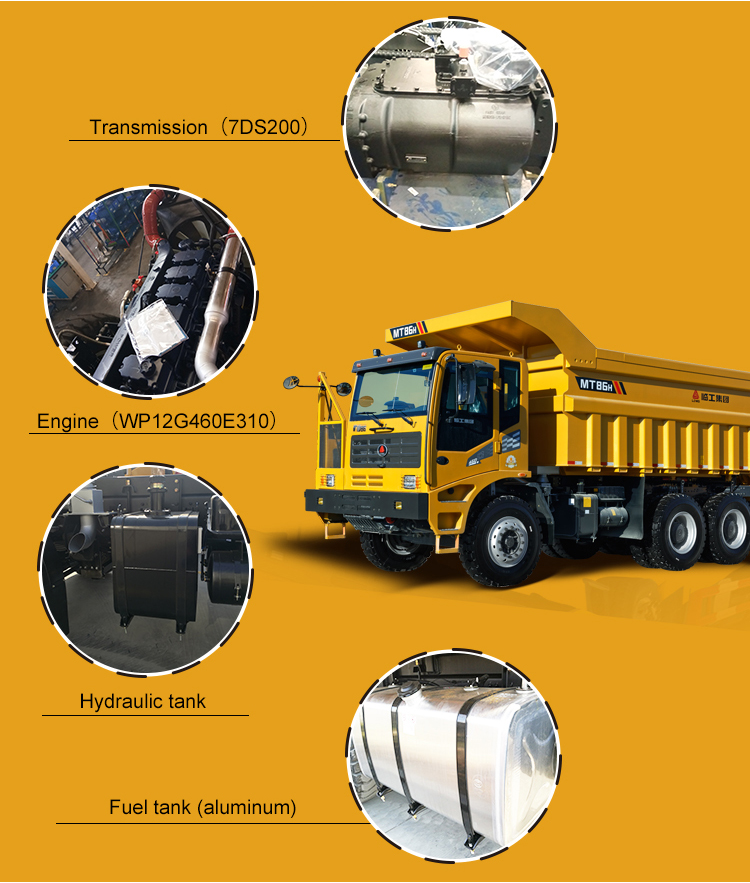

- 3. Engine
Item
Data
Item
Data
Make
Weichai WD12G420E211
Number of Cylinder
6
Type
Line,Direct Injection, Water-cooling, Inter-cooling, Electric-controlled
Bore/Stroke（mm）
126/155
Rated Power(kW)
309
Min. Fuel Consumption（g/kW.h)
195.9
Rated Speed(r/min)
2200
Max. Torque（N.m)
1750
Emission load (ml)
11596
Emission Standard
StageⅡGB20891-2007
- 4. Transmission System
Item
Data
Clutch
Type
Single Plate,Dry, Hydraulic Distant Control
Diaphragm Spring Separation（mm）
12-14
OD/ID of Friction Plate（mm）
430/242
Max. Separation Force of Diaphragm Spring（N）
8600
Leverage ratio of separation
1.73
Gearbox
FAST-7DS200
Type
Axis-fixed
Speeds
7 Forward, 1 Reverse
Speed Ratio/ Gear Ratio
1st
9.14
2nd
5.59
3rd
4.07
4th
2.99
5th
2.15
6th
1.61
7th
1
R1
8.51
Front Axle
Steering Axle
Welded Axle Housing
Middle-Rear Axle
Main Reduction Ratio
3.7
Wheel Edge Reduction Ratio
3.478
Total Reduction Ratio
12.87
Wheel
Rim
10.0/2.0-25
Tyre
14.00R25
Tyre Pressure（MPa）
0.85
Suspension System
Front Suspension
Leaf spring + double-acting cylinder shock absorber
Rear Suspension
Spring + angular contact joint bearing
- 5. Brake System
Item
Data
Braking Pressure(MPa)
0.85MPa
Main Brake
Two-circuit Air Brake
Auxiliary Brake
Engine Exhaust Brake, Eddy Current Retarder(optional)
Parking Brake
Spring Parking Brake
- 6. Steering System
Item
Data
Type
Fully hydraulic
Max.Turning Angle
38°
Safety Valve
√
Steering Pump
Vane Pump: Displacement 28ml/r
Steering Cylinder-Cylinder
4TG-FV180 X 4750ZZ-A
Steering Gear
BZZ-630
Min.Turning Diameter(m)
22
System Working Pressure
17
- 7. Lifting System
Item
Data
Type
Pneumatic Control
Lifting Cylinder-First Section Effective Diameter x Sections x Total Distance（mm）
4TG-FV180 X 4750ZZ-A
Work Pump
Gear Pump CBW57F100R
Pneumatic Control Valve MODEL
OPC3013110
Lifting Valve MODEL
QBJF-M-150L-220
Limit Valve MODEL
01819545
Max.Working Pressure
24Mpa
Bucket Raising Time(full-lade)
≤25s
Bucket Lowering Time(no-lade)
≤25s
Total Time
≤50s
- 8. Refueling Capacity
Item
Data
Item
Data
Fuel
530L
Engine Oil
24L
Hydraulic Oil
135L
Gearbox
23L
Axle
46L（Middle Axle）37L(Rear Axle）
Brake Fluid
1.5L
Anti-freezing Fluid
50L
From the supplier
