About this product
- Materials: Metal
- Size: 3580×2390×3660mm
- Color: Blue+White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Metal
- Size: 3580×2390×3660mm
- Color: Blue+White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Metal |
|---|---|
| Size | 3580×2390×3660mm |
| Color | Blue+White |
From the supplier

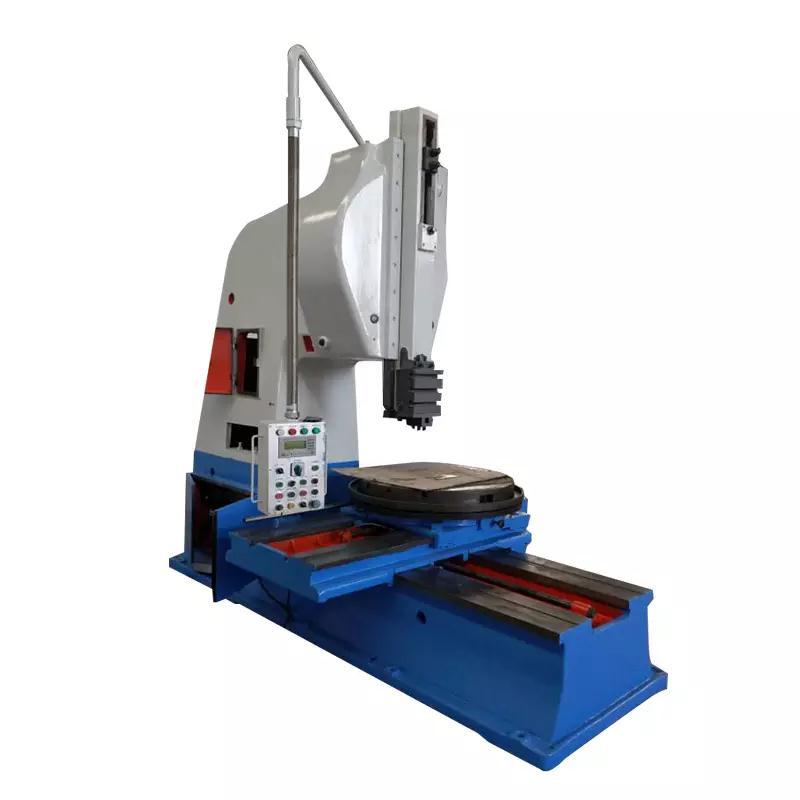

This slotting machine is used for cutting plane and shape of parts surface and groove, etc. The machine adopts double crank mechanism the moving stable table adopts advanced PLC system and this feeding system is composed of digital control system and feeding motor system. Worktable with mobile rotary positioning, for processing multi-keyway provides convenient, continuous non-polar feed, with real-time feed parameters are shown on a text display. When the machine tool is used for a long time,the machine system wears severely,it can be carried out by professionals to do some error compensation with the control system to ensure the accuracy.
Specifications Specification BC5063 Maximum insertion length of the ram(interpolated inner hole 530 mm) 630mm The number of reciprocation per minute of the ram 8,12,20,30r.p.m Ram tilt angle ±10 Tool chuck T-slot width 22H11mm Distance from the tool support surface to the front wall of the bed 1120mm Work surface to the lower end of the carriage 800mm Worktable maximum longitudinal movement distance 1000mm Worktable maximum lateral movement distance 700mm Worktable vertical and horizontal feed 0,10,0.20,0.32,0.54,0.80,1.30mm/per Worktable rotary feed 3'6',9'36",16'12",24',39'deg/per Table diameter 1120mm Workbench maximum load 200kg Workbench central T-slot width 22H11 mm Main drive motor power 11kw Feed servo motor 4.0kw Ram position adjustment motor 0.55kw1400r.p.m Maximum cutting force 20000N Machine net weight(about) 11T Machine tool outline size (length x width x height) 3580×2390×3660 Split package size 3780/2560/1300/2350/1200/2500mm Machine DetailsAbout the supplier
