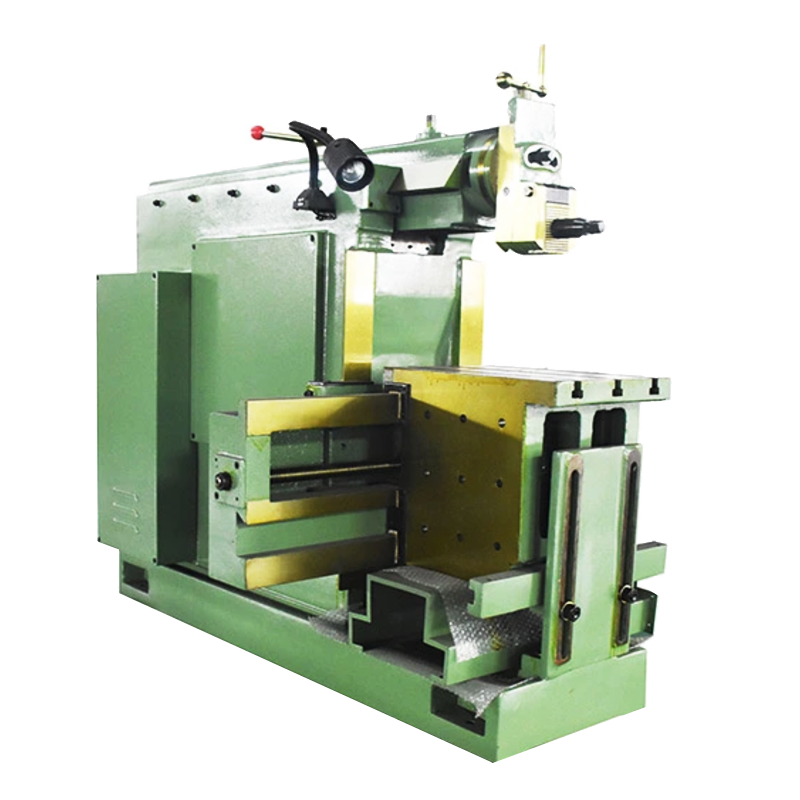

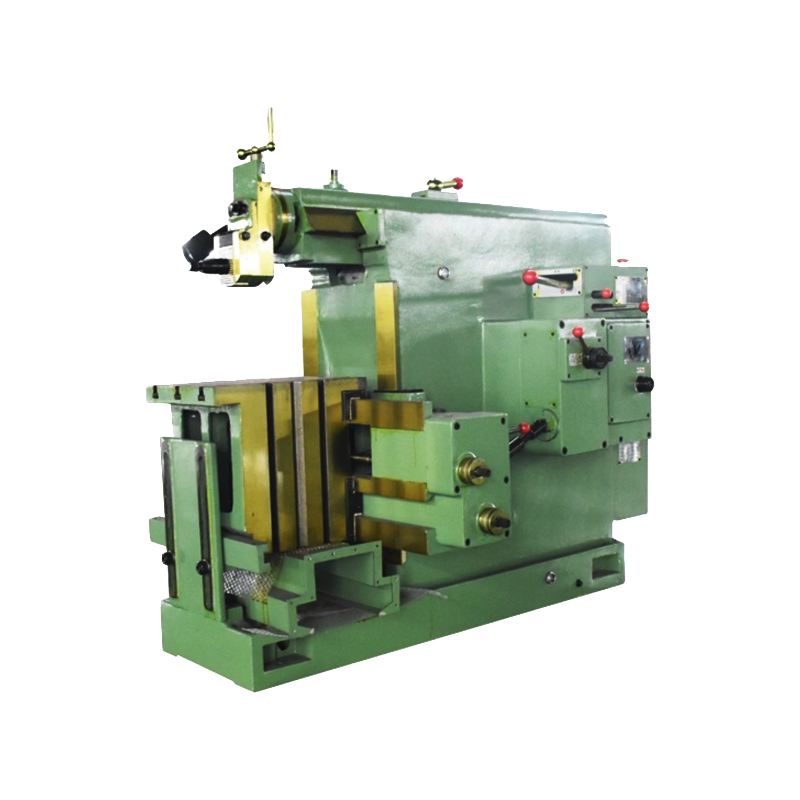

BC6050 Planer Horizontal Shaper Machine
Xi`An Industrial Machinery Co., Ltd
See what’s includedHide breakdown
- FOB goods (100)
- $530,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $18,550
- Section 301 tariff (25.0%)
- $132,500
- Customs fees (MPF/HMF)
- $1,297
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $530,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $18,550
- Section 301 tariff (25.0%)
- $132,500
- Customs fees (MPF/HMF)
- $1,297
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
BC6050 Planer Horizontal Shaper Machine
Xi`An Industrial Machinery Co., LtdSee what’s includedHide breakdown
- FOB goods (100)
- $530,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $18,550
- Section 301 tariff (25.0%)
- $132,500
- Customs fees (MPF/HMF)
- $1,297
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $530,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $18,550
- Section 301 tariff (25.0%)
- $132,500
- Customs fees (MPF/HMF)
- $1,297
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: metal
- Size: 2160*1070*1194mm
- Color: Green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shannxi, China
About this product
- Materials: metal
- Size: 2160*1070*1194mm
- Color: Green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shannxi, China
Product details
| Materials | metal |
|---|---|
| Size | 2160*1070*1194mm |
| Color | Green |
Product details
| Materials | metal |
|---|---|
| Size | 2160*1070*1194mm |
| Color | Green |
From the supplier
The main specification :
Model
BC6050 BC6065
Max .shapping length(mm)
500
650
Max. range of the horizontal movement of the table(mm)
525
630
Max. distance between the ram bottom and table(mm)
370
380
Max. length of the vertical movement of table(mm)
270
315
Dimensions of table top(L×W)(mm)
440×360
660×400
Max. stroke length of the tool head(mm)
120
120
Max. swivel angle of the tool head(°)
±60°
±60°
Max. section of tool(W×T)(mm)
20×30
20×30
Number of ram reciprocation per minute(NO/min)
14-80
14-80
Range of table feed
Horizontal
0.2-0.25 0.08-1
0.2-0.25 0.08-1
Vertical(mm/rpm)
Speed of rapid travel of table
Horizontal
0.95 0.38
0.95 0.38
Vertical
width of the T-slot for center positioning(mm)
18
18
Power of the main motor(k w)
3
3
N.W/G.W(kg)
1650
2200
Overall dimensions(L×W×H)(mm)
2160×1070×1194
2382×1210×1504
From the supplier
The main specification :
Model
BC6050 BC6065
Max .shapping length(mm)
500
650
Max. range of the horizontal movement of the table(mm)
525
630
Max. distance between the ram bottom and table(mm)
370
380
Max. length of the vertical movement of table(mm)
270
315
Dimensions of table top(L×W)(mm)
440×360
660×400
Max. stroke length of the tool head(mm)
120
120
Max. swivel angle of the tool head(°)
±60°
±60°
Max. section of tool(W×T)(mm)
20×30
20×30
Number of ram reciprocation per minute(NO/min)
14-80
14-80
Range of table feed
Horizontal
0.2-0.25 0.08-1
0.2-0.25 0.08-1
Vertical(mm/rpm)
Speed of rapid travel of table
Horizontal
0.95 0.38
0.95 0.38
Vertical
width of the T-slot for center positioning(mm)
18
18
Power of the main motor(k w)
3
3
N.W/G.W(kg)
1650
2200
Overall dimensions(L×W×H)(mm)
2160×1070×1194
2382×1210×1504
