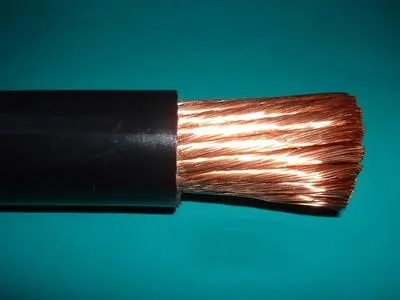

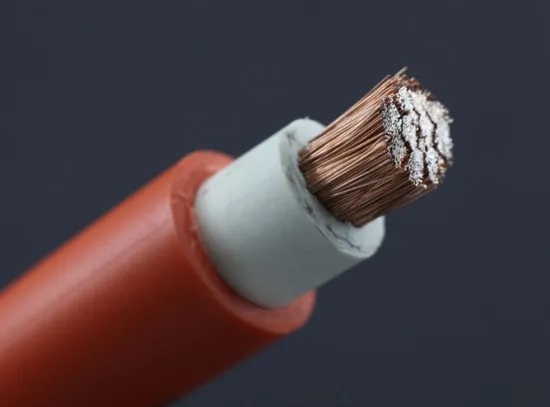

IEC Standard Rubber Insulated CCA Conductor Welding Cable
Zhengzhou Jinshui Industry and Commerce Co.,Ltd.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
IEC Standard Rubber Insulated CCA Conductor Welding Cable
Zhengzhou Jinshui Industry and Commerce Co.,Ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Natural Rubber Sheath Copper Core Welding Machine Cable
- Size: 10-50sqmm
- Color: black
- Exports to: Africa, Southeast Asia, South Asia, Other European Countries, Others
- Made in: Henan, China
About this product
- Materials: Natural Rubber Sheath Copper Core Welding Machine Cable
- Size: 10-50sqmm
- Color: black
- Exports to: Africa, Southeast Asia, South Asia, Other European Countries, Others
- Made in: Henan, China
Product details
| Materials | Natural Rubber Sheath Copper Core Welding Machine Cable |
|---|---|
| Size | 10-50sqmm |
| Color | black |
Product details
| Materials | Natural Rubber Sheath Copper Core Welding Machine Cable |
|---|---|
| Size | 10-50sqmm |
| Color | black |
From the supplier
IEC Standard Rubber Insulated CCA Conductor Welding Cable
Conductor Materials: Copper, Tinned Copper
Sheathed: Rubber/EPR/Neoprene
1. Specific property for using
1.1. The cable can be used in the connectors of electric weld and pliers of the electrical welding
Whose toward earth voltage of the low voltage is not more than AC 200V and the pulsating DC peak value is 400V.
1.2. The long term permissible working temperature of cable conductive core is not more than 65°C.
2. Type
A) Natural rubber sheath for welding cable(YH).
B) Neoprene rubber or other synthetic sheath welding cable(YHF).
3. Standard
(1) Rubber Sheathed Welding Cable 245 IEC 81
(2) Rubber Sheathed Welding Cable 245 IEC 82, which is made of chloroperene or the composite stretchy materials.
Conductor Nominal Section (mm2) Conductive Core Thickness of Section Sheath (mm) Average Outer Diameter (mm2) 20oC Conductor Resistance≤(Ω/km) Reference Weight(kg/km) Number/Diameter of Core(mm) Min Max YH YHF 10 322/0.20 1.8 7.5 9.7 1.91 146 153.51 16 513/0.20 2 9.2 11.5 1.16 218.9 230.44 25 798/0.20 2 10.5 13 0.758 316.6 331.15 35 1121/0.20 2 11.5 14.5 0.536 426 439.87 50 1596/0.20 2.2 13.5 17 0.379 592.47 610.55 70 2214/0.20 2.4 15 19.5 0.268 790 817.52 95 2997/0.20 2.6 17 22 0.198 1066.17 1102.97 120 1702/0.30 2.8 19 24 0.161 1348.25 1392.55 150 2135/0.30 3 21 27 0.129 1678.5 1698.72 185 1443/0.40 3.2 22 29 0.106 1983.8 2020.74
Company Description
Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou, Henan province. We have owned a number of exclusive essential manufacture technologies and has pass ISO 9001 Quality Management Systerm, ISO 14001 Environmental Management Systerm, OHSAS18001 occupational Heath Management Systerm, ISO 10012 Measurement Management Systerm and others from China and abroad.
We have been engaged in producing electric cable and wire for nearly 20 years and we are also 12 year gold supplier. And we are confident that we can offer the best service and quality for you.
Our product range is as following:
*Bare conductors(AAC, AAAC, ACSR, Galvanized steel wire)
*Aerial Bounded Cable (Duplex, Triplex, Quadruplex)
* PVC insulated wire (Rated voltage to 450/750V)
*THHN/THWN wire
*PVC insulated Power Cable
*XLPE insulated Power Cable
*Rubber sheathed Cable
*Control Cable
*Welding Cable
*Cable Accessories
We take part in many fairs and exhibitions in China and abroad. Our aim is to be our customer's factory in Zhengzhou, China. We are here to help you placing orders of cost-effective electric cable and keep tracking your products and shipment.
Our Factory
1. Professional production lines, experienced worker, ensure the production of every thing is fine and accurate.
2. We choose excellent raw materials carefully to ensure the quality and meet the need of customers.
3. Mechanical testing of Cables is done to determine the quality and mechanical characteristics before delivery.
From the supplier
IEC Standard Rubber Insulated CCA Conductor Welding Cable
Conductor Materials: Copper, Tinned Copper
Sheathed: Rubber/EPR/Neoprene
1. Specific property for using
1.1. The cable can be used in the connectors of electric weld and pliers of the electrical welding
Whose toward earth voltage of the low voltage is not more than AC 200V and the pulsating DC peak value is 400V.
1.2. The long term permissible working temperature of cable conductive core is not more than 65°C.
2. Type
A) Natural rubber sheath for welding cable(YH).
B) Neoprene rubber or other synthetic sheath welding cable(YHF).
3. Standard
(1) Rubber Sheathed Welding Cable 245 IEC 81
(2) Rubber Sheathed Welding Cable 245 IEC 82, which is made of chloroperene or the composite stretchy materials.
Conductor Nominal Section (mm2) Conductive Core Thickness of Section Sheath (mm) Average Outer Diameter (mm2) 20oC Conductor Resistance≤(Ω/km) Reference Weight(kg/km) Number/Diameter of Core(mm) Min Max YH YHF 10 322/0.20 1.8 7.5 9.7 1.91 146 153.51 16 513/0.20 2 9.2 11.5 1.16 218.9 230.44 25 798/0.20 2 10.5 13 0.758 316.6 331.15 35 1121/0.20 2 11.5 14.5 0.536 426 439.87 50 1596/0.20 2.2 13.5 17 0.379 592.47 610.55 70 2214/0.20 2.4 15 19.5 0.268 790 817.52 95 2997/0.20 2.6 17 22 0.198 1066.17 1102.97 120 1702/0.30 2.8 19 24 0.161 1348.25 1392.55 150 2135/0.30 3 21 27 0.129 1678.5 1698.72 185 1443/0.40 3.2 22 29 0.106 1983.8 2020.74
Company Description
Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou, Henan province. We have owned a number of exclusive essential manufacture technologies and has pass ISO 9001 Quality Management Systerm, ISO 14001 Environmental Management Systerm, OHSAS18001 occupational Heath Management Systerm, ISO 10012 Measurement Management Systerm and others from China and abroad.
We have been engaged in producing electric cable and wire for nearly 20 years and we are also 12 year gold supplier. And we are confident that we can offer the best service and quality for you.
Our product range is as following:
*Bare conductors(AAC, AAAC, ACSR, Galvanized steel wire)
*Aerial Bounded Cable (Duplex, Triplex, Quadruplex)
* PVC insulated wire (Rated voltage to 450/750V)
*THHN/THWN wire
*PVC insulated Power Cable
*XLPE insulated Power Cable
*Rubber sheathed Cable
*Control Cable
*Welding Cable
*Cable Accessories
We take part in many fairs and exhibitions in China and abroad. Our aim is to be our customer's factory in Zhengzhou, China. We are here to help you placing orders of cost-effective electric cable and keep tracking your products and shipment.
Our Factory
1. Professional production lines, experienced worker, ensure the production of every thing is fine and accurate.
2. We choose excellent raw materials carefully to ensure the quality and meet the need of customers.
3. Mechanical testing of Cables is done to determine the quality and mechanical characteristics before delivery.
