Product details
| Size | · |
|---|---|
| Color | · |
From the supplier

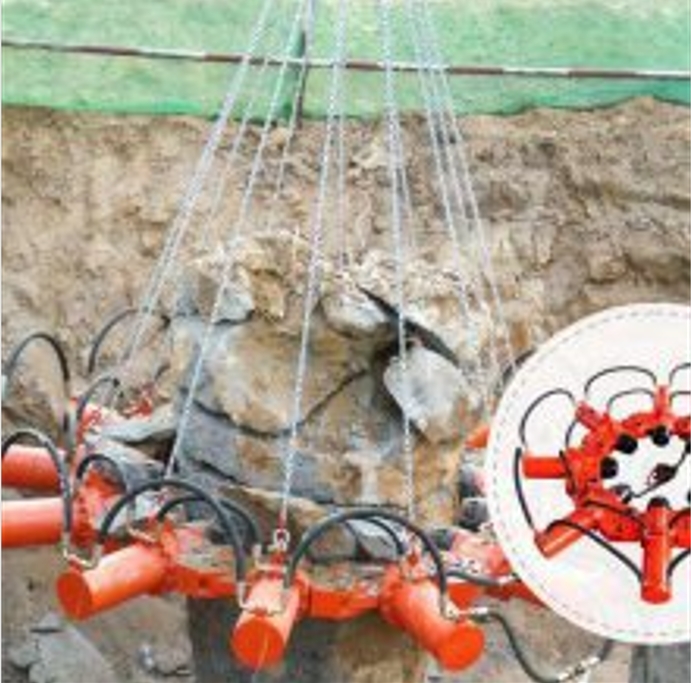

Square/round pile breaker can replace manpower and is high effcient,static in breaking piles. It can be
connected to a variety of engineering machinery, which is the preferred equipment for pile breaking.
There are mainly four types of pile breakers:
1.LTD700 hydraulic pile breaker 2.LTD800 hydraulic pile breaker
3.LTDF400A/B hydraulic pile breaker 4.LTDF500 hydraulic pile breaker
Operalion steps (Apply all Pile Breaker)
1.According to pile diameter. with reference to the construction reference parameters corresponding to the
number of modulars,directly connect the breakers to the work platform with a quick coupler;
2.The working platform con be excavator, ligting device and hydraulic pump station combination, the lifting
device can be truck crane, crawler cranes, etc;
3.Move the pile breaker to the working pile head section;
4.Adjust the pile breaker to the suitable height (please refer to construction parameter list when crushing the pile, otherwise the chain may be broken) . and damp the pile position to be cut;
5.Adjust the excavator's system pressure according to the concreate strength,and pressurize the cylinder
until the concrete pile breaks under high pressure;
6.After the pile is crushed, hoist the concrete block;
Specification
Pile diameter
1700-1850mm
Max.rod pressure
690kN
Crowd stroke
180mm
Max.crowd pressure
34.3MPa
Max.cylinder required
25L/min
Cut the number of pile/8h
40-100
Max.single cutting height
≤300mm
Matched machinery tonnage ( excavator )
≥35t
Single module weight
280kg
Single module size
908×680×380mm
Operating size
3200×3000mm
Overall weight
3.7t
Module number
The diameter range
Platform weight
weight
Helght of single crush pile
6
500-650mm
≥15t
1970kg
≤300mm
7
750-850mm
≥20t
2250kg
≤300mm
8
900-1050mm
≥25t
2530kg
≤300mm
9
1100-1250mm
≥26t
2810kg
≤300mm
10
1300-1450mm
≥30t
3090kg
≤300mm
11
1500-1650mm
≥30t
337Okg
≤300mm
12
1700-1850mm
≥35t
3650kg
≤300mm
13
1900-2050mm
≥35t
3930kg
≤300mm
Pile diameter
950-1050mm
Max.rod pressure
320kN
Crowd stroke
150mm
Max.crowd pressure
34.3MPa
Max.cylinder required
25L/min
Cut the number of pile/8h
60
Max.single cutting height
≤300mm
Matched machinery tonnage ( excavator )
≥20t
Single module weight
110kg
Single module size
604×594×286mm
perating size
Φ2268×Φ2500mm
Overall weight
1.5t
Module number
The diameter range
Platform weight
Height of single crush pile
300-400mm
≥12t
920kg
≤300mm
450-500mm
≥13t
1030kg
≤300mm
550-625mm
≥15t
1140kg
≤300mm
650-750mm
≥18t
1250kg
≤300mm
800-900mm
≥21t
1360kg
≤300mm
950-1050mm
≥26t
1470kg
≤300mm
Product Details
Type
FAPB400-A
FAPB400-B
FAPB500
Pile length
300-400mm
300-400mm
400-500mm
Max.rod pressure
320kN
320kN
320kN
Max.crowd pressure
34.3MPa
34.3MPa
34.3MPa
Max.cylinder stroke
150mm
150mm
150mm
Max.single cylinder flow
25L/min
25Lmin
25Lmin
Qualityl/8h
160/8h
160/8h
120/8h
Max.single cutting height
≤300mm
≤300mm
≤300mm
Excavator capacity
≥7t
≥8t
≥15t
Operating size
1440×1440×1500mm
1600×1600×2000mm
1710×1710×2500mm
One-piece module size
604×594×286mm
595×980×275mm
Overall weight
0.6t
0.65t
0.96t
