Residual Current Circuit Breaker
SHANGHAI YONGJI ELECTRICAL CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied

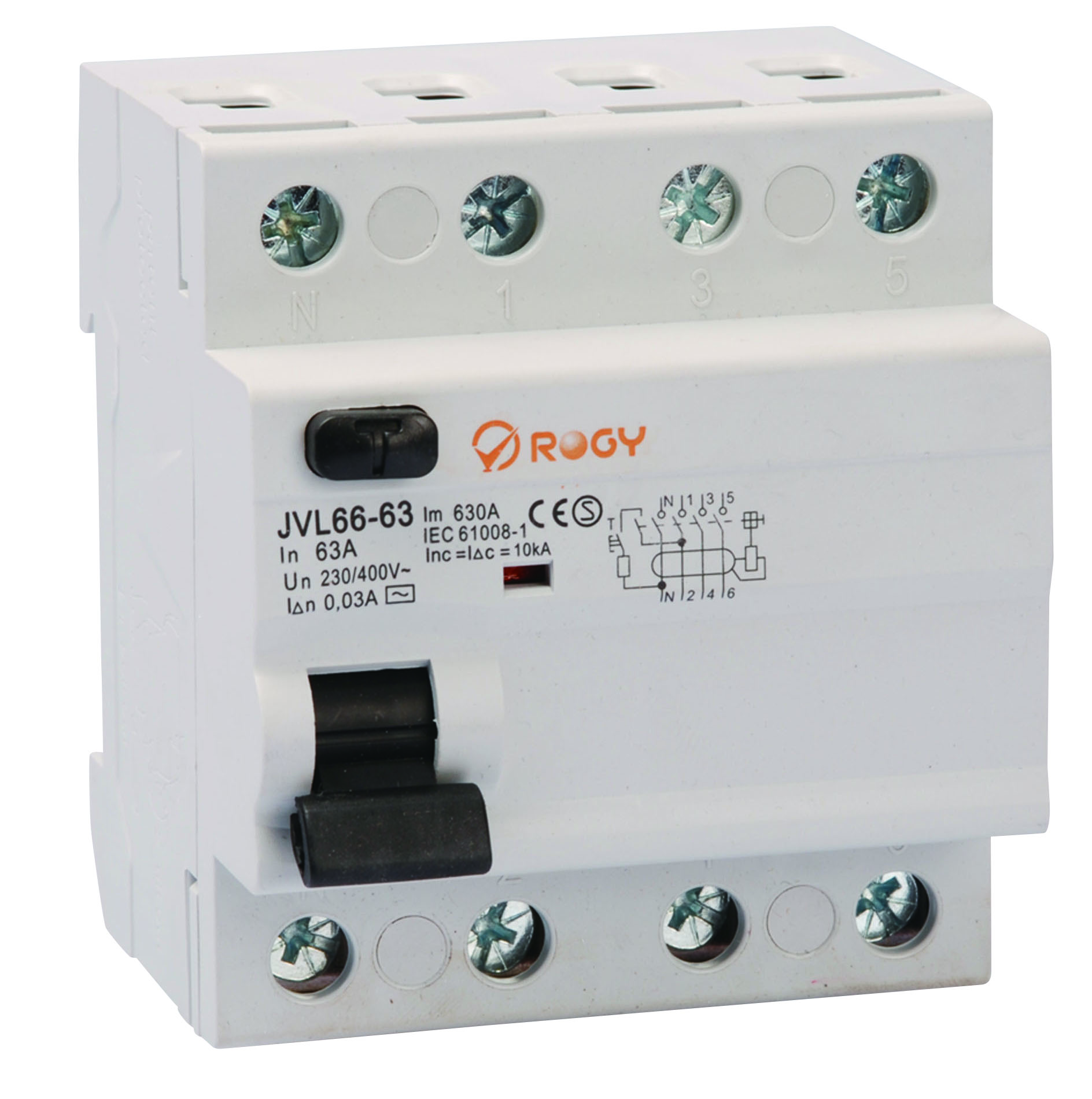

Residual Current Circuit Breaker
SHANGHAI YONGJI ELECTRICAL CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 81
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Size: 81
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Size | 81 |
|---|
Product details
| Size | 81 |
|---|
From the supplier
Construction and Feature
Detecting element and tripping element of product are set between the incoming terminal and outgoing terminal
Operating characteristic of product cannot be changed by external mechanical device
Operating mechanism has free tripping function
The operating parts can not be taken off from the outside of shell, the product shell should not affect normal work of operating mechanism, the parts group instead of contact pressure should guarantee that the contact pressure of product will not change during running.
Earthing fault, leakage and isolation protection functions
High rated ultimate short-circuit breaking capacity
Lifting type terminal may be connected to the conductor of bus bar.
There is color signal indication window for indicating the contact position state.
The enclosure and part is made of flame-resistance, high temperature-resistance and impact-resistance engineering plastic.
The operating mechanism has the free tripping function.
Technical Data
Model:JVL66-63
Pole No.:1P+N, 3P+N
Rated current(A):25, 32, 40, 63A
Rated working voltage(I△n):30, 100, 300, 500mA
Rated voltage(V): AC 230(240)/400(415)
Rated frequency(Hz): 50/60
Rated making and breaking capacity:500(In=25A,32,40A), 630(In=63A)
Rated conditional short-circuit current Inc: 6kA
Rated conditional residual short-circuit Current I△c: 6kA
Rated residual non operating current I△no: 0.5I△n
Residual operating current range:0.5I△n~I△n
Operating time:≤0.3s
Type:A and AC type
Rated short-circuit breaking capacity:6KA
Mechanical life:Not less than 4000 times
Degree of protection:IP20
Classification of specification
According to rated current(In), it is divided into 25A, 40A and 63A.
According to rated operating current(I△n), it is divided into 30A, 100A and 300mA。
According to the pole, it is divided into：
Two-pole residual current operated circuit breaker (1P+N)
Four-pole residual current operated circuit breaker(3P+N)
According to the residual current, it is divided into type A and type AC.
According to the relation between operation function and line voltage, it is divided into electromagnetic type and electronic type.
From the supplier
Construction and Feature
Detecting element and tripping element of product are set between the incoming terminal and outgoing terminal
Operating characteristic of product cannot be changed by external mechanical device
Operating mechanism has free tripping function
The operating parts can not be taken off from the outside of shell, the product shell should not affect normal work of operating mechanism, the parts group instead of contact pressure should guarantee that the contact pressure of product will not change during running.
Earthing fault, leakage and isolation protection functions
High rated ultimate short-circuit breaking capacity
Lifting type terminal may be connected to the conductor of bus bar.
There is color signal indication window for indicating the contact position state.
The enclosure and part is made of flame-resistance, high temperature-resistance and impact-resistance engineering plastic.
The operating mechanism has the free tripping function.
Technical Data
Model:JVL66-63
Pole No.:1P+N, 3P+N
Rated current(A):25, 32, 40, 63A
Rated working voltage(I△n):30, 100, 300, 500mA
Rated voltage(V): AC 230(240)/400(415)
Rated frequency(Hz): 50/60
Rated making and breaking capacity:500(In=25A,32,40A), 630(In=63A)
Rated conditional short-circuit current Inc: 6kA
Rated conditional residual short-circuit Current I△c: 6kA
Rated residual non operating current I△no: 0.5I△n
Residual operating current range:0.5I△n~I△n
Operating time:≤0.3s
Type:A and AC type
Rated short-circuit breaking capacity:6KA
Mechanical life:Not less than 4000 times
Degree of protection:IP20
Classification of specification
According to rated current(In), it is divided into 25A, 40A and 63A.
According to rated operating current(I△n), it is divided into 30A, 100A and 300mA。
According to the pole, it is divided into：
Two-pole residual current operated circuit breaker (1P+N)
Four-pole residual current operated circuit breaker(3P+N)
According to the residual current, it is divided into type A and type AC.
According to the relation between operation function and line voltage, it is divided into electromagnetic type and electronic type.
