From the supplier
Application

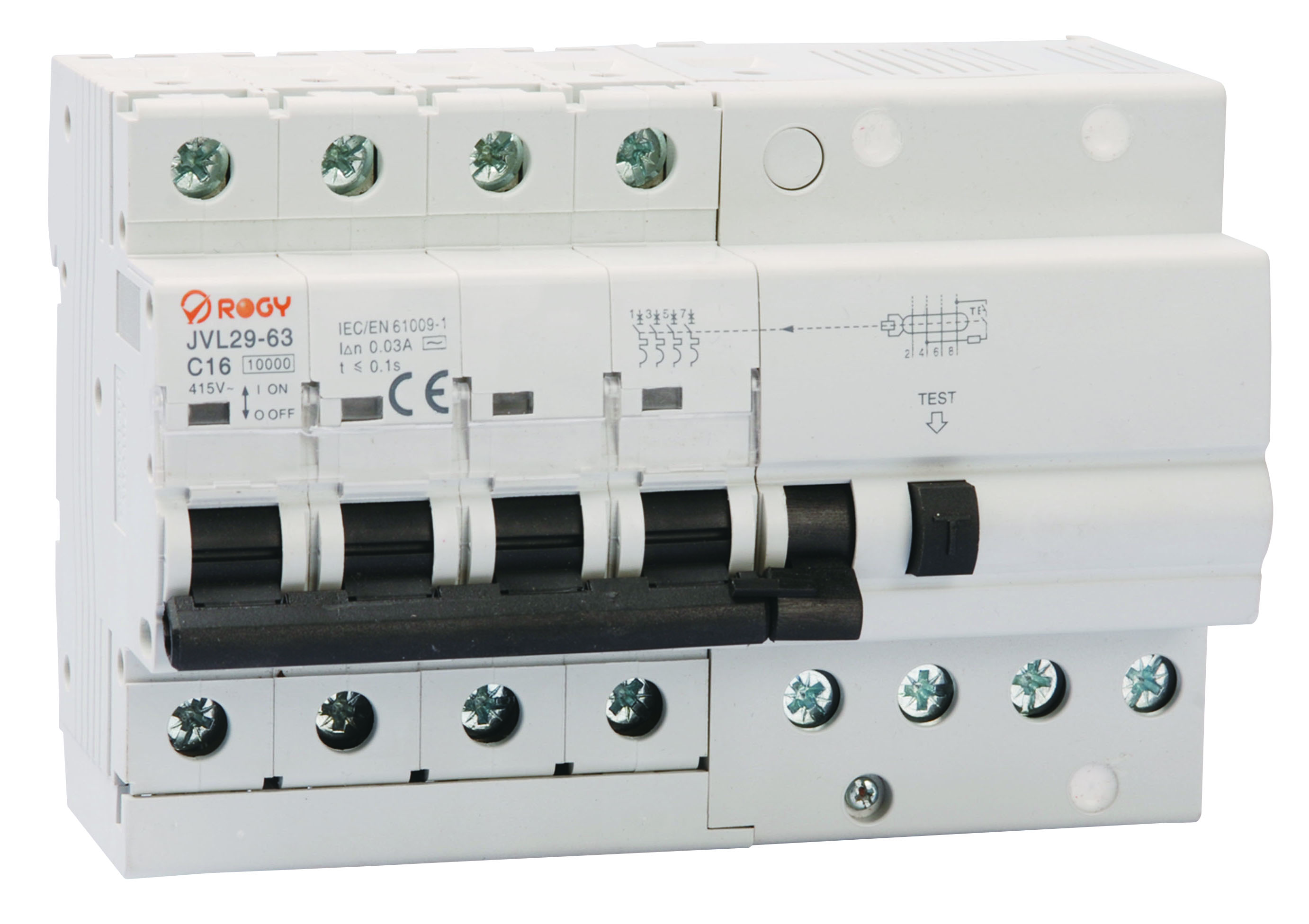

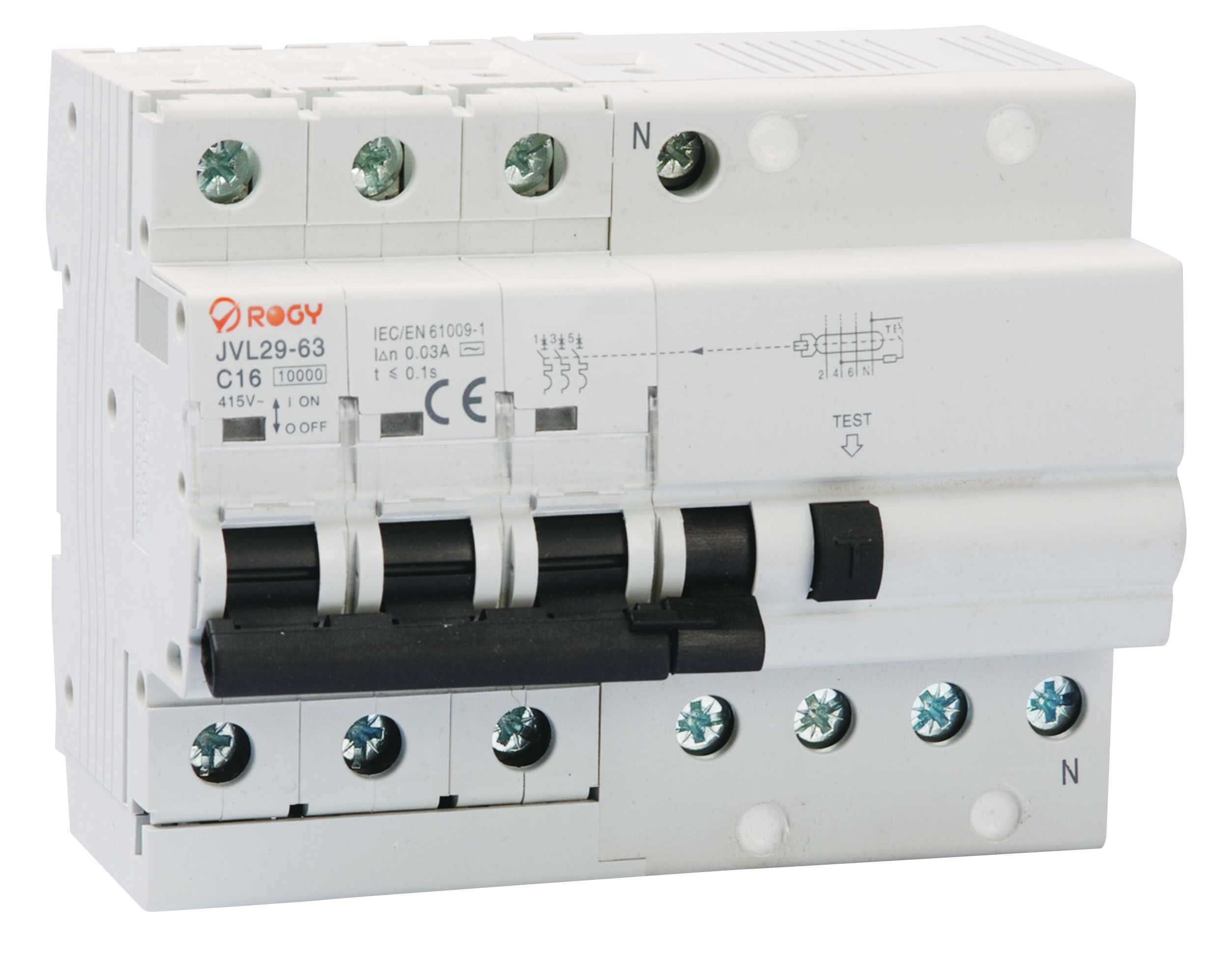

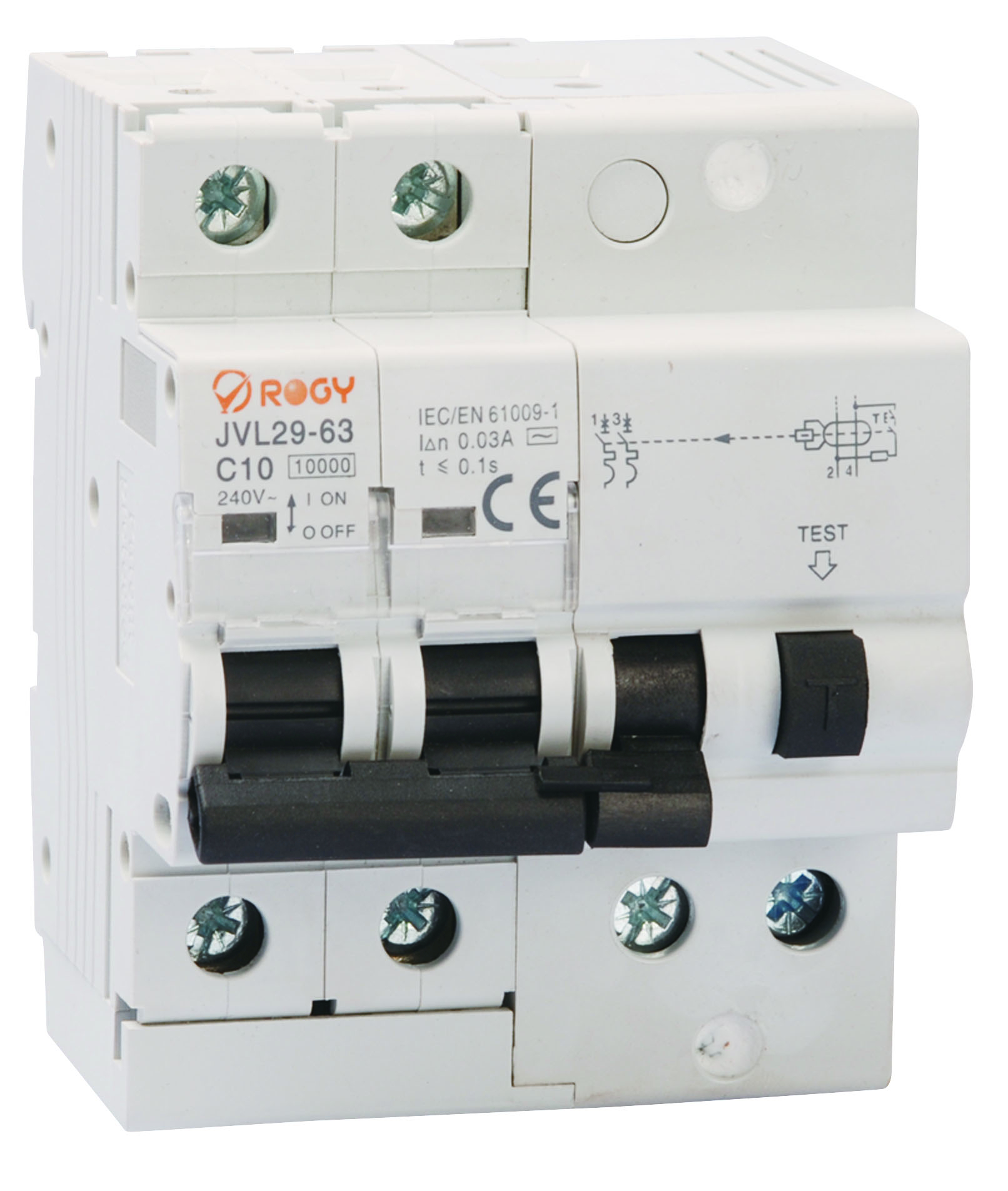

JVL29-63 is applicable to residual operating current with rated voltage 230V/400V,frequency 50/60HZ and rated current up to 63A. It is used to perform the human electricity shock protection as well as over current protection and short circuit protection for line equipment in building or similar locations, it also can provide the protection against the fire danger caused by the fault current that is resulted from the electric equipment damage.
The circuit breaker is applicable for kinds of fields such as the industry, commerce, high rise building, civil building, etc.
Technical Data
Pole No.: 1P+N, 2P, 3P, 3P+N, 4P
Residual current characteristics: AC, A
Rated current (A): 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50, 63
Tripping curve: B, C, D
Rated short-circuit capacity: 6kA
Rated voltage: 230/400V AC
Rated frequency: 50/60Hz
Rated residual operating current(A): 0.03, 0.1, 0.3
Tripping duration: instantaneous≤0.1s
Electro-mechanical endurance: 4000 cycles
