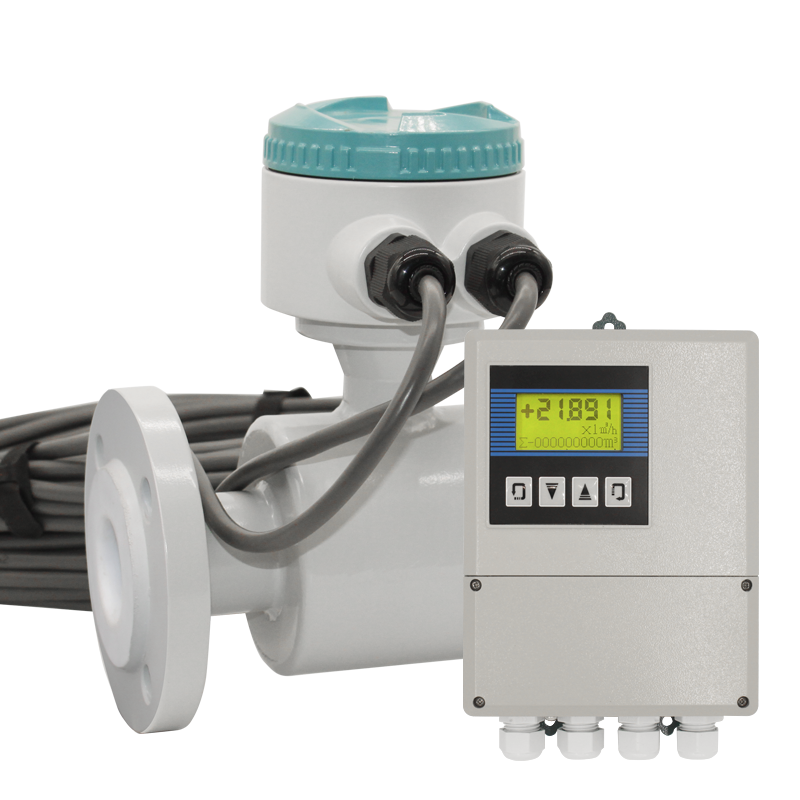

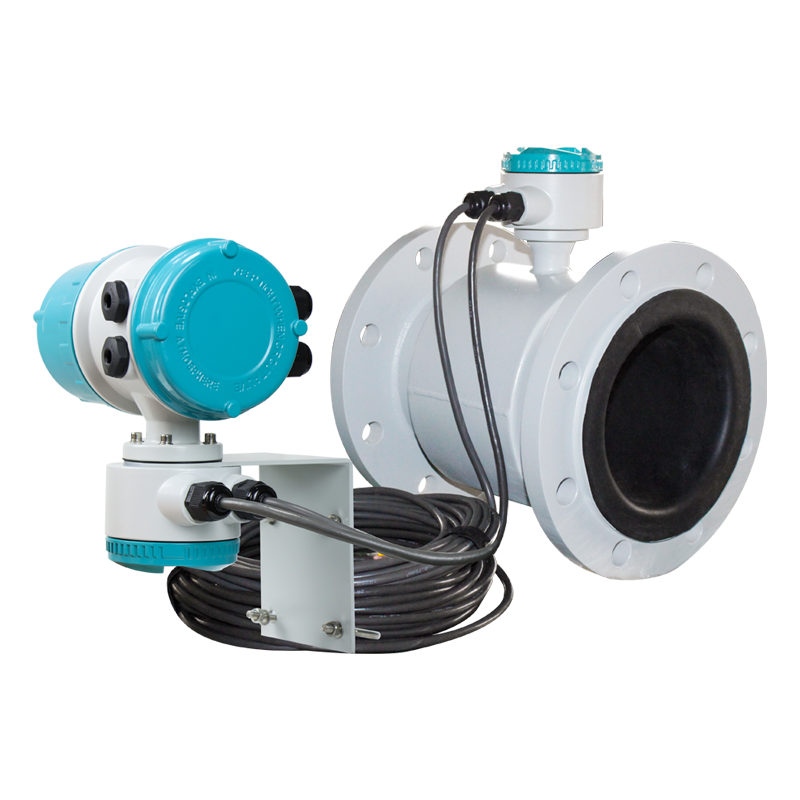

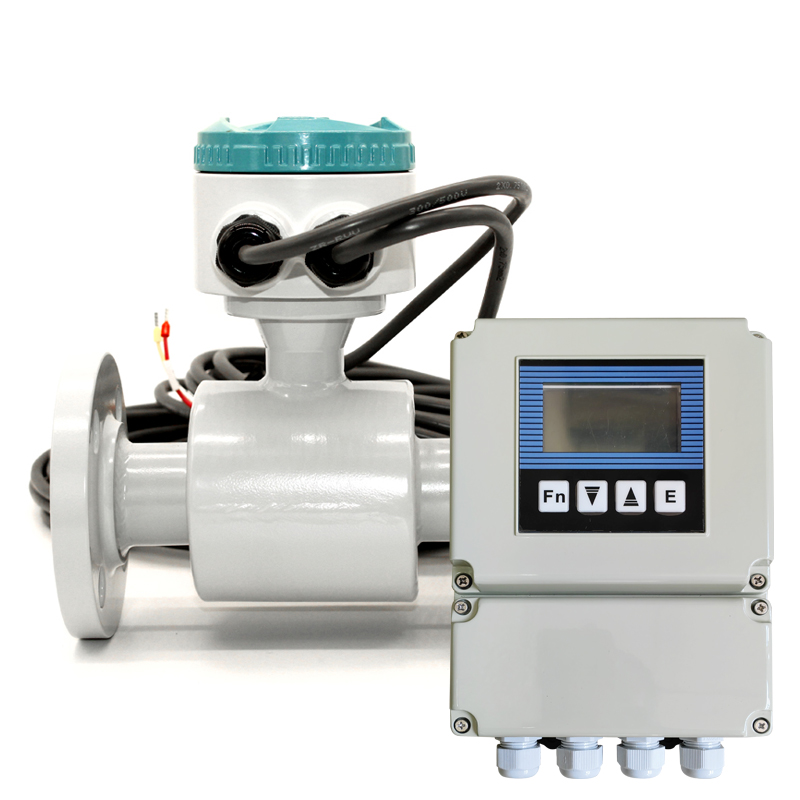

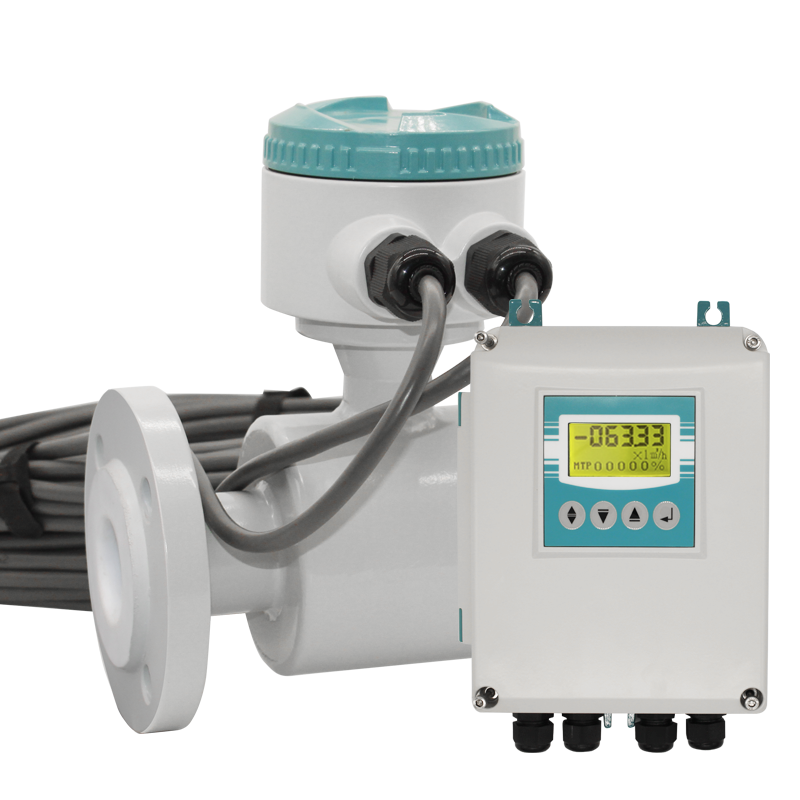

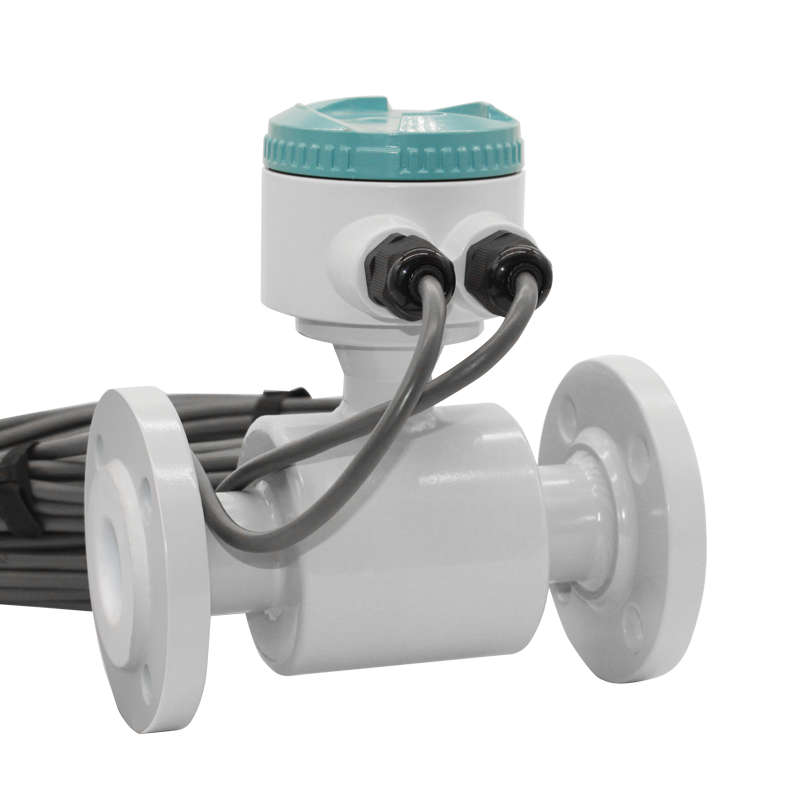

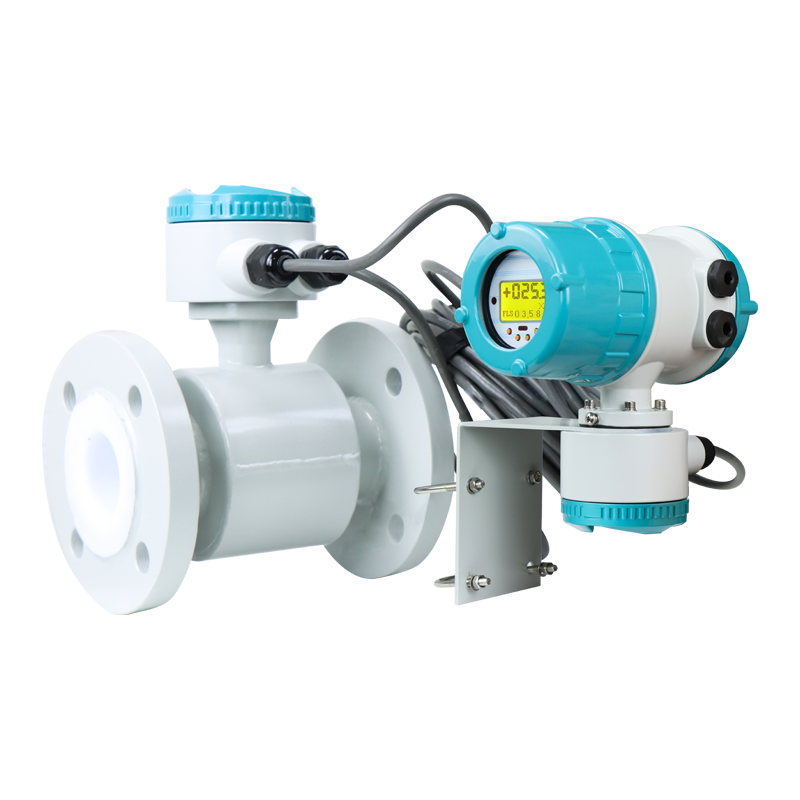

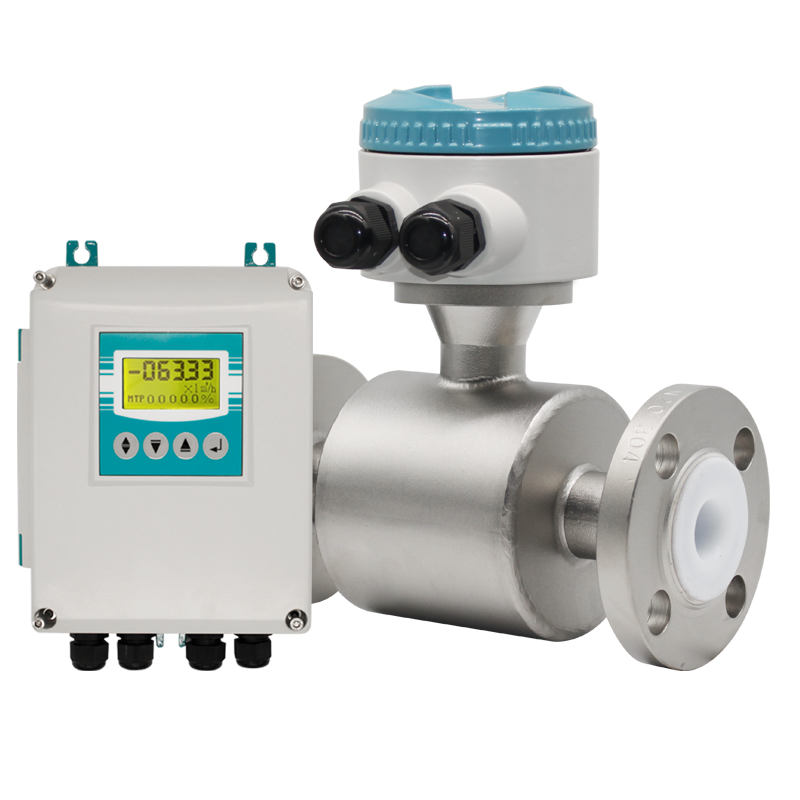

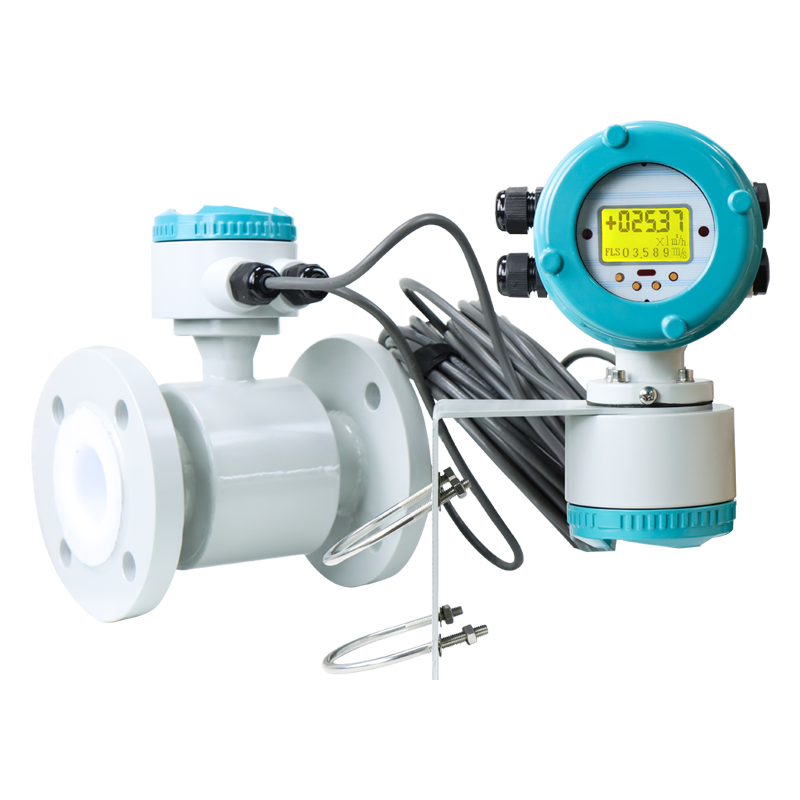

Remote type electromagnetic flow meter
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Remote type electromagnetic flow meter
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Carbon steel, SUS304316 stainless steel, plastic
- Color: Blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Henan, China
About this product
- Materials: Carbon steel, SUS304316 stainless steel, plastic
- Color: Blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Henan, China
Product details
| Materials | Carbon steel, SUS304316 stainless steel, plastic |
|---|---|
| Color | Blue |
From the supplier
ISO9001 Manufacturer Remote Type Electromagnetic Liquid Water Meter Flowmeters Flow Meters
WHY CHOOSE US?
Refined Material & Accurate Measurement
ENVIRONMENTAL TEST
High & Low temperature tests, Different Humidity Test ,
Make sure instruments can resist any harsh environments
- Main Performances Parameters
+/-0.3% or +/-0.2%(Optional) Liner PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA Electrode SUS316L, Hastelloy B, Hastelloy C
Titanium, Tantalum, Platinium-iridium Structure Type Integral type, remote type, submersible type, ex-proof type Medium Temperature -20~+60 degC(Integral type) Remote type(Neoprene,Hard Rubber,Polyurethane,EPDM) -10~+80degC
Remote type(PTFE/PFA/FEP) -10~+160degC Ambient Temperature -20~+60deg C Ambient Humidity 5-100%RH(relative humidity) Measuring Range Max 15m/s Conductivity >5us/cm Protection Class IP65(Standard); IP68(Optional for remote type) Process Connection Flange (Standard), Wafer, Thread, Tri-clamp etc (Optional) Output Signal 4-20mA/Pulse Communication RS485(Standard), HART(Optional),GPRS/GSM (Optional) Power Supply AC220V (can be used for AC85-250V)
DC24V (can be used for DC20-36V)
DC12V (optional), Battery Powered 3.6V (optional) Power Consumption <20W Alarm Upper Limit Alarm / Lower Limit Alarm Self-diagnosis Empty Pipe Alarm, Exciting Alarm Explosion Proof ATEX
- Main Performances Of The Electrode Materials
Applicable to industrial/municipal water, wastewater and low corrosive mediums.
Widely used in petroleum, chemical industries.
Hastelloy BStrong resistance to hydrochloric acids below the boiling point.
Resist against oxidable acids, alkali and non-oxidable salts. For instance, vitriol, phosphate, hydrofluoric acids, and organic acids.
Hastelloy CExceptional resistance to strong solutions of oxidizing salts and acids.
For example, Fe+++, Cu++, Nitric acids, mixed acids
TitaniumTitanium can withstand corrosive mediums such as seawater, chloride salt solutions, hypochlorite salts, oxidable acids(including fuming nitric acids), organic acids, and alkali.
Not resistant to high purity reducing acids such as sulphuric acids, hydrochloric acids.
TantalumHighly resistant to corrosive mediums.
Applicable to all chemical mediums except Hydrofluoric Acids, Oleum and Alkali.
Platinum-iridium Applicable to all chemical mediums except for Ammonium salts and Fortis.
- Velocity-Flow Range Table
Remark: Recommend flow velocity range 0.5m/s - 15m/s
