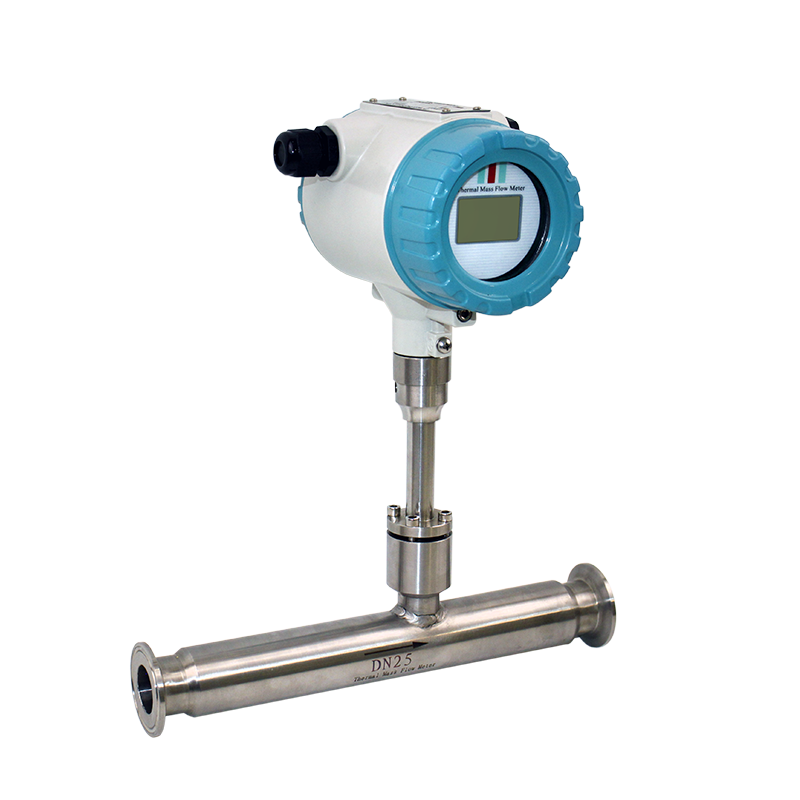

Food industry sanitary type process control thermal mass flow meter

4/10 fairsIndustry and Trade CompanyModel QTFM

Green / low-carbonSmart product

Food industry sanitary type process control thermal mass flow meter

$56000–$78000/ unit FOB

The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.

MOQ 1 unit · T/T, L/C, D/P, PayPal, Western Union

Estimated landed cost

$877 / unit

range $735–$1,019 · total ≈ $87,711

Quantity

FOB goods (100): $67,000
Ocean freight + handling (5.0 CBM, volume guessed from price): $1,300
US duty (3.5%): $2,345
Section 301 tariff (25.0%): $16,750
Customs fees (MPF/HMF): $316

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Get a quote from this supplier See all sourcing services

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

Visit the Q&T INSTRUMENT CO.,LTD. store

Food industry sanitary type process control thermal mass flow meter

4/10 fairsIndustry and Trade CompanyModel QTFM

Green / low-carbonSmart product

$56000–$78000/ unit FOB

The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.

MOQ 1 unit · T/T, L/C, D/P, PayPal, Western Union

Estimated landed cost

$877 / unit

range $735–$1,019 · total ≈ $87,711

Quantity

FOB goods (100): $67,000
Ocean freight + handling (5.0 CBM, volume guessed from price): $1,300
US duty (3.5%): $2,345
Section 301 tariff (25.0%): $16,750
Customs fees (MPF/HMF): $316

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Get a quote from this supplier See all sourcing services

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

About this product

Materials: SS304
Size: 1380X220X330
Color: Stainless steel
Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China

$56000–$78000/ unit FOB

The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.

MOQ 1 unit · T/T, L/C, D/P, PayPal, Western Union

Estimated landed cost

$877 / unit

range $735–$1,019 · total ≈ $87,711

Quantity

FOB goods (100): $67,000
Ocean freight + handling (5.0 CBM, volume guessed from price): $1,300
US duty (3.5%): $2,345
Section 301 tariff (25.0%): $16,750
Customs fees (MPF/HMF): $316

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Get a quote from this supplier See all sourcing services

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

About this product

Materials: SS304
Size: 1380X220X330
Color: Stainless steel
Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China

Product details

Materials	SS304
Size	1380X220X330
Color	Stainless steel

From the supplier

Thermal Gas Mass Flow Meter Installation Parameters

Nominal dia. Flange outer dia. Center hole Bolt hole Screw bolt Flange thickness Installation length DN D k n x L C L 10 90 60 4x14 M12 14 280 15 95 65 4x14 M12 16 280

105 75 4x14 M12 18 280 25 115 85 4x14 M12 18 280 32 140 100 4x18 M16 18 350 40 150 110 4x18 M16 18 350 50 165 125 4x18 M16 20 350 65 185 145 4x18 M16 20 400 80 200 160 8x18 M16 22 400 100 220 180 8x18 M16 22 500 125 250 210 8x18 M16 24 500 150 285 240 8x22 M20 24 500 200 340 295 12x22 M22 26 500 250 405 355 12x26 M22 28 500 300 460 410 12x26 M22 30 500

High accuracy, Stable performance, Multiple flow units seanless switching and multi-function setting

With DC4-20mA four-wire output,which is more convenient for remote reception. Support MODBUS RTU RS485 protocol,coordinating the receiving system to collect more data and modify system

Thermal gas mass flow meter is mainly used for measuring gas with low flow and the range ratio could reach 1:1000, which is better than gas flow meter on market and low flow could be measured.

Can be divided into five sections for correcting, this operation will make measuring more precision.

Thermal Gas Mass Flow Meter Parameter

Media Various Gases (Except acetylene) Pipe Size

Insertion type:DN32~DN4000mm

Flange type:DN10~DN300 (Can be customized)

Tri-clamp type:DN10~DN100

Thread type:DN10~DN100

Velocity 0.1-100Nm/s Accuracy In-line type:±1.0% Insertion type:±1.5% Working Temperature Sensor:-40~+220 degC Transmitter:-20~+80 degC Working Pressure

Insertion type ≤1.6Mpa

Flange type ≤4.0Mpa

Special pressure please double check

Power Supply

DC24V and AC220V

Response Time 1s Output 4-20mA,Pulse,RS485 (HART is optional) Alarm Output 1-2 way relay,10A/220V/AC or 5A/30V/DC Construction Compact and Remote Pipe Material Carbon Steel, Stainless Steel,Plastic etc. Display

4 lines LCD

Mass flowrate, Nominal flowrate, Flow totallizer, Velocity

Protection

IP65

Common Gas Upper Limit Flow

Nominal condition flow is the flow rate at temperature 20℃ and pressure 101.325Kpa.

Thermal Gas Flow Meter Selection Table Model QTMF X X X X X X X Caliber DN10-DN4000 Structure Compact C Remote R Sensor type Insertion I Flange F Clamp C Thread S Material SS304 304 SS316 316 Pressure 1.6Mpa 1.6 2.5Mpa 2.5 4.0Mpa 4.0 Temperature -40-220℃ T1 Power Supply AC85~250V AC DC24~36V DC Signal Output 4-20mA+Pulse+RS485 RS 4-20mA+Pulse+HART HT

Adopt Gas Venturi Sonic Nozzle Calibration Device
Regular inspection and verification guarantee accracy and reliability of the calibration device

Thermal Mass Flow Meter Installation

Installation location and straight pipe requirements

1. When installing the thermal mass flow meter, keep away from elbows, obstacles, reducers and valves to ensure a stable flow field. It is required to have a long upper straight pipe. The front straight pipe length is greater than 10D, and the rear straight pipe length is greater than 5D.

2. When user site cannot meet the requirements of the straight pipe section, the gas rectifier could be connected in series to greatly reduce the requirements for the straight pipe section.
