XHY7650
Inverted "T"XH series models

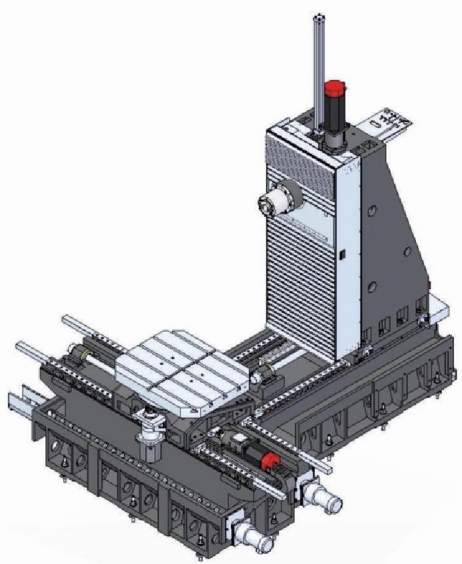

■Adopt the international popular inverted"T"type moving column type,the overall bed structure with good rigidity and high stability.
■Bed,column,sliding saddle,table and other main components are adopted resin sand shape,high quality gray cast iron casting,with high precision and stability,strong shock absorption ability.Reasonable tendon structure improves the ability of bending,torsion and deformation.
■Bed,column,sliding saddle,table and other main components are adopted resin sand shape,high quality gray cast iron casting,with high precision and stability,strong shock absorption ability.Reasonable tendon structure improves the ability of bending,torsion and deformation.
■The three feed directions are supported by Taiwan heavy duty roller type rolling guideway,which has good bearing performance.The guide rail and lead screw are lubricated by a fixed time and quantitative centralized lubrication device.The movement is flexible and the accuracy is good.All the guideway of the machine tool are equipped with good protective devices.
■The three feed directions are supported by Taiwan heavy duty roller type rolling guideway,which has good bearing performance.The guide rail and lead screw are lubricated by a fixed time and quantitative centralized lubrication device.The movement is flexible and the accuracy is good.All the guideway of the machine tool are equipped with good protective devices.
■Th e tool magazine manipulator adopts a complete set of products from imported professional supporting manufacturers,with reliable quality and stable performance,further improve the reliability of the whole machine.
■Eq uipped with high-performance FANUC Oi/MF CNC system,to ensure the required CNC machining functions and auxiliary functions from the user.
Item
Unit
XH7650
XH765A
XH768G
XH7610G
Work Table
Workbench Size (Width × Length)
Table size(width X length)
mm
500×500
500×600
800×1000
1000×1000
Work Table Indexing
Table indexing
。
1°×360
1°×360
1°x360
1°×360
T-Slot (Number of Slots × Slot Width × Spacing)
T-slot(slot number×slot width× spacing)
mm
5×18×100
5×18×100
5×22×160
7×22×125
Max Load
kg
600
600
1600
3000
Max Workpiece Diameter/Height
Max.workpiece diameter/height
mm
φ750/600
φ750/600
φ1300/900
φ2000/1400
Stroke
Travel
Worktable Left-Right Stroke (X-axis)
Left and right travel of the table(X axis)
mm
700
700
1300
2000
Spindle Head Up-Down Stroke (Y-axis)
Up and down travel of the spindle box(Y axis)
mm
600
600
900
1400
Column Front and Rear Travel (Z-axis)
Front and rear travel of the column (Z axis)
mm
580
600
900
1400
Spindle Centerline to Work Table Distance
Spindle center line to table surface distance
mm
100～700
120～720
100～1000
50～1400
Spindle End Face to Work Table Center Distance
Spindle end face to table center distance
mm
120～700
150～750
180–1080 (800 Direction)
150～1550
precision
Accuracy
x, Y, Z Positioning Accuracy
X,Y,Z positioning accuracy
mm
0.008
0.010
0.010
0.010
X, Y, Z Repeat Positioning Accuracy
X,Y,Z repeated positioning accuracy
mm
0.006
0.006
0.006
0.008
B-Axis Indexing Accuracy
B axis indexing accuracy
"
10
10
10
10
B-Axis Repeat Indexing Accuracy
Baxis repeated indexing accuracy
"
6
6
6
6
Spindle
Spindle
Spindle Taper Hole Taper Number
Spindle taper hole taper number
ISO7:24 No.40
ISO7:24 No.50
ISO7:24 No.50
ISO7:24 No.50
Maximum Spindle Speed
Max.speed of spindle
r/min
6000
6000
6000
5000
Spindle Motor Power
Spindle motor power
kw
11/15
11/15
18.5/22
30/37
Spindle Max Output Torque
Max.output torque of spindle
Nm
95.5
286
560
1229
Speed
Fast Moving Speed XN/Z
Rapid movement speed
m/min
24
24
24
24
Feed Speed X/Y/Z
mm/min
10000
10000
10000
10000
tool magazine
Tool magazine
Tool Changer Capacity
Tool magazine capacity
Batch
32
30
40
40
Max Tool Size
full capacity
full tool
mm
φ78×320
φ110×400
φ125×400
φ125×450
No Adjacent Tool
adjacent no tool
φ130
φ220
φ250
φ250
Maximum Tool Weight
Max.tool weight
kg
8
15
20
25
Other
Machine Weight
Machine weight
kg
8500
12000
17000
41500
