About this product
- Materials: 100%PTFE
- Size: 4*4～25*25
- Color: WHITE
- Plastic modling type: MouldExtrudingOther
- Application: ElectronicsAutomotiveOther
- Customized: Customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: 100%PTFE
- Size: 4*4～25*25
- Color: WHITE
- Plastic modling type: MouldExtrudingOther
- Application: ElectronicsAutomotiveOther
- Customized: Customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | 100%PTFE |
|---|---|
| Size | 4*4～25*25 |
| Color | WHITE |
| Plastic modling type | MouldExtrudingOther |
| Application | ElectronicsAutomotiveOther |
| Customized | Customized |
Product details
| Materials | 100%PTFE |
|---|---|
| Size | 4*4～25*25 |
| Color | WHITE |
| Plastic modling type | MouldExtrudingOther |
| Application | ElectronicsAutomotiveOther |
| Customized | Customized |
From the supplier
PTFE Fiber Woven Packing
Product detail：
Pure PTFE fiber braided packing is a braided packing made of PTFE yarn without soaking any PTFE dispersion and lubrication but with greatly enhanced ability to seal high speed shafts with the addition of inactive and heat-resisting agents. It is recommended for chemical engineering, foodstuff, pharmaceutic where contamination is not allowed. Also it can be applied to seal all chemicals except molten alkali metals.
Characteristics：
Pure PTFE packing braided by pure PTFE fiber,without PTFE emulsion and grease treatment. Because it is made of solid woven and flexible adjustable, so with the shaft,
packing box can be a good match with excellent corrosion resistance, good self-lubricating and anti-paste.
Application：
Pure PTFE packing oil is PTFE wire by a special lubrication, low friction, suitable for dynamic seal pumps. Therefore, the packing is generally not recommended for use on high speed pumps.
PTFE graphite fiber braided packing is made of polytetrafluoroethylene wire containing graphite particles. It has a strong tear strength and high thermal conductivity, low friction coefficient and it makes it stable and long life.
Specifications:
3mm×3mm ~ 50mm×50mm

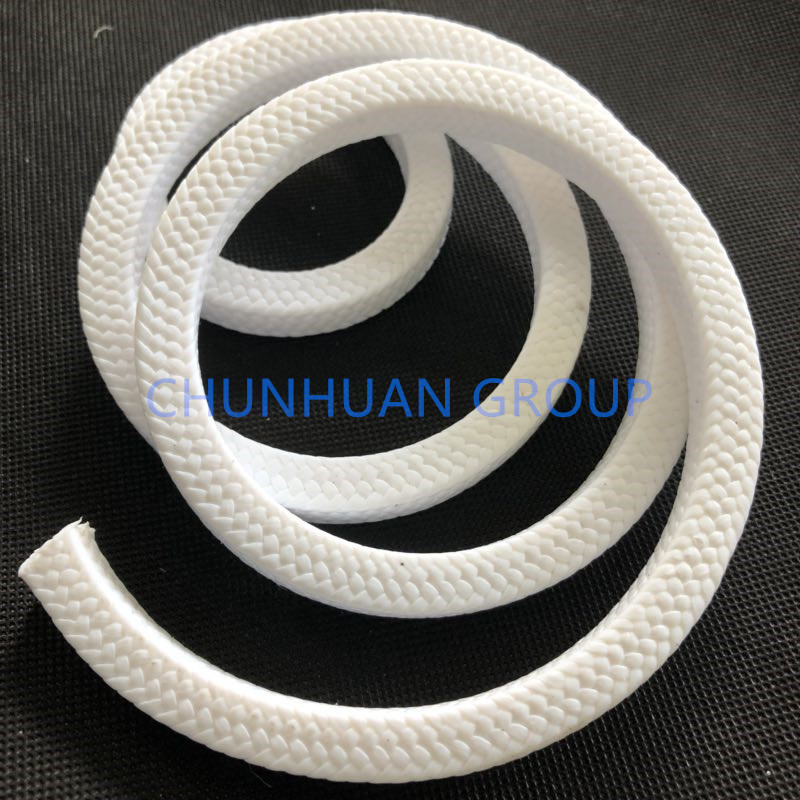

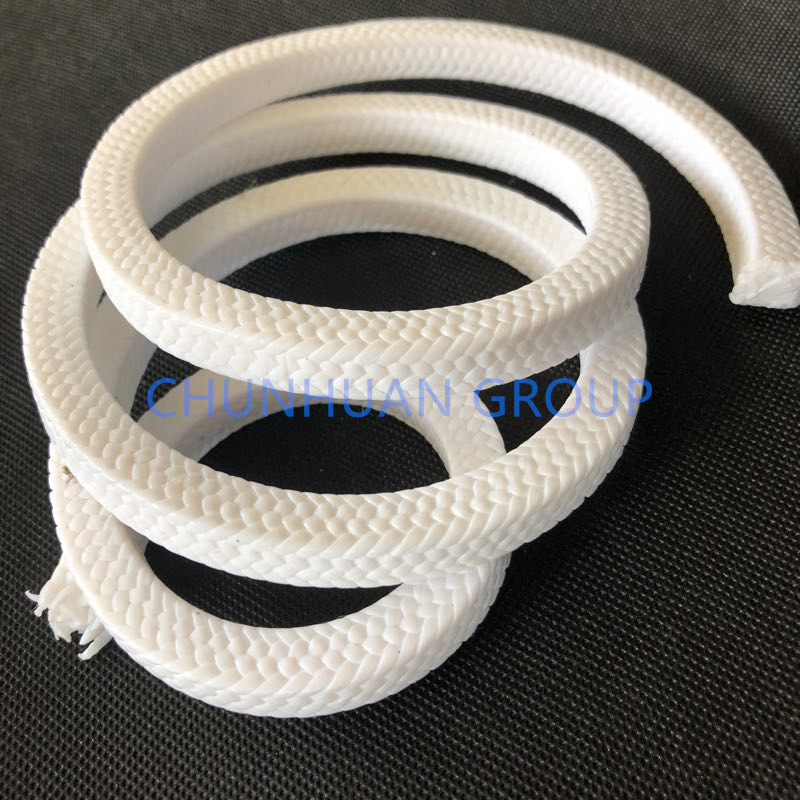

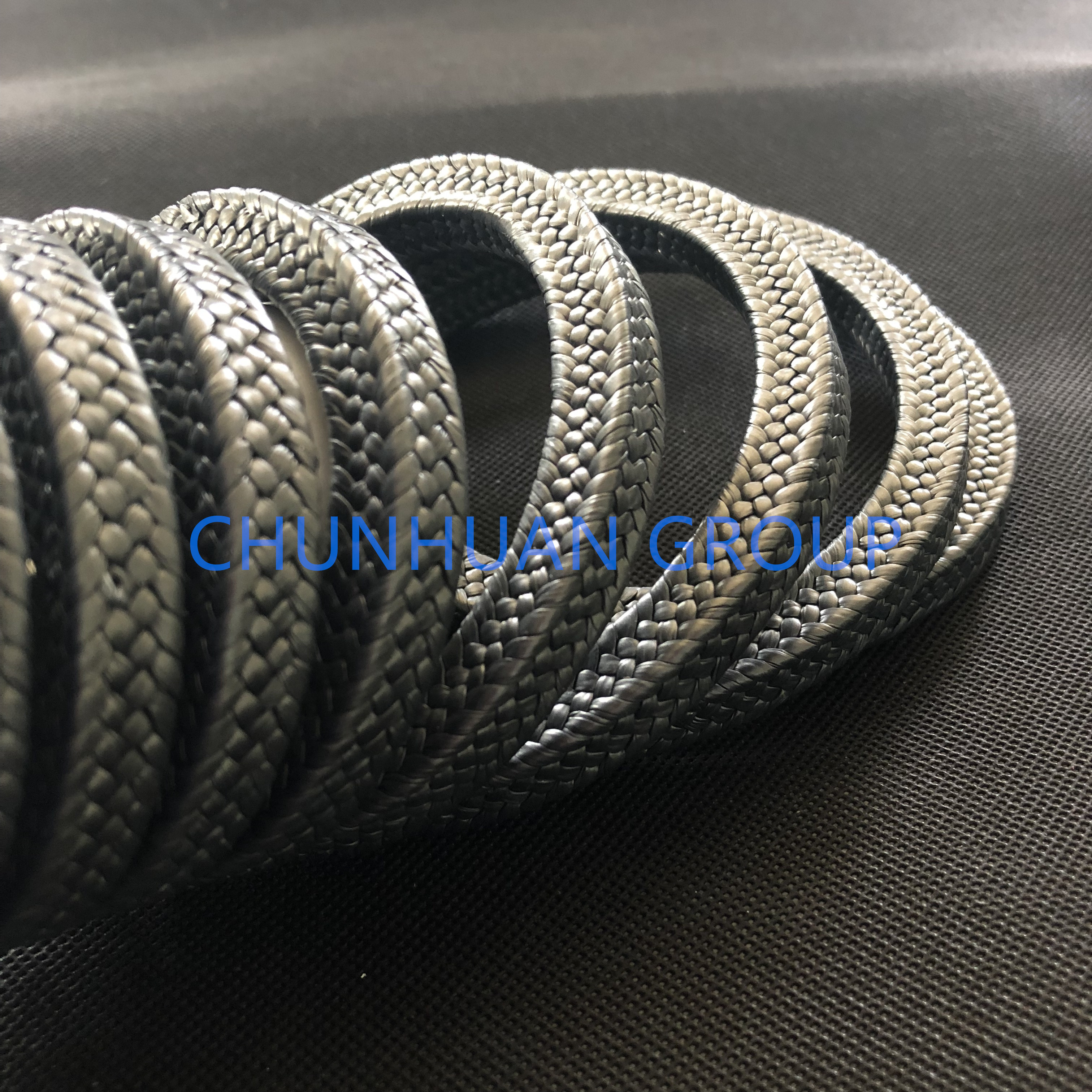

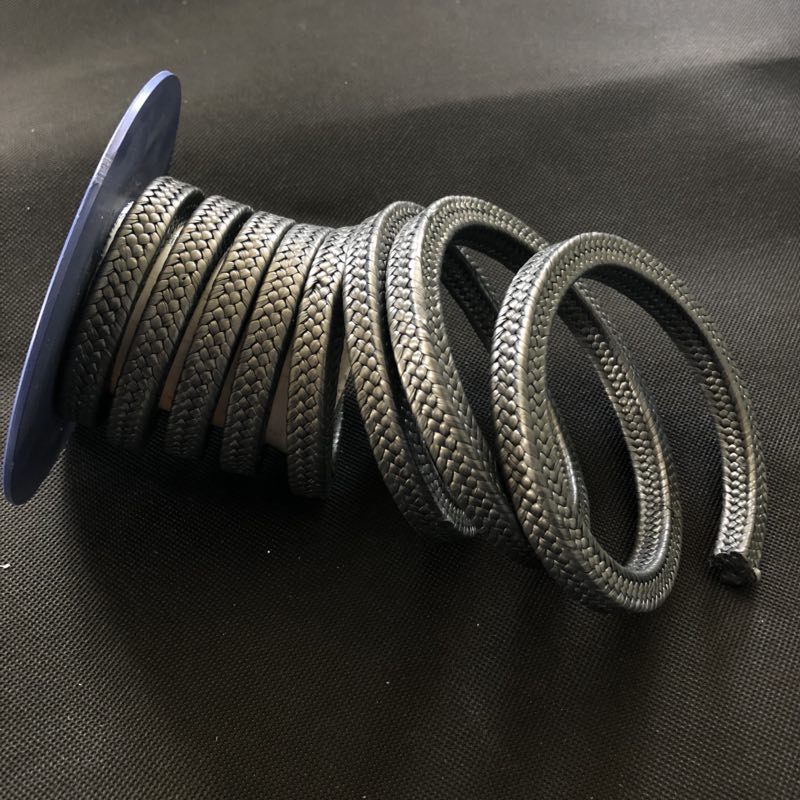

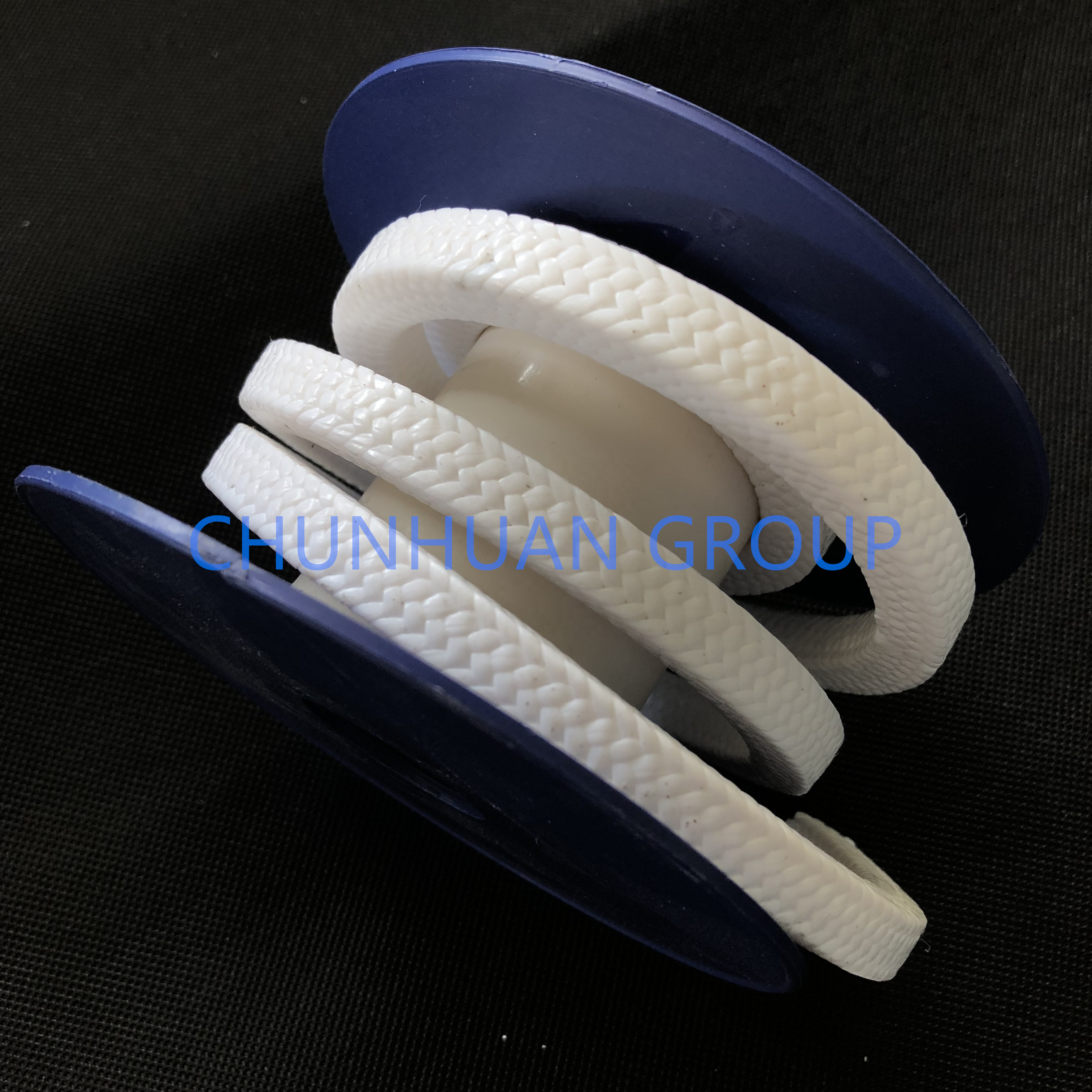

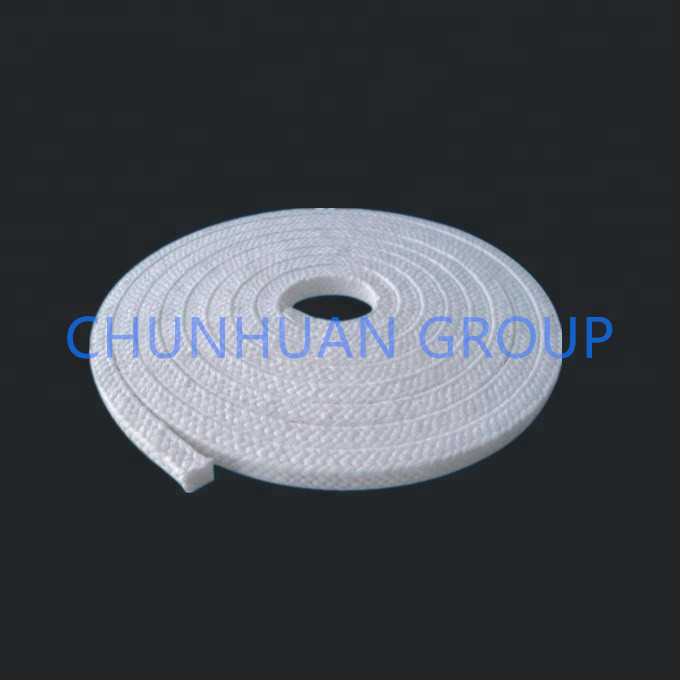

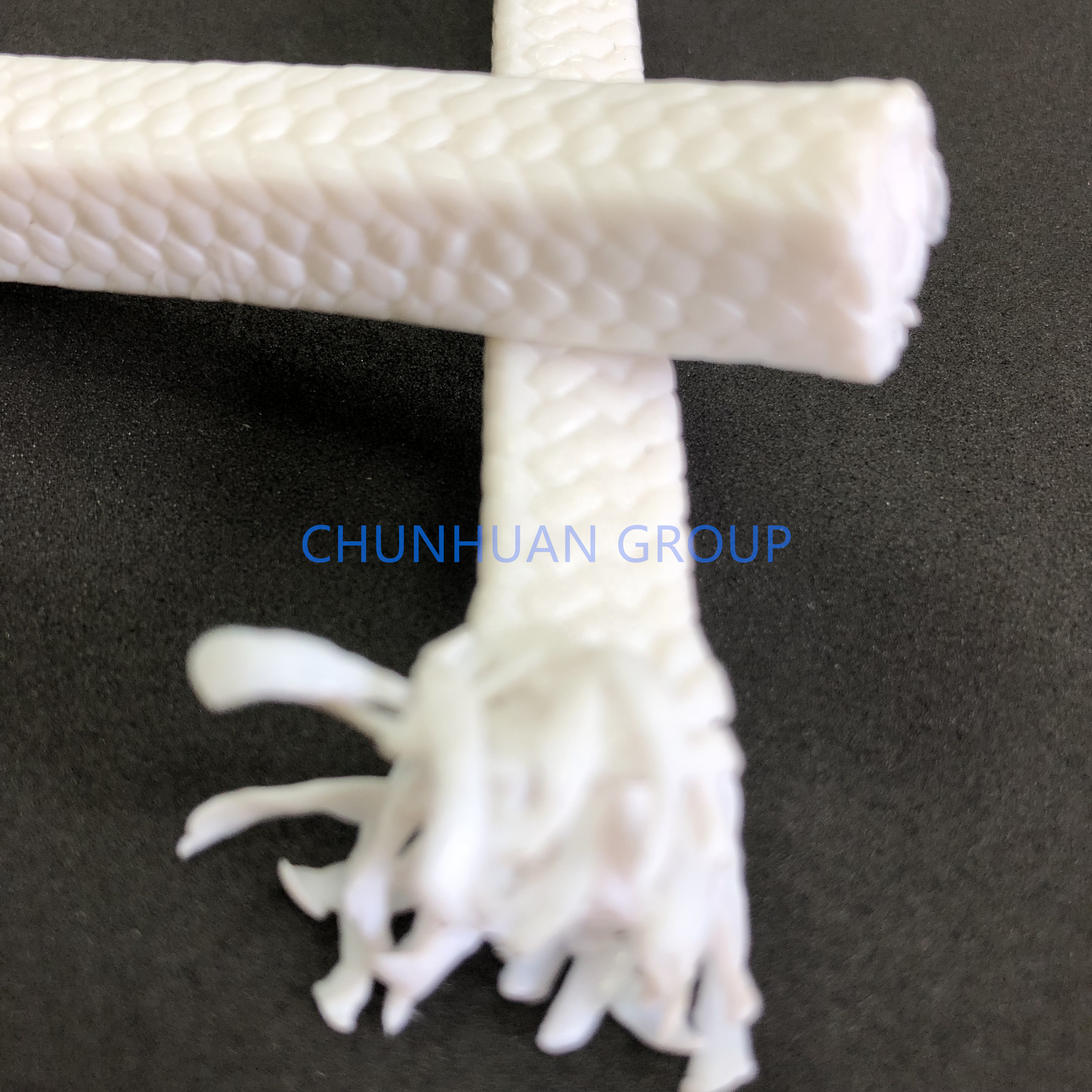

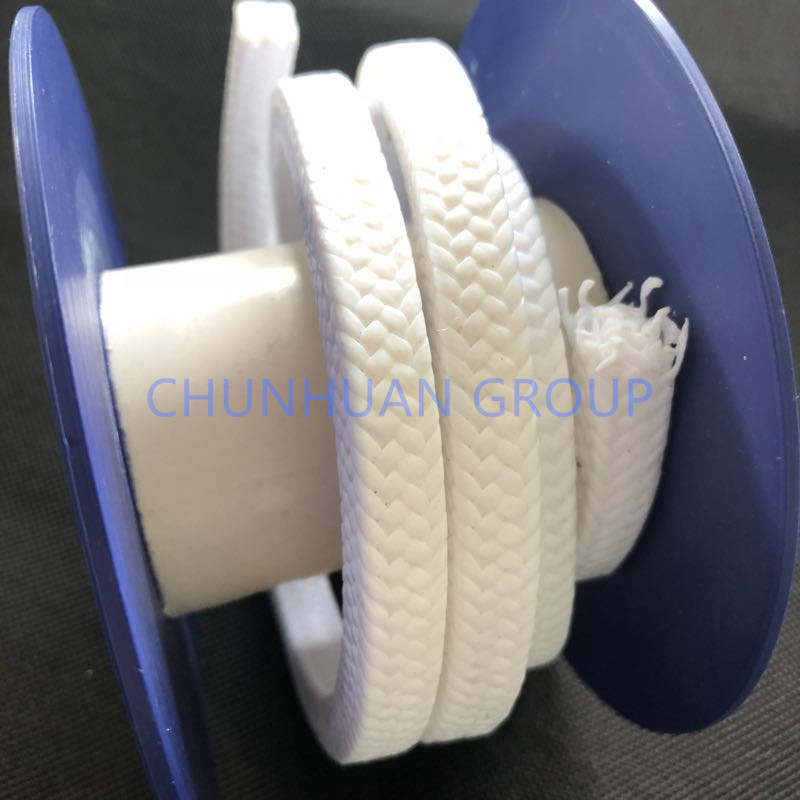

Picture：
MAIN PROPERTIES：
Property
Ⅰ
Ⅱ
Ⅲ
Ⅳ
Pressure
10Mpa
10Mpa
3 - 30Mpa
10Mpa
Working Temperature
260℃
260℃
280℃
260℃
Line Speed
10m/s
10m/s
0 - 20 m/s
10m/s
PH Value
0 - 14
0 - 14
0 - 1
0 - 14
Temperature
260℃
Pressure
0~4mpa
PH range
0~14
Density
1.4~1.6g/cm³
Velocity
0~20m/s
From the supplier
PTFE Fiber Woven Packing
Product detail：
Pure PTFE fiber braided packing is a braided packing made of PTFE yarn without soaking any PTFE dispersion and lubrication but with greatly enhanced ability to seal high speed shafts with the addition of inactive and heat-resisting agents. It is recommended for chemical engineering, foodstuff, pharmaceutic where contamination is not allowed. Also it can be applied to seal all chemicals except molten alkali metals.
Characteristics：
Pure PTFE packing braided by pure PTFE fiber,without PTFE emulsion and grease treatment. Because it is made of solid woven and flexible adjustable, so with the shaft,
packing box can be a good match with excellent corrosion resistance, good self-lubricating and anti-paste.
Application：
Pure PTFE packing oil is PTFE wire by a special lubrication, low friction, suitable for dynamic seal pumps. Therefore, the packing is generally not recommended for use on high speed pumps.
PTFE graphite fiber braided packing is made of polytetrafluoroethylene wire containing graphite particles. It has a strong tear strength and high thermal conductivity, low friction coefficient and it makes it stable and long life.
Specifications:
3mm×3mm ~ 50mm×50mm
Picture：
MAIN PROPERTIES：
Property
Ⅰ
Ⅱ
Ⅲ
Ⅳ
Pressure
10Mpa
10Mpa
3 - 30Mpa
10Mpa
Working Temperature
260℃
260℃
280℃
260℃
Line Speed
10m/s
10m/s
0 - 20 m/s
10m/s
PH Value
0 - 14
0 - 14
0 - 1
0 - 14
Temperature
260℃
Pressure
0~4mpa
PH range
0~14
Density
1.4~1.6g/cm³
Velocity
0~20m/s
