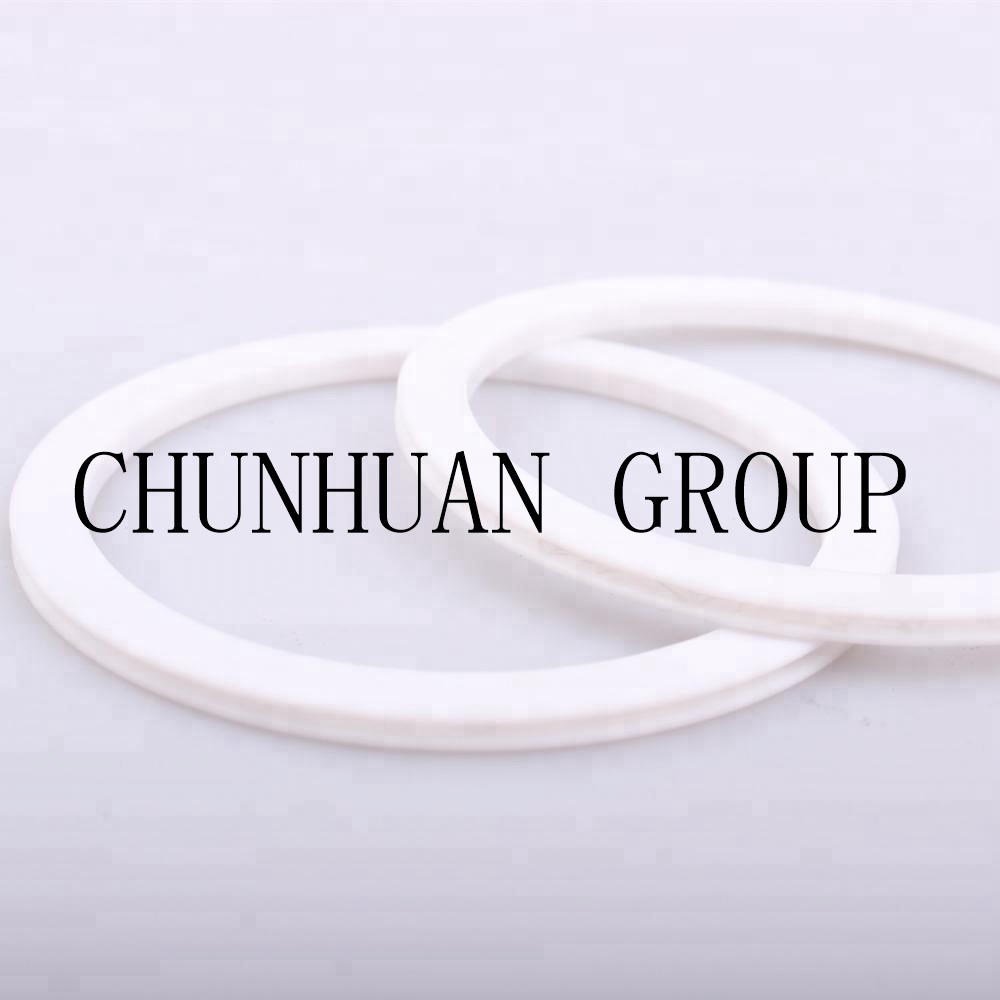

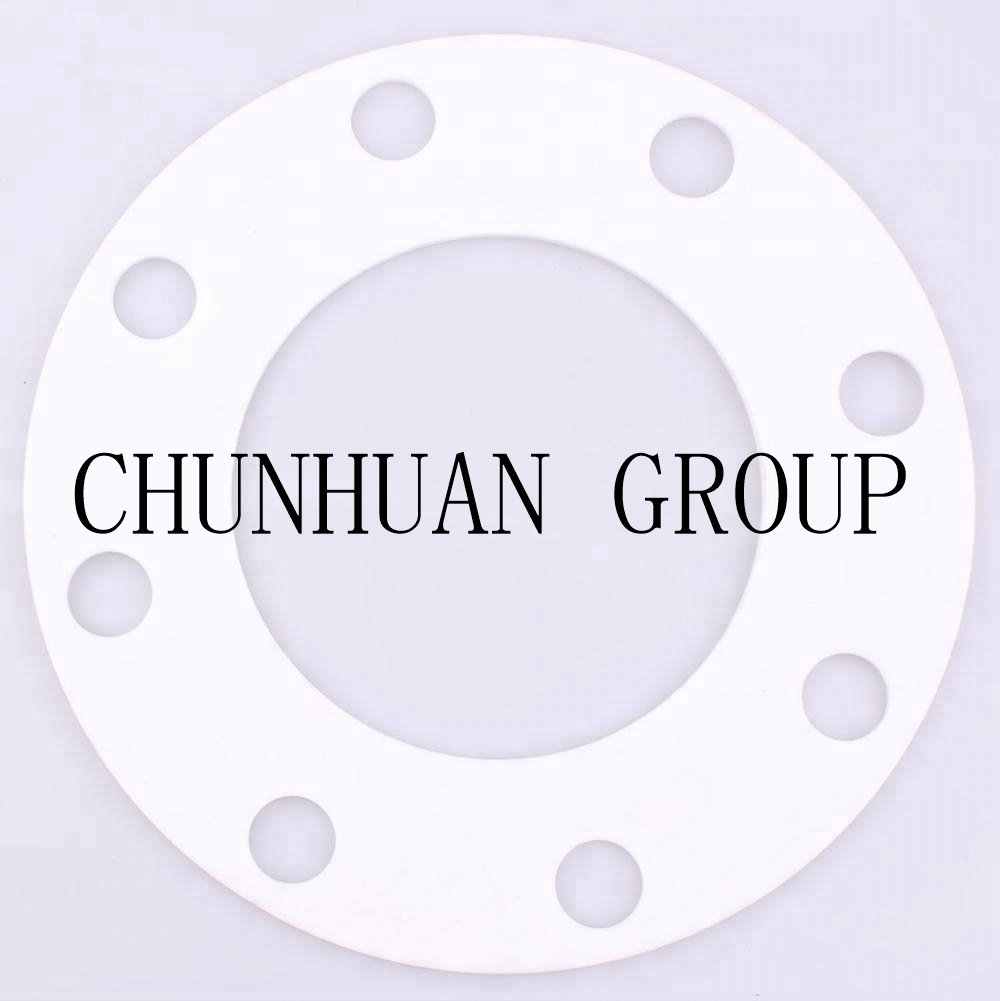

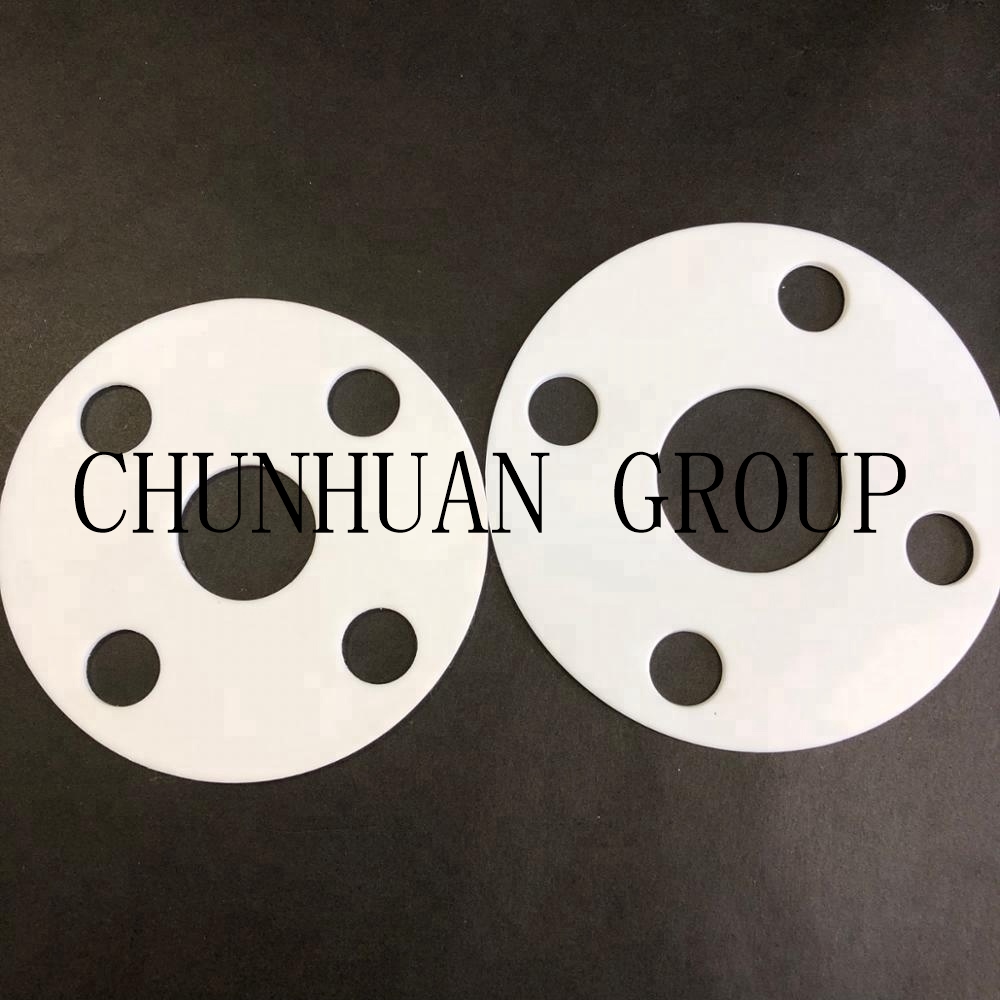

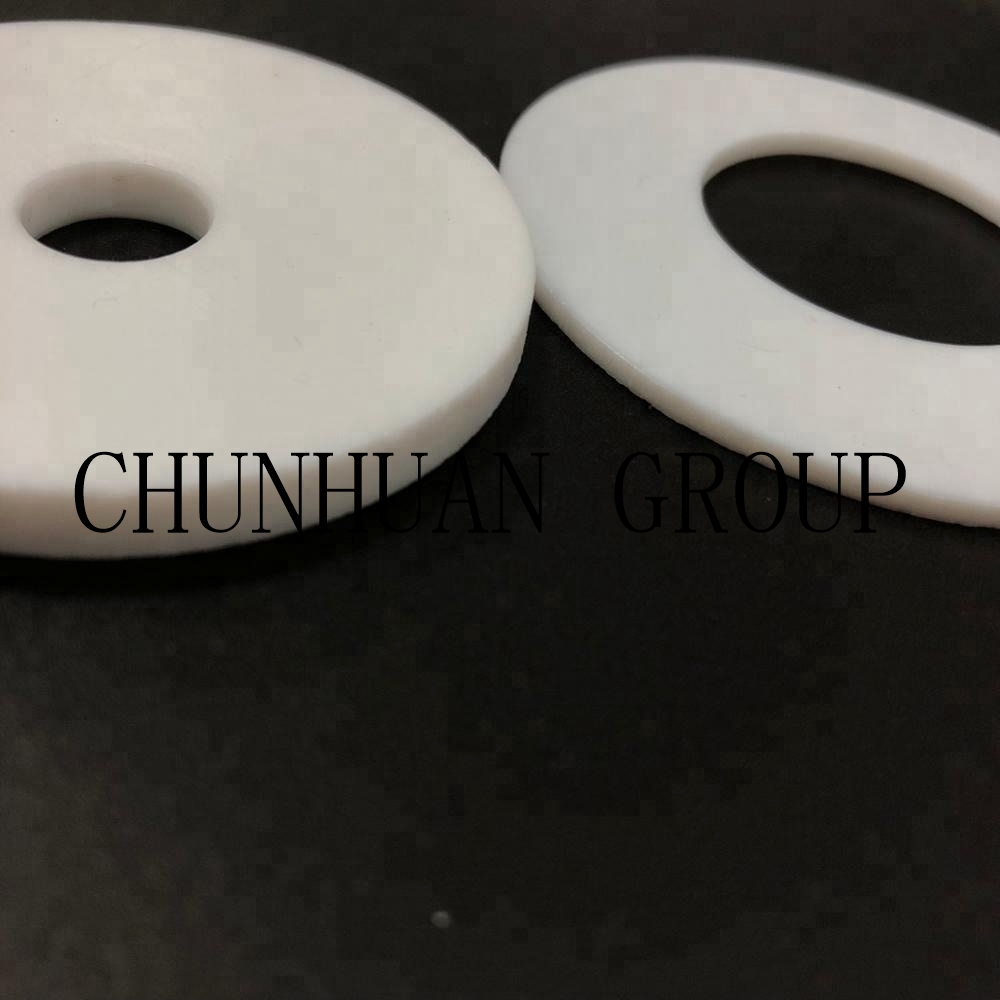

Ptfe Gasket
Zhenjiang Chunhuan Sealing Materials Co.,LTD(Group)
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Ptfe Gasket
Zhenjiang Chunhuan Sealing Materials Co.,LTD(Group)The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: 100%PTFE
- Size: OD48-279mm ID 12.7-203mm Thickness1.02-6.4mm
- Color: WHITE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: 100%PTFE
- Size: OD48-279mm ID 12.7-203mm Thickness1.02-6.4mm
- Color: WHITE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | 100%PTFE |
|---|---|
| Size | OD48-279mm ID 12.7-203mm Thickness1.02-6.4mm |
| Color | WHITE |
Product details
| Materials | 100%PTFE |
|---|---|
| Size | OD48-279mm ID 12.7-203mm Thickness1.02-6.4mm |
| Color | WHITE |
From the supplier
Description
PTFE envelope gasket is a kind of static seals.It is composed of elastic materials such as compressed asbestos sheet,rubber,ceramics,etc. And PTFE envelope cover.
PTFE has superior properties against chemical(not affected by all chemicals except molten alkali metal and fluorine at elevated temperature) and temperature(from - 180ºC ~ +250ºC)The coefficient of static and dynamic friction of PTFE is the best of the "non-stick"material. It has excellent anti weathering and aging characteristics.
Types and Specifications:
PTFE Envelope Gasket
0.04''(1.02mm) 1/15''(1.6mm) 3/16''(4.8mm) 1/4''(6.4mm)2-1/4''(57mm)3/4''(19mm)2-5/8''(67mm)1''(25.4mm)3-3/8''(86mm)1-1/2''(38mm)4-1/8''(105mm)2''(51mm)5-3/8''(136.5mm)3''(76mm)6-7/8''(175mm)4''(102mm)8-3/4''(222mm)6''(152mm)11''(279mm)8''(203mm)
Note:(Thickness)Gasket slot width
Applications
PTFE envelope gasket is used to seal pipe flange anti joint of industrial machinery apparatus which is lined with rubber,plastic ceramics graphite etc.
Main advantage:
1)excellent anti-chemical character.It almost applies to all mediums.
2)temperature range is very wide.(Around -180°C to 250°C)
3)anti- compressibility function is very good.
4)long service life.
Main Techinical Parameter
Pressure
Temperature
Density
2.1-2.3g/cm3
PH Range
0-14
PTFE Packed Gasket’s Pressure
16Mpa
PTFE Packed Gasket’s Temperature
Expanded PTFE Gasket’s Temperature
-268℃-315℃
Expanded PTFE Gasket’s Pressure
21Mpa
From the supplier
Description
PTFE envelope gasket is a kind of static seals.It is composed of elastic materials such as compressed asbestos sheet,rubber,ceramics,etc. And PTFE envelope cover.
PTFE has superior properties against chemical(not affected by all chemicals except molten alkali metal and fluorine at elevated temperature) and temperature(from - 180ºC ~ +250ºC)The coefficient of static and dynamic friction of PTFE is the best of the "non-stick"material. It has excellent anti weathering and aging characteristics.
Types and Specifications:
PTFE Envelope Gasket
0.04''(1.02mm) 1/15''(1.6mm) 3/16''(4.8mm) 1/4''(6.4mm)2-1/4''(57mm)3/4''(19mm)2-5/8''(67mm)1''(25.4mm)3-3/8''(86mm)1-1/2''(38mm)4-1/8''(105mm)2''(51mm)5-3/8''(136.5mm)3''(76mm)6-7/8''(175mm)4''(102mm)8-3/4''(222mm)6''(152mm)11''(279mm)8''(203mm)
Note:(Thickness)Gasket slot width
Applications
PTFE envelope gasket is used to seal pipe flange anti joint of industrial machinery apparatus which is lined with rubber,plastic ceramics graphite etc.
Main advantage:
1)excellent anti-chemical character.It almost applies to all mediums.
2)temperature range is very wide.(Around -180°C to 250°C)
3)anti- compressibility function is very good.
4)long service life.
Main Techinical Parameter
Pressure
Temperature
Density
2.1-2.3g/cm3
PH Range
0-14
PTFE Packed Gasket’s Pressure
16Mpa
PTFE Packed Gasket’s Temperature
Expanded PTFE Gasket’s Temperature
-268℃-315℃
Expanded PTFE Gasket’s Pressure
21Mpa
