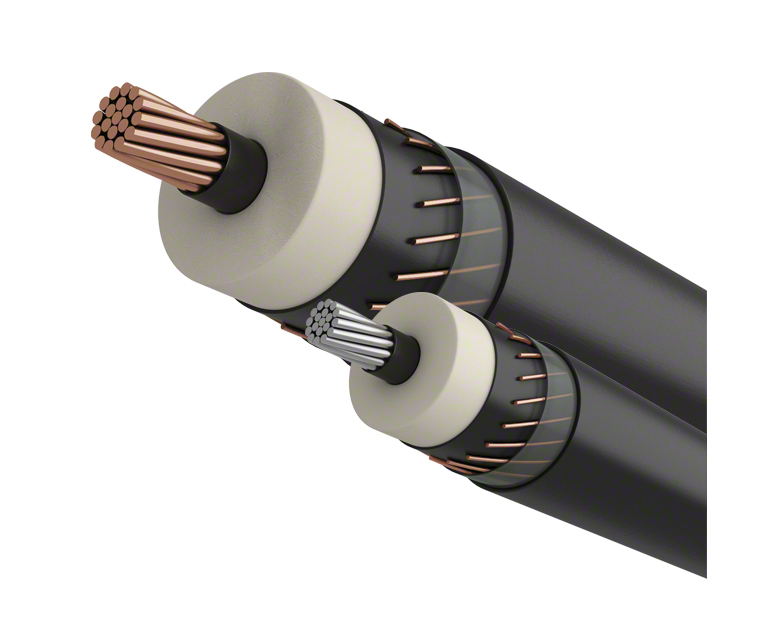

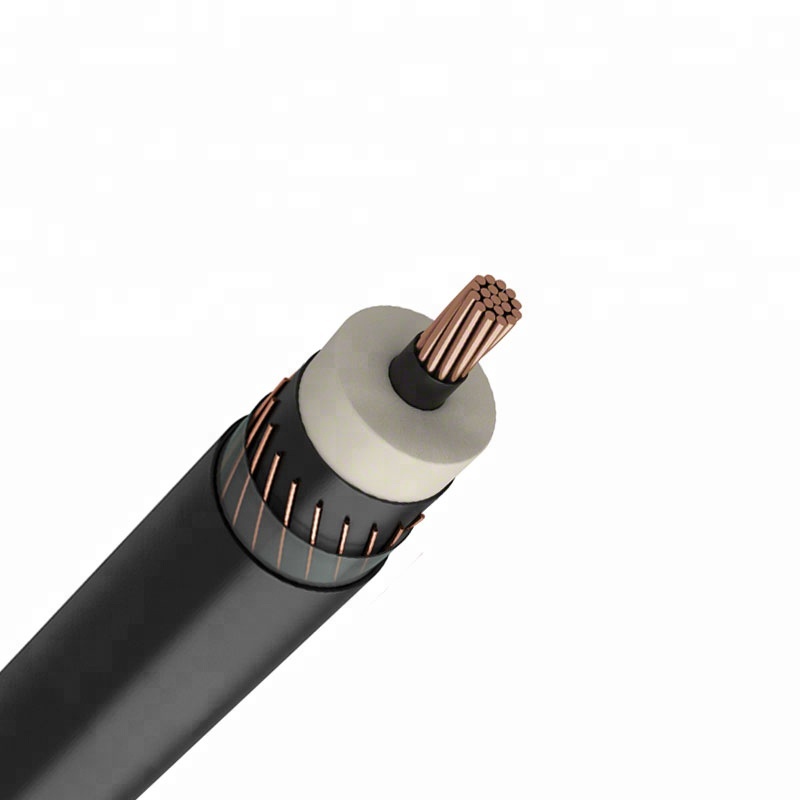

Primary UD Aluminum or Copper TR-XLPE / PVC, Concentric Neutral, 5 kV – 46 kV

Application

Underground primary residential and commercial distribution circuits.

May be used in wet or dry locations, installed in underground ducts or direct burial.

Conduction

1. Conductor: Soft annealed uncoated copper Class B compressed or unilay compressed per ASTM B8 or hard drawn aluminum Class B compressed or unilay compressed stranding per ASTM B231. On request: strand filled. Sizes: 8 AWG – 1000 kcmil. On request: larger sizes.

2. Conductor Shield: Semi conducting cross-linked polyethylene (XLPE). On request: super clean and super smooth materials.

3. Insulation: Thermoset tree-retardant cross-linked polyethylene (TR-XLPE). On request: cross-linked polyethylene (XLPE).

4. Insulation Shield: Semi conducting cross-linked polyethylene (XLPE).

5. Concentric Neutral: Soft annealed solid copper wires per ASTM B3, helically applied and uniformly spaced. Full or 1/3 Neutral. On request options: alternate neutral constructions, Water Swellable Powder (WSP), and ripcords.

6. Binder Tape: A suitable polyester tape, as required.

7. Jacket: Overlying (sleeve) black polyvinyl chloride (PVC). Configuration: Options. On request:Triplex or Paralleled configurations.

Standards

ICEA S-94-649: Standard for Concentric Neutral Rated Cables 5 – 46 kV.

AEIC CS8: Specifications for Extruded Dielectric, Shielded Power Cable, Rated 5 – 46 kV.

ASTM B8 (Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard, or Soft.)

ASTM B231 (Concentric-Lay-Stranded Aluminum 1350 Conductors.)

Parameter

5 kV TR-XLPE Insulated

Size
AWG
or
kcmil

Number
of
Strands

1/3 Neutral

Full Neutral

Nominal
OD Over
Insulation

Number
of
Wires

Size

Jacket
Thickness

Approximate Outside Diameter

Approximate
Net
Weight

Number
of
Wires

Size

Jacket
Thickness

Approximate Outside Diameter

Approximate
Net
Weight

in

AWG

mil

in

lb/kft

AWG

mil

in

lb/kft

Copper 100% Insulation Level (90 mil)

2

7

0.5

6

14

60

0.83

472

16

14

60

0.83

606

1

19

0.54

7

14

60

0.87

551

13

12

80

0.95

775

1/0

19

0.58

9

14

80

0.95

697

16

12

80

0.99

922

2/0

19

0.63

11

14

80

1

826

13

10

80

1.07

1131

3/0

19

0.68

14

14

80

1.05

993

16

10

80

1.12

1359

4/0

19

0.73

18

14

80

1.1

1204

16

9

80

1.2

1662

250

37

0.79

13

12

80

1.19

1385

25

10

80

1.23

1961

350

37

0.89

18

12

80

1.29

1841

22

8

80

1.39

2656

500

37

1.02

17

10

80

1.49

2578

31

8

80

1.54

3678

750

61

1.21

20

9

110

1.77

3815

—

—

—

—

—

1000

61

1.36

26

9

110

1.91

4912

—

—

—

—

—

Aluminum 100% Insulation Level (90 mil)

2

7

0.5

6

14

60

0.83

330

10

14

60

0.83

383

1

19

0.54

6

14

80

0.91

395

13

14

80

0.91

489

1/0

19

0.58

6

14

80

0.95

431

16

14

80

0.95

564

2/0

19

0.62

7

14

80

1

488

13

12

80

1.03

676

3/0

19

0.67

9

14

80

1.05

567

16

12

80

1.08

792

4/0

19

0.73

11

14

80

1.1

657

13

10

80

1.18

962

250

37

0.79

13

14

80

1.16

741

16

10

80

1.24

1121

350

37

0.89

18

14

80

1.26

942

16

9

80

1.36

1400

500

37

1.02

16

12

80

1.45

1261

29

10

80

1.49

1908

750

61

1.22

15

10

110

1.76

1872

—

—

—

—

—

1000

61

1.37

16

9

110

1.93

2360

—

—

—

—

—

8 kV TR-XLPE Insulated

Size
AWG
or
kcmil

Number
of
Strands

1/3 Neutral

Full Neutral

Nominal
OD Over
Insulation

Number
of
Wires

Size

Jacket
Thickness

Approximate Outside Diameter

Approximate
Net
Weight

Number
of
Wires

Size

Jacket
Thickness

Approximate Outside Diameter

Approximate
Net
Weight

in

AWG

mil

in

lb/kft

AWG

mil

in

lb/kft

Copper 100% Insulation Level (115 mil)

2

7

0.55

6

14

60

0.88

498

16

14

60

0.88

632

1

19

0.59

7

14

80

0.96

617

13

12

80

1

805

1/0

19

0.63

9

14

80

1

728

16

12

80

1.04

953

2/0

19

0.68

11

14

80

1.05

858

13

10

80

1.12

1163

3/0

19

0.73

14

14

80

1.1

1027

16

10

80

1.17

1393

4/0

19

0.78

18

14

80

1.15

1240

16

9

80

1.25

1697

250

37

0.84

13

12

80

1.24

1423

—

—

—

—

—

350

37

0.94

18

12

80

1.35

1881

—

—

—

—

—

500

37

1.07

17

10

80

1.54

2624

—

—

—

—

—

750

61

1.26

20

9

110

1.82

3870

—

—

—

—

—

1000

61

1.41

26

9

110

1.97

4972

—

—

—

—

—

Aluminum 100% Insulation Level (115 mil)

2

7

0.55

6

14

80

0.92

393

10

14

80

0.92

447

1

19

0.59

6

14

80

0.96

424

13

14

80

0.96

518

1/0

19

0.63

6

14

80

1

461

16

14

80

1

595

2/0

19

0.68

7

14

80

1.05

520

13

12

80

1.08

708

3/0

19

0.73

9

14

80

1.1

600

16

12

80

1.13

825

4/0

19

0.78

11

14

80

1.15

693

13

10

80

1.23

998

250

37

0.84

13

14

80

1.21

778

16

10

80

1.29

1158

350

37

0.94

18

14

80

1.31

983

16

9

80

1.41

1440

500

37

1.07

16

12

80

1.5

1307

29

10

80

1.54

1954

750

61

1.27

15

10

110

1.81

1927

—

—

—

—

—

1000

61

1.42

16

9

110

1.98

2419

—

—

—

—

—
