Non Rising Stem Resilient Seated Thread Ends Gate Valve
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Non Rising Stem Resilient Seated Thread Ends Gate Valve
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: DN80
- Color: red
- Pressure: OrdinaryPressure
- Seal surface: Other
- Standard: DINANSIGB
- Thread positionof valve rod: InsideGateValve
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: DN80
- Color: red
- Pressure: OrdinaryPressure
- Seal surface: Other
- Standard: DINANSIGB
- Thread positionof valve rod: InsideGateValve
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | DN80 |
|---|---|
| Color | red |
| Pressure | OrdinaryPressure |
| Seal surface | Other |
| Standard | DINANSIGB |
| Thread positionof valve rod | InsideGateValve |
| Connection form | Other |
| Actuator | Other |
| Usage | Regulation |
| Application | WaterIndustrialUsage |
From the supplier

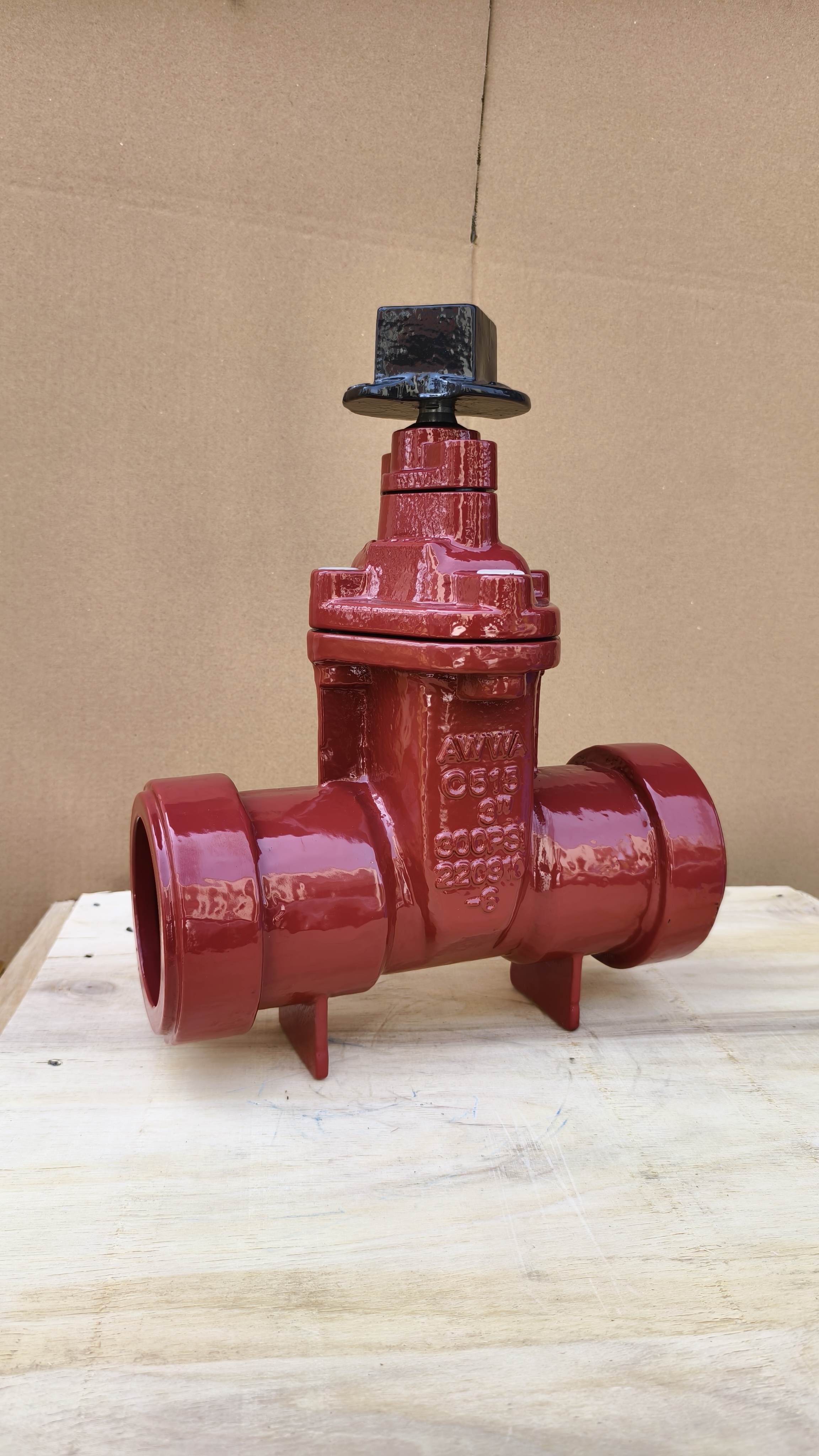

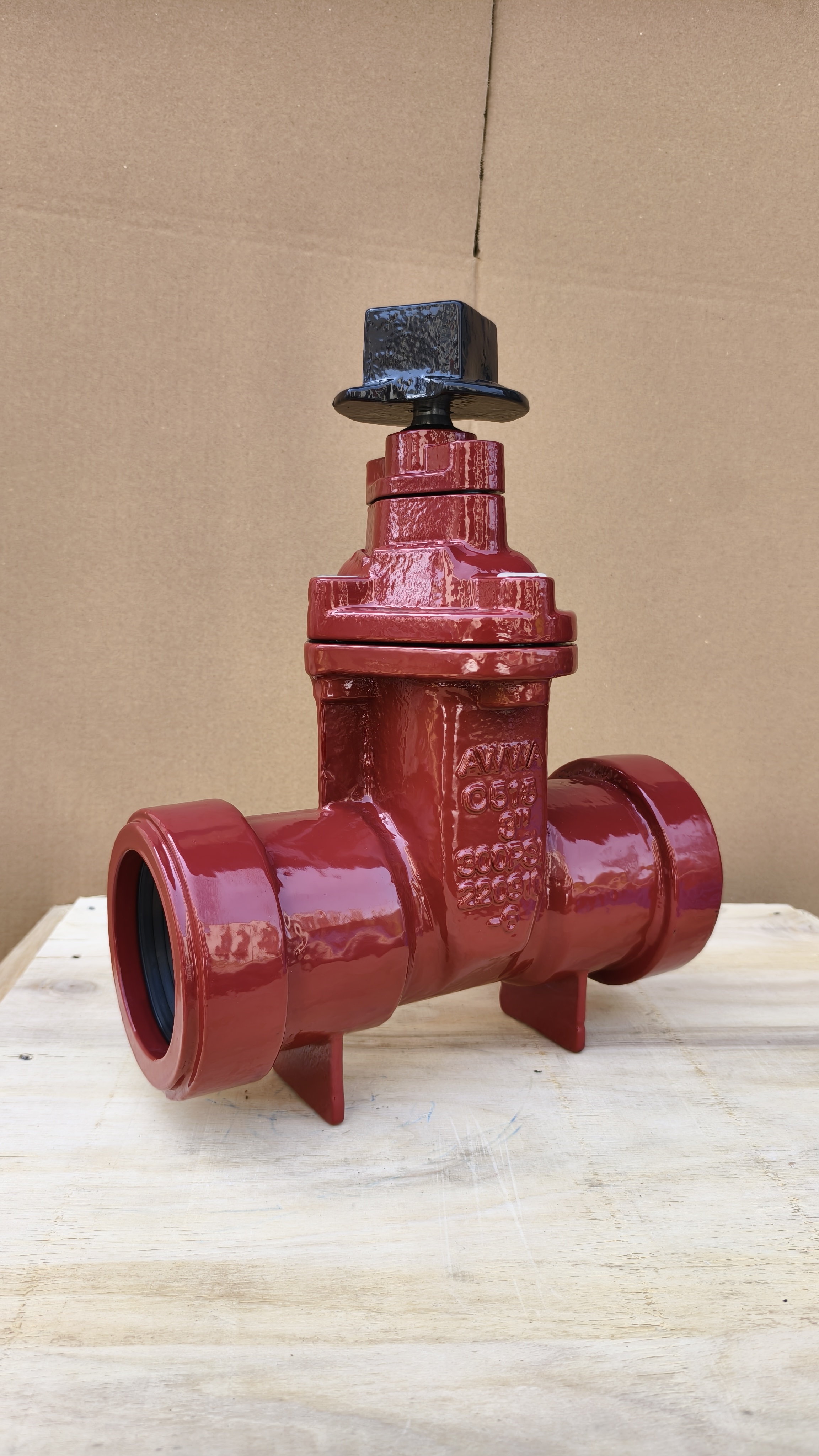

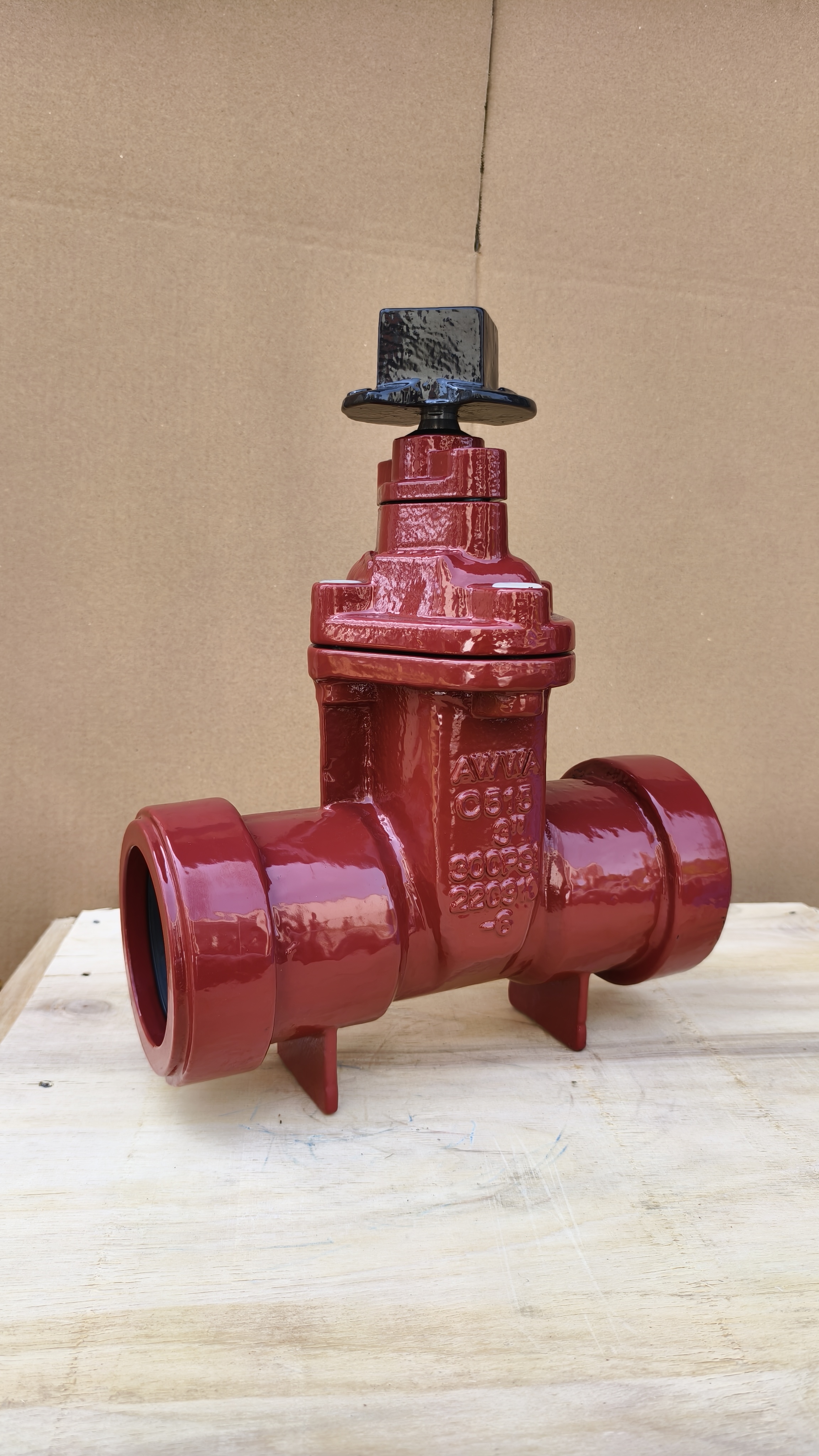

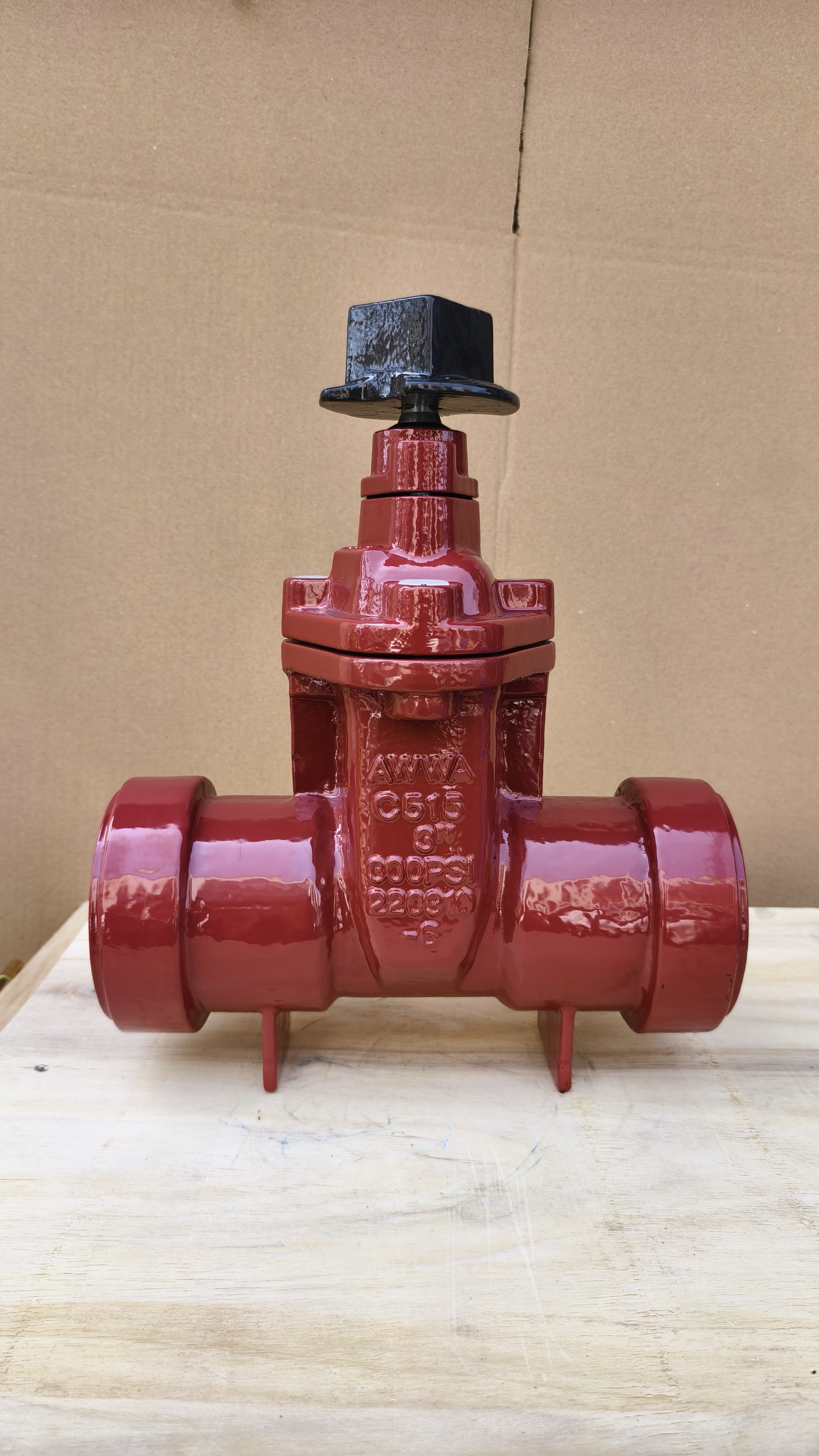

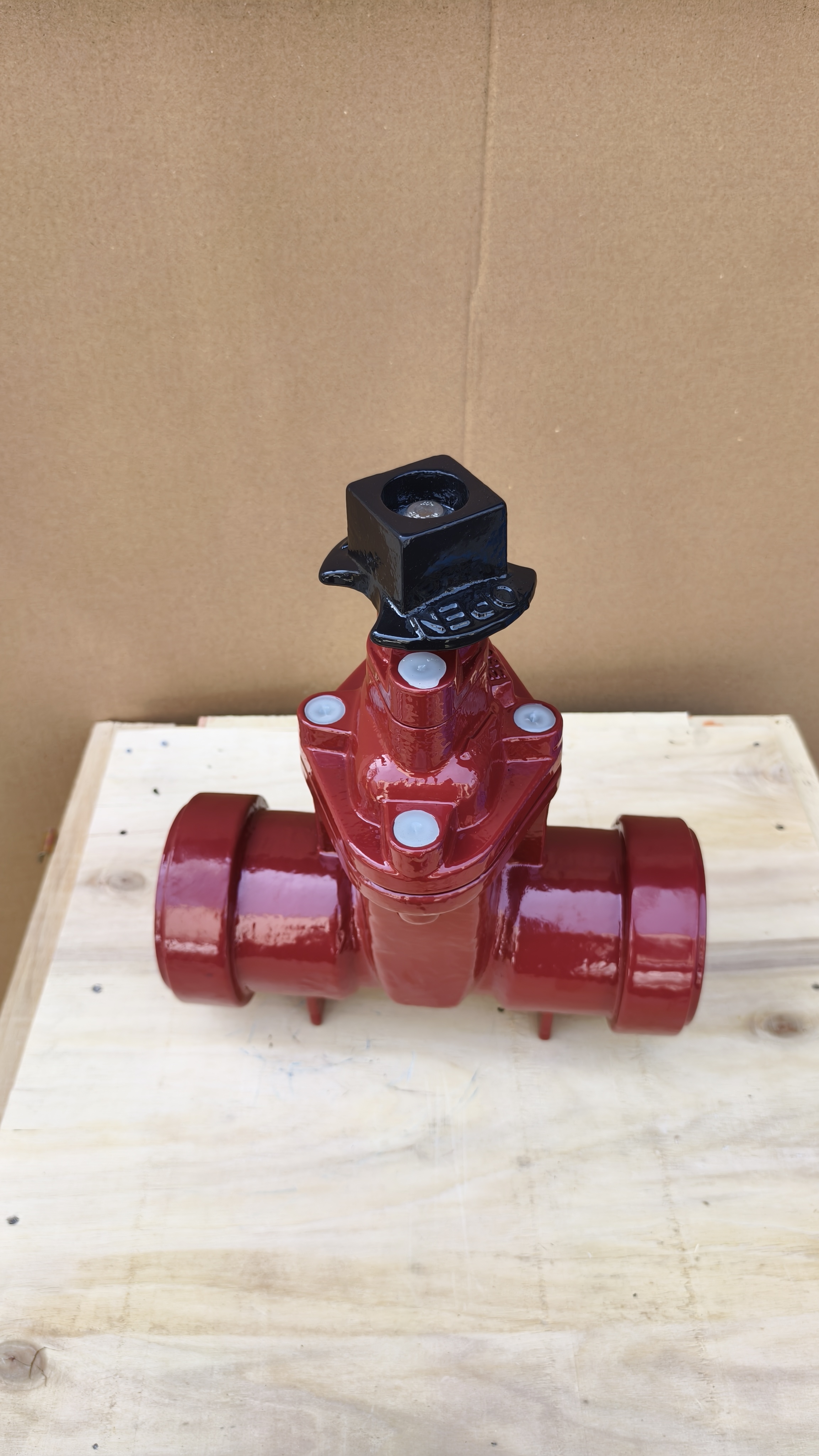

Thread Ends Gate Valve，Non Rising Stem Resilient Seated Thread Ends Gate Valve
Non-Rising stem, Resilient Seated Push on ends: Fitted with NBR/EPDM Rubber seals to C111 standard (Other Flange Types available upon request) Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard Inspection & testing: AWWA C515 Working Pressure:250PSI (200 and 300 PSI available on request) Working Temperature:-20ºC to 100ºC(-4°F to 212°F) Operator:Handwheel,2"Operating Nut,Gearbox
Design Standard AWWA C515
Threaded ends standard: ANSI B1.20.1
(Other Flange Types available upon request)
Triple O-Rings stem seal
Lifting lugs built into stuffing gland
Fusion Bonded Epoxy Coating to AWWA C550 Standard
Inspection & testing: AWWA C515
Working Pressure: 250PSL
Working Temperature: -20ºC To 100ºC(-4°F to 212°F)
Operator: Handwheel,2"Operating Nut,Gearbox
