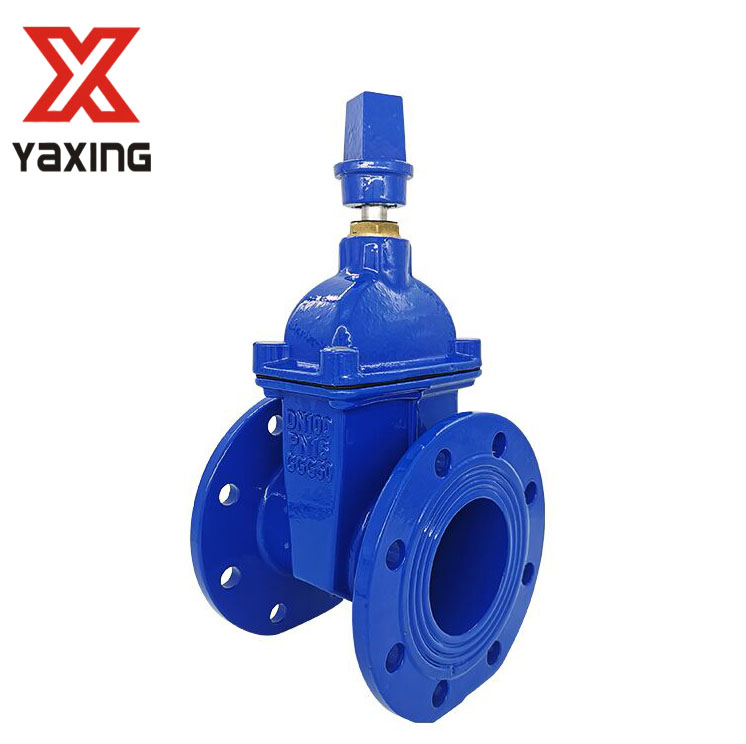

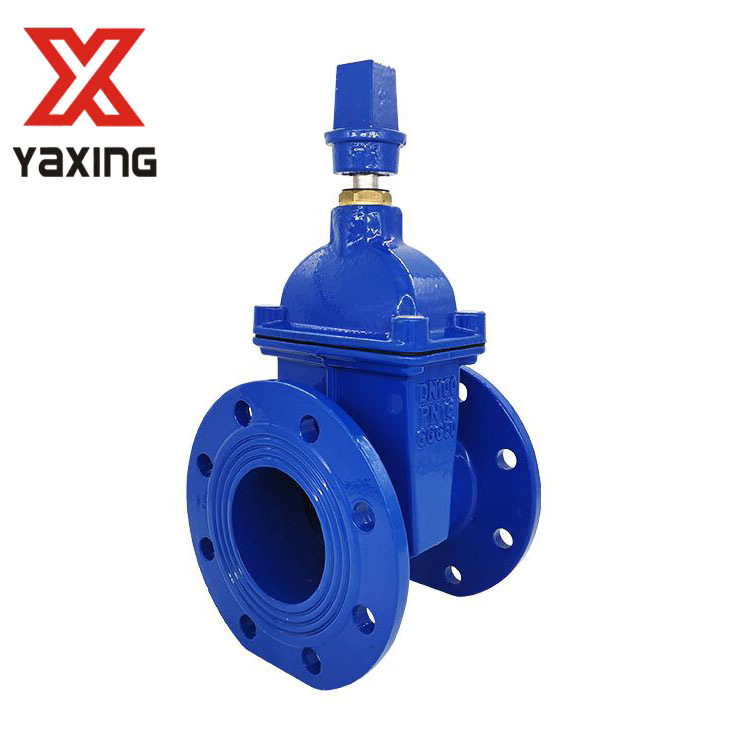

Light type resilient seated gate valve with cap nut DIN3352 F4
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Light type resilient seated gate valve with cap nut DIN3352 F4
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: DUCTILE IRON , CAST IRON
- Size: DN50-1000
- Color: EPOXY POWDER COATED-DARK BLUE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
About this product
- Materials: DUCTILE IRON , CAST IRON
- Size: DN50-1000
- Color: EPOXY POWDER COATED-DARK BLUE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
Product details
| Materials | DUCTILE IRON , CAST IRON |
|---|---|
| Size | DN50-1000 |
| Color | EPOXY POWDER COATED-DARK BLUE |
From the supplier
Features
The ductile iron core is fully vulcanized with EPDM rubber, no iron parts are exposed to the medium and the excellent rubber vulcanization prevents creeping corrosion underneath the rubber.
Guides in the wedge and on the valve body ensure a uniform closure, safe operation ensured as the guides prevent overloading of the stem.
Stainless steel stem with rolled threads for high strength.
The valve can replace stem seals under pressure.
Full bore.
Body inside and outside fusion bonded epoxy coating with excellent corrosion resistant performance.
Standard
Design standard DIN3352 F4, LIGHT TYPE Flange drilling standard EN1092-2 PN10/PN16 Face to face standard EN558-1 Series 14 Hydraulic test standard EN12266 Seat:1.1*PN(in bar), Body:1.5*PN(in bar)
Technical Parameters
Nominal diameter(mm) 50～300 50～300 Nominal pressure(Mpa) 1.0 1.6 Testing pressure Shell(Mpa) 1.5 2.4 Seal(Mpa) 1.1 1.76 Suitable temperature -40°C～150°C Suitable medium Drinking water、sewage、seawater、irrigation,or other neutral liquid.
Main Raw Material
1 Body Ductile Iron 9 Top-nut Brass 2 Wedge Ductile Iron+EPDM 10 Washer PTFE 3 Stem Stainless steel 11 Thrust collar Brass 4 Wedge Nut Brass 12 Washer PTFE 5 Bonnet Ductile iron 13 Dust Cover NBR 6 Bonnet gasket EPDM rubber 14 Handwheel/Cap Ductile Iron 7 Bonnet Ductile Iron 15 Bonnet bolt Steel gr.8.8 8 O-ring EPDM rubber
Components may be substituted with equivalent or higher class materials.
Dimension
Size L D C B n-d b f H DN50 150 165 125 99 4-19 15.5 2.5 280 DN65 170 185 145 119 4-19 15.5 2.5 305 DN80 180 200 160 133 4-19 8-19 16.5 2.5 350 DN100 190 220 180 154 8-19 16.5 2.5 390 DN125 200 250 210 184 8-19 16.5 2.5 470 DN150 210 285 240 210 8-23 16.5 2.5 525 DN200 230 340 295 265 8-23 12-23 17.5 2.5 630 DN250 250 405 350 355 319 12-23 2.5 18.5 2.5 780 DN300 270 460 400 410 370 12-23 12-28 21 3 870
