Globe Valves, Check Valves and Gate Valves have an extended use in many industrial applications such as oil & gas, chemical and petrochemical plants, thermal applications, fertilizer plants, etc...

Our globe valves come with a variety of end connections: Flanged type, as standard, comes with Raised Face (RF) according to ASME Class 150#, 300# and 600#, and with Ring-Type-Joint flanges (RTJ) for Class ratings of 900# and 1500#. Butt welded ends can also be supplied, with schedule according to customer specifications.

For gate valves, Soft or metal to metal sealing design are available with different wedge configurations such as solid wedge, flexible wedge or with an split configuration wedge in order to meet the specific service conditions.

Trustworthy provides check valves that are designed in accordance with API 6D, API 602 and other international standards. We offer a wide variety of end connections like flanged according to many flange drilling standards, threaded or welded ends.

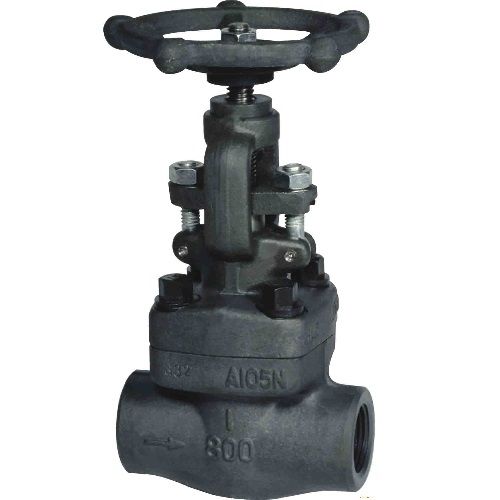

Forged Steel Globe Valves

Design Standard: API 602
Face to Face: ASME B16.10
 Flanged/Socket Weld/Threaded Ends: ASME B16.5/B16.11/B1.20.1
Inspection & Testing: API 598
Size: 1/2" - 4"
 Pressure Rating: 800LB~1500LB

Body Material: ASTM A105, A182

Forged Steel Gate Valves

Design Standard: API602
Face to Face: ASME B16.10
 Flanged/Threaded/Socket Weld Ends: ASME B16.5/B16.11
Inspection & Testing: API 598
Size: 1/4" - 2"
 Pressure Rating: 150LB~600LB
Operated by: Hand wheel, Gear, Pneumatic, hydraulic and Electric actuator.

Body Material: ASTM A105, A182

Forged Steel Check Valves

Design Standard: API 602, ASME B16.34
Face to Face: ASME B16.10
Flanged/Threaded/Socket Weld Ends: ASME B16.5/B1.20.1/B16.11
Inspection & Testing: API 598

Bonnet Option: Bolted, Welded
Size: 1/2" - 4"
 Pressure Rating: 800LB~1500LB
 Body Material: ASTM A105, A182
