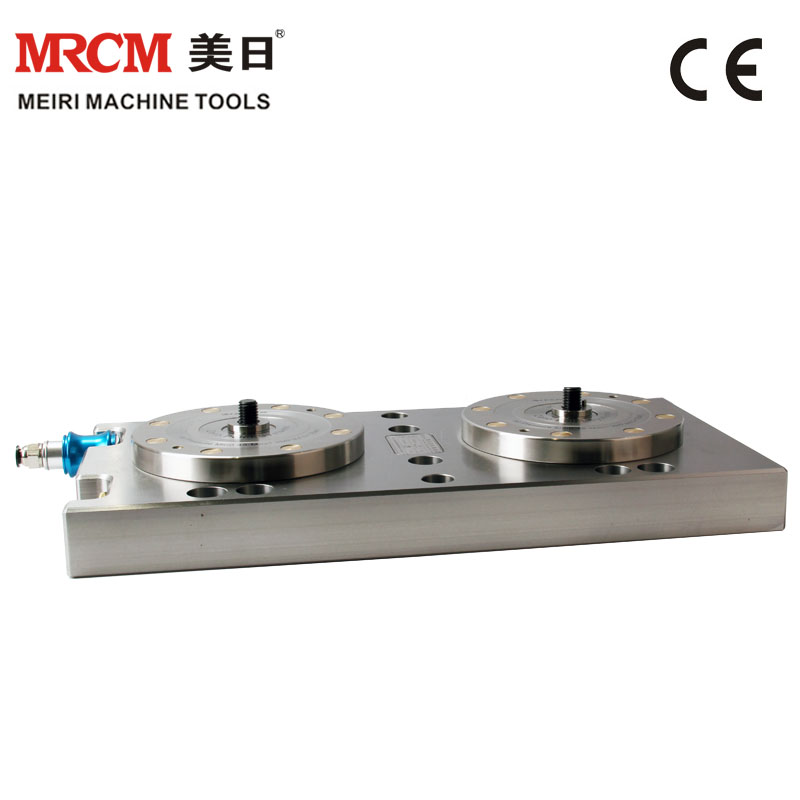

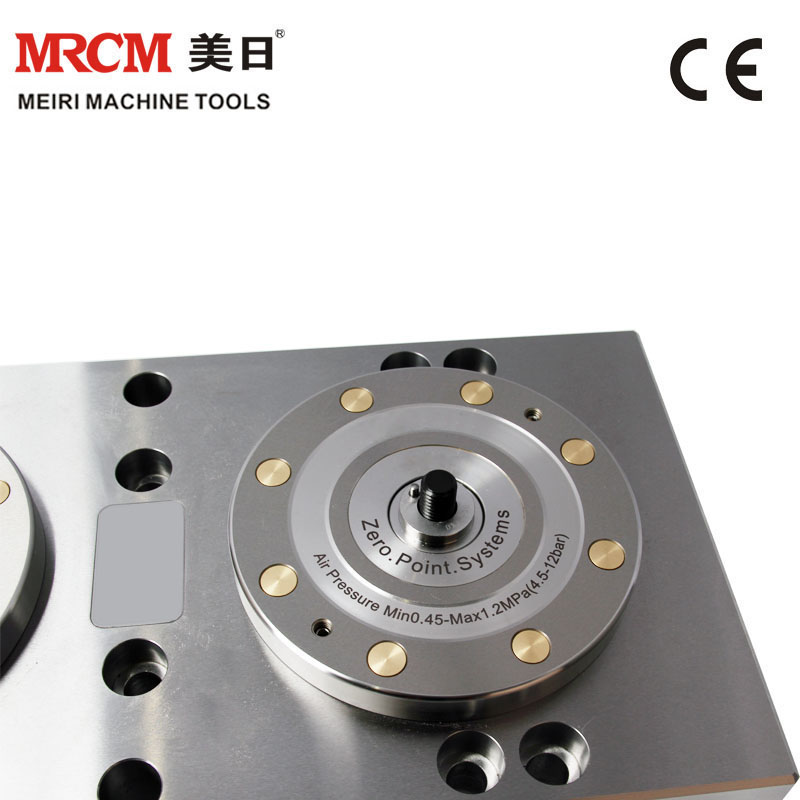

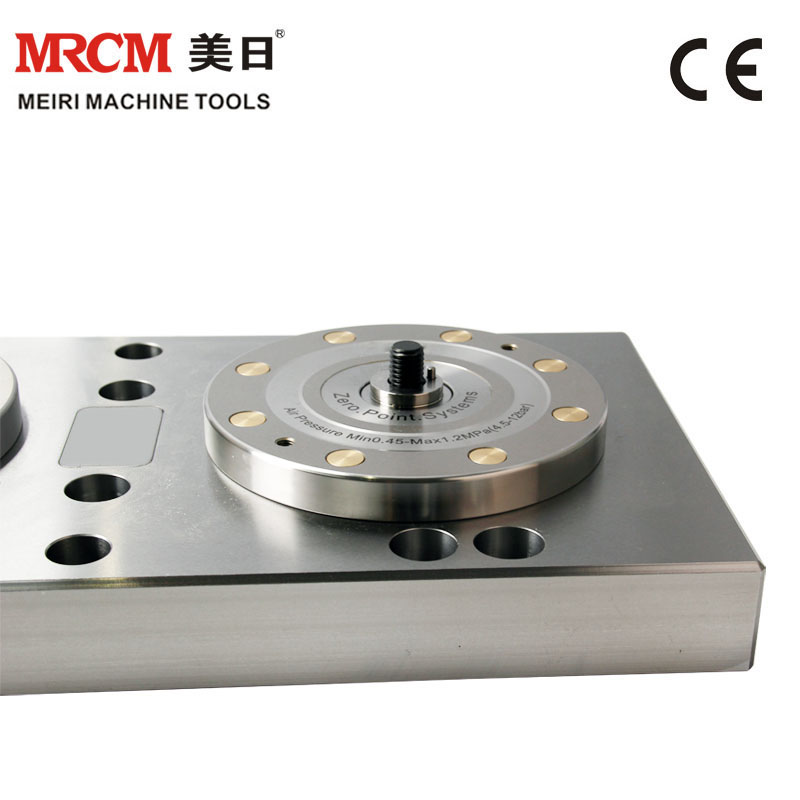

Q10 Hot Selling  Zero-point Chuck Zero Clamp Two Station Foundation Plate

Product Description



FEATUERS:

Zero-point Chuck mode: pneumatic Zero-point Chuck / hydraulic Zero-point Chuck
Pneumatic automatic chip removal
Material: die steel (#)
Surface and piston hardening treatment
Repeat positioning accuracy

Design Features
The UNILOCK is suitable for machine tool workstations with T groove spacing of 100 and 125mm, which are fastened by countersunk head bolts. At least two positioning holes for accurate positioning.

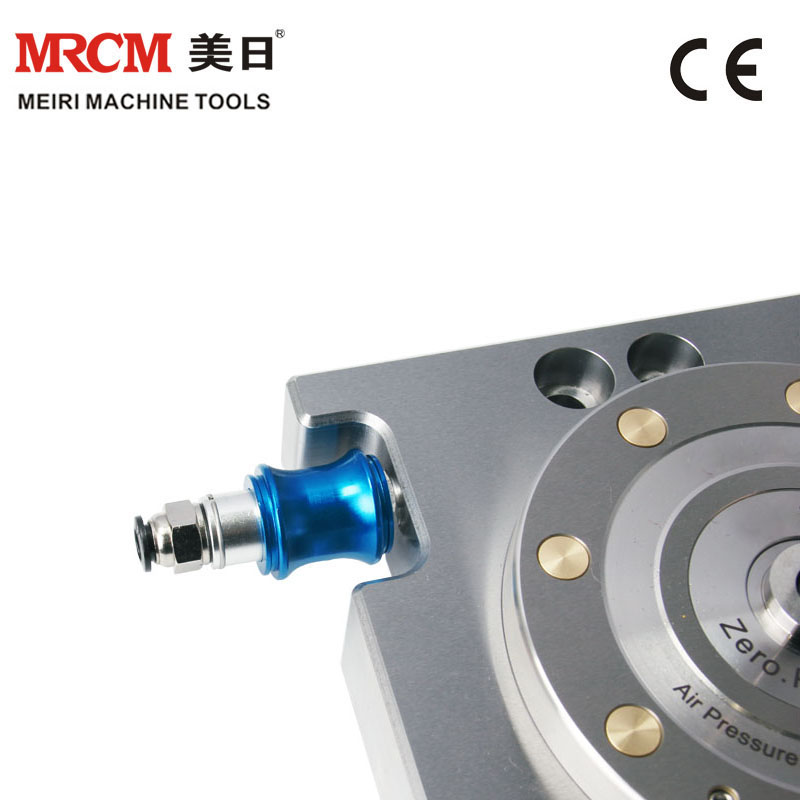

The distance between two locator is 200mm. Pneumatic Zero-point Chucking and installing pneumatic quick connector, hydraulic Zero-point Chucking and installing hydraulic quick connector, pneumatic dust removal performance interface can be selectively connected.





Model

A

B

C

D

ΦE

F

G

L

SM

R

Unlock Method

Clamping force(KN)

Tensioning force(KN)

Blowing dust

Weight

Q5

198

150

100

98

11.5

25

85

8.5

100

G1/8

pneumatic

2x5

2x15

√

3.8KG

Q10

366

250

200

166

20

28

138

10

200

G1/8

pneumatic

2x10

2x25

√

12.6KG

Q20

398

250

200

198

20

38

164

15

200

G1/4

pneumatic

2x17

2x55

√

22.7KG

Y10

366

250

200

166

20

28

138

10

200

G1/8

hydraulic

2x15

2x30

×

12.6KG

Y20

398

250

200

198

20

38

164

15

200

G1/4

hydraulic

2x25

2x60

×

22.7KG





Specification



Q-10



       ZERO POSITIONING CHUCK

        High precision workpiece machining, product processing, mould processing.

        Use for high precision, high speed machining center, machining center, CNC, powerful CNC milling, computer gong, carving and milling machine, engraving machine, milling machine.
