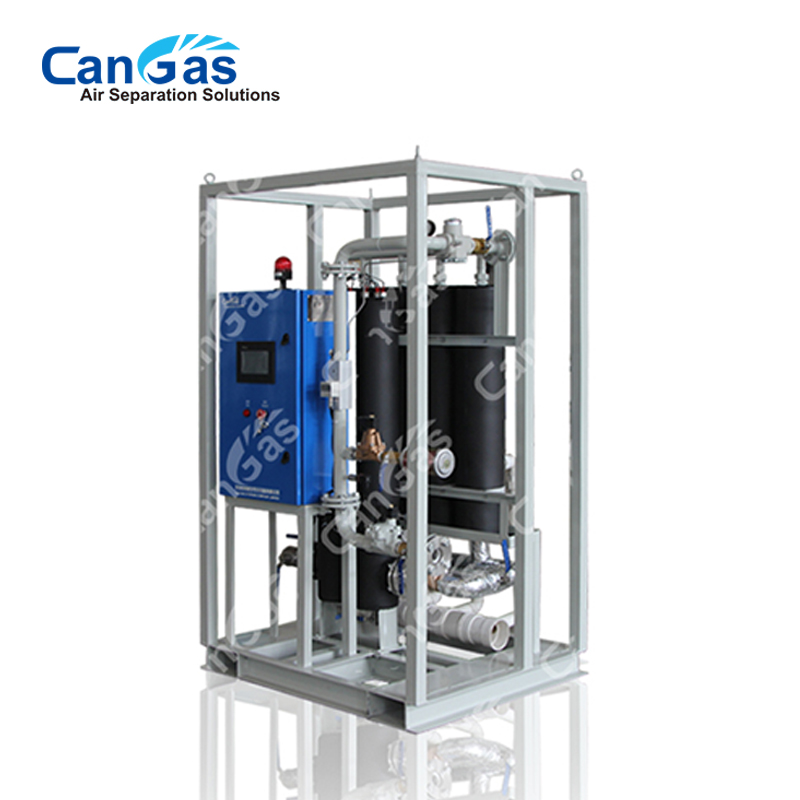

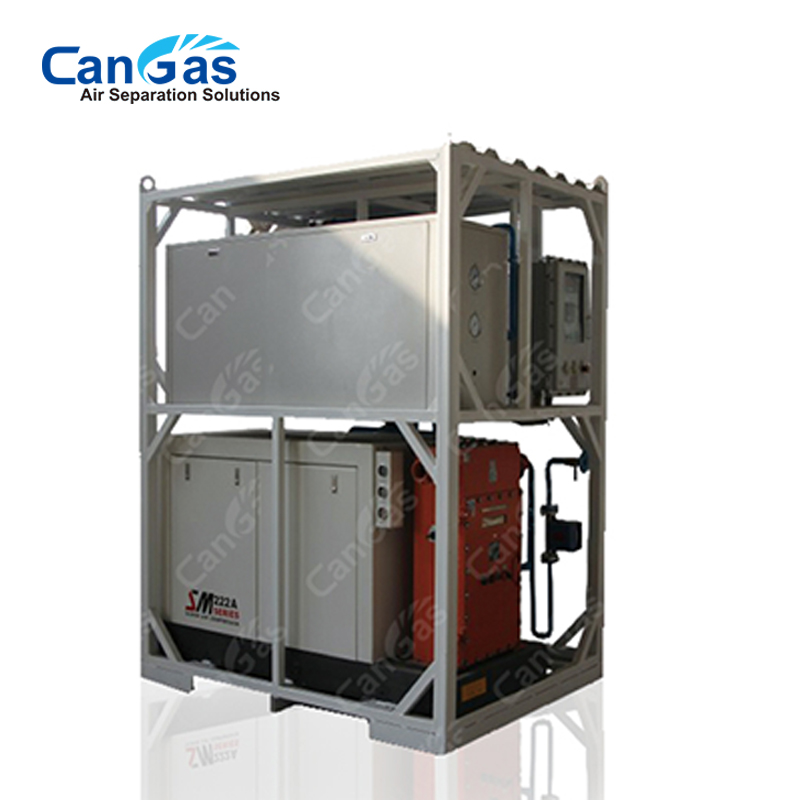

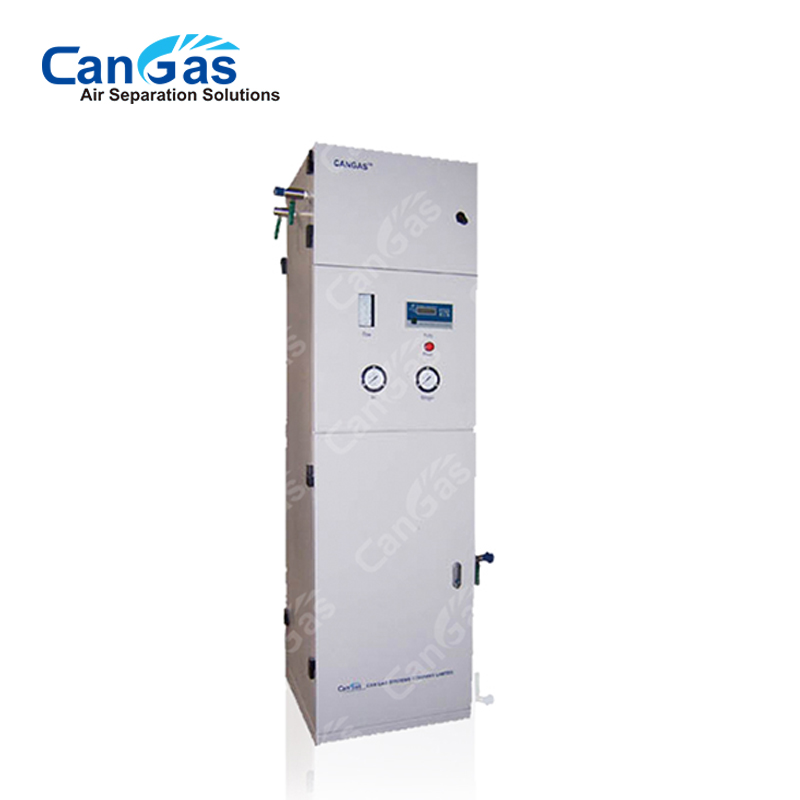

The Membrane nitrogen generator CAME system uses a semi-permeable polymeric membrane to separate and obtain nitrogen from the air  The desired feedstock is compressed air containing 78% N2, 21% O2, 0.9% Argon, and 0.1% other components The hollow fiber membrane is actually like a gas permeable tube  When the compressed gas passes through the core of the thin tube, some gases such as steam, O2, N2, and CO2 will permeate through the tube wall, but the nitrogen gas permeates slowly - under the stream pressure, the nitrogen gas flows to the tube end and out to the nitrogen buffer or storage tank as purified product nitrogen.

CAN GAS CAME membrane nitrogen generators provide economical, low maintenance and simple method for nitrogen generations especially suitable for low purity from 95% to 99.9% The capacity is flexible by adding or deducting membrane modules that are installed in parallel.

Product feature:

1. 1) Minimal Maintenance
2. 2) Consistent product quality
3. 3) Compact and Modular design, minimal footprint, easy installation & operation

Product Range:

1) Nitrogen Flow: 1.0Nm³/h to no top limit

2) Nitrogen Purity: 95% to 99.9%

3) Nitrogen Pressure: 0~24 barg (customizable & adjustable)

Product Specification:

Please contact us for more flexible and customized models.

Main Application Fields:

• 1) Petrolchemical Industries
• 2) Coal, Oil & Gas Mining
• 3) Fire Fighting/Preservation
• 4) Airport Ground Support
• 5) Antique Protection
• 6) Environment Protection
• 7) For Lab Researching
• 8) Laser Cutting
