About this product
- Materials: Cast steel,surface welded 3mm SUS304
- Size: 2800x1650x1700
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: Cast steel,surface welded 3mm SUS304
- Size: 2800x1650x1700
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | Cast steel,surface welded 3mm SUS304 |
|---|---|
| Size | 2800x1650x1700 |
| Color | white |
Product details
| Materials | Cast steel,surface welded 3mm SUS304 |
|---|---|
| Size | 2800x1650x1700 |
| Color | white |
From the supplier

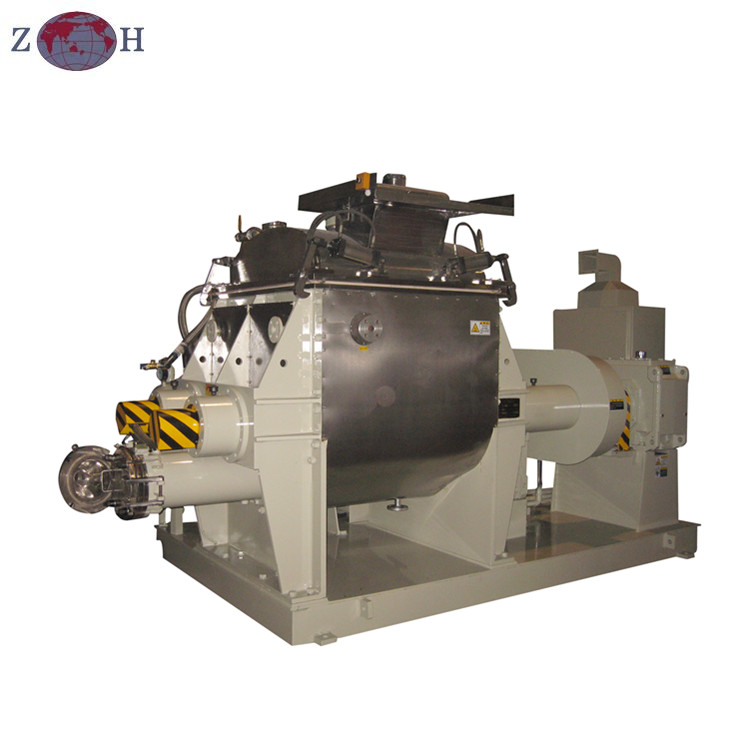

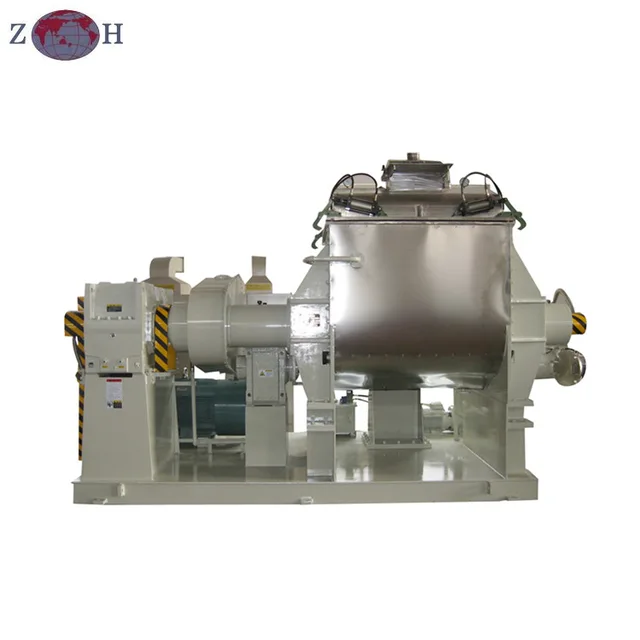

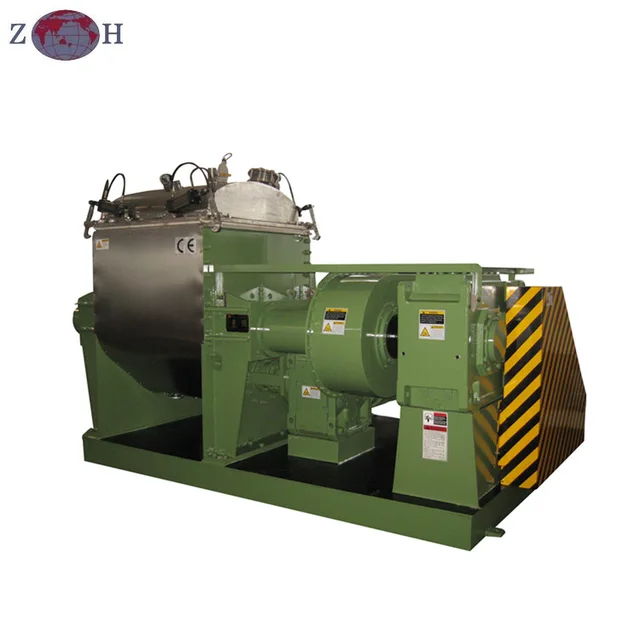

NHZ-300C Vacuum Kneader
I Description:
Vacuum kneader for hot melt adhesive sealant, silicone rubber, CMC, battery, ink, dye, pharmacy, resin, plastics and cosmetic
Kneader is a kind of ideal high-performance equipment for mixing and kneading high viscosity and super high viscosity materials.
Vacuum Kneader is widely used in such industries as high viscosity sealant, silicone rubber, CMC, battery, ink, dye, pharmacy, resin, plastics and cosmetics, etc.
Kneader temperature adjustment can be done by using heat transfer oil circulation, electric heating, steam and water cooling. It can be made tank body jacket, wallboard jacket, stirrer passing cooling water, passing heat transfer oil and such structures for heating and cooling.
II Main technical parameters
Whole capacity
320 L
Working capacity
210 L
Power of main motor
15kW/6P/AC380V/50Hz/Siemens china
Inverter for main motor
E5-15kW/V&T
Reducer(gear unit)
H205HSB-22.4/Boneng transmission
Blade type
Double sigma blades
Revolution of blade (front/rear)
0-35/0-24rpm
Material of blade
Cast steel,surface welded 3mm SUS304
Material of shaft
Cast steel
Material of trough
Inner side 8mm SUS304,jacket 12mm mild steel
Wetted by material
SUS304
Distance between blade and trough
Less than 3 mm
Distance between blade and trough end
Less than 3 mm
Packing of shaft
PTFE
Heating way
Electrical heating 15kW，or with heating jacket(heating by hot oil or steam)
Discharging way
discharging by screw extruding
Revolution of extruding screw
0～52rpm adjustable in this region
Material of extruding screw
Screw made by 38CrMoAl，the surface of the screw is nitrided, the hardness is HV 800, and the other quenched and tempered heated treatment
Distance between screw and tube
3mm
Diameter of extruding screw
Φ138mm
Reducer for extruding screw
BWD3-29-5.5/Guomao reducer group
Extruding motor’s power
5.5kW
Inverter for extruding motor
E5-5.5kW/V&T
Open lid
by hydraulic cylinder,approx.70°
Lock lid
manually
Seal of lid
viton
Nozzle on the lid
Sight-glass, release valve,charging port,ect.OR according to customer requirements
Power of hydraulic unit
1.5 kW/AC380V/50Hz
Thermal sensor
PT100
Control system
The electric system controls the positive rotation, reverse, stop , controls the opening and closing the lid, controls the positive rotation, reverse, stop and speed regulation of the screw, and displays the current voltage, the current, the material temperature, etc.with Emergency stop button on the control panel
Major electrical components brands
Schneider & Omron
Appearance of size(L×W×H)
Approx.2800×1650×1700
