, brief description

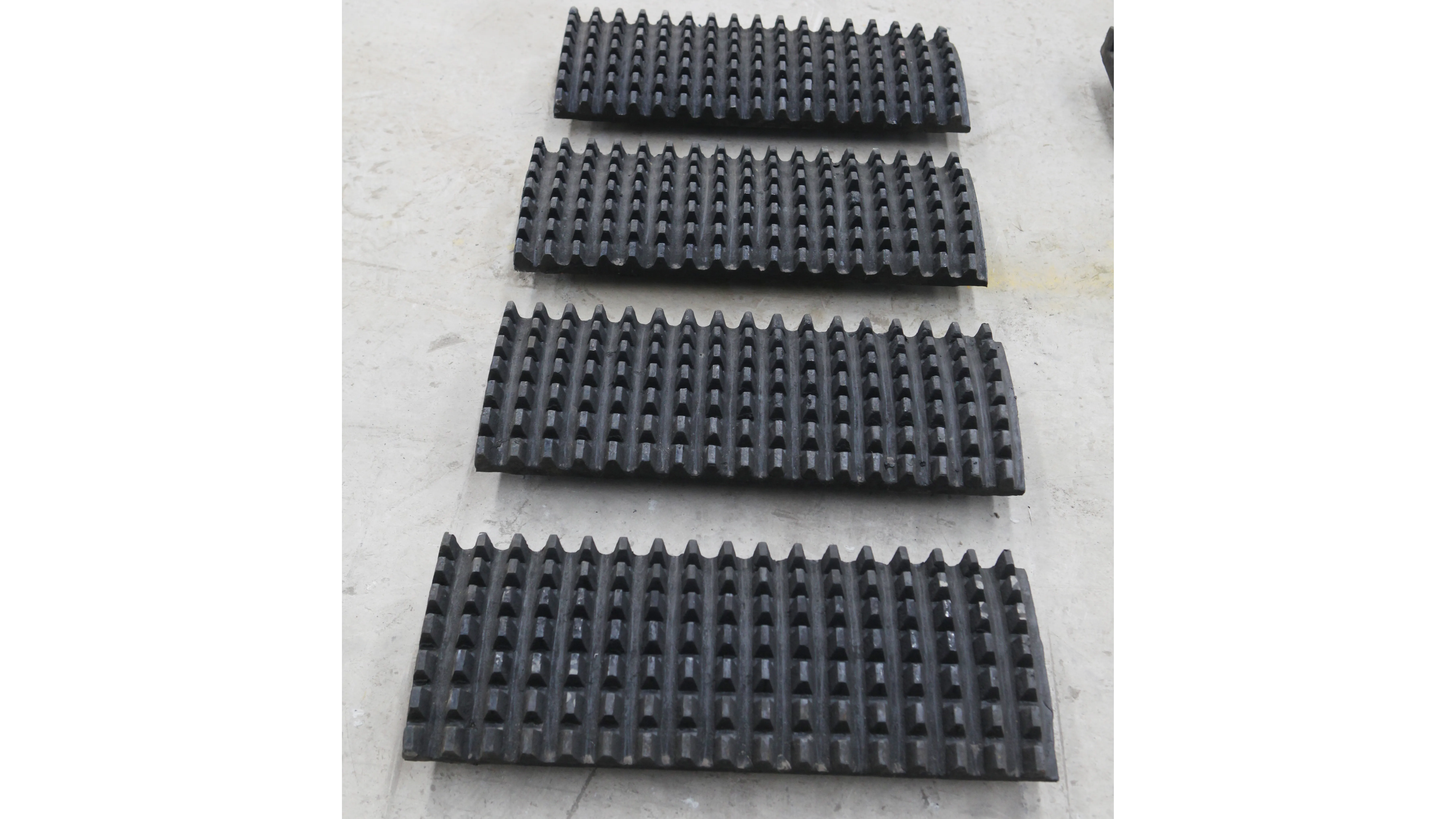

Jiangsu Lubida Intelligent Equipment Manufacturing Co., Ltd. has been promoting the use of two-toothed roller, four-toothed roller and multi-toothed roller crushing systems in CFB circulating vulcanization beds, heating, mining, chemical industry, new energy and other industries since the early 1990s. The system starts from the raw material warehouse and directly transports raw materials to the toothed roller crushing system through a conveyor belt. Its core equipment is a two-toothed roller crusher and a four-roller crusher. The toothed roll crushing system has the characteristics of completely solving sticking clogging, uniform particle size and long service life of wear-resistant parts. It is designed with a quick-responding toothed roll yielding mechanism to ensure the safe operation of the equipment. The core component of the equipment is the wear-resistant toothed plate. Because it has the effects of pulling, splitting, rolling, rubbing, hitting, extruding, etc., the crushed particles have the characteristics of uniform particle size and good combustion effect, and have high application benefits, especially in CFB. It has been widely praised in the system. The toothed plate has efficient wear resistance and impact toughness, and has been highly praised by customers.

Working principle of the equipment:

The toothed roll crusher uses motors to drive the driving wheels on both sides to make the two toothed rolls rotate differently towards each other. A convenient adjustment device is used to adjust the gap between the two toothed rolls. Materials smaller than the gap fall automatically, and materials larger than the gap fall automatically. Materials in the axial and radial directions are subjected to combined crushing in the form of pulling, splitting, grinding, rubbing, hitting, extruding, etc. to ensure that the particle size after crushing meets the required requirements. Due to the differential operation of the two rollers, resonance is cancelled, automatic cleaning is achieved, and the sticking phenomenon is completely solved. There is no requirement for material moisture and no additional equipment is needed, which greatly simplifies the process flow of the coal handling system.

2. Technical progress and innovation of toothed roller crushers (two-roller, four-roller)

Our company is an entity enterprise specializing in manufacturing toothed roll crushers and integrating science, industry and trade. Based on the needs of the international and domestic markets, the company's scientific researchers have persisted for 20 years, constantly optimizing, upgrading and innovating key technologies such as technical design, process design and use efficiency of toothed roll crushers, creating a relatively unique, novel, technologically leading, and cost-effective new product-"Ruida" toothed roll crushers.

1."Shuida" toothed roll crusher-the crystallization of cutting-edge technological innovation

Compared with similar products at home and abroad, the "Ruda Brand" toothed roller crusher has the following distinctive characteristics:

1) Addition of uniform distribution mechanism (invention patent)

2) Upgrade of the flashback system (invention patent)

3) Use of new wear-resistant parts

4) Innovative tooth plate disassembly method (patent application)

5) Computer-aided (three-dimensional software) design of tooth profile

6) Automation of control procedures (patent application)

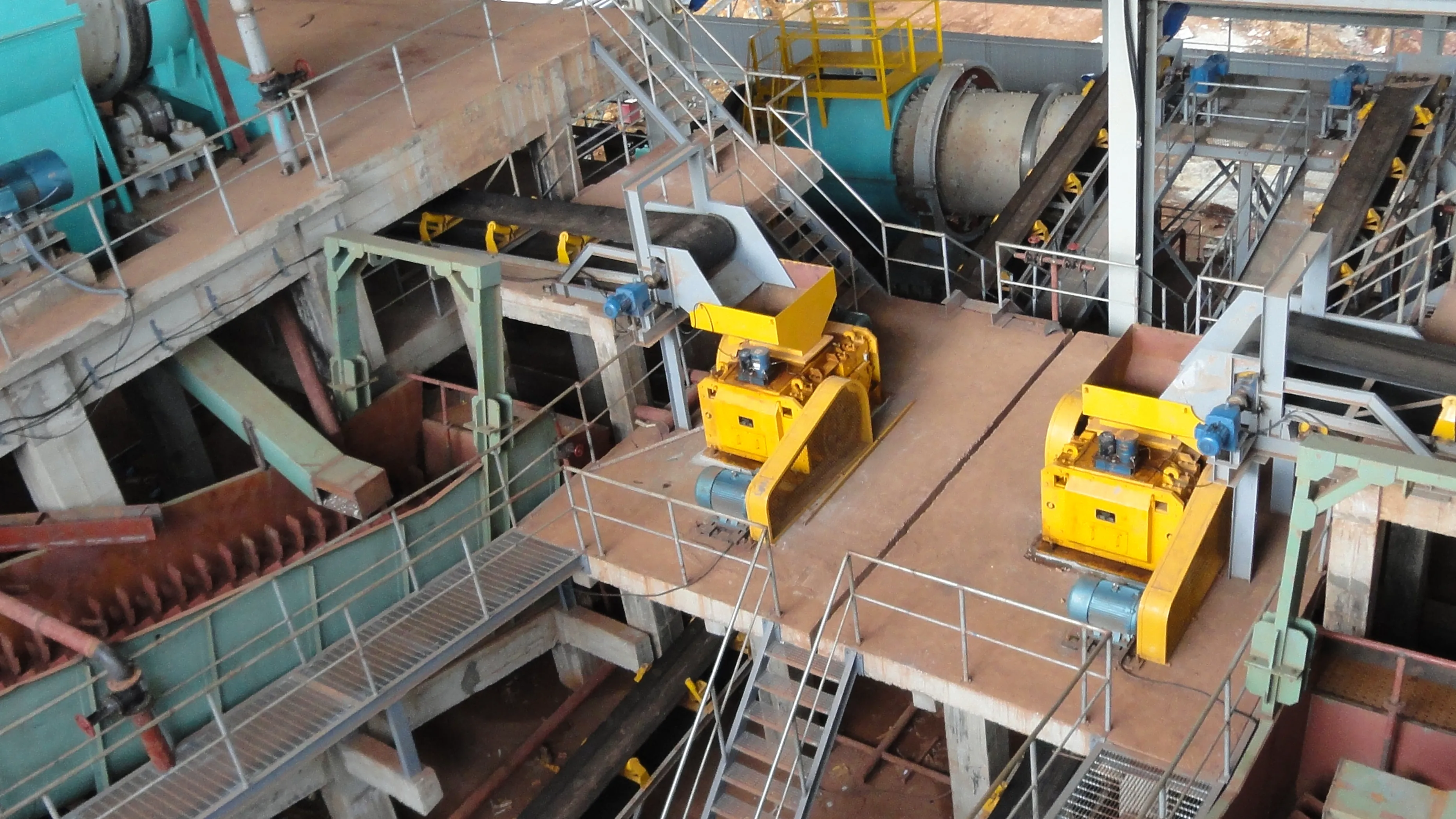

The company's after-sales service department went deep into the "Yue Coal Group"(one of the five largest state-owned enterprises in Vietnam),"JMR Sugar Factory"(controlled by the Indonesian government) and other work sites;"Jiangsu Huaihe Chemical Co., Ltd."(a chemical enterprise),"Shenyang Guoxin Environmental Protection New Energy Co., Ltd."(a listed heating company), Zhejiang "Tongxiang Taiaisi Environmental Protection Energy Co., Ltd."(Zhongda Group of Products),"Fengyi International" and other nearly 100 domestic customers conducted on-site inspections and collected equipment use and improvement suggestions on site. The needs and wisdom of domestic and foreign customers provide a steady stream of spiritual motivation for the company's new product research and development and technological innovation, and inspire the continuous improvement of the company's products. At the same time, leading agencies such as local government science and technology departments, national industry management departments, the Ministry of Industry and Information Technology, and the National Patent Office promptly held new product expos, negotiations, product standard seminars, patent technology consultation service meetings at different levels and in various forms. Activities, setting up a platform for technical exchanges between enterprises and domestic and foreign counterparts, and providing solid technical support and policy guarantees for the company's new product research and development and technological innovation.

2. The following are some of the technical achievements achieved by the company's R & D team in recent years:

1) Xu Xiubing, the chief engineer of the company, led a team as deputy chief engineer of Xuzhou Kalemite Antiwear Engineering Co., Ltd. in July 2009 (Beijing) and April 2011 (Shanghai) to represent the company's Xuzhou Kalemite Antiwear Engineering Research Institute, participated in the "National Standards Drafting Seminar for Wear Parts and Related Products" organized by the Ministry of Industry and Information Technology of the People's Republic of China and participated in the "National Standards Drafting Seminar on Wear Parts and Related Products"

"GB/T5680-2010 Austenitic Manganese Steel Castings"

"GB/T8263-2010 Wear resistant white cast iron"

"GB/T26651 Wear resistant steel castings"

Drafting of four nationally recommended standards for "GB/T13925 Cast High Manganese Steel Metallography".

2) Two patents authorized by the National Patent Office:

Authorized in November 2019

"A Uniform Distribution Device for Crusher"(Patent No.:201911249907.0);

Authorized in October 2020

"A Flashback Mechanism of Gear Roller Crusher"(Patent No.:202010458015.8)

3) In September 2020, the company's products: the research and development and production of toothed roll crushers; the production of metal wear-resistant materials passed the "Quality System Certification".

4) Two patents to be applied:

"Gear plate rapid disassembly mechanism";"Gear roller crusher control program automation system".
