Aoheng Machinery,Parameters of YDB-385 Wheel Pile Driving and Pulling Machine,Engineering machinery
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Aoheng Machinery,Parameters of YDB-385 Wheel Pile Driving and Pulling Machine,Engineering machinery
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: ·
- Color: ·
- Engine type: Other
- Customized: Other
- Power source: Other
- Walking mode: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: ·
- Color: ·
- Engine type: Other
- Customized: Other
- Power source: Other
- Walking mode: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | · |
|---|---|
| Color | · |
| Engine type | Other |
| Customized | Other |
| Power source | Other |
| Walking mode | Other |
| Automatic grade | Other |
Product details
| Size | · |
|---|---|
| Color | · |
| Engine type | Other |
| Customized | Other |
| Power source | Other |
| Walking mode | Other |
| Automatic grade | Other |
From the supplier
Xuzhou Aoheng Machinery Technology Co., Ltd.

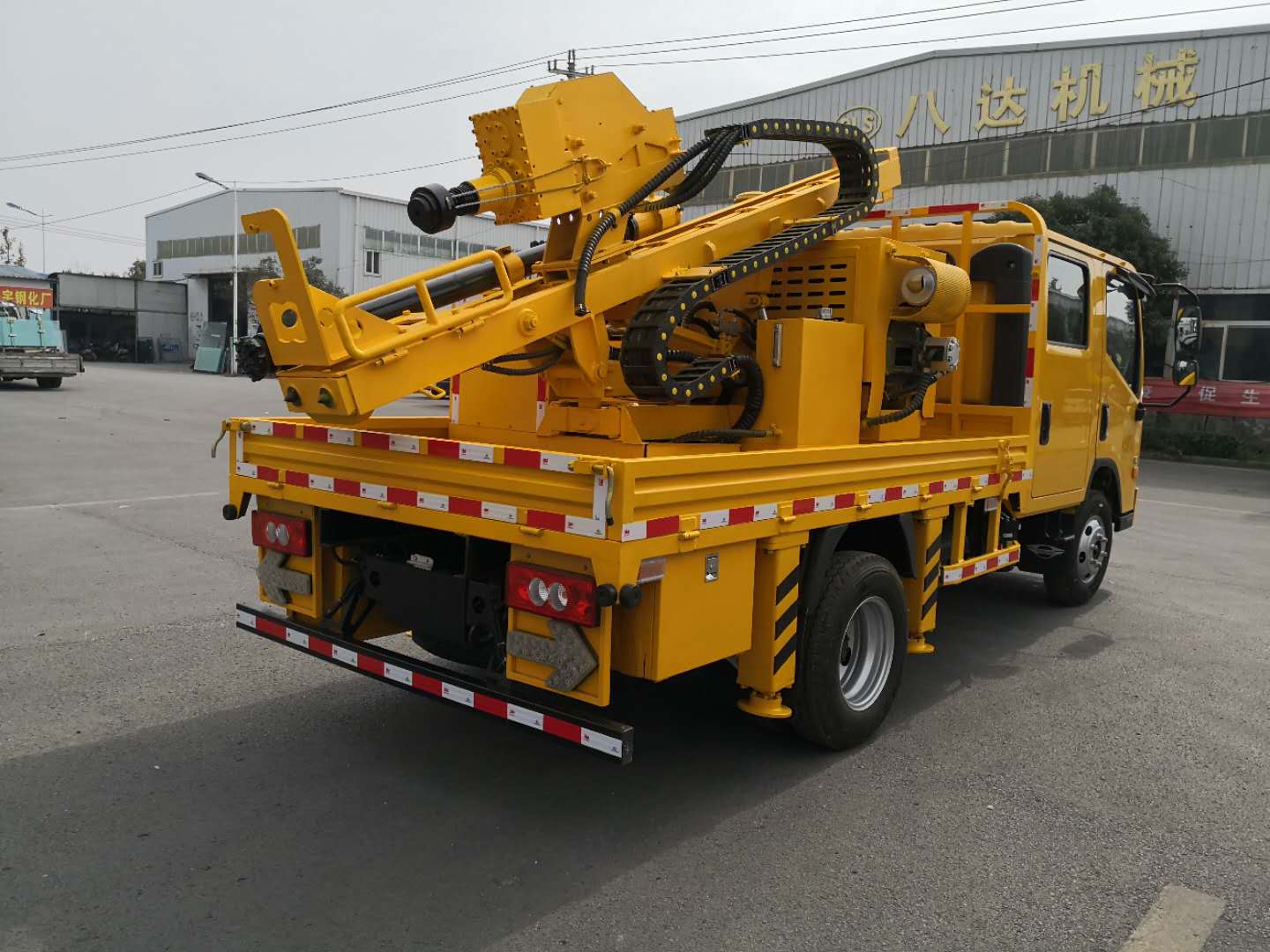

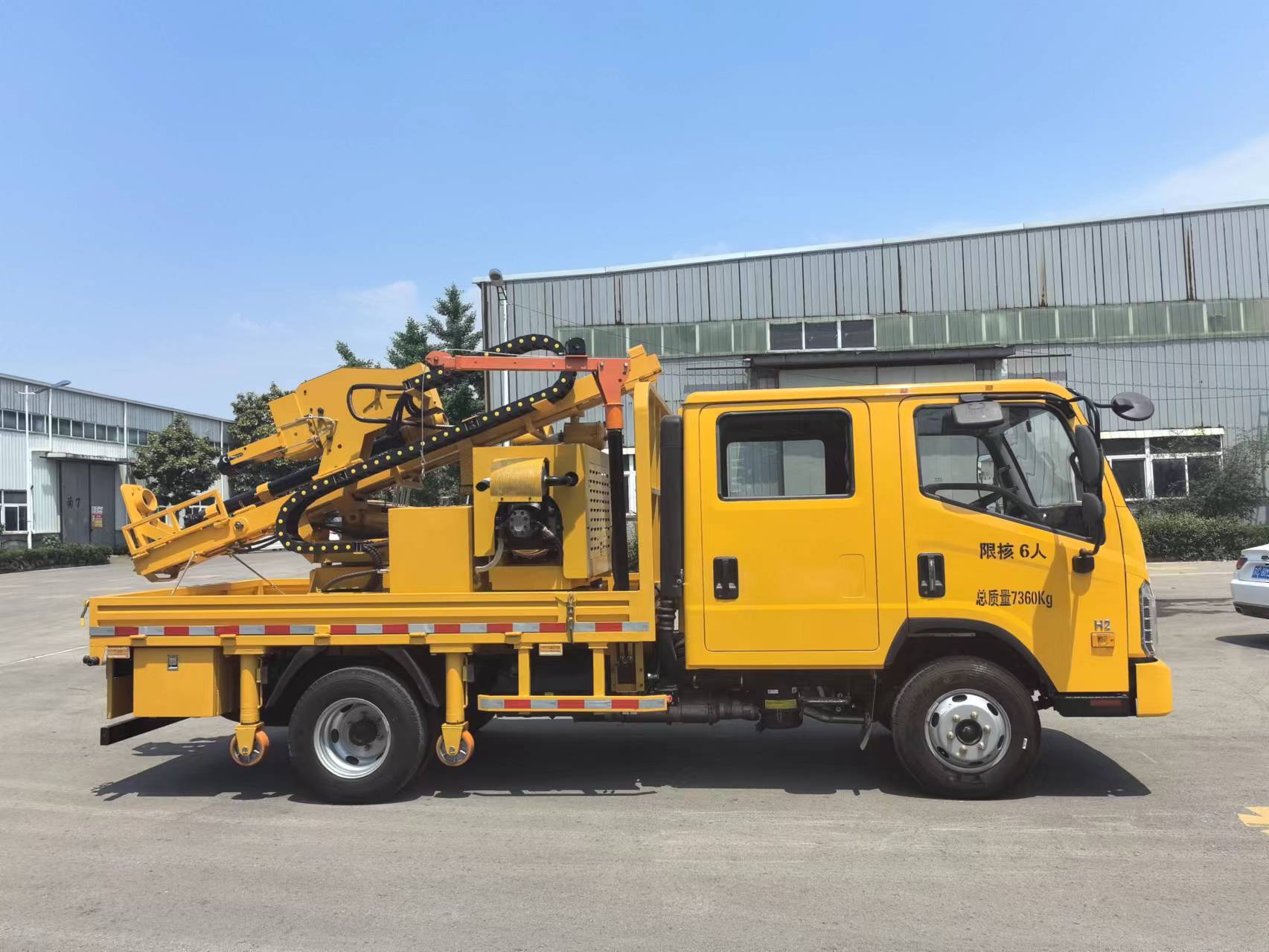

Highway guardrail pile driver Parameters of YDB-385 Wheeled Pile Driving and Extraction Machine:
1.Rated power of the engine ------------------- 33 - 38 Kw
2. Engine brand ---------- ---------------------- FAW Xichai (Third Generation Euro-V emission standards, environmentally friendly and energy-saving)
3. Pile driver dimensions ---------- ----------- -2500 × 2000 × 4020 mm (2360 mm when the column is folded)
4. Hydraulic hammer model ---- ----------------YC385 type
5. Piling height ---------- ------- ----------------2.8 meters (Can be increased according to customer's requirements)
6. Hydraulic hammer impact frequency ---------- 350 - 800 times per minute
7. Total machine weight ---------- ---------------- 2300 kg
8. Working flow of hydraulic hammer ---------- -115 L/min
9. Hydraulic system pressure ---------- -- ---------16 - 20 MPa
10. Working pressure of the hydraulic hammer ---------- 16 - 20 Mpa
11. Gears pump flow rate ------------------------- 50 ml/second
12. Drill rod diameter -------------------------------- 85 mm
13. Piling speed ---------- ------ -----------------2 meters per minute
14. Walking speed -------------------------------- 10 - 25 km
Note:
1.This machine is equipped with standard front-wheel hydraulic power steering and four-wheel hydraulic vacuum-assisted disc brakes. The brakes are efficient and reliable. The column can be automatically folded to reduce the height, making it easier for transportation. When moving from one location to another, the hydraulic hammer can be folded on the side of the column for transportation. The equipment is designed with a steering mechanism that follows the direction of the front vehicle, facilitating quick towing of the vehicle. The towing speed is 40 km/h. A vertical level instrument is installed on the column to display its verticality, ensuring that the verticality of the erected column is within the required precision range.
2. If drilling is required, a separate drilling machine and air compressor can be provided for the drilling operation.
3. According to the specific construction conditions of the client, different types of pile caps can be designed for different construction materials and pile shapes to meet the construction requirements.
From the supplier
Xuzhou Aoheng Machinery Technology Co., Ltd.
Highway guardrail pile driver Parameters of YDB-385 Wheeled Pile Driving and Extraction Machine:
1.Rated power of the engine ------------------- 33 - 38 Kw
2. Engine brand ---------- ---------------------- FAW Xichai (Third Generation Euro-V emission standards, environmentally friendly and energy-saving)
3. Pile driver dimensions ---------- ----------- -2500 × 2000 × 4020 mm (2360 mm when the column is folded)
4. Hydraulic hammer model ---- ----------------YC385 type
5. Piling height ---------- ------- ----------------2.8 meters (Can be increased according to customer's requirements)
6. Hydraulic hammer impact frequency ---------- 350 - 800 times per minute
7. Total machine weight ---------- ---------------- 2300 kg
8. Working flow of hydraulic hammer ---------- -115 L/min
9. Hydraulic system pressure ---------- -- ---------16 - 20 MPa
10. Working pressure of the hydraulic hammer ---------- 16 - 20 Mpa
11. Gears pump flow rate ------------------------- 50 ml/second
12. Drill rod diameter -------------------------------- 85 mm
13. Piling speed ---------- ------ -----------------2 meters per minute
14. Walking speed -------------------------------- 10 - 25 km
Note:
1.This machine is equipped with standard front-wheel hydraulic power steering and four-wheel hydraulic vacuum-assisted disc brakes. The brakes are efficient and reliable. The column can be automatically folded to reduce the height, making it easier for transportation. When moving from one location to another, the hydraulic hammer can be folded on the side of the column for transportation. The equipment is designed with a steering mechanism that follows the direction of the front vehicle, facilitating quick towing of the vehicle. The towing speed is 40 km/h. A vertical level instrument is installed on the column to display its verticality, ensuring that the verticality of the erected column is within the required precision range.
2. If drilling is required, a separate drilling machine and air compressor can be provided for the drilling operation.
3. According to the specific construction conditions of the client, different types of pile caps can be designed for different construction materials and pile shapes to meet the construction requirements.
