Aoheng Machinery,YDBZ-385 guardrail drilling and drilling integrated machine,Engineering machinery
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Aoheng Machinery,YDBZ-385 guardrail drilling and drilling integrated machine,Engineering machinery
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: ·
- Color: ·
- Power source: Other
- Walking mode: Other
- Engine type: Other
- Customized: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: ·
- Color: ·
- Power source: Other
- Walking mode: Other
- Engine type: Other
- Customized: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | · |
|---|---|
| Color | · |
| Power source | Other |
| Walking mode | Other |
| Engine type | Other |
| Customized | Other |
| Automatic grade | Other |
Product details
| Size | · |
|---|---|
| Color | · |
| Power source | Other |
| Walking mode | Other |
| Engine type | Other |
| Customized | Other |
| Automatic grade | Other |
From the supplier
Xuzhou Aoheng Machinery Technology Co., Ltd.

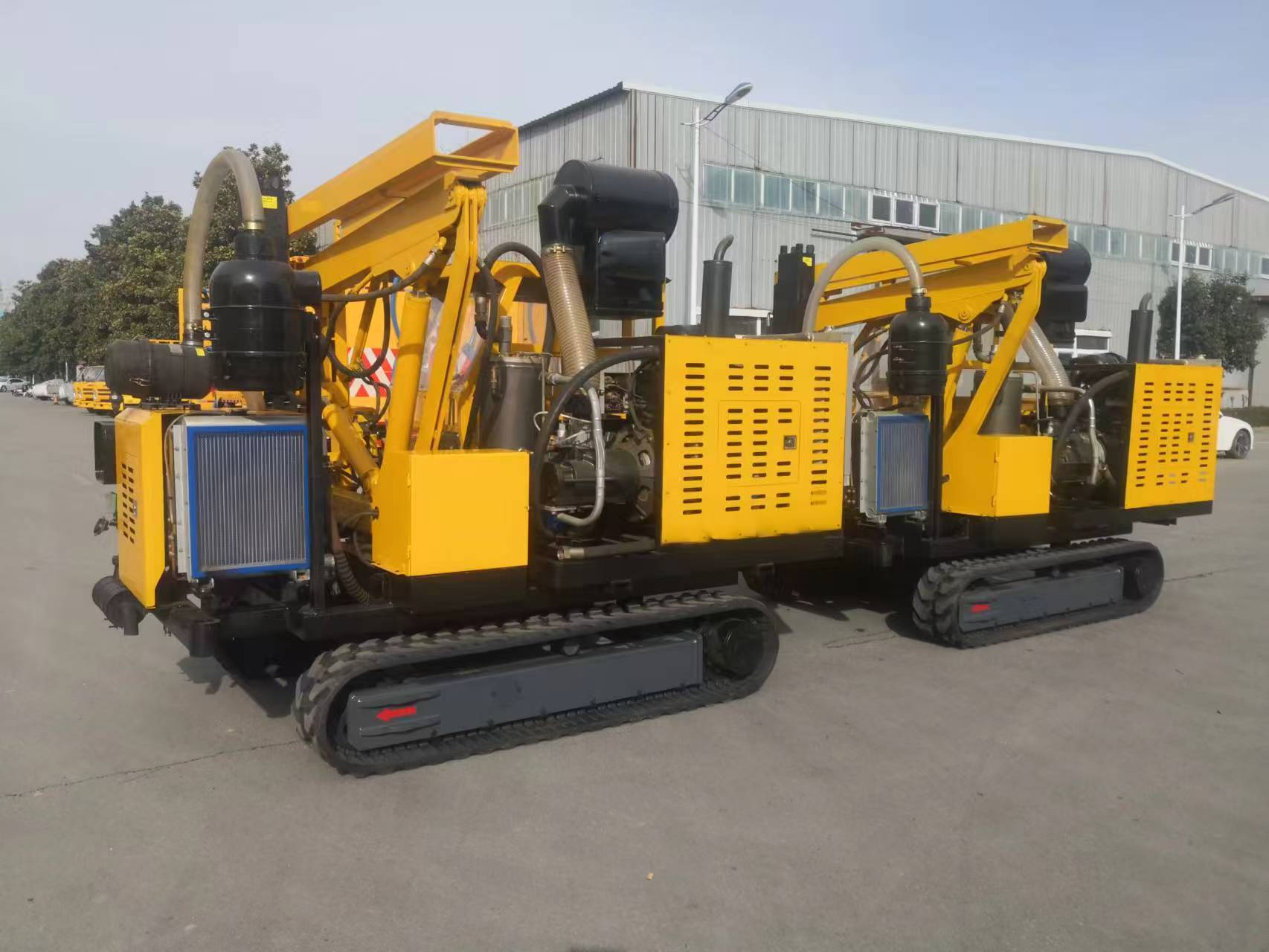

Parameters of YDBZ385-8 Hydraulic Jacking and Drilling Integrated Machine
Equipment parameters:
1. Engine rated power ---------- One 33KW, one 75-90KW
2. Engine brand ------------------- 2 sets of Changche diesel engines (or other brands)
3. Overall dimensions of the pile machine ---------------- 3250 × 2000 × 3400 (height of the column when folded: 2400) mm
4. Hydraulic hammer frequency ------------ 500 - 900 times per minute
5. Piling height ---------------------- 2.8 meters
6. Working flow of hydraulic hammer ---------- -63 ml/r
7. Total machine weight ------------------ 3500 kg
8. Working pressure of the hydraulic hammer ------------ 16 - 20 Mpa
9. Working pressure of the hydraulic system ---------- 16 - 20 MPa
10. Air flow rate ------------------ 8 cubic meters per minute
11. Hydraulic system flow rate ------------ 189 L/min
12. Working air pressure ------------ 10 KG
13. Drill hole diameter -------------- Ø80~ø180 mm
14. Drilling depth ------------------ 0.5 - 1.6 meters
15. Drilling speed ---------------- 500 mm/min
16. Climbing ability ------------------ ≤ 25 degrees
17. Driving speed ------------ -10 to 20 kilometers per hour
18. Trailer speed ------------ 30 - 40 KM/h
19. Drill rod diameter ------------ 85 mm
20. Impactor frequency ------------ 1200 times per minute
21. Hydraulic hammer model ------------ 385 model
22. Screw air compressor - 8 cubic capacity, 10 kilograms of pressure
Note:
This pile driver is equipped with hydraulic power-assisted steering function, four-wheel hydraulic vacuum-assisted disc brakes, and the column can be automatically folded. It is equipped with a two-way level indicator to display the verticality of the column. It can be towed by the leading vehicle for fast travel. It is equipped with a front-wheel automatic steering mechanism that follows the leading vehicle, and there is no need for a person to control the steering wheel when towing. The pile driver can automatically follow the leading vehicle and turn. The pile driver is integrated with a high-pressure 8-cubic screw air compressor, forming a unit with the pile driver. There is no need to drag an air compressor behind the pile driver. The entire vehicle integrates an air filter with excellent air filtration effect. The drilling machine is equipped with a high-speed and high-pressure impactor and high-quality alloy drill bit, which has high drilling efficiency and long service life. This machine has obtained multiple national invention patents and is the mainstream equipment for road pile driving and drilling.
