About this product
- Materials: Material: ASTM A536, A126, A216 WCB, A351 CF8/CF8M
- Size: Size: 2" - 24"
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: Material: ASTM A536, A126, A216 WCB, A351 CF8/CF8M
- Size: Size: 2" - 24"
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | Material: ASTM A536, A126, A216 WCB, A351 CF8/CF8M |
|---|---|
| Size | Size: 2" - 24" |
From the supplier

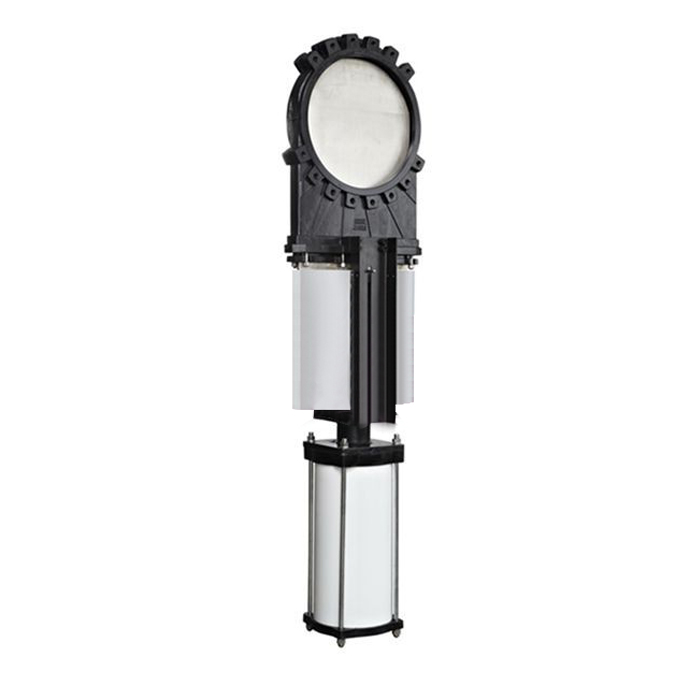

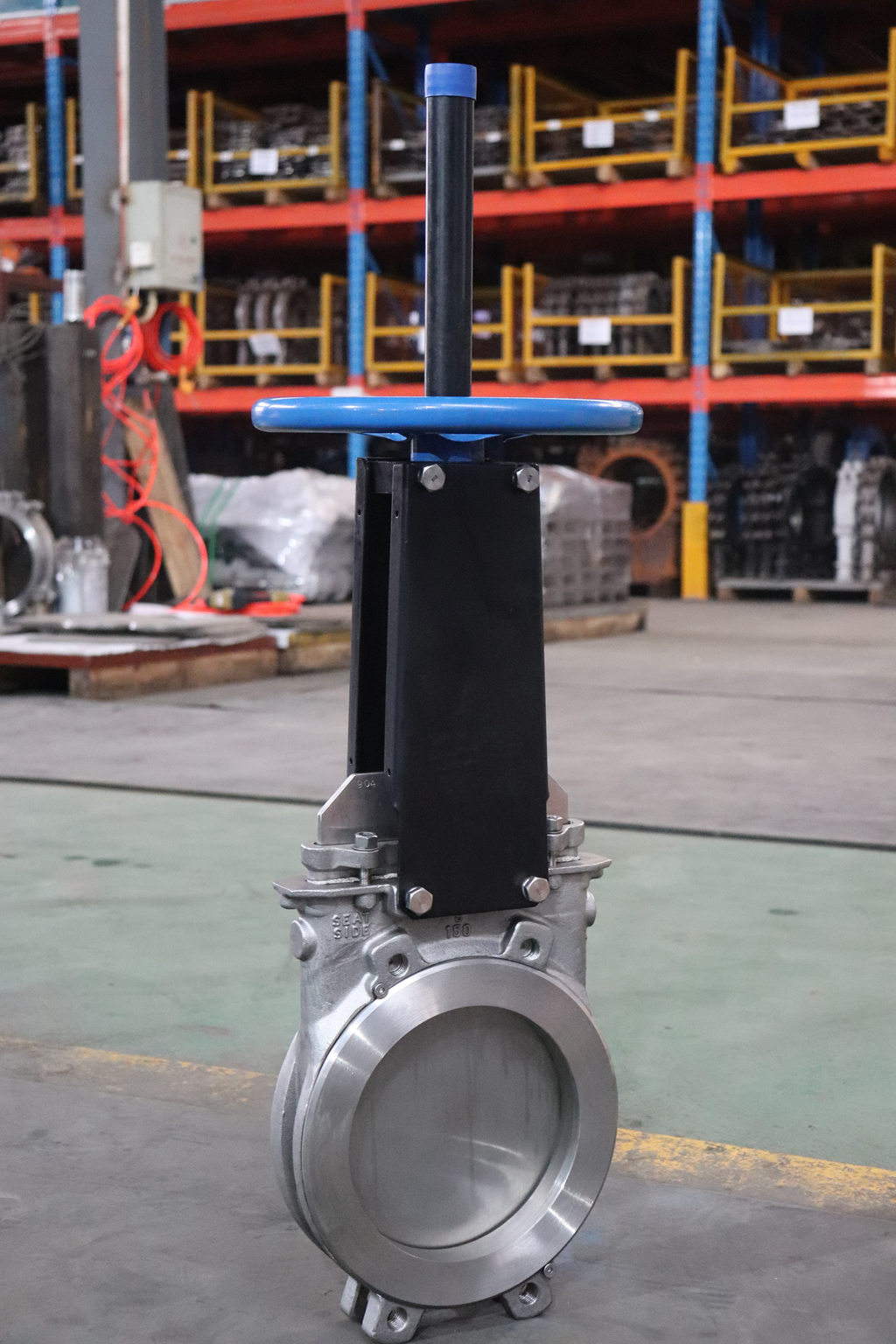

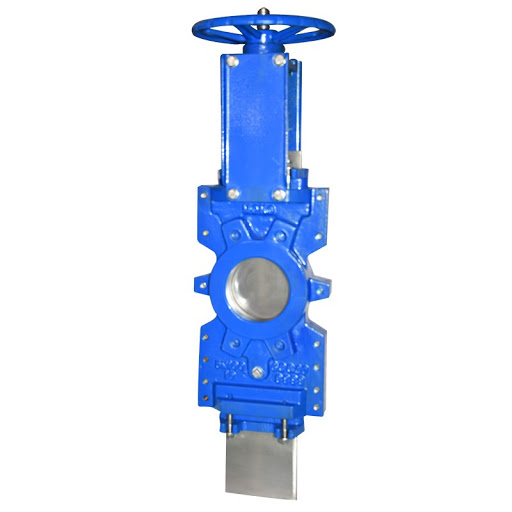

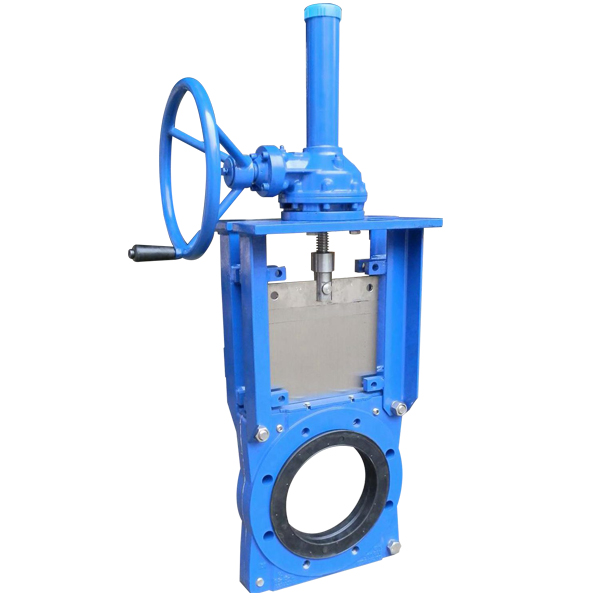

Knife gate valves are usually used for pulp/paper and mining industries.

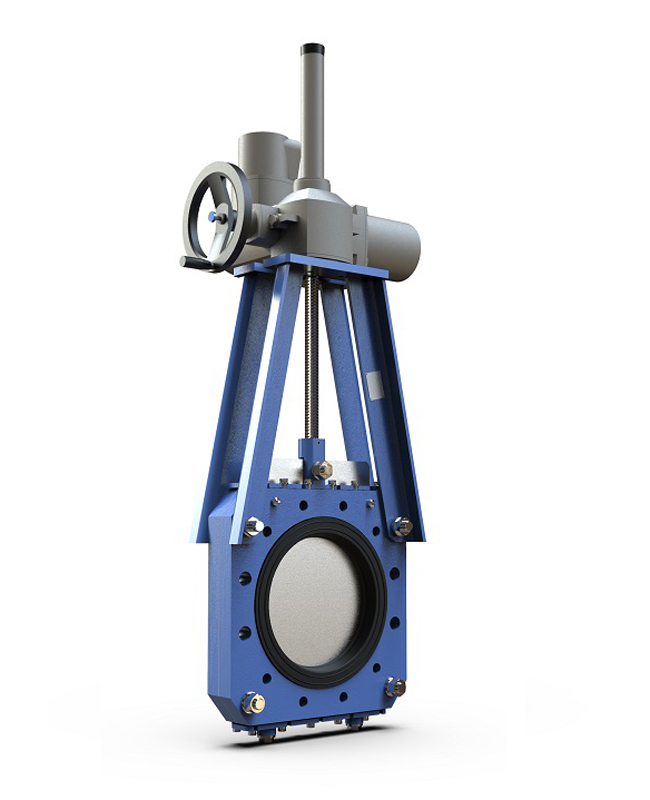

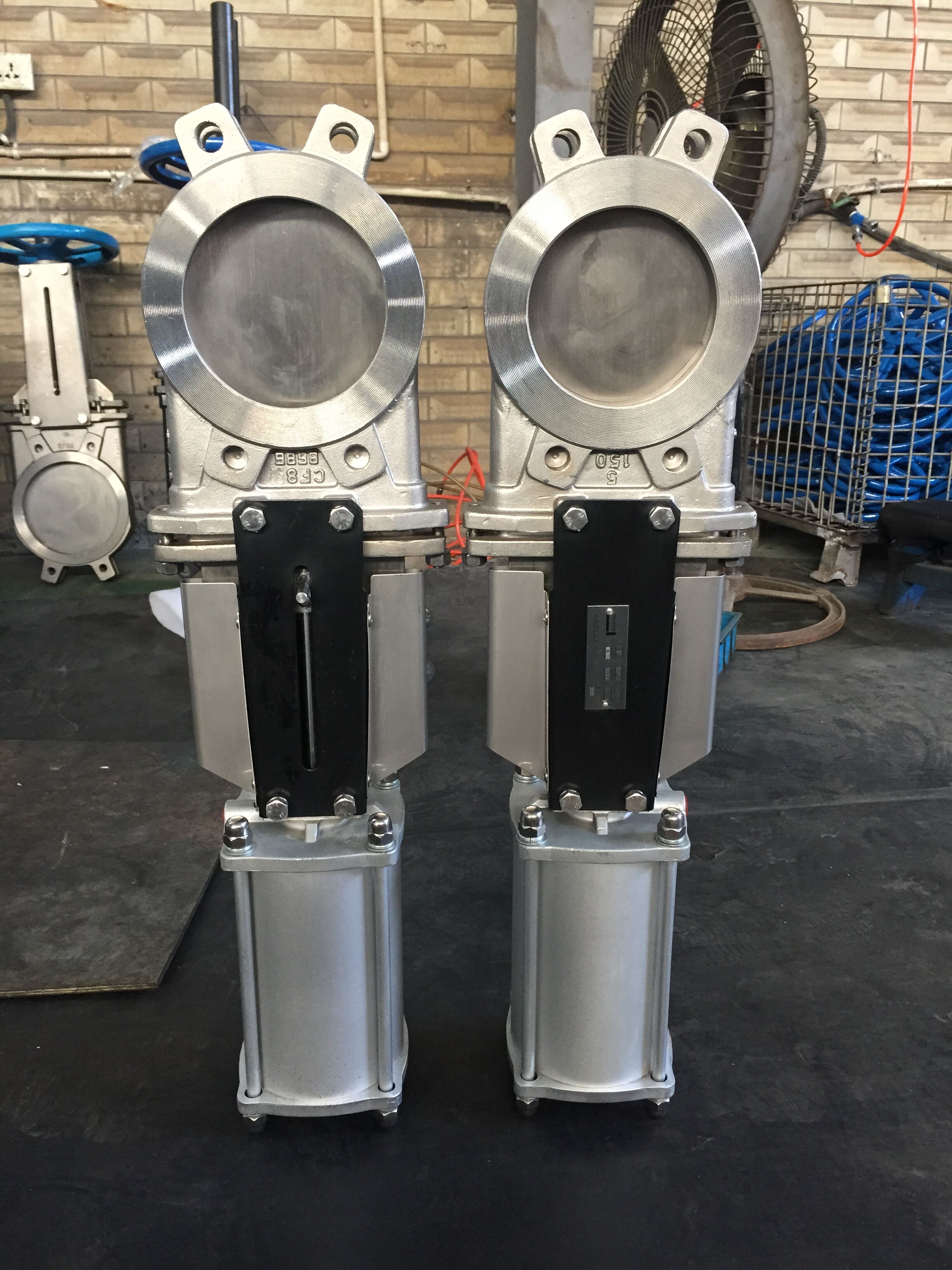

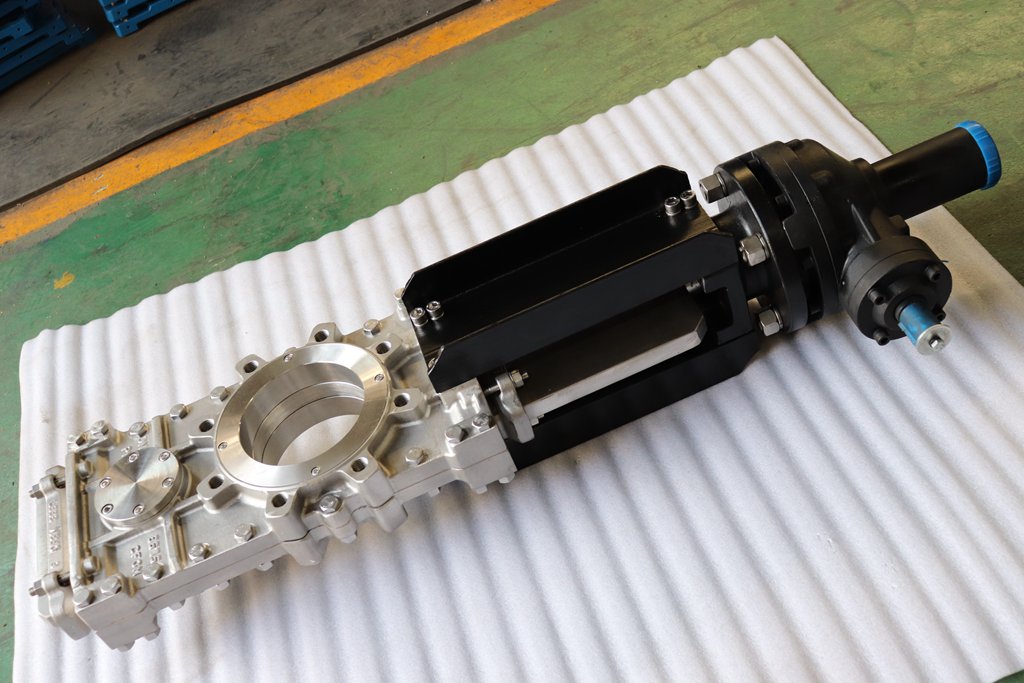

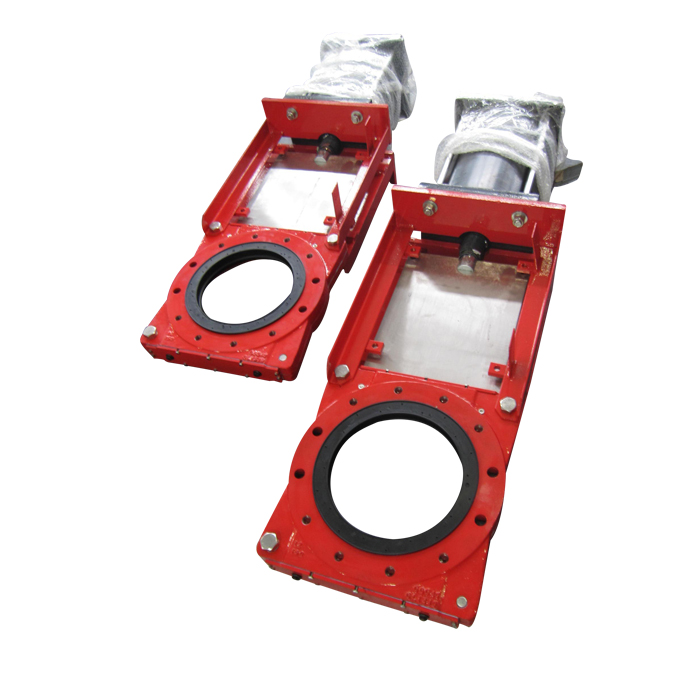

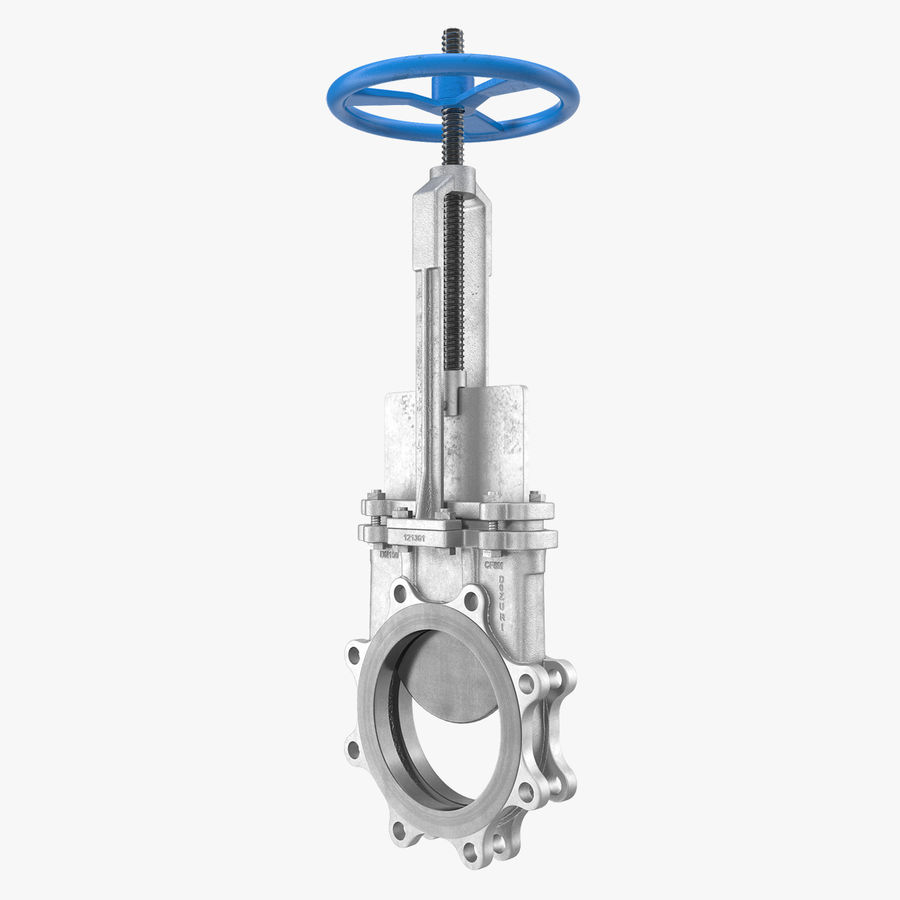

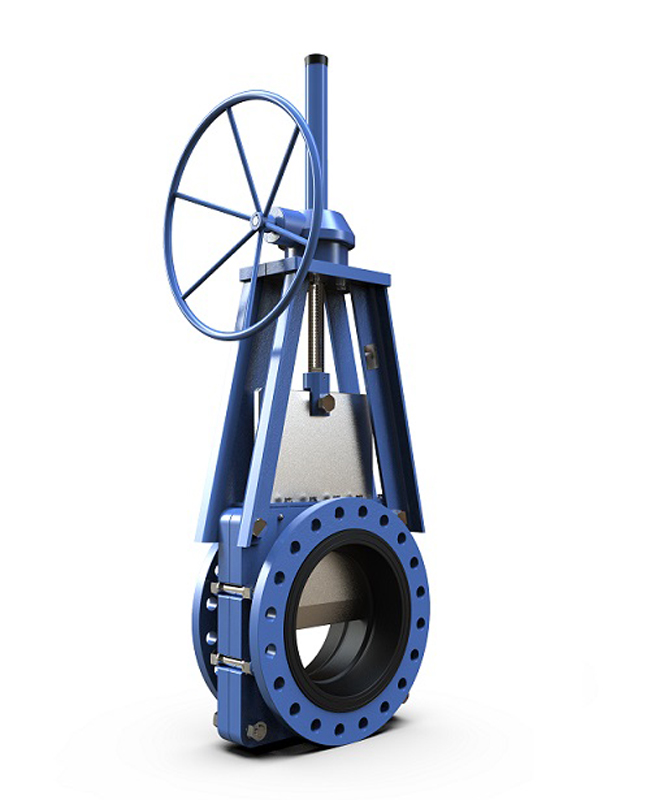

Knife gate valve are named for its sharp, knife-like disc, which could be used for cutting medium. The groove around the seat permits the gate to push particles aside and prevents clogging. When the valve is open, the flow cleans the groove. Seat is outside the flow area resulting in higher flow coefficient with minimum pressure drop.
Our knife gate valves are available in various designs, one-piece body and two-piece bodies, rising Stem and non-rising stem, uni-direction and bi-direction structures, resilient and metal seat rings, bonnetless and bolted bonnet designs. For optional designs, deflection cone could divert the flow of abrasive slurries and protect valve seat from abrasion, V port disc and through conduit design are used for throttling service, per customers' requirements.
Design Standard: MSS SP-81, ASME B16.34
Inspection & Testing: API 598
Type: Wafer Type, Wafer Type Through Conduit, Wafer Type Slurry
Size: 2" - 24"
Pressure Rating: 150LB~600LB
Surface: Painting
Material: ASTM A536, A126, A216 WCB, A351 CF8/CF8M
Knife: SS 304/304L/316/316L
Seat: NBR/EPDM/PTFE or Metal Seat
Packing: Graphite/PTFE
Trustworthy Trading (Dalian) Co.,Ltd is an certified ISO9001 company. We believe it is not enough to just supply products to our partners, it's also crucial that the products we provide are dependable, durable and long-lasting.
That's why we equipped our company with adequate inspection gauzes and technicians to ensure total control over quality of products.
They are checked on the parameters of chemical composition, mechanical testing, heat treatment, dimension check and workmanship, finish & appearance with attention to every minutiae.
We envision ourselves to be the most trustworthy collaborator that you can always rely on.
