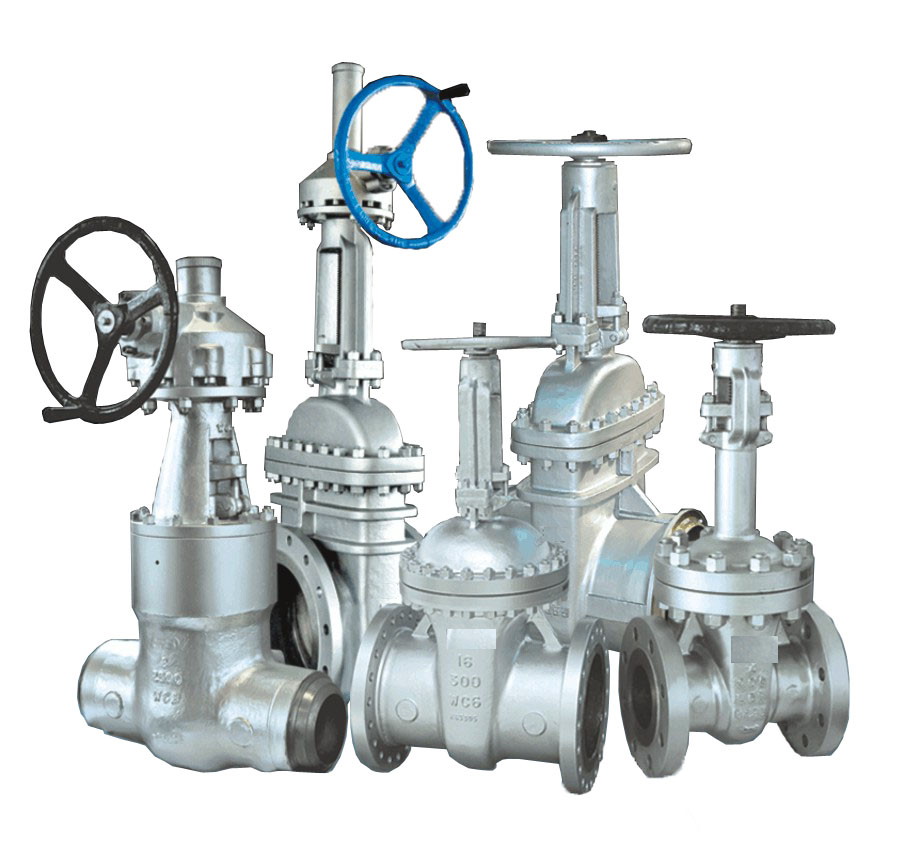

Cast steel gate, globe and check valves
TRUSTWORTHY TRADING(DALIAN)CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
From the supplier
We manufacture various types of globe valves, gate valves and check valves .
Globe Valves, Check Valves and Gate Valves have an extended use in many industrial applications such as oil & gas, chemical and petrochemical plants, thermal applications, fertilizer plants, etc...
Our globe valves come with a variety of end connections: Flanged type, as standard, comes with Raised Face (RF) according to ASME Class 150#, 300# and 600#, and with Ring-Type-Joint flanges (RTJ) for Class ratings of 900# and 1500#. Butt welded ends can also be supplied, with schedule according to customer specifications.For gate valves, Soft or metal to metal sealing design are available with different wedge configurations such as solid wedge, flexible wedge or with a split configuration wedge in order to meet the specific service conditions.
Check valves can de designed with soft or metal seat. These valves allow fluid circulating in one direction, preventing reversal flow in horizontal pipelines. They have the ability to react quickly and automatically to direction changing.
According to different check valves designs, the seat can be achieved by a spring or its own disc weight. In some cases, a counterweight can be installed to minimize the water hammer effect and improve the valve performance and response.

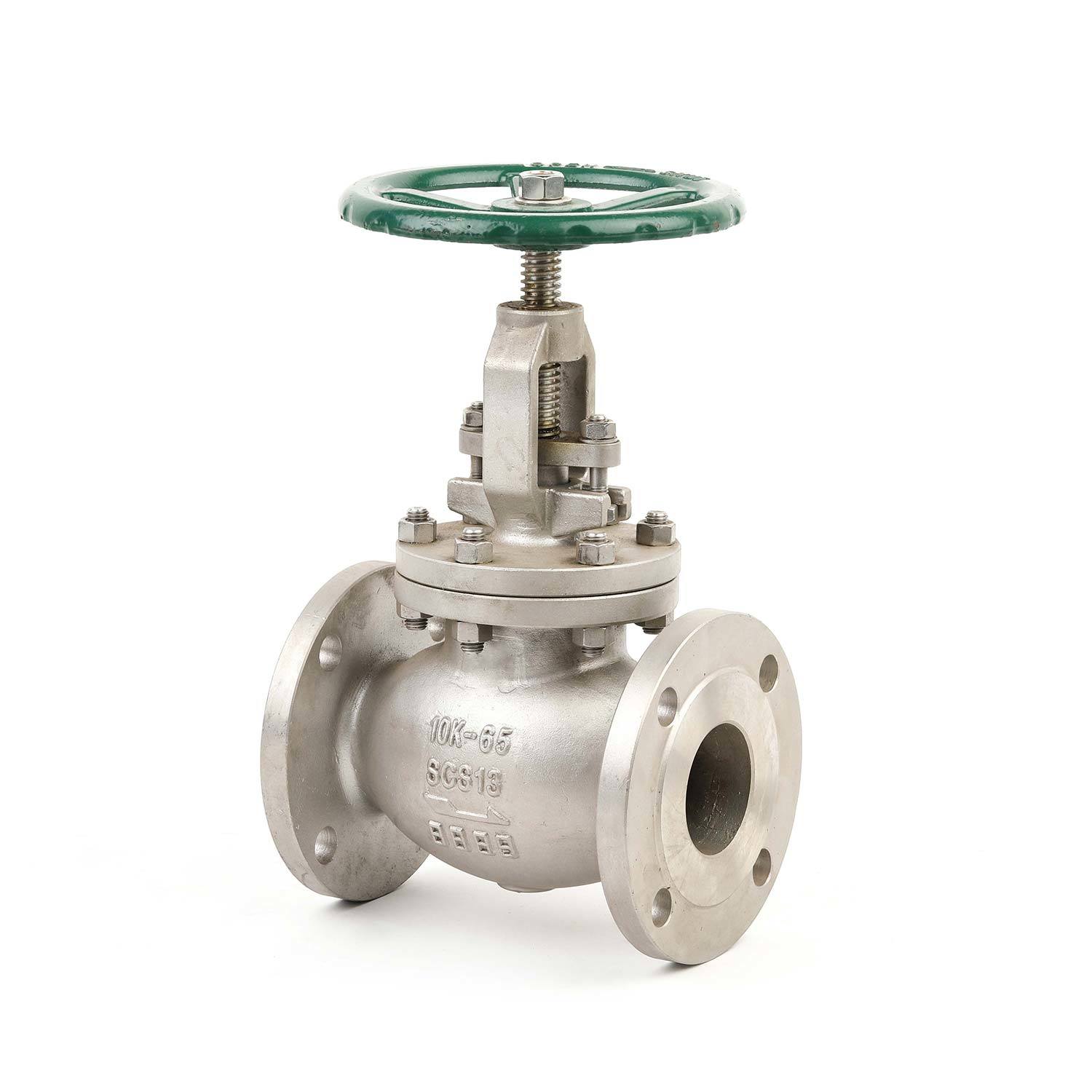

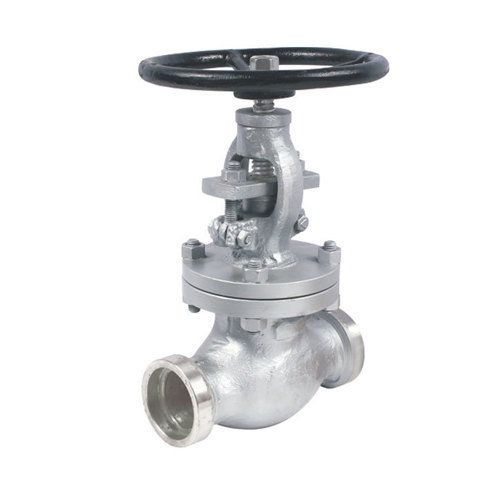

Cast Steel Globe Valves
Design Standard: API600/BS1873
Face to Face: ASME B16.10
Flanged Ends: ASME B16.5
Inspection & Testing: API 598
Size: 2" - 24"
Pressure Rating: 150LB~1500LB
Surface: Painting
Body Material: ASTM A216 WCB, A217 WC6, A217 WC9, A351 CF8/CF8M
Gasket Material: SST w/Graphite or PTFE

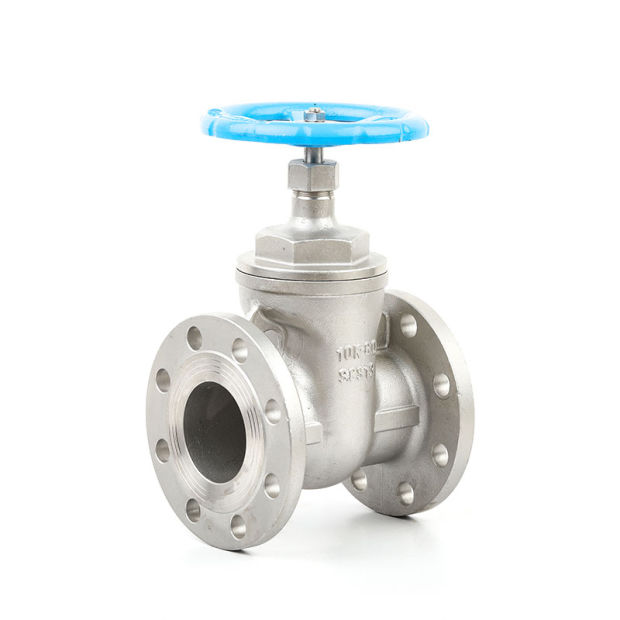

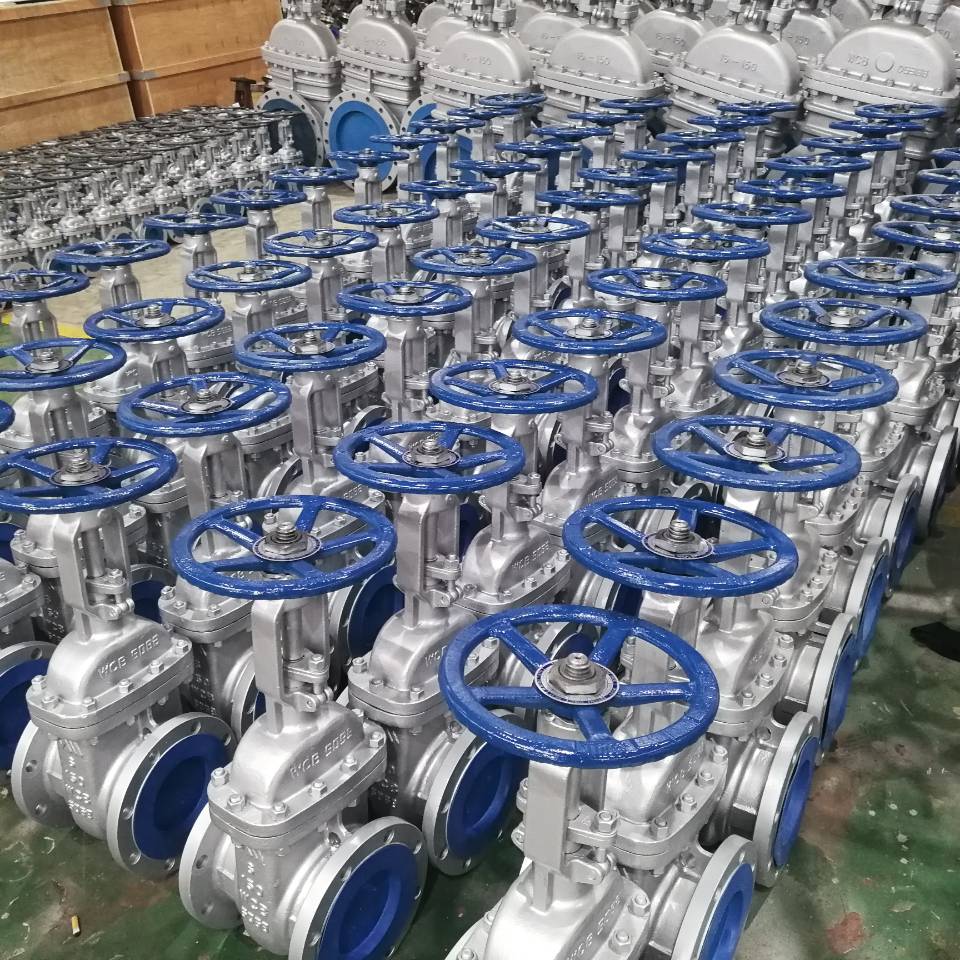

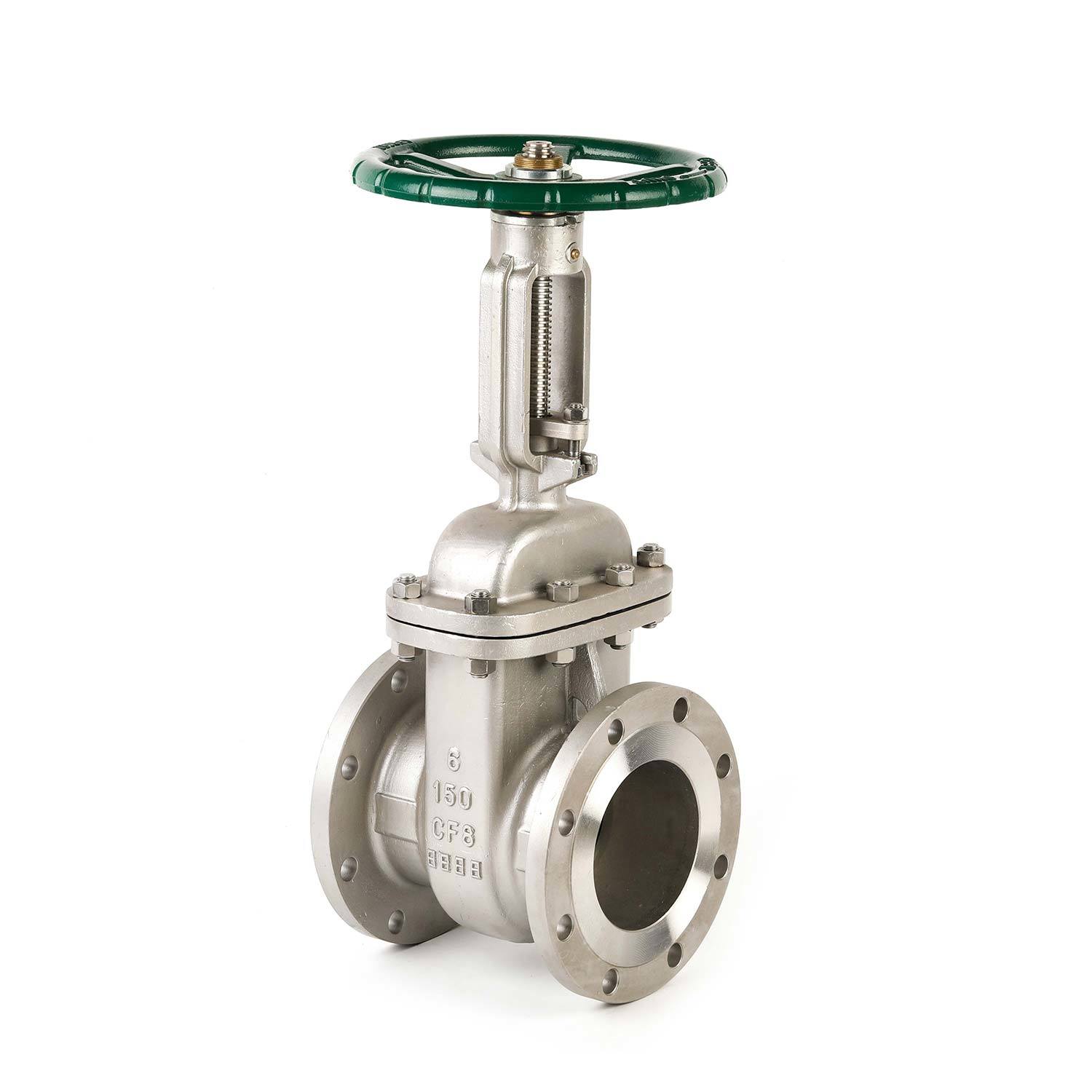

Cast Steel Gate Valves
Design Standard: API600, ASME B16.34
Face to Face: ASME B16.10
Type: OS&Y, IS&Y, Non-Rising Stem, Rising Stem
Flanged/Butt Weld/Threaded Ends: ASME B16.5/B16.25/B1.20.1
Inspection & Testing: API 598
Size: 1" - 48"
Pressure Rating: 150LB~600LB
Operated by: Hand wheel, Gear, Pneumatic, hydraulic and Electric actuator.
Body Material: ASTM A216 WCB, A217 WC6, A217 WC9, A351 CF8/CF8M
Gasket Material: SST w/Graphite or PTFE

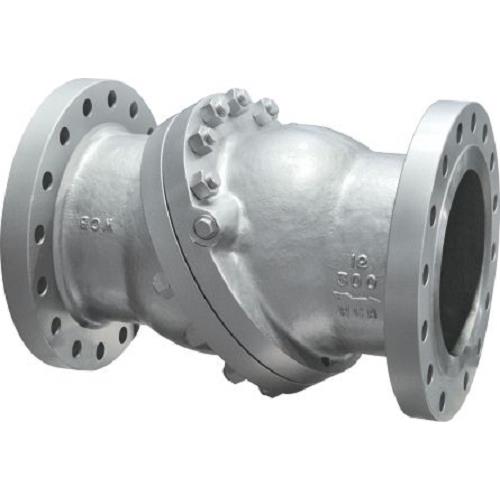

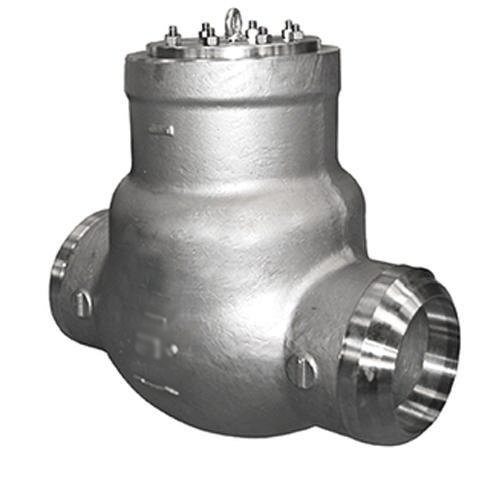

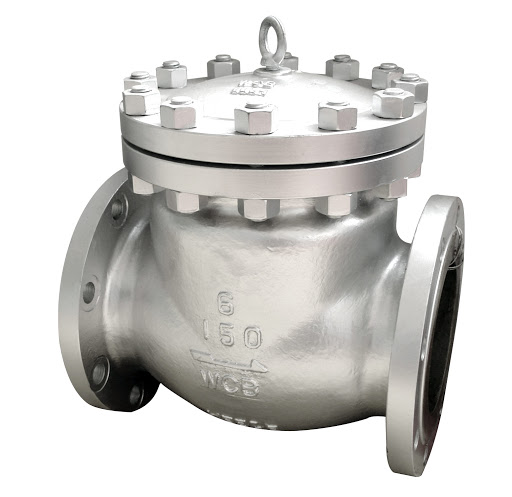

Cast Steel Check Valves
Design Standard: API6D, ASME B16.34
Face to Face: ASME B16.10
Flanged/Butt Weld Ends: ASME B16.5/B16.25
Inspection & Testing: API 598
Type: Swing. Lift
Size: 2" - 24"
Pressure Rating: 150LB~600LB
Surface: Painting
Body Material: ASTM A216 WCB, A217 WC6, A217 WC9, A351 CF8/CF8M
