From the supplier

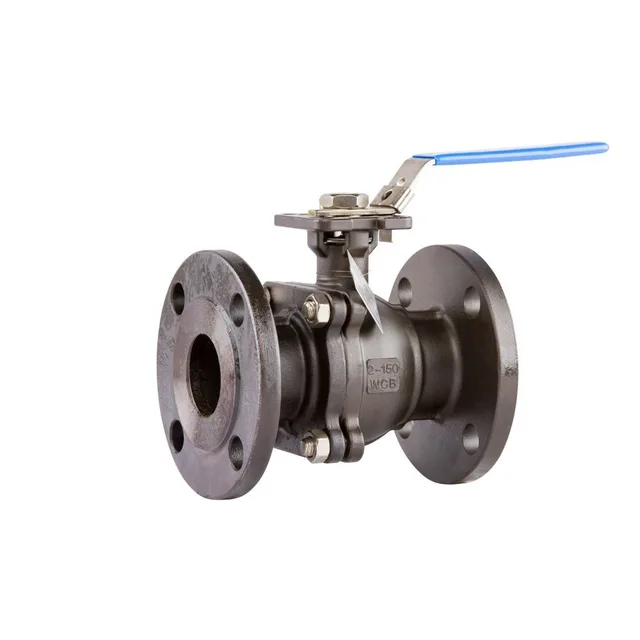

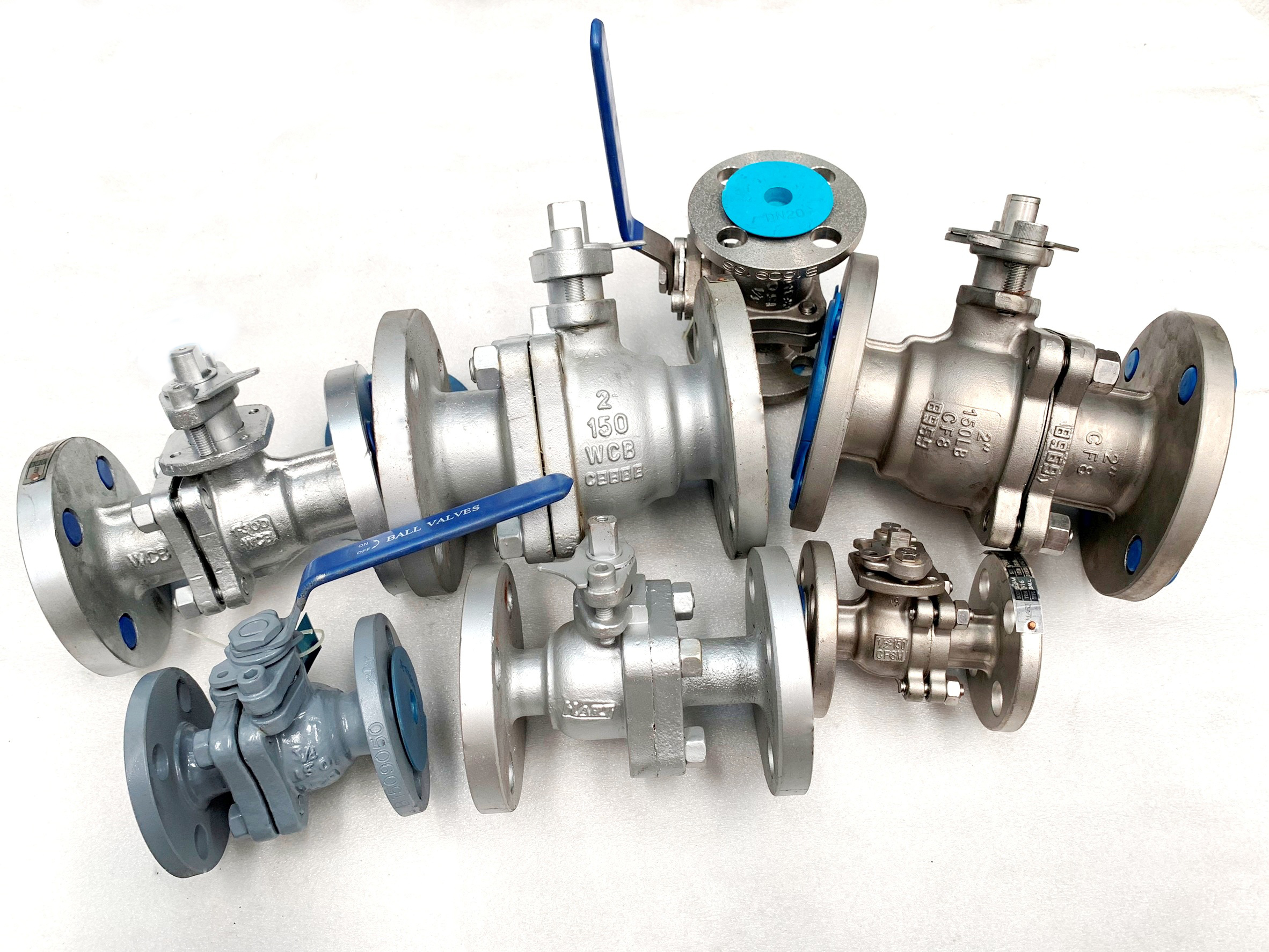

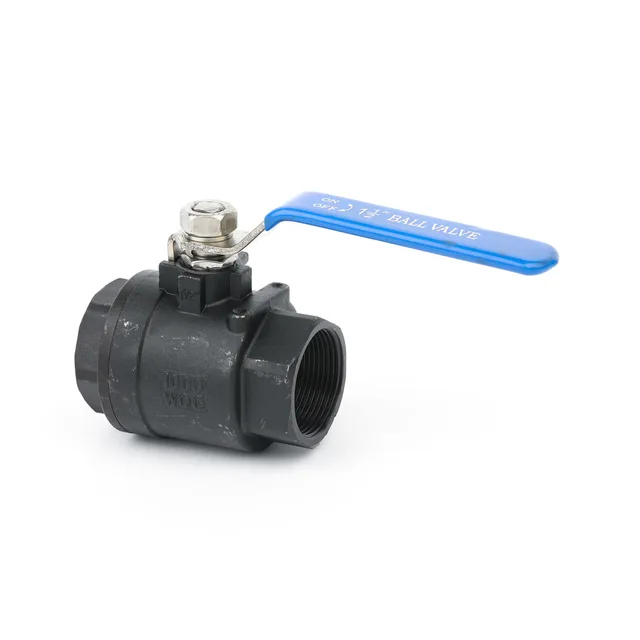

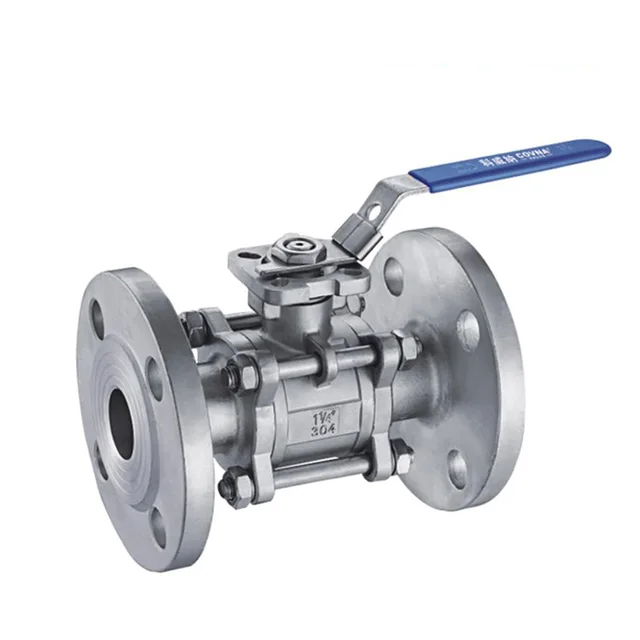

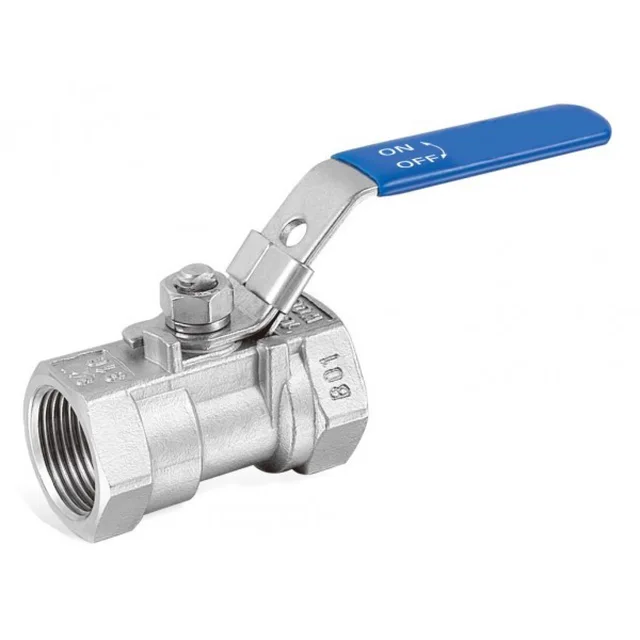

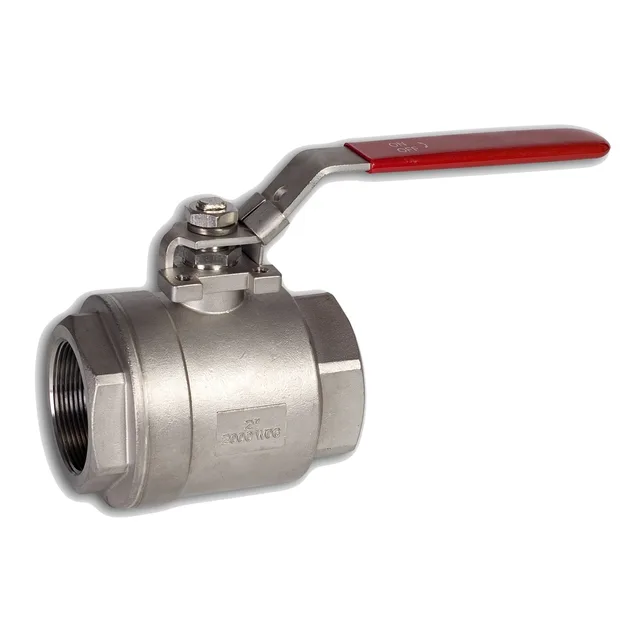

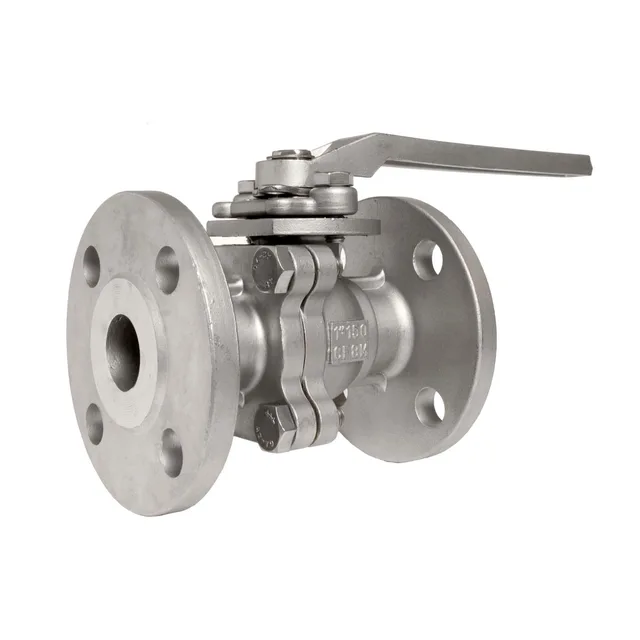

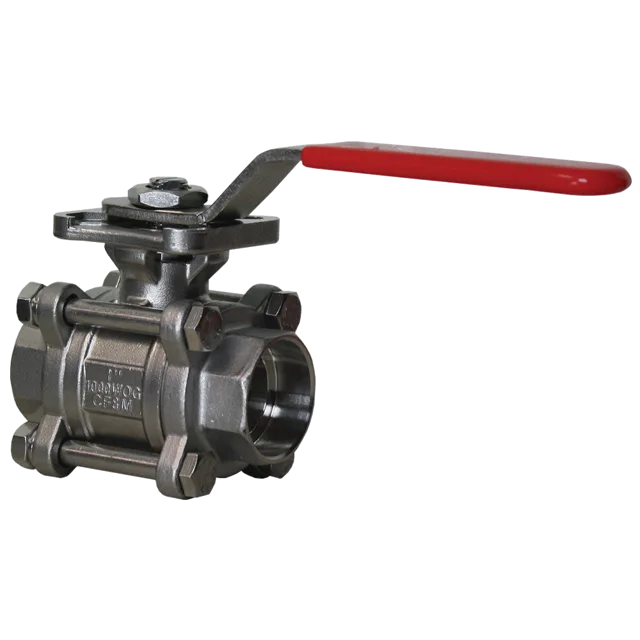

Our ball valves can be engineered for heavy duty applications outstanding at high pressure working conditions, up to ASME Class 2500# and sizes up to 36” upon request.
Two or three pieced construction bodies can adopt floating or trunnion mounted ball designs according valve rating and size, ensuring a bubble tight shut off and an efficient control. Depending on the application, ball valve models can be supplied with soft or metal sealing.
Our Ball valves come with a variety of end connections: Flanged type, as standard, comes with Raised Face (RF) according to ASME Class 150#, 300# and 600#, and with Ring-Type-Joint flanges (RTJ) for Class ratings of 900#, 1500# and 2500#. Butt welded ends can also be supplied, with schedule according to customer specifications.
Standards: API 608, ASME B16.34, ASME B1.20.1, ASME B16.10, ASME B16.5, ASME B16.25
Inspection Standards: API 598
Type: 1-Piece Ball Valve, 2-Piece Ball Valve, 3-Piece Ball Valve, Multi-Port Ball Valve, Full-Welded Ball Valve
Connection: Threaded/Butt Welded/Socket Welded/Flanged
Type of Port: Full Port/Reduced Port/T Port or L Port (for multi port ball valves)
Pad: No Pad/Mounting Pad
Size: 1/4" - 4", 1/4”-10” (for flanged end)
Pressure Rating: 800-2000WOG
Temperature Rating: -29°C-150°C
Surface Treatment: Black, Painting
Body Material: A216 WCB, A351 CF8/CF8M
Sealing: PTFE, R-PTFE
From the supplier
Our ball valves can be engineered for heavy duty applications outstanding at high pressure working conditions, up to ASME Class 2500# and sizes up to 36” upon request.
Two or three pieced construction bodies can adopt floating or trunnion mounted ball designs according valve rating and size, ensuring a bubble tight shut off and an efficient control. Depending on the application, ball valve models can be supplied with soft or metal sealing.
Our Ball valves come with a variety of end connections: Flanged type, as standard, comes with Raised Face (RF) according to ASME Class 150#, 300# and 600#, and with Ring-Type-Joint flanges (RTJ) for Class ratings of 900#, 1500# and 2500#. Butt welded ends can also be supplied, with schedule according to customer specifications.
Standards: API 608, ASME B16.34, ASME B1.20.1, ASME B16.10, ASME B16.5, ASME B16.25
Inspection Standards: API 598
Type: 1-Piece Ball Valve, 2-Piece Ball Valve, 3-Piece Ball Valve, Multi-Port Ball Valve, Full-Welded Ball Valve
Connection: Threaded/Butt Welded/Socket Welded/Flanged
Type of Port: Full Port/Reduced Port/T Port or L Port (for multi port ball valves)
Pad: No Pad/Mounting Pad
Size: 1/4" - 4", 1/4”-10” (for flanged end)
Pressure Rating: 800-2000WOG
Temperature Rating: -29°C-150°C
Surface Treatment: Black, Painting
Body Material: A216 WCB, A351 CF8/CF8M
Sealing: PTFE, R-PTFE
