Machine status:

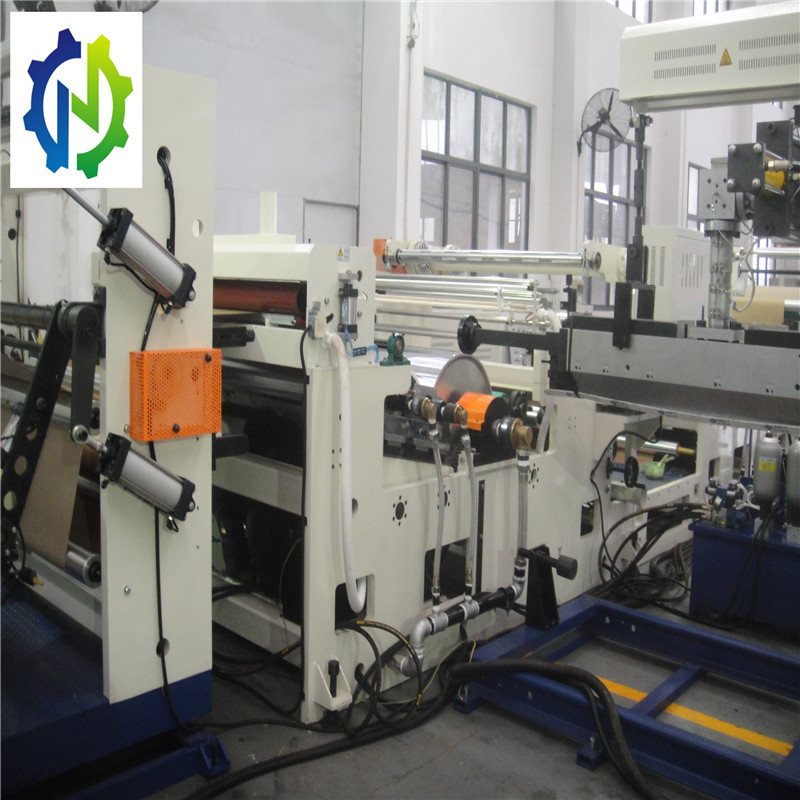

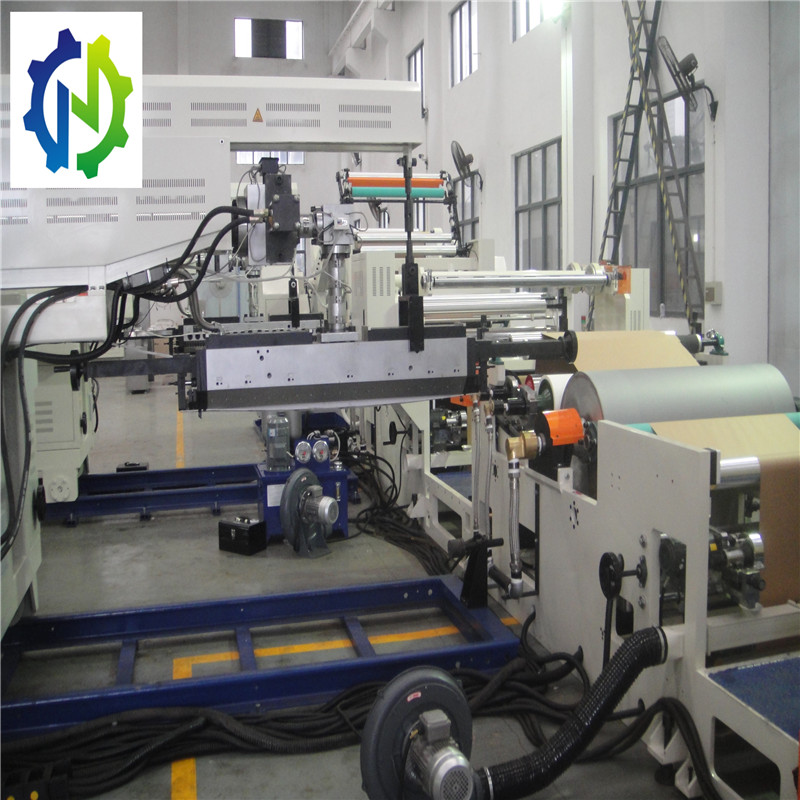

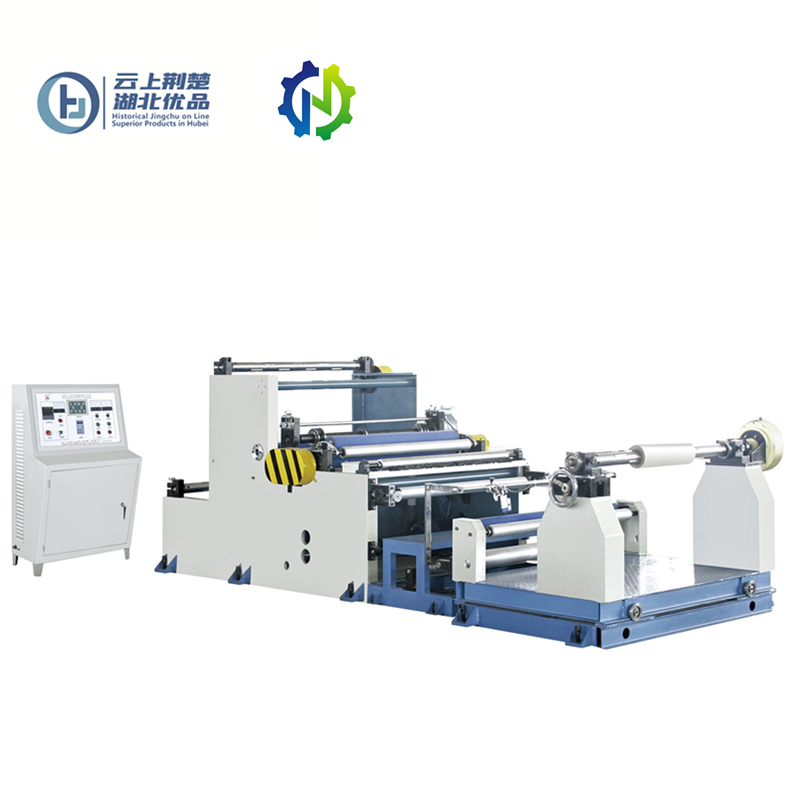

JDLF100x2-1500 coating and laminating machine is the most advanced product in the current China, constitutes electricity, pneumatic, electronic, machinery four systems. Two extrusion units, two sets of mould, two sets of shaping system, one set of unwinding system, one set of rewinding system composed of the machine.. Rewinding tension system adopts most advanced friction type control, fly knife cutting automatically and grafting non-woven fabric in rolls. The equipment adopts import PLC (programmable controller), line speed, meter accounting are all by the digital display.

1.     The equipment adopts by the customers from China, Iran, Turkey , Pakistan and so on, they all said the equipment has a high degree of automation, low power, high yield, stable quality of product, a tractor serves several purposes, convenient operation and maintenance and low failure rate.

2.     The equipment in the production of all kinds of packing materials products has been the strict test of the market for many years and get the affirmation and praise.

3.     The key technology for the national intellectual property protection, patent number:(1)（01244742.0）,(2) (02220838.0), products meet and exceed national standards.JDLF100X2-1500 coating and laminating machine is the most advanced , the highest content of science and technology, good practicability, equitable price, is the most ideal equipment to replace imported equipment in the current China.



Main technical parameter:

1.     Screw & Barrel: φ 100mm, L=33D, screw material: 38CrMoAl.hardening and surface itrogen Treated (NT), enhanced double mixing type, with high capacity. Has a back pressure, melt temperature display device.

2.     Single station hydraulic pressure single-column high speed netting change.

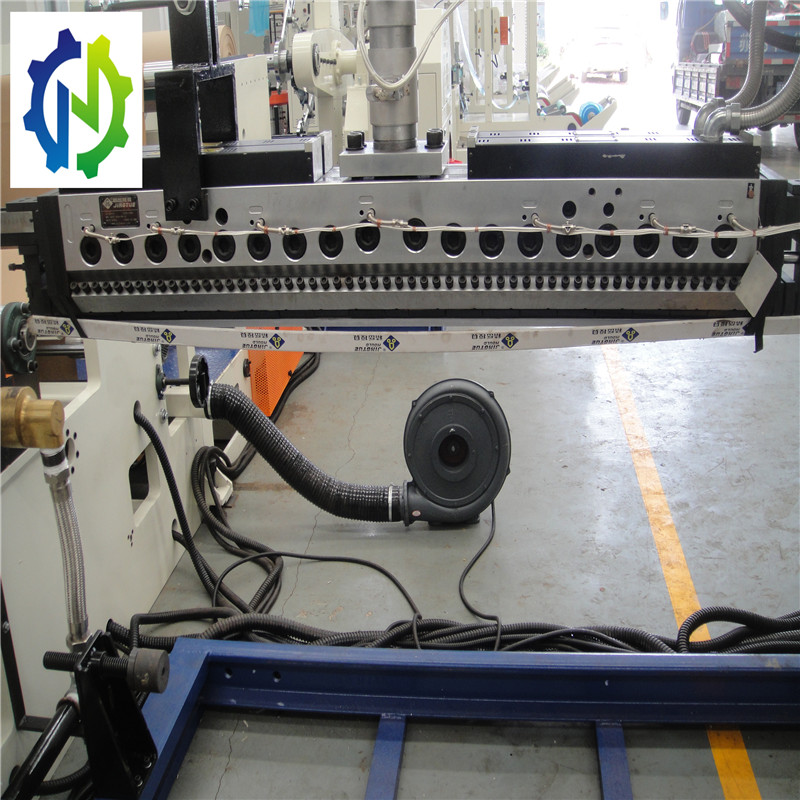

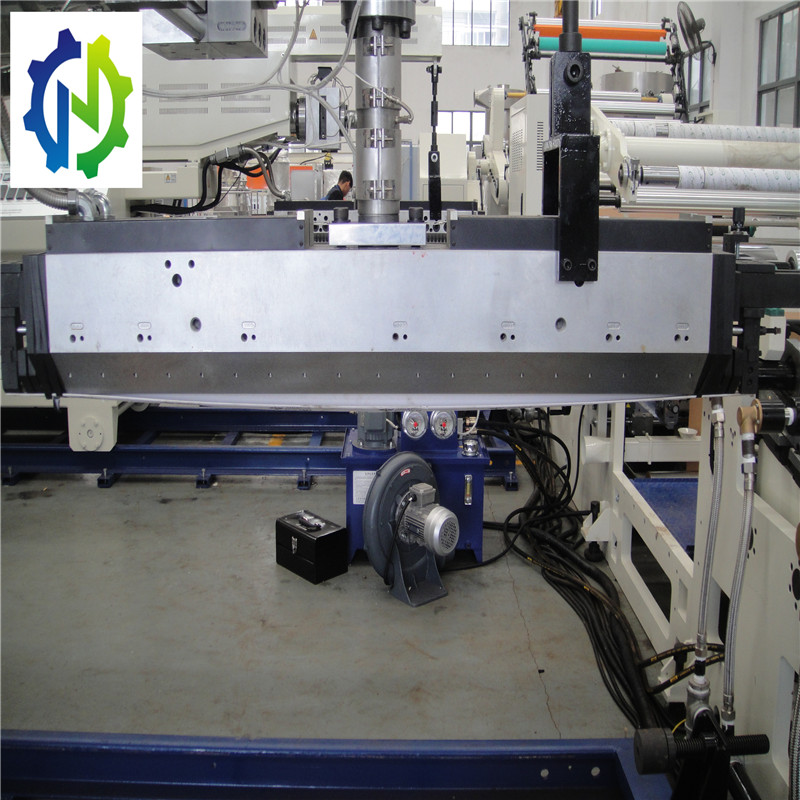

3.     T e elastic die: two sets, JC TIMES, double-layer co-extrusion new thin edge mold, material: 3cr13, deal with conditioning chrome plated, has good toughness and hardness, frequent of deformation at high temperature.

4.     Extrusion gear box adopts high strength hard tooth surface reduction box with high obscuration and more reliable.

5.      Gongbao digital intelligent temperature control system.

6.     Applicability: non-woven, BOPP and EPE roll base.

7.     Coating materials: coating level of PE.CPE.EVA and so on

8.     Coating width: 1000~1500mm.

9.     Coating thickness: 0.01～0.25mm (single layer).

10.  Evenness degree of coating: error±5%.

11.  Strength of peel off: 3-5N/30MM (according to the actual coating material).

12.  Max extruding capacity: 260kg/hx2

13.  Machine design speed: 0-100m/min.

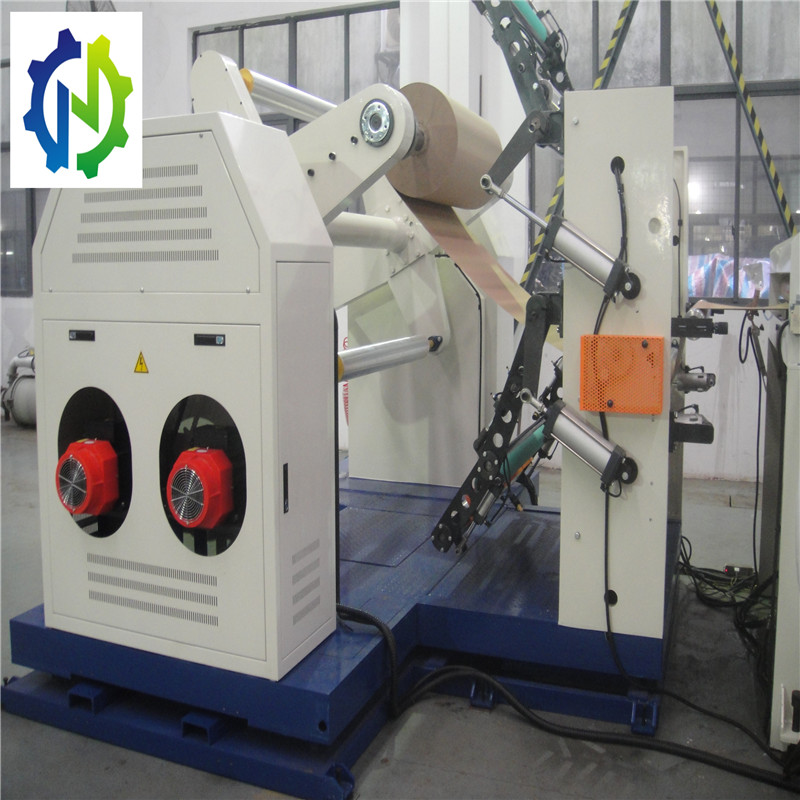

14.  Unwinding system adopts 360 turnover double shafts work station, high speed to change rolls without stop the machine, magnetic powder tension control automatically, automatic rectify device.

15.  Rectify system adopts servo motor photoelectric automatic rectify, rectify journey: ±100mm, rectify precision: ±0.5mm

16.  Rewinding adopts friction type, fly knife cutting automatically with no reduction speed automatic controlled by the vector frequency conversion motor.

17.  Max diameter of unwinding: 800mm, max diameter of winding: 1000mm.

18.  Rewinding automatic accounting, meter alarm, prompt replacement.

19.  Extruder system : Pedestal for extruder adopts the light rail pedestal to move automatically from front to back, up and down, also have a positioning device.

20.  Pneumatic shaft for unwinding and winding: 3 inch (diameter: 76mm).

21.  Import PLC (programmable controller), control the tension of unwinding and rewinding.

22.  Loop of porcelain enamel for screw and barrel; (each zone with overload short circuit device).

23.  Stainless steel inside heat die (each zone with overload short circuit device).

24.  Total power: 185 kw. (cost 45-50kw/h during running).

25.  Machine dimension(L×W×H): 12500mm×7200mm×4430mm.

26.  Weight: about 25000kg.

27.  Machine color: ivory white.



"}
