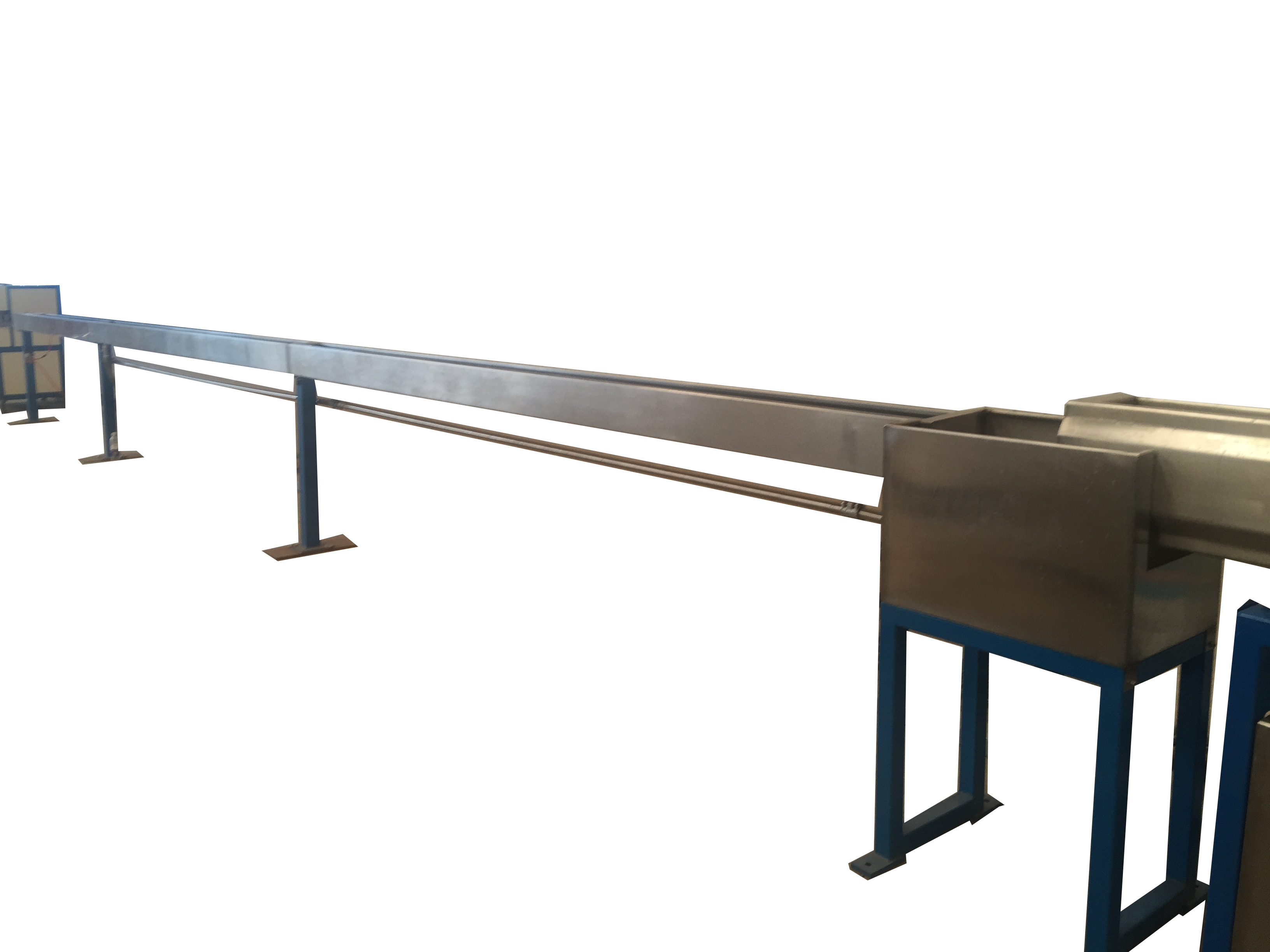

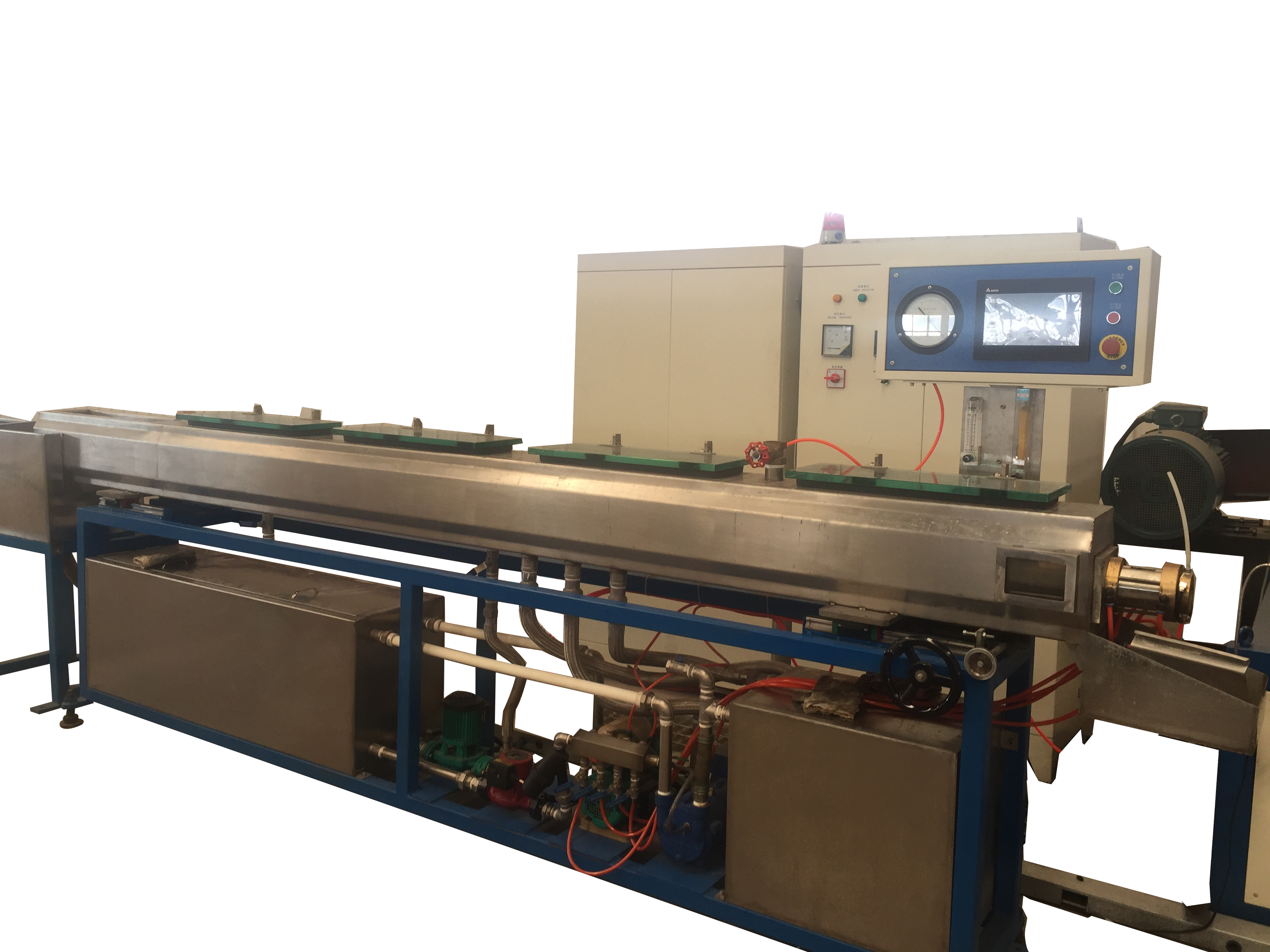

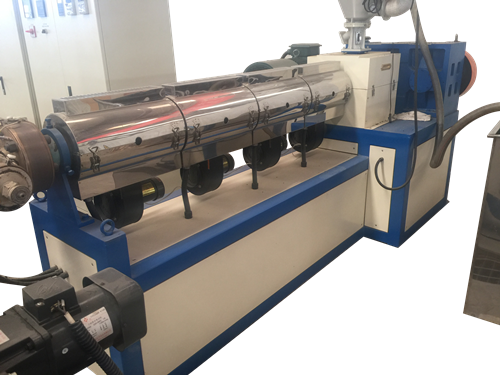

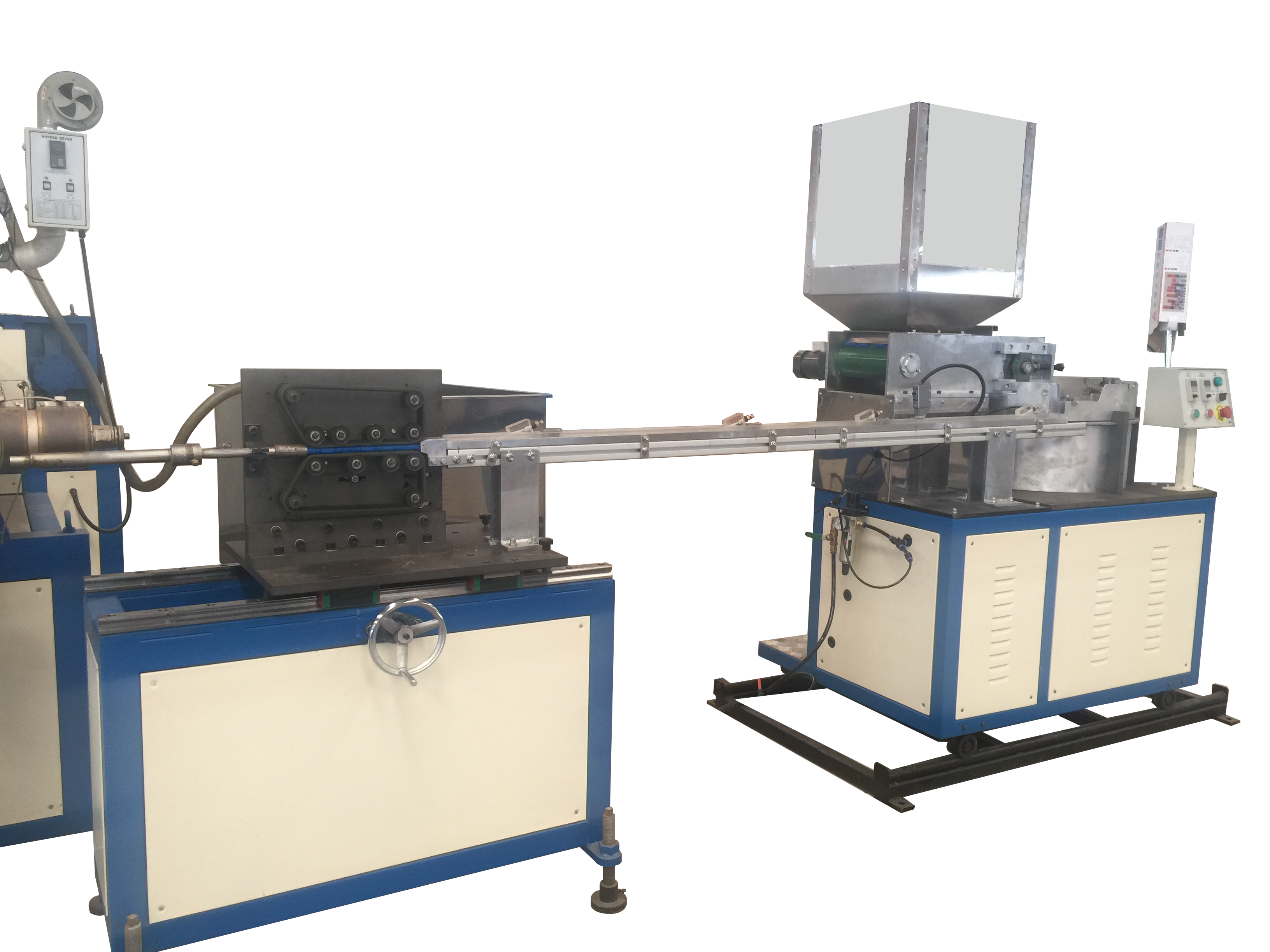

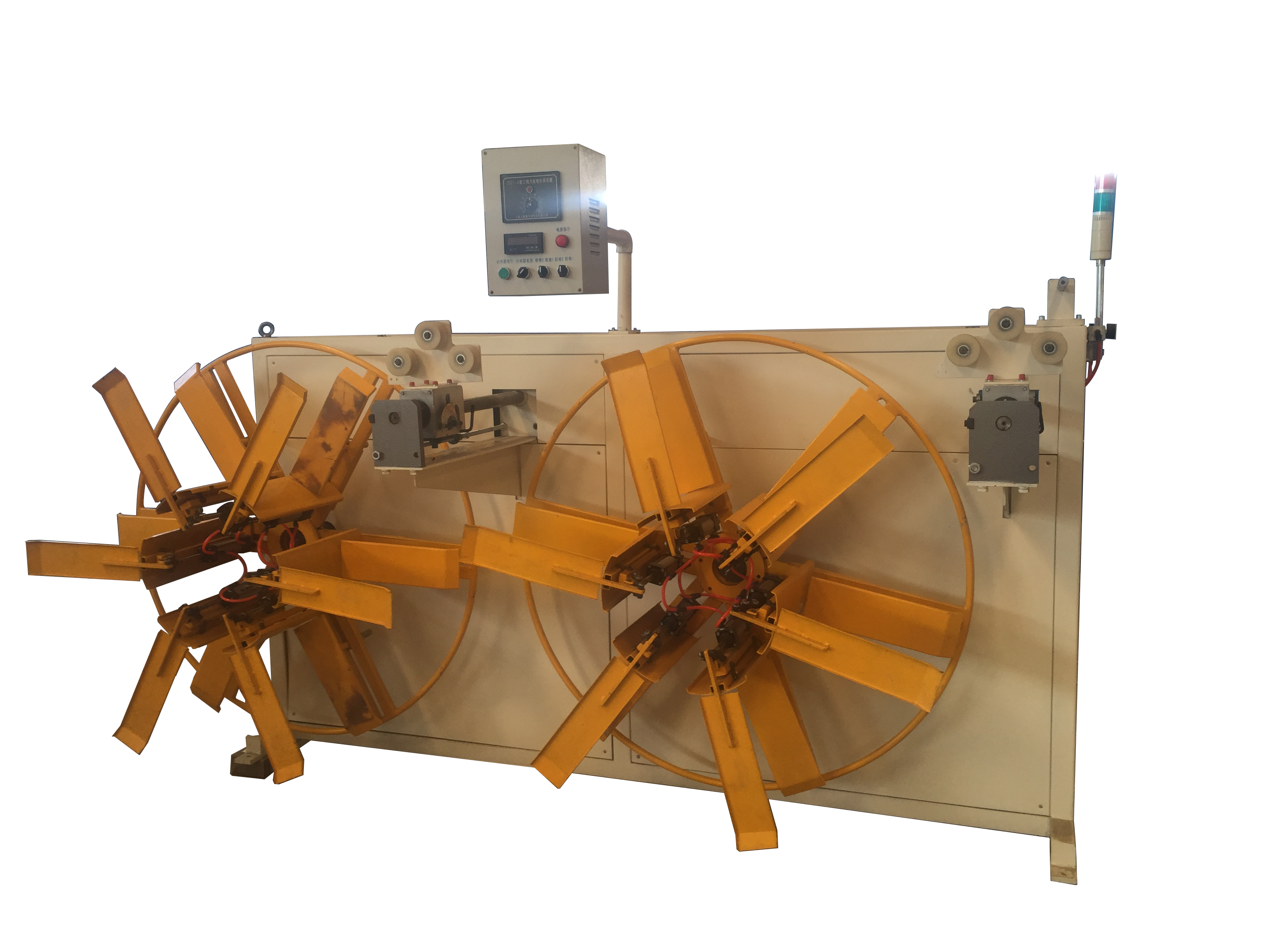

INLINE ROUND DRIPPER PIPE EXTRUDING MACHINE

PART ONE,  THE MACHINE IS USED TO PRODUCE THE INLINE ROUND DRIPPER PIPE.

PART TWO, THE MACHINE PARAMETER

PART THREE,  As for this machine, we have got the CE, ISO certificate and also we have many patents.

1, CE certificate CE.png

2, ISO certificate ISO.jpg

3, Patent patent.png

 PART FOUR, we also manufacture the mold for the round dripper. And our CNC machine is from Swiss GF+ and the flow rate deviation is less than 3%， reach or better than the European standard.

As for the mold for round dripper, we have 16 cavities and 32 cavities. Also the cavities and the dripper size can be made according to customer's special requirements.

MOLD WORKSHOP

ROUND DRIPPER MOLD PHOTO ROUND DRIPPER MOLD.png

ROUND DRIPPER PHOTO ROUND DRIPPER.jpg

ROUND DRIPPER MOLD PARAMETERS

Cavities

16 cavities

32 cavities

Note

Overall dimensions

Of the mold(mm)

270*400*250

450*600*350

Flow path mode

Cold runner

Semi hot runner

Gate forms

Submarine gate

Submarine gate

Balance material feeding, automatically

Pushing-out mode

Once pushing-out of ejector pin

Once pushing-out of ejector pin

Making sure that the final products will drop off automatically.

Cooling mode

Water cycle cooling

Water cycle cooling

Working mode

Automatic

Automatic

Service life

1.5 million

1.5 million

Production deviation

≤5%

≤5%

Deviation of emitter     flowing rate

Dripper Diameter

12mm, 16mm, 20mm

Injection machine model

1600KN

2500KN

Part five, Round dripper pipe, ROUND DRIPPER PIPE.jpg

NO.

 ITEM

DATA

1

DIAMETER(MM)

12, 16, 20

2

THICKNESS(MM)

0.50-1.2

3

DRIPER SPACE(MM)

100≥1000MM

4

FLOW RATE (L/H)

4L/H ,CUSTOMIZED

5

LENGTH PER ROLL(M/R)

200-500

6

WORKING PRESSURE (BAR)

1.0

7

HOLE TYPE

DOUBLE HOLE,

FOUR HOLES

8

QUANTITY PER CONTAINER

120ROLLS FOR ONE 20’CONTAINER

260ROLLS FOR ONE 40’CONTAINER

Part Six, Package , delivery and application
