Film blowing and printing machine
HUBEI PROVINCIAL JIAXIN MACHINERY IMPORT & EXPORT CO.,LTD.
See what’s includedHide breakdown
- FOB goods (100)
- $2,575,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $90,125
- Section 301 tariff (25.0%)
- $643,750
- Customs fees (MPF/HMF)
- $3,853
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $2,575,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $90,125
- Section 301 tariff (25.0%)
- $643,750
- Customs fees (MPF/HMF)
- $3,853
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Film blowing and printing machine
HUBEI PROVINCIAL JIAXIN MACHINERY IMPORT & EXPORT CO.,LTD.See what’s includedHide breakdown
- FOB goods (100)
- $2,575,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $90,125
- Section 301 tariff (25.0%)
- $643,750
- Customs fees (MPF/HMF)
- $3,853
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $2,575,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $90,125
- Section 301 tariff (25.0%)
- $643,750
- Customs fees (MPF/HMF)
- $3,853
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: film blowing and printing machine
- Size: 4800x4500x 5000
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia
- Made in: Jiangsu, China
About this product
- Materials: film blowing and printing machine
- Size: 4800x4500x 5000
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia
- Made in: Jiangsu, China
Product details
| Materials | film blowing and printing machine |
|---|---|
| Size | 4800x4500x 5000 |
| Color | white |
Product details
| Materials | film blowing and printing machine |
|---|---|
| Size | 4800x4500x 5000 |
| Color | white |
From the supplier
company introduction :
Founded in 1984, we are manufacturing and exporting the film blowing machine, film gravure printing machine, bag making machine and extrusion coating machine. At Jiangnanmach, we are proud to have invented more then 30 items patent in china and coorperate with hundreds of countries Partner over the past 34 years. A small but significant innovation can often revoulutionise an industry. We are keeping moving.
machinery instroduction:
High speed film blowing and printing machine is professional used in blowing HDPE and LDPE film and printing timely. The machine is compact structure, easy operation, less occupation of space. It is the ideal equipment to produce plastic film.
Blowing materials
Film grade HDPE LDPE, recycle material
Film width
600mm ~ 1000mm
Single-face thickness
LDPE: 0.015-0.15mm. HDPE: 0.01-0.1mm.
Output
30-75 kg/h
Total power
50 kw
Over all size
(LXWXH) 4800X5000X4500mm
Screw
Diameter 65mm
L/D 28:1
material38CrMoAl, deal with Nitride
heater
ceramic heater
Printing system
Gravure printing cylinder
Digital intelligent temperature controlling system.
Intellectualized digital corona treatment.
SL-50x2-900 FILM BLOWING MACHINE (ABA) 2 color print
Main Feature:

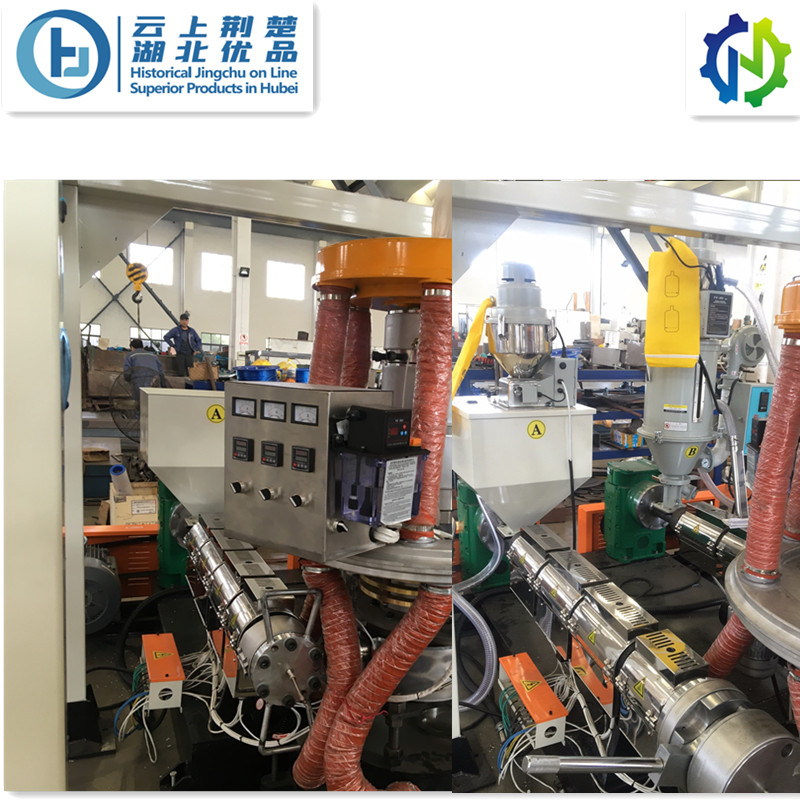

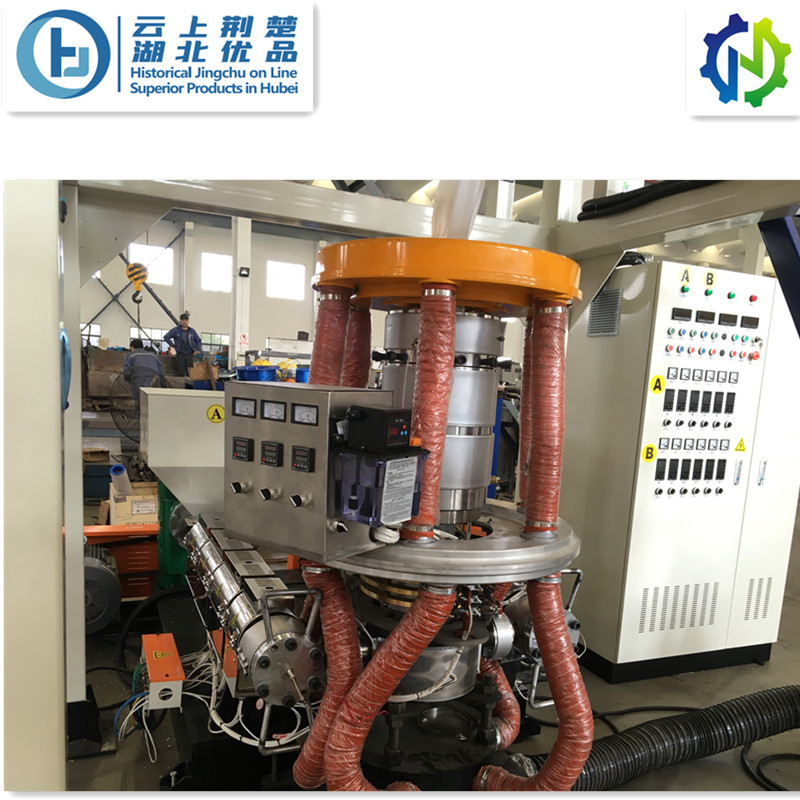

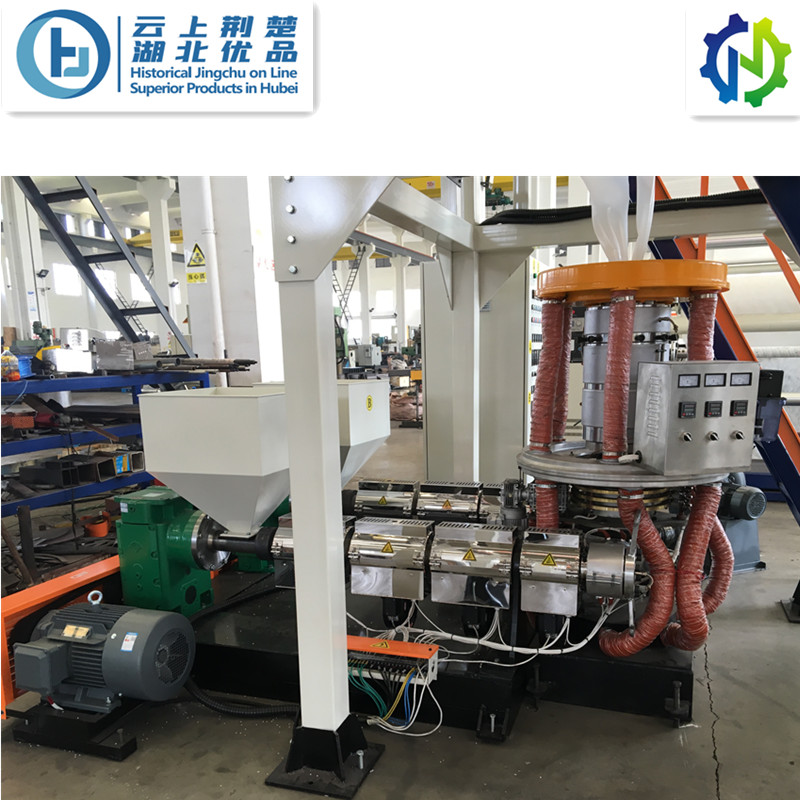

1. Extruder system
1.1 screw diameter 50mm, L/D=28:1. 2 set cooling fan.
1.2 barrel and screw suitable for Bio materials
1.3 ABA mould die 100mm.
1.4 SIEMENS motor & DELTA inverter.
1.5 Omron Temperature controller.
1.6 inverter control for blower.
1.7 heater is ceramic heater.
1.8 Automatic loader with dryer system for input materials
1.9 rotary die head.
2. Driving system
2.1 long bubble stable unit.
2.2 wooden folding unit.
2.3 Embossing roller 1 pcs
2.4 Driving motor by SIEMENS
2.5 Driving inverter by Delta Taiwan.
2.6 driving Al steel roller diameter 65mm.
2.7 corona treatment for double side 2 set.

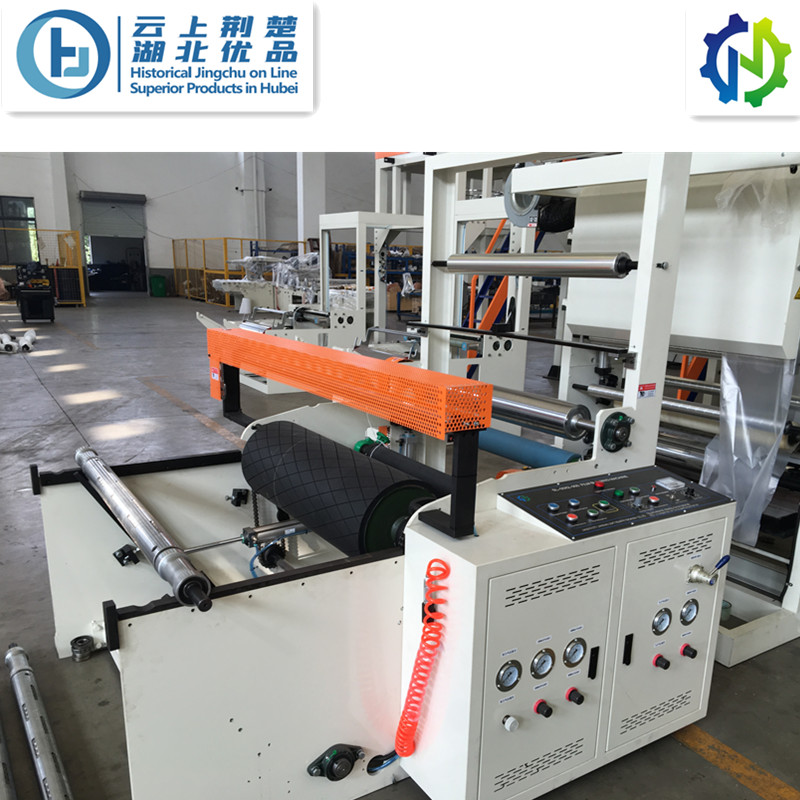

3. Rewinding system
3.1 inverter motor control for rewinding.
3.2 single side rewinding and automatic change web.
3.3 shaft roller for rewinder 3pcs.
3.4 Auto account meter.
3.5 banana rollers

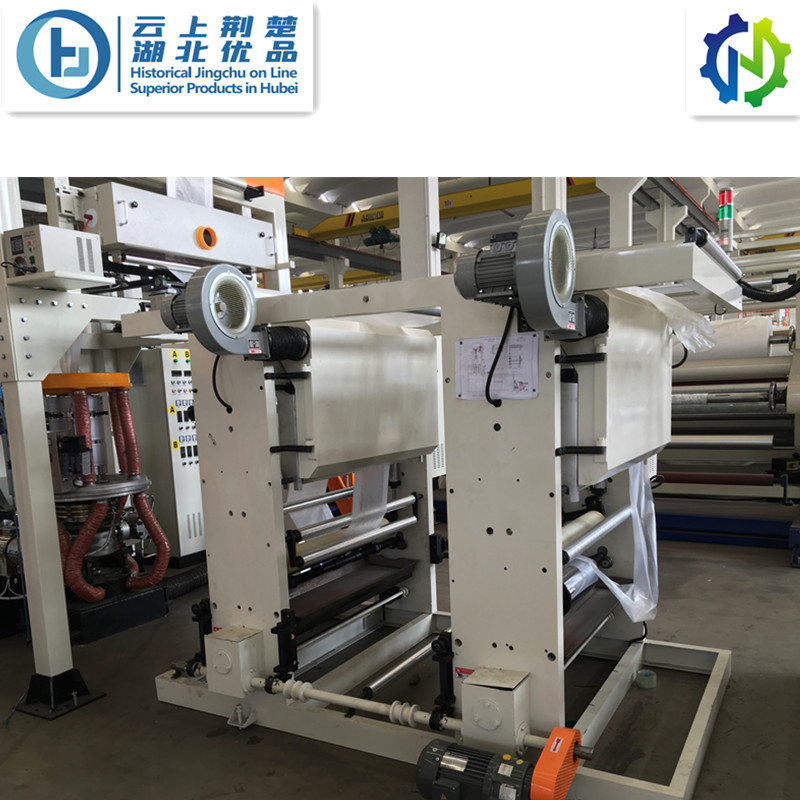

4. Printing system
- 4.1 Roto gravure print 2 color
- 4.2 independent dry system by hot fan.
- 4.3 Max printing width is 850mm, max length is 1000mm.
Main techinacal data:
model
SL-50X2-900
Blowing materials
Film grade HDPE LDPE, recycle PE material
Film width
100mm ~ 850mm
Single-face thickness
LDPE: 0.015-0.15mm. HDPE: 0.01-0.1mm.
Output
60-80 kg/h
Total power
55kw.
Over all size
(LXWXH)4800X3200X4500mm
Optional details:
- 5. Automatic cutter
It is automatic cutting by fly knife for change the rewind roller, automatic change roller by 1 more prepared air shaft
- 6. ABA Rotary die head
It is rotory die head with HDPE double lips air ring.
shipping and packing :
contact us:
Jiangyin City Jiangnan Light Industry Machinery CO.,ltd ▏China • Wuxi Http://www.jiangnanmach.com Export Manager: Lacy Liu / Mob:+86-15261585261 (Viber / whatsapp / Wechat ID)Tel: +86-510-86395222 / Fax:+86-510-86381260 / Skype: babylacy1989From the supplier
