About this product
- Materials: steel
- Size: 1340x950x1850mm
- Color: Blue+White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: steel
- Size: 1340x950x1850mm
- Color: Blue+White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | steel |
|---|---|
| Size | 1340x950x1850mm |
| Color | Blue+White |
Product details
| Materials | steel |
|---|---|
| Size | 1340x950x1850mm |
| Color | Blue+White |
From the supplier

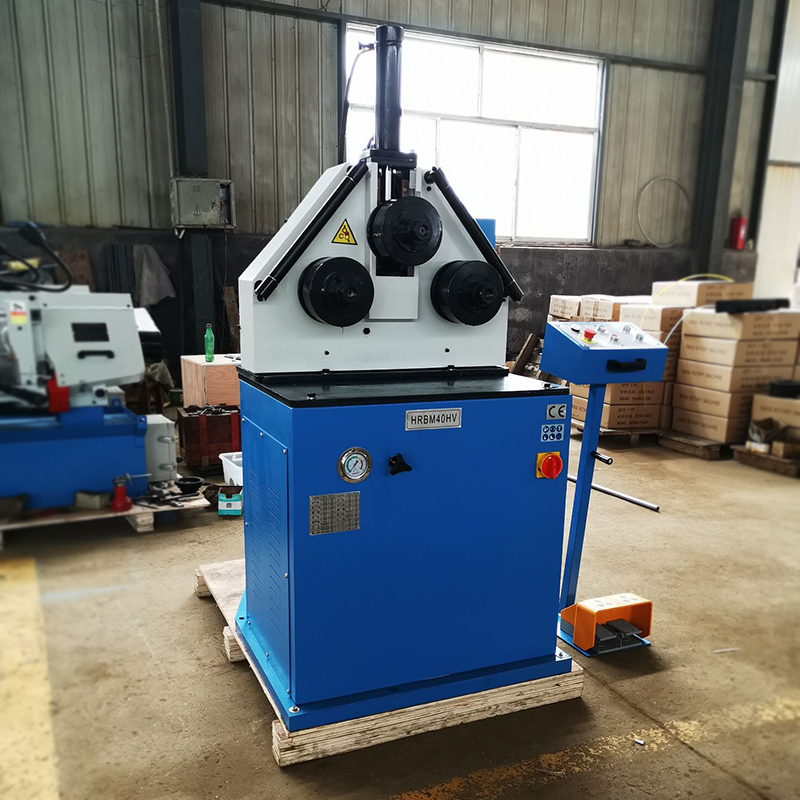

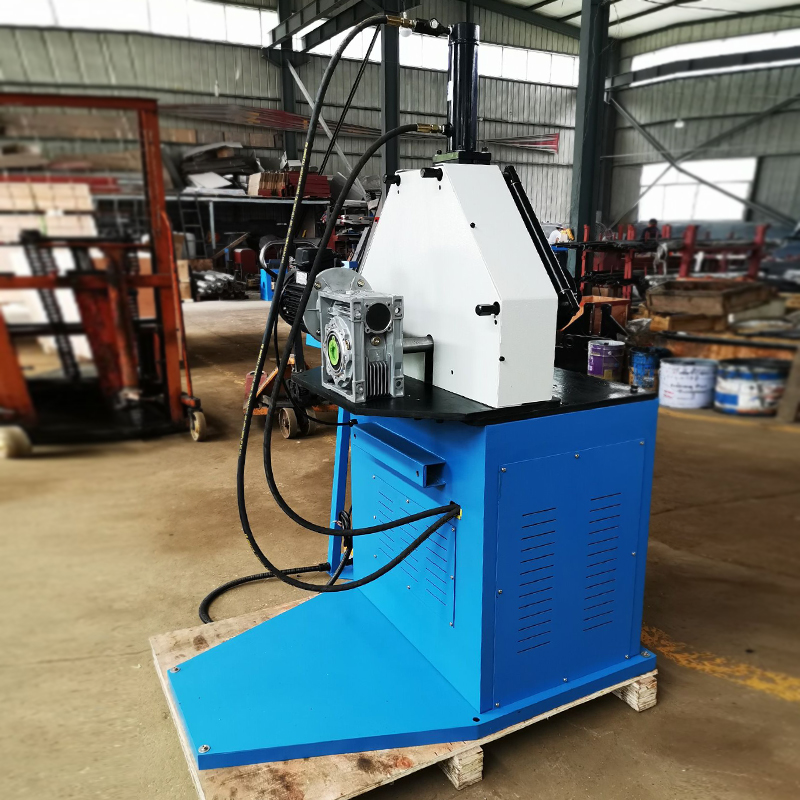

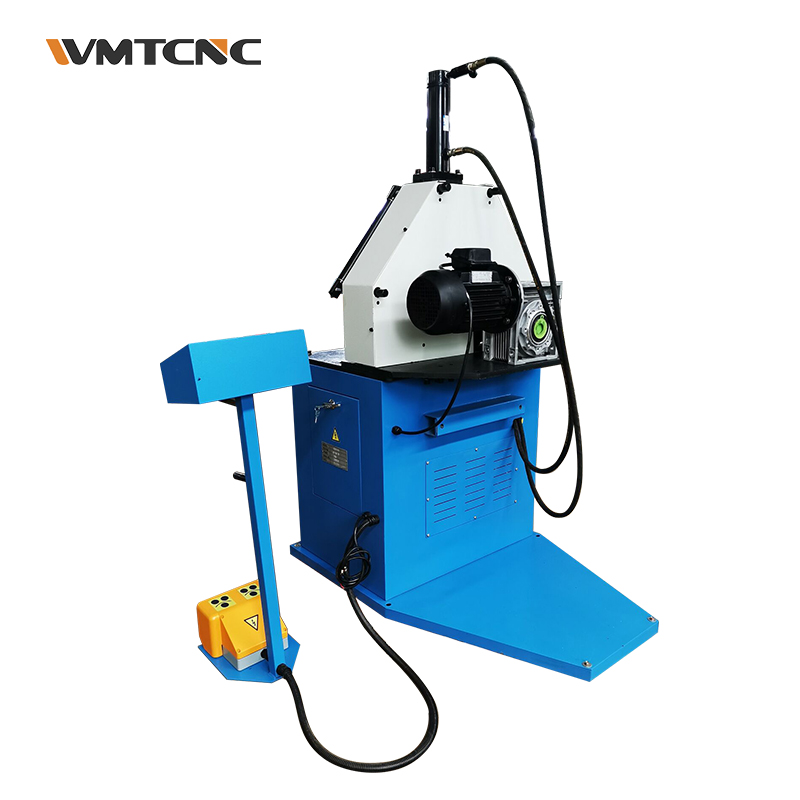

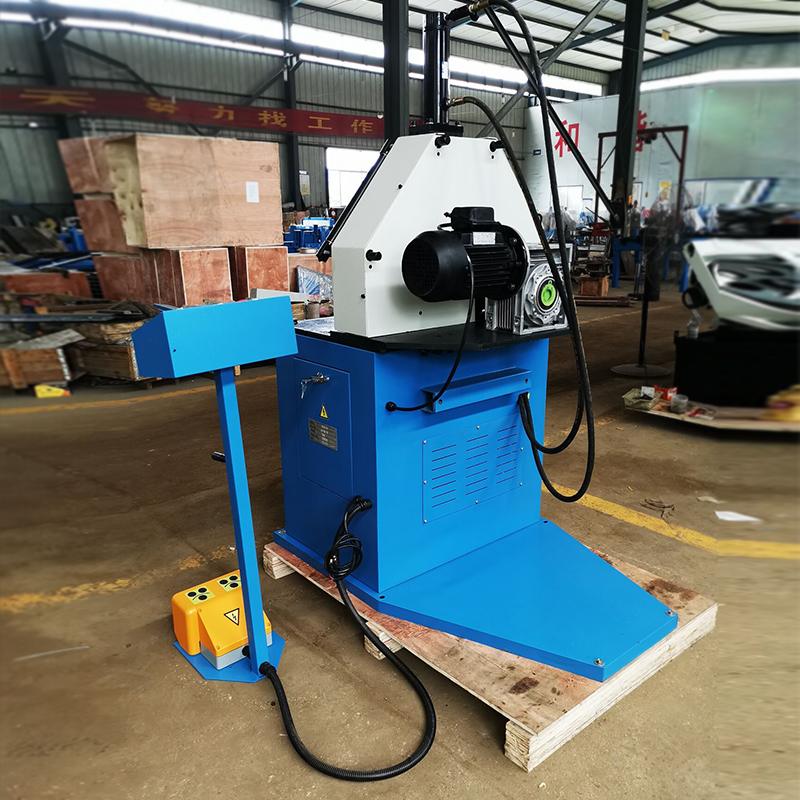

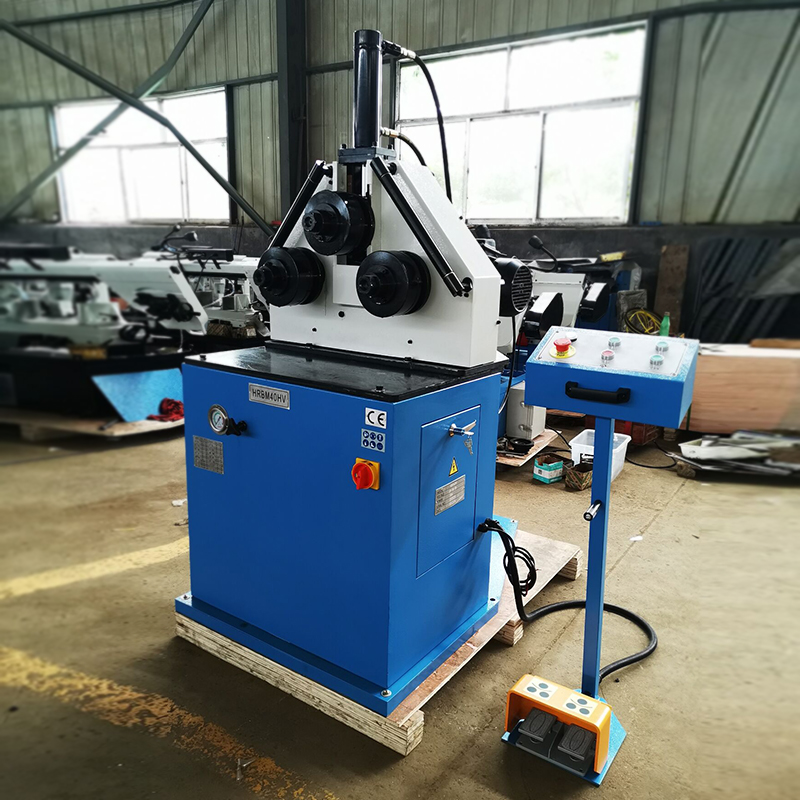

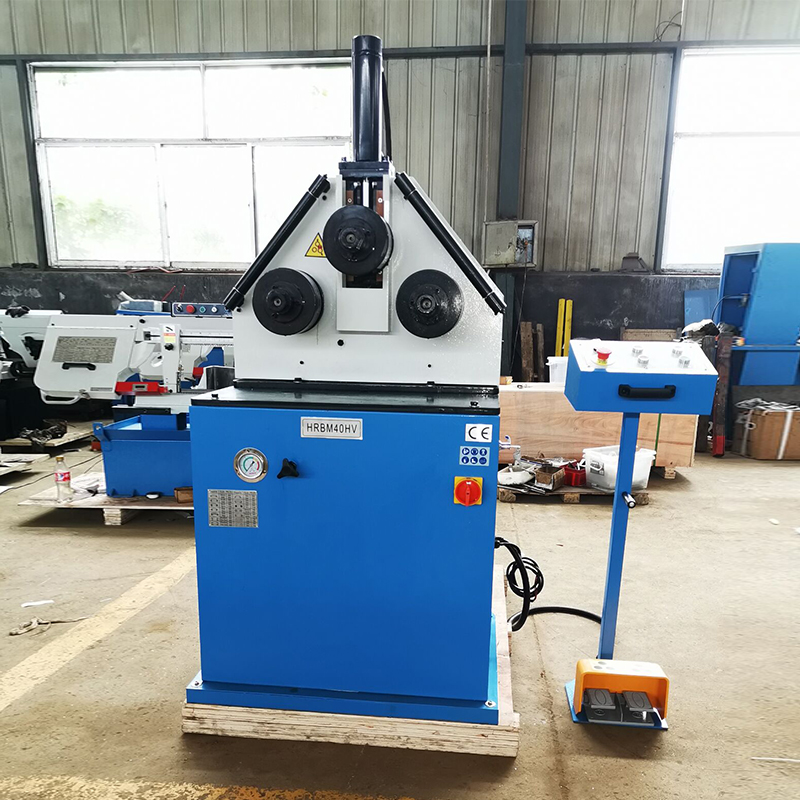

Factory Direct Sale HRBM40 HRBM40HV Rolling Pipe Angle Bending Machine Die is composed of main frame, main mould device, side mould device, support roller, press-on device, electric control and hydraulic device. It is high-efficiency process equipment which is used to bend angle steel, channel steel, flat steel and other material. One time feeding and complete the Rolling round and round set. It is widely used in the petroleum, chemical industry, water and electricity, shipbuilding and machine manufacture and so on.

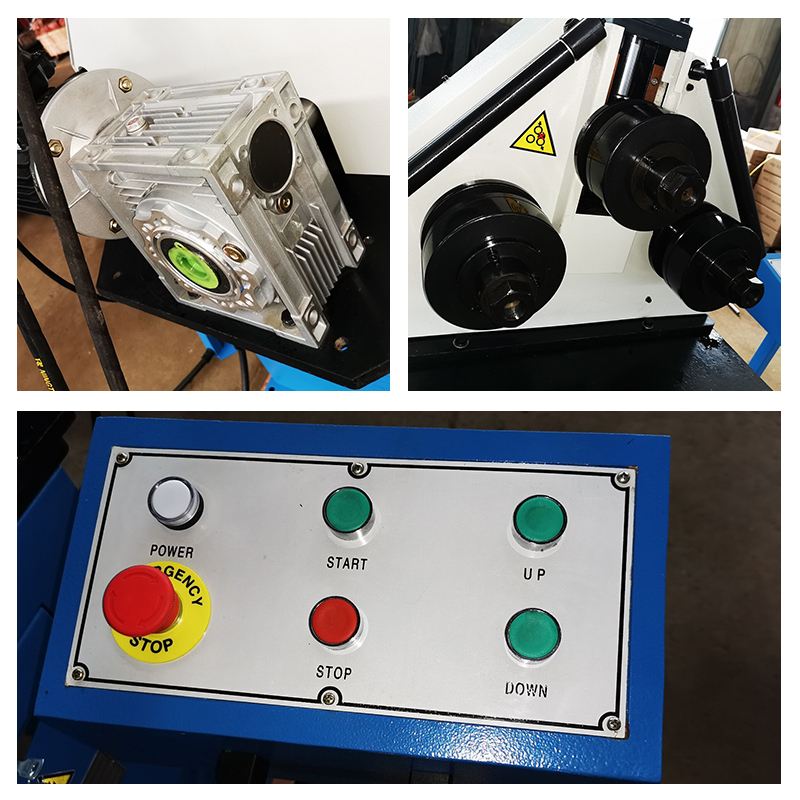

• The main frame is welding part installed on the chassis. Main mould is composed of main shaft, mould, bearing support, bearing and hydraulic motor. Side mould is composed of main shaft, bearing support, and hydraulic motor.
• The support roller device is composed of support roller, support roller bearing and oil cylinder.
• Press-on device is composed of oil cylinder, slide-bar and etc.
SpecificationHRBM40HVDia.of rollerφ40mmPower1.5kw/2HPSpindle speed9.3rpmPacking size1340x930x1850mmN.W/G.W490/586kgs
From the supplier
Factory Direct Sale HRBM40 HRBM40HV Rolling Pipe Angle Bending Machine Die is composed of main frame, main mould device, side mould device, support roller, press-on device, electric control and hydraulic device. It is high-efficiency process equipment which is used to bend angle steel, channel steel, flat steel and other material. One time feeding and complete the Rolling round and round set. It is widely used in the petroleum, chemical industry, water and electricity, shipbuilding and machine manufacture and so on.
• The main frame is welding part installed on the chassis. Main mould is composed of main shaft, mould, bearing support, bearing and hydraulic motor. Side mould is composed of main shaft, bearing support, and hydraulic motor.
• The support roller device is composed of support roller, support roller bearing and oil cylinder.
• Press-on device is composed of oil cylinder, slide-bar and etc.
SpecificationHRBM40HVDia.of rollerφ40mmPower1.5kw/2HPSpindle speed9.3rpmPacking size1340x930x1850mmN.W/G.W490/586kgs
