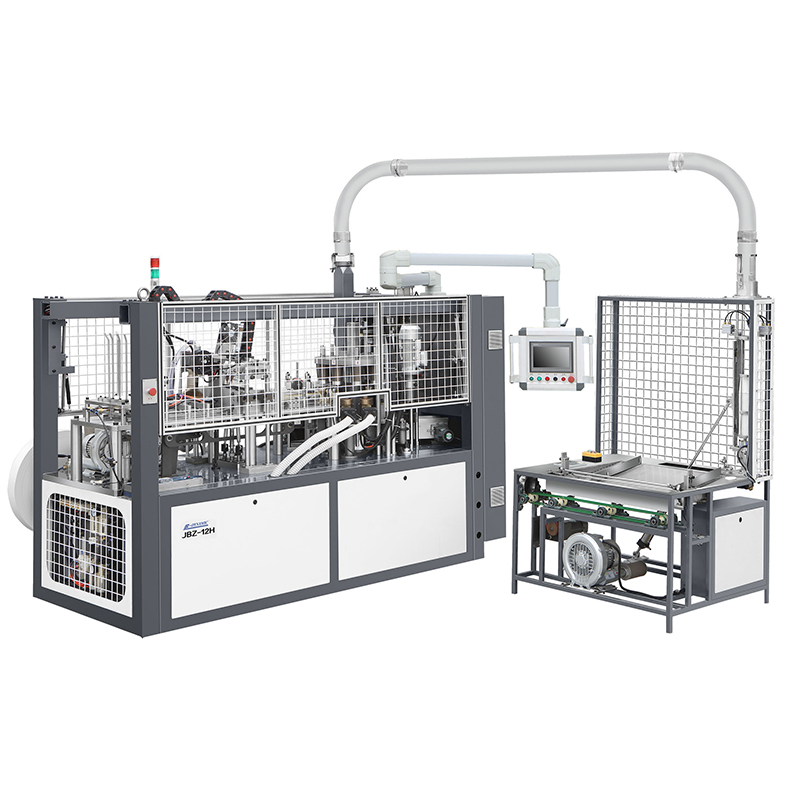

High-Speed Paper Cup Forming Machine
RUIAN E-DYNAMIC COMPLETE EQUIPMENT CO., LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
High-Speed Paper Cup Forming Machine
RUIAN E-DYNAMIC COMPLETE EQUIPMENT CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier

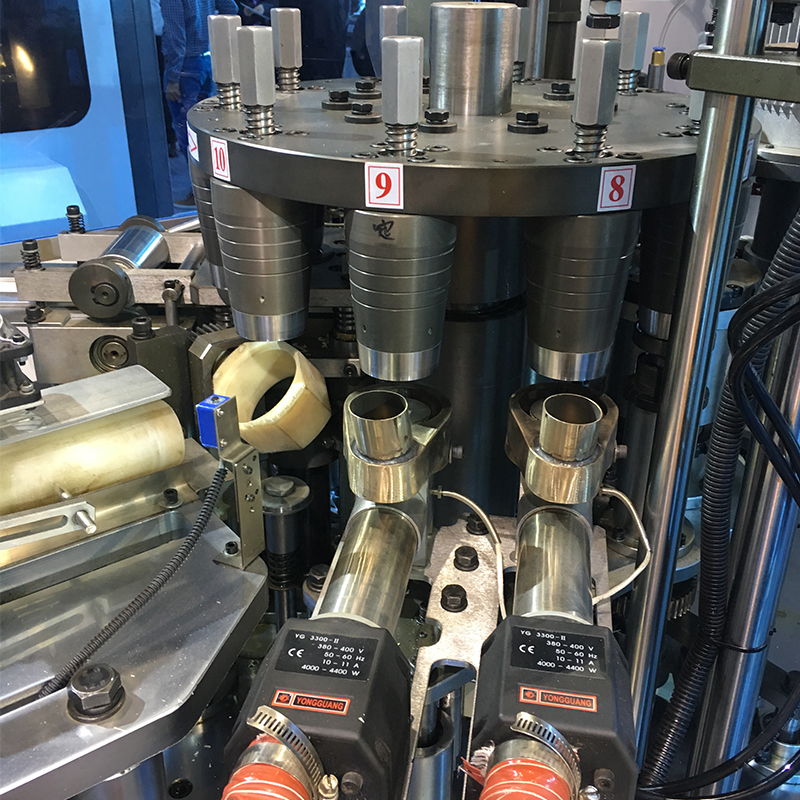

JBZ-12H High Paper Cup Forming Machine is a high speed automatic machine with multi-working station ,It produces single and double side PE coated paper cup through the procedure of automatic of automatic paper feeding ,sealing ,silicon oil lubrication,bottom punching ,heating ,knurling ,curling and cup discharge .This kind of cup can be for beverage ,ice cream etc ..This machine had adopted new technology, such as multi-working station rotary mould head , imported hot blowing equipment ,and imported PLC system ,It has good feature of precise and reliable ,and it is the first choice for the paper cup manufacture.
Model
JBZ-12H
Cup Size
6-16oz (outside diameter of cup mouth 60-90mm
outside diameter of bottom 45-65mm
height of cup 60-135mm
depth of bottom 5-10mm）
Speed
90-110 pcs/min
Air source
0.6m3/min; 0.6mpa customer-owned
Material paper
190~350g/m2(single or double PE coating paper)
Main motor power
2.2kw
Electro thermal power
8.6/13.2kw
Weight
3500kgs
Overall Dimensions
1:2700*1500*1800mm 2:1150*850*2000mm
From the supplier
JBZ-12H High Paper Cup Forming Machine is a high speed automatic machine with multi-working station ,It produces single and double side PE coated paper cup through the procedure of automatic of automatic paper feeding ,sealing ,silicon oil lubrication,bottom punching ,heating ,knurling ,curling and cup discharge .This kind of cup can be for beverage ,ice cream etc ..This machine had adopted new technology, such as multi-working station rotary mould head , imported hot blowing equipment ,and imported PLC system ,It has good feature of precise and reliable ,and it is the first choice for the paper cup manufacture.
Model
JBZ-12H
Cup Size
6-16oz (outside diameter of cup mouth 60-90mm
outside diameter of bottom 45-65mm
height of cup 60-135mm
depth of bottom 5-10mm）
Speed
90-110 pcs/min
Air source
0.6m3/min; 0.6mpa customer-owned
Material paper
190~350g/m2(single or double PE coating paper)
Main motor power
2.2kw
Electro thermal power
8.6/13.2kw
Weight
3500kgs
Overall Dimensions
1:2700*1500*1800mm 2:1150*850*2000mm
