About this product
- Size: 40mmx151mmx161mm
- Color: Black
- Certification: CE
- Installation: External
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: 40mmx151mmx161mm
- Color: Black
- Certification: CE
- Installation: External
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | 40mmx151mmx161mm |
|---|---|
| Color | Black |
| Certification | CE |
| Installation | External |
Product details
| Size | 40mmx151mmx161mm |
|---|---|
| Color | Black |
| Certification | CE |
| Installation | External |
From the supplier

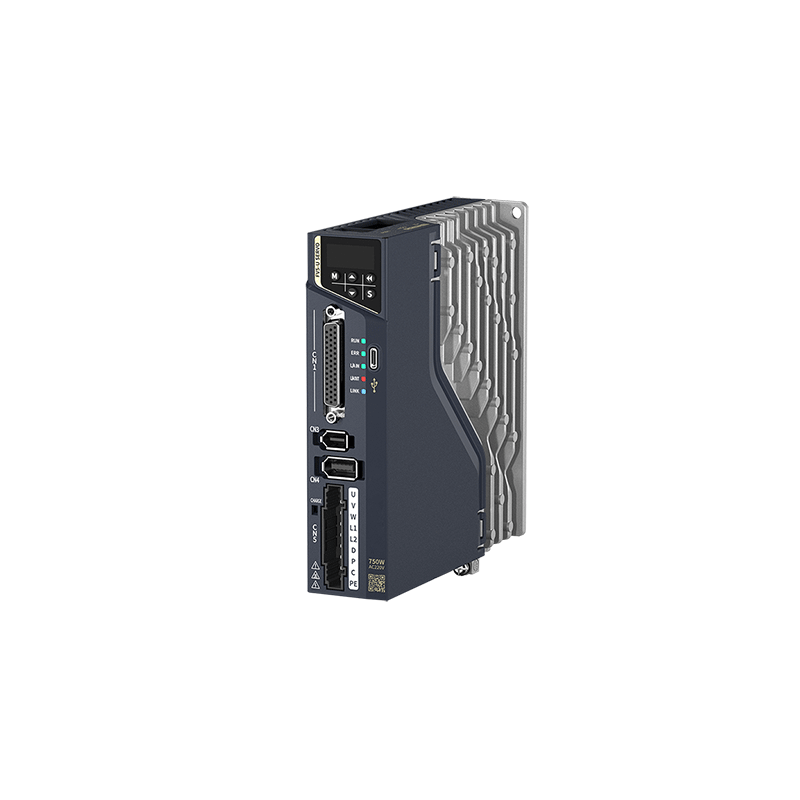

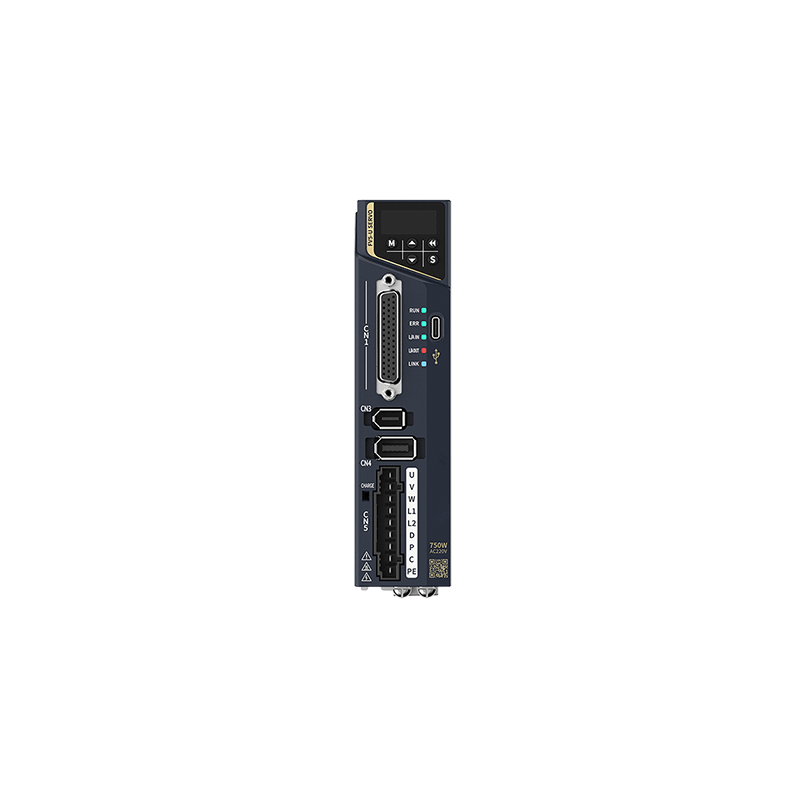

Aiming at the field of precision manufacturing, it provides customers with high-performance motion control solutions with high dynamic response and precise positioning.3.5kHz speed loop bandwidth, general rotary servo, DDR, DDL, voice coil motor. Supports EtherCAT and Modbus communication protocols, standard dynamic braking function, standard encoder output, bus model standard STO function, pulse model supports two-way analog quantity, and high-speed DI/DO terminals support probes and flying shots.
FEATURES FV5-U3-NA2R8 Rated Current(Arms) 2.8 Maximum Output Current
(Arms) 10.1 Input Power Supply (V) Single phase AC200V-240V,-10%～10%,50/60Hz Rated Power(W) 400 Background
Communication Type-C USB EtherCAT
Communication Support RS485
Communication / CN3 Biss-C Encoder /Tamagawa,Nikon Protocol Communication Encoder CN4 ABZ Encoder Al Supports 1 channel (16-bit per channel) Normal Digital
Input Supports 3 points High-Speed
DigitalInput Supports 2 points Normal Digital
Output Supports 2 points High-Speed
Digital Output Supports 2 points Low-Speed
Pulse Input / High-Speed
Pulse Input / STO Support Encoder Differential
Output Full range support Encoder Z-phase Pulse
OC Output Full range support Dynamic Braking Full range support Motor Temperature
Protection Full range support Brakefunction External braking resistor Built-in Braking
Resistor Resistance (Ω) / Built-in braking
Resistor Capacity(W) / Minimum Extemal Braking
Resistor Resistance(Ω) 40 Installation Size SIZE-A
From the supplier
Aiming at the field of precision manufacturing, it provides customers with high-performance motion control solutions with high dynamic response and precise positioning.3.5kHz speed loop bandwidth, general rotary servo, DDR, DDL, voice coil motor. Supports EtherCAT and Modbus communication protocols, standard dynamic braking function, standard encoder output, bus model standard STO function, pulse model supports two-way analog quantity, and high-speed DI/DO terminals support probes and flying shots.
FEATURES FV5-U3-NA2R8 Rated Current(Arms) 2.8 Maximum Output Current
(Arms) 10.1 Input Power Supply (V) Single phase AC200V-240V,-10%～10%,50/60Hz Rated Power(W) 400 Background
Communication Type-C USB EtherCAT
Communication Support RS485
Communication / CN3 Biss-C Encoder /Tamagawa,Nikon Protocol Communication Encoder CN4 ABZ Encoder Al Supports 1 channel (16-bit per channel) Normal Digital
Input Supports 3 points High-Speed
DigitalInput Supports 2 points Normal Digital
Output Supports 2 points High-Speed
Digital Output Supports 2 points Low-Speed
Pulse Input / High-Speed
Pulse Input / STO Support Encoder Differential
Output Full range support Encoder Z-phase Pulse
OC Output Full range support Dynamic Braking Full range support Motor Temperature
Protection Full range support Brakefunction External braking resistor Built-in Braking
Resistor Resistance (Ω) / Built-in braking
Resistor Capacity(W) / Minimum Extemal Braking
Resistor Resistance(Ω) 40 Installation Size SIZE-A
