Fl8-E32-D Plc
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Fl8-E32-D Plc
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: 55.5mmx110mmx75.5mm
- Color: Black
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: 55.5mmx110mmx75.5mm
- Color: Black
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | 55.5mmx110mmx75.5mm |
|---|---|
| Color | Black |
From the supplier

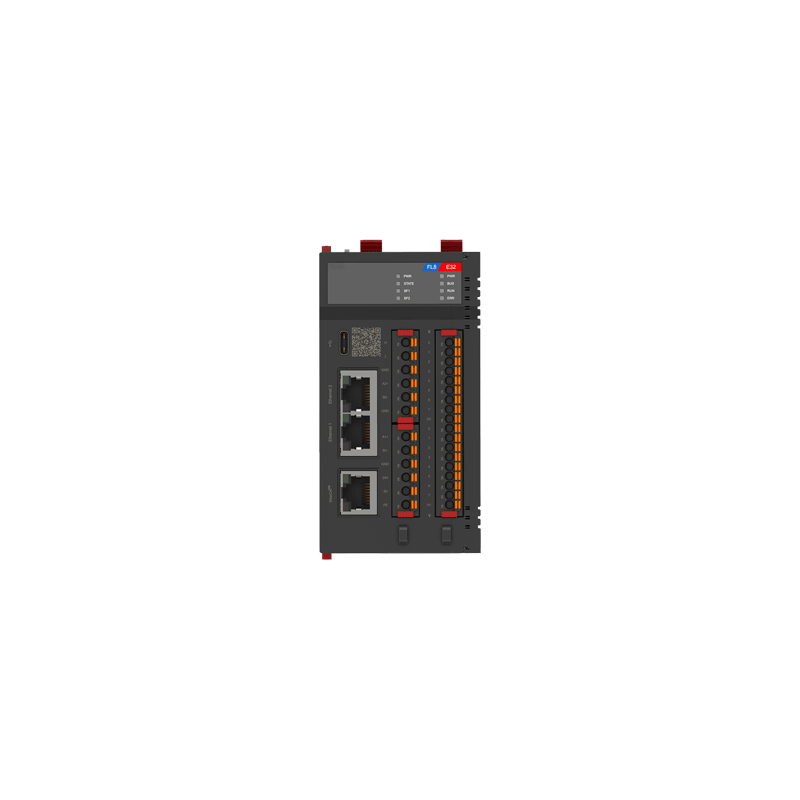

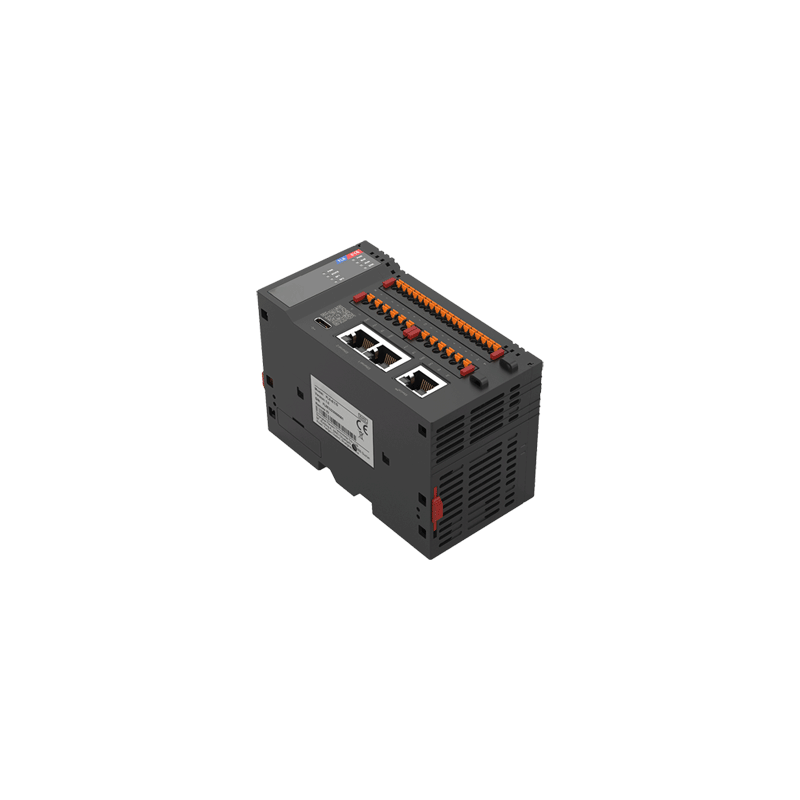

FL8 intelligent controller is a medium-sized PLC developed based on the Codesys platform, with IEC61131-3 architecture, built-in high-speed EtherCAT motion control bus, built-in Ethernet and serial port, support for OPC UA and Modbus protocols, seamless connection to the upper control system, and optimization of the overall system.
FEATURES FL8-E32-D CPU 4-core1GHz Internal Memory 2GB Hard Disk 8GB EtherCAT Axis 32 axis EtherCAT+pulse axis Pulse Output 6*200KHz pulse output Left-side Expansion Card Left-side expansion supported (4G Cat1or WiFi wireless,Serial port) Ethernet 2*100M Ethercat Supported (1*main,maxium of 72*sub) Serial Communication 2*RS485 CAN Communication 1 channel CAN Program Capacity 32M User Data Space 128M Data Capacity I:128KBytes/Q128KBytes/M:512KBytes/Retain:800KBytes/Other variables:unlimted Other Interfaces U disk(Type-C)program download,data storage Other Capabilities Support electronic CAM,electronic gea Pulse Input 7*200KHz Pulse input IO Integrated 8*input(NPN/PNP compatible),8*output (NPN) Right-side Expansion Max.31 Programming Language IL、LD、ST、SFC、CFC、FBD Power DC24V±20% Protocol EtherCAT、Modbus-TCP、Canopen、Modbus-RTU、OPC UA RTC Built in
About the supplier
Main products: PLC Programmable Controller Systems and Software, Human-Machine Interfaces, Servo Motors and Drives
- ✓Exhibited at 5 recent Canton Fairs
- ✓Manufacturer
- ✓Founded 2010
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- ✓1 certificate on file
- Exhibited at 5 recent Canton Fairs
- Manufacturer
- Founded 2010
- Canton Fair Premium Supplier
