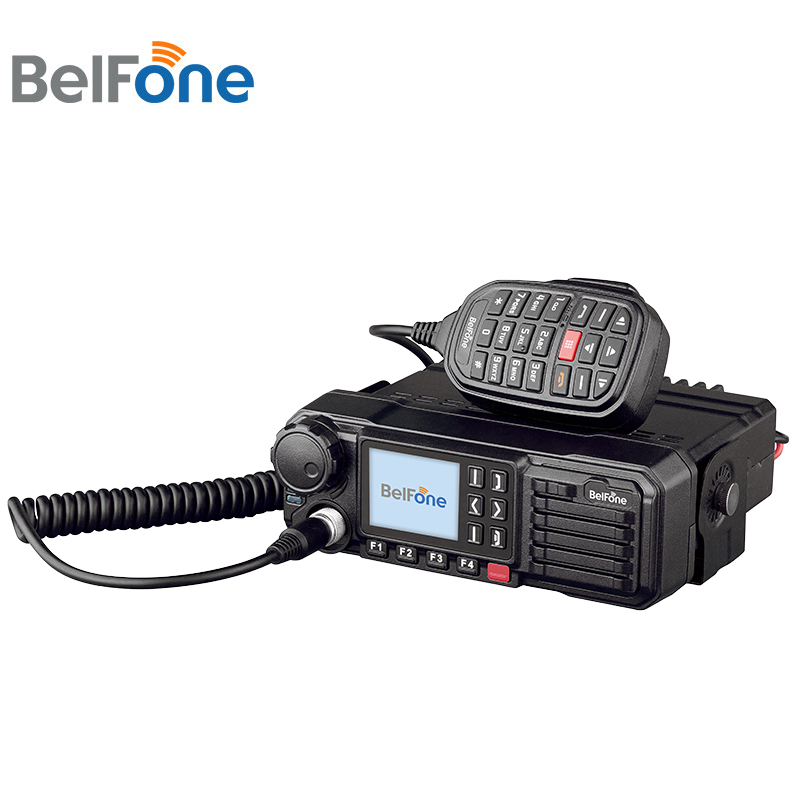

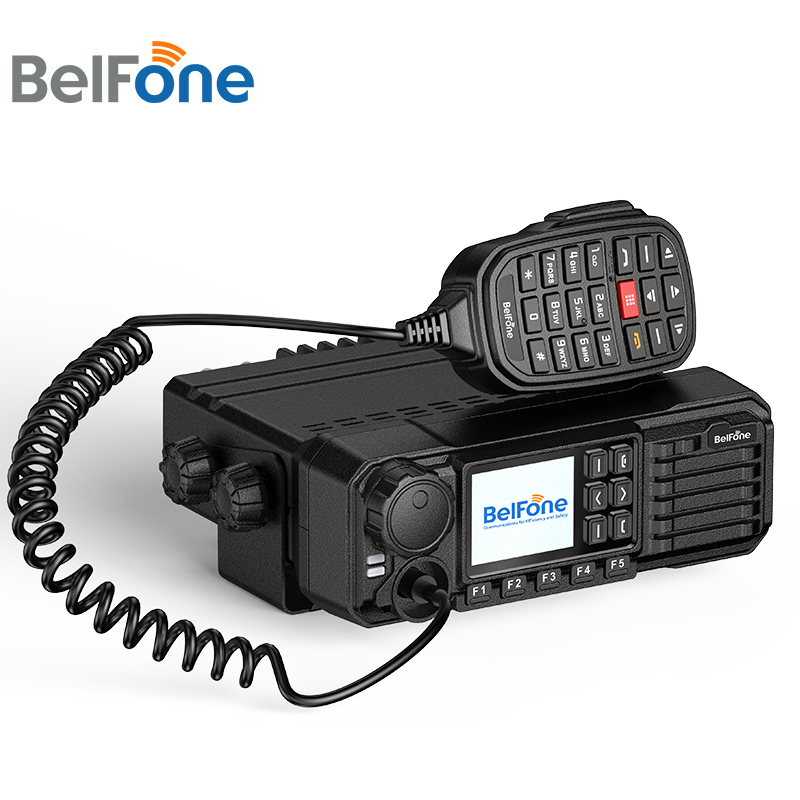

BF-TM8250 is compatible with the SVT system, which provides versatile voice & data services for critical communications. It comes with a large size color display, which delivers good visibility even under strong light. The five programmable buttons allow the user to access any features he needs and thus greatly facilitate ease of use. Besides a full set of digital features, the integrated remote kill/stun/revive features bring unprecedented efficiency to teamwork and radio management.

Transmit Interrupt

This function enables a supervisor to interrupt a radio conversation in order to clear a channel for more important communications.

Radio Priority-Based Interruption

This function enables a radio with higher level to interrupt communication between radios with lower levels, giving higher priority to radios with higher levels. This means better dispatching efficiency.

GPS

BF-TM8250 can send location information to the command center and the commander can view GPS information in realtime, which increases commanding efficiency and personnel safety.

TTS(Text-to-Sound)

The integrated TTS function will automatically transfer all the text messages into voice, so that the user does not need to read and can therefore better focus his eyes and attention on the mission.

RemoteKill/Revive

Such functions greatly facilitate dispatching work and can be especially useful if you want to kill a lost radio.

Secure Communications

Use digital encryption to code and decode all voice calls, and support both dynamic and static encryption for secure communications.

SMS

BF-TM8250 supports messages with up to 140 characters when discreet communications are needed.

General Frequency Range VHF: 136-174MHz; UHF: 350-390MHz,UHF: 400-470MHz Zones 128 Channel Capacity 1024 Channel Spacing 12.5KHz/25KHz Operating Voltage DC 13.8V(±20%) Frequency Stability ±1.5ppm Antenna Impedance 50Ω Dimensions Radio: 175(L)*175(W)*63(H) mm; Microphone: 130(L)*62(W)*25(H) mm Weight 1448g Bluetooth BT5.0 Transmitter RF Output Power High Power: 50W; Middle Power: 25W; Low Power: 10W 4FSK Modulation Only Data: 7K60FXD; Data and Audio: 7K60FXE FM Modulation 12.5 kHz: 8K50F3E; 25 kHz: 16KΦF3E; Modulation Limiting +/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz FM Noise -40dB Conducted Emission -36 dBm≤1GHz/-30 dBm≥1GHz Adjacent Channel Power ≤-60dB Audio Response +1/-3 dB Audio Distortion 3% Digital Voice coder Type AMBE Receiver Digital Sensitivity 5% BER: 0.25 uV Analog Sensitivity 0.28 uV (12 dB SINAD) Intermodulation 65 dB Adjacent Channel Selectivity 60 dB Spurious Response Rejection 70 dB FM Noise -45 dB Audio Response +1/-3 dB Rated Audio Output Power 3W(loudspeaker) Maximum Audio Output Power 4.5W(loudspeaker) Audio Distortion 3 %(Typical) Conducted Spurious Emission -57dBm Positioning Accuracy Horizontal Accuracy≤10m (with well signal) TTFF (Time To First Fix) Cold Start < 1minuter(with well signal) TTFF (Time To First Fix) Hot Start < 1minuter(with well signal) Environmental Specifications Operating Temperature -20℃—+60℃ Storage Temperature -20℃—+70℃ Humidity MIL-STD-810G Vibration & Shock MIL-STD-810G
